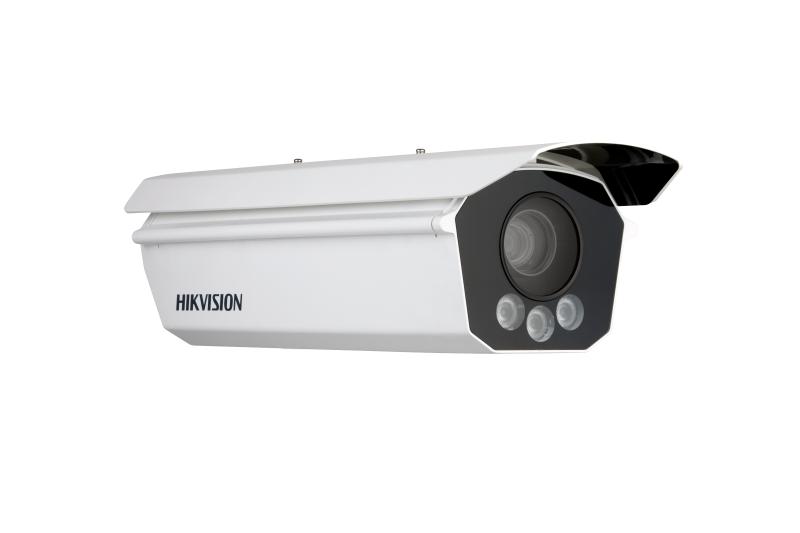

Hikvision iDS-TCVK00-HE

Artikul: 1b9ca6bf2ac5

20 MP nəzarət-buraxılış məntəqəsi kamerası

20 MP ayırdetmə qabiliyyəti (1.1”GMOS) ilə yüksək keyfiyyətli görüntüləmə
Əla zəif işıq performansı, Rəngli görüntü: 0.007 Lux @ (F1.4, AGC ON)
Səmərəli H.265 sıxılma texnologiyası
3D DNR texnologiyası təmiz və kəskin görüntülər təqdim edir
Nömrə nişanının tanınmasını (LPR) dəstəkləyir
Nəqliyyat vasitəsinin xüsusiyyətlərinin tanınması: nəqliyyat vasitəsinin növü / rəngi / istehsalçısı / nömrə nişanının rənginin tanınması, nömrəsiz nəqliyyat vasitəsinin qeydə alınması
Qayda pozuntularının aşkarlanması: zolaq xətti üzərində hərəkət, zolaq dəyişmə, əks istiqamətdə hərəkət, təhlükəsizlik kəməri və telefonla danışıq aşkarlanması.
Tətbiq ssenariləri: magistral yol, tunel, ödəniş məntəqəsi, şəhər yolu və s.

Texniki pasport

Sürətli çatdırılma

Bakıya – bu gün
Azərbaycan daxilində 1-2 gün

Rəsmi zəmanət

36 aya qədər
istehsalçıdan

100% orijinal

Hikvision-un rəsmi distribyutoru

Texniki dəstək

Avadanlıqların seçilməsi və qurulmasında köməklik

ədəd stokda

2 saata çatdırılma

Sorğu əsasında

Hissə-hissə alın

Partnyorlar üçün qiymət

Endirim tələb edin

Mütəxəssis köməyi

Müqayisə et

Avadanlıq seçməkdə çətinlik çəkirsiniz?

Camera
Image Sensor20 MP (1.1” GMOS)
Max. Resolution6112 × 3488
Min. IlluminationColor: 0.007 Lux @ (F1.4, AGC ON),B/W: 0.005 Lux @ (F1.4, AGC ON)
Shutter Time

25fps 10us-40000us,

30fps 10us-33333us
Day & NightIR cut filter

Lens
Focal Length & FOV11 to 40 mm, horizontal FOV 55.9° to 21.2°, vertical FOV 43.6° to 16.5°, diagonal FOV 71.2° to 27.2°
Focus Auto
ApertureF1.6

Illuminator
Built-in Supplement Light TypeWhite light
Light Bead3
Built-in Supplement Light RangeUp to 30 m
IR Wavelength850 nm
External Supplement LightStrobe and flash light

Video
Main Stream
50Hz:25fps(6112 × 3488, 4096 × 2160,3296 × 2472,3392 × 2008, 2560 × 1920, 2048 × 1536, 1920 × 1080, 1280 × 720)

60Hz:30fps(6112 × 3488, 4096 × 2160,3296 × 2472,3392 × 2008, 2560 × 1920, 2048 × 1536, 1920 × 1080, 1280 × 720)
Sub-Stream

50 Hz: 25 fps (3392 × 2008, 2688 × 1520, 1920 × 1080, 1280 × 720, 704 × 576)

60 Hz: 30 fps (3392 × 2008, 2688 × 1520, 1920 × 1080, 1280 × 720, 704 × 576)
Third Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576)

60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 576)
Video Compression Main stream: H.265/H.264/MJPEG,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseline profile/Main profile/High profile
H.265 TypeMain Profile

Network
ProtocolsTCP/IP,ICMP,HTTP,HTTPS,FTP,DNS,RTP,RTSP,RTCP,NTP,SNMP,802.1X,IPv4/IPv6,UDP,ISUP,ARP,IGMP
Simultaneous Live ViewUp to 10 channels
APIISAPI,SDK,ISUP,ONVIF (PROFILE S, PROFILE G, PROFILE T, PROFILE M),OTAP
User/Host
Up to 32 users

3 user levels: administrator, operator and user
SecurityPassword protection,Complicated password,HTTPS encryption,Control timeout settings,802.1X authentication (EAP-PEAP, EAP-LEAP, EAP-MD5),Basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for Open Network Video Interface
Network StorageMicro SD/TF card (512 GB),Local storage,CVR,NVR,ANR
ClientHik-Central Master,Hik-Central Pro,HikCentral Master Lite
Web BrowserChrome V61+, IE9 to IE11, Firefox V41+, Edge

Image SettingsSaturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser.
Day/Night SwitchAuto,Schedule,Manual
SNR60 dB
Image EnhancementBLC, HLC, 3D DNR

Interface
Ethernet Interface2 RJ45 10 M/100 M/1000M self-adaptive Ethernet port(s)
On-Board StorageBuilt-in memory card slot, supporting microSD/SDHC/SDXC card, up to up to 512 GB
Alarm 2 input interfaces (T1, SYNC), 7 output interfaces
RS-4853 RS-485 interfaces (half duplex, HIKVISION)
RS-2321 RS-232 interface
USB1 USB 2.0 interface

Event
Basic Event
HDD error,Network disconnected,IP address conflict,

Traffic light detector exception

Road Traffic and Vehicle Detection
CoverageUp to 4 lane(s)
Smart FunctionLicense plate recognition,Vehicle type classification,Vehicle color recognition,No-plate vehicle capture,Moving direction detection
LPR Countries/Regions
Middle East: The United Arab Emirates (Abu Dhabi, Ajman, Dubai, Fujairah, Ras Al Khaimah, Sharjah and Umm Al Quwain), Qatar, Iraq, Egypt, Jordan, Kuwait, Saudi Arabia, Pakistan, Oman, Lebanon, Bahrain,

Africa: Nigeria, Kenya, Ivory Coast , South Africa, Tanzania, Mauritius, Morocco, Tunisia, Sierra Leone, Zambia, Ghana, Zimbabwe, Uganda, Angola, Ethiopia, Senegal, Algeria,

Asia-Pacific: Australia, New Zealand, Indonesia, Malaysia, Singapore, South Korea, Thailand, Vietnam, the Philippines, Hong Kong, Macao, Taiwan, Myanmar, India, Mongolia, Cambodia, Laos, Bangladesh, Nepal, Sri Lanka,

America: Canada, Argentina, Chile, Paraguay, Uruguay, El Salvador, Bolivia, Colombia, Brazil, Ecuador, Peru, Mexico, Panama, Costa Rica, Trinidad and Tobago, the Dominican Republic, Guatemala,

Europe: Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, the Republic of North Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, the UK, Ireland, Germany, Italy, Austria, Israel, Palestinian, Belgium, Luxembourg, Albania, Kosovo, Serbia, Romania, Montenegro, Denmark, Finland, Sweden, Slovenia, Portugal, Malta, Cyprus, Iceland, Liechtenstein, Bosnia and Herzegovina,

Russian-Speaking Regions: Azerbaijan, Belarus, Kazakhstan, Lithuania, Georgia, Estonia, Latvia, Russia, Ukraine, Moldova, Uzbekistan, Kyrgyzstan, Armenia, Turkmenistan, Tajikistan
Trigger ModeExternal I/O trigger/Radar trigger/Video trigger
Vehicle TypeCar/Van/Bus/Truck/Light Truck/SUV_MPV/Pickup/Pedestrian/Motorcycle/Tricycle
Accuracy (Under recommended installation and lighting conditions)
Capture rate > 99%,

Vehicle moving direction recognition accuracy > 98.5%,

LPR accuracy > 98%,

Mistaken capture rate < 2%
No License Plate DetectionSupported
Motorcycle LPRSupported
Vehicle Color
Red, yellow, green, blue, pink, purple, cyan, brown, white, grey, black

Recognizable at daytime only.
Vehicle Manufacturer212 Manufacturers: AC SCHNITZER, AITO, APOLLO, Ashok Leyland, Audi, Aston Martin, Acura, Ankai, Ayvip, Alfa Romeo, Asiastar, Artega, ARCFOX, BAIC, Beiben Truck, BLUECAR, Bedford, Benz, BMW, BYD , Bufori, Buick, Bently, Brabus, Bugatti, Borgward, BONLUCK, Besturn, CADILLAC, Celis, Chevrolet, Citroen, Chery, Chrysler, Chang an, CNHTC, CHTC, Caterham, Conquest, C&C Trucks, CAMC, DAIHATSU, DMC, DS, Dacia, Dongnan, Dodge, Dongwo, Denza, Dongfeng, Daewoo, Dima, Denway, DORCEN, Eicher, Emgrand, Equss, EXEED, Ford, FORO, Fornasari, Ferrari, Fuqi, Fiat, Fisker, FQT Motor, Foton, FAW, FORLAND, FUSO, Force Motors, Fxauto, Faralli Mazzanti, GAC, Great Wall, GMC, Geely, Geometry, Hyundai, HENNESSEY, HINO, Honda, Haima, Haval, Hongqi, Isuzu, Infiniti, Iveco, IAT, IM, JAC, JBC, JEEP, Jaguar, JMC, JETOUR, JETTA, Joylong ,Koenigsegg, KIA , Kia-Borrego, King Long, Kama, KTM, LEVC, Lexus, Land Rover, Lincoln, Lamborghini, Lotus, Luxgen, Levdeo, Leopaard, Lynk & Co , Lada, Leading Ideal, LEAPMOTOR, LUMMA, Lorinser, Land Wind, MAN Trucks , MAXUS, MG, MINI, Mahindra, Mitsuoka, Maserati, Meiya , McLaren, Maybach, Mazda, Morgan, Mitsubishi, Mustang, Marvel R, Maple, MANSORY, Modern, NOMA, Nissan, Norinco, Neoplan, NIO, NETA, Opel, Ora, Oushang, Perodua, Porsche, Peugeot, PGO, Proton, Pagani, Polestar, POCCO, Qoros, RAM, Rolls-Royce, Renault, Roewe, Rohens, Ranz, Ruilan, Radar, Renault Samsung, SAAB, SCANIA , SCION, SMART, SML ISUZU, Suzuki, SAIC Datong, Subaru, Skoda, Startek, Soyat, Seat , SWM, Sany, SsangYong, Sojen, Silver, SATE, SOL, Skyworth, SGMW, SITECH DEV, TATA, Tankar, Tesla, Trumpchi, Techart, Toyota, UD, UAES, Volkswagen, VINFAST, Venucia, Volvo, VOYAH, VeiculoLongo, Weltmeister , XCMG, Xinyuan, XPENG, Yutong, YAMAHA, Zhonghua, Zotye, Zhinuo, ZEEKR, Zenvo
License Plate Color RecognitionCustomized
U-Turn Supported(only E-Police mode)
Red Light Running Supported(only E-Police mode)
Failing to Yield for Pedestrians Supported(only E-Police mode)
Stop Vehicle on Intersection Supported(only E-Police mode)
Not Following Directional Sign Supported(only E-Police mode)
Yellow Box Junction ViolationSupported (only E-Police mode)
Driving on Lane Line Detection

Supported
Lane Change Detection

Supported
Seatbelt DetectionSupported (with flash supplement light)
Phone Call DetectionSupported (with flash supplement light)
Vehicle Window FilmSupported (with flash supplement light)
Wrong-Way Driving DetectionSupported
Emergency Lane OccupationSupported (truck forbidden lane, emergency lane, urban bus lane)
Prohibition Mark ViolationSupported
SpeedingSupported (with Radar)
Low-SpeedSupported (with Radar)
Manned Non-Motor VehicleSupported
Without HelmetSupported
Capture Speed Range10 to 320 km/h

General
Operating SystemLinux
PowerAC 100 V to 240 V, 1.5 A, max. 35 W, 3-core terminal block
MaterialAluminum alloy
Dimension525.7 mm × 175.7 mm × 142.2 mm (20.7″ × 6.92″ × 5.6″) (L × W × H)
Package Dimension667 mm × 357 mm × 224 mm (26.26″ × 14.06″ × 8.82″) (L × W × H)
Weight Approx. 5.13x kg (11.31x lb.)
With Package WeightApprox. 7.4x kg (16.31x lb.)
Operating Condition-40 °C to 70 °C (-40 °F to 158°F). Humidity: 5% to 95% (non-condensing)
Storage Condition

-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 5% to 95% (non-condensing)
General FunctionPassword protection,Three streams,Heartbeat,Pixel counter
HeaterSupported
Language7 languages: English, Russian, Croatian, Korean, Spanish, Traditional Chinese, Ukrainian

Approval
EMCCE-EMC: EN 55032: 2015/A11:2020+A1:2020, EN IEC61000-3-2: 2019/A1:2021, EN 61000-3-3: 2013+A1:2019/A2:2021, EN 50130-4: 2011 +A1: 2014
SafetyCE-LVD: EN 62368-1: 2014/A11: 2017,CB: IEC 62368-1: 2014+A11,CB: IEC 62368-1: 2018+A11
EnvironmentCE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006
ProtectionIK10: IEC 62262:2002,IP66: IEC 60529-2013
