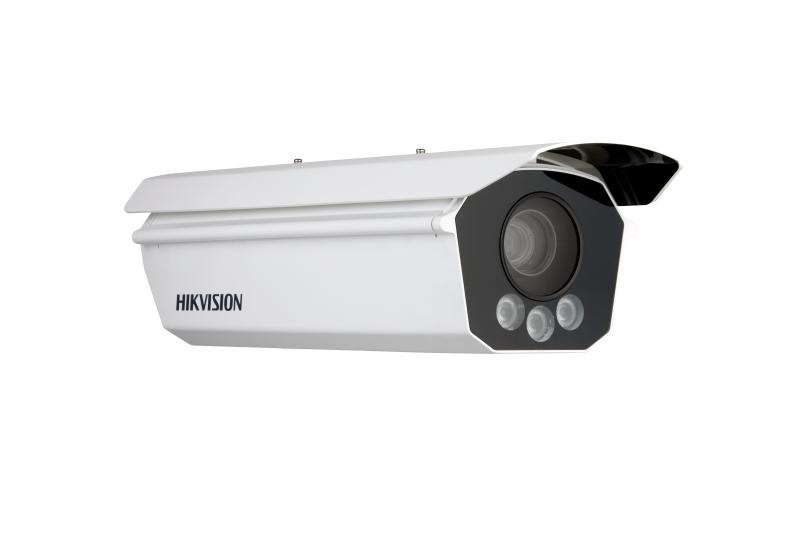

İkiqat 9 MP ANPR çoxfunksiyalı yol hərəkəti kamerası
İkiqat 9 MP ANPR çoxfunksiyalı yol hərəkəti kamerası
Sorğu əsasında
Qiymət sorğusu- Camera
- Image Sensor12 MP,1.1″ GMOS
- Max. Resolution4112 × 3072
- Min. Illumination
Color: 0.001 Lux @ (F1.4, AGC ON),
0 Lux with white light
- Shutter Time
25fps 10 us-40000 us,
30fps 10 us-30000 us
- Day & Night24/7 color imaging
- Lens
- Focal Length & FOV11 to 40 mm, horizontal FOV 55.9° to 21.2°, vertical FOV 33.0° to 12.5°, diagonal FOV 65.1° to 24.8°
- Focus Auto
- ApertureF1.6
- Illuminator
- Built-in Supplement Light TypeWhite light
- Light Bead3
- Built-in Supplement Light RangeUp to 30 m
- External Supplement LightStrobe and flash light
- Video
- Main Stream
50Hz: 25 fps (4112 × 3072, 3296 × 2472, 3392 × 2008, 2560 × 1920, 2048 × 1536, 1920 × 1080, 1600 × 1200, 1280 × 720)
60Hz: 30 fps (4112 × 3072, 3296 × 2472, 3392 × 2008, 2560 × 1920, 2048 × 1536, 1920 × 1080, 1600 × 1200, 1280 × 720)
- Sub-Stream
50 Hz: 25 fps (1920 × 1080, 1600 × 1200, 1280 × 720, 704 × 576)
60 Hz: 30 fps (1920 × 1080, 1600 × 1200, 1280 × 720, 704 × 576)
- Third Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576)
60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 576)
- Video Compression
Main stream: H.265/H.264/MJPEG,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 16 Mbps
- H.264 TypeBaseline profile/Main profile/High profile
- H.265 TypeMain Profile
- Network
- ProtocolsTCP/IP,ICMP,HTTP,HTTPS,FTP,DNS,RTP,RTSP,RTCP,NTP,SNMP,802.1X,IPv4/IPv6,UDP,ISUP,ARP,IGMP
- Simultaneous Live ViewUp to 10 channels
- APIISAPI,SDK,ISUP,ONVIF (PROFILE S, PROFILE G, PROFILE T, PROFILE M),OTAP
- User/HostUp to 32 users,3 user levels: administrator, operator, and user
- SecurityPassword protection,Complicated password,HTTPS encryption,Control timeout settings,802.1X authentication (EAP-PEAP, EAP-LEAP, EAP-MD5),Basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for Open Network Video Interface
- Network StorageMicro SD/TF card (512 GB),Local storage,CVR,NVR,ANR
- ClientHik-Central Master,Hik-Central Pro,HikCentral Master Lite
- Web BrowserChrome V61+, IE9 to IE11, Firefox V41+, Edge
- Image
- Image SettingsSaturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser.
- Day/Night SwitchAuto,Schedule,Manual
- SNR60 dB
- Image EnhancementBLC, HLC, 3D DNR
- Interface
- Ethernet Interface2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet interfaces
- On-Board StorageBuilt-in memory card slot, supporting microSD/SDHC/SDXC card, up to 512 GB
- Alarm 2 input interfaces (T1, SYNC), 7 output interfaces
- RS-4853 RS-485 interfaces (half duplex, HIKVISION)
- RS-2321 RS-232 interface
- USB1 USB 2.0 interface
- Event
- Basic Event
HDD error,Network disconnected,IP address conflict,
Vehicle detector exception, Traffic light detector exception
- Road Traffic and Vehicle Detection
- CoverageUp to 3 lane(s)
- Smart FunctionLicense plate recognition,Vehicle type classification,Vehicle color recognition,No-plate vehicle capture,Moving direction detection
- LPR Countries/Regions
Middle East: The United Arab Emirates (Abu Dhabi, Ajman, Dubai, Fujairah, Ras Al Khaimah, Sharjah and Umm Al Quwain), Qatar, Iraq, Egypt, Jordan, Kuwait, Saudi Arabia, Pakistan, Oman, Lebanon, Bahrain,
Africa: Nigeria, Kenya, Ivory Coast , South Africa, Tanzania, Mauritius, Morocco, Tunisia, Sierra Leone, Zambia, Ghana, Zimbabwe, Uganda, Angola, Ethiopia, Senegal, Algeria,
Asia-Pacific: Australia, New Zealand, Indonesia, Malaysia, Singapore, South Korea, Thailand, Vietnam, the Philippines, Hong Kong, Macao, Taiwan, Myanmar, India, Mongolia, Cambodia, Laos, Bangladesh, Nepal, Sri Lanka,
America: Canada, Argentina, Chile, Paraguay, Uruguay, El Salvador, Bolivia, Colombia, Brazil, Ecuador, Peru, Mexico, Panama, Costa Rica, Trinidad and Tobago, the Dominican Republic, Guatemala,
Europe: Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, the Republic of North Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, the UK, Ireland, Germany, Italy, Austria, Israel, Palestinian, Belgium, Luxembourg, Albania, Kosovo, Serbia, Romania, Montenegro, Denmark, Finland, Sweden, Slovenia, Portugal, Malta, Cyprus, Iceland, Liechtenstein, Bosnia and Herzegovina,
Russian-Speaking Regions: Azerbaijan, Belarus, Kazakhstan, Lithuania, Georgia, Estonia, Latvia, Russia, Ukraine, Moldova, Uzbekistan, Kyrgyzstan, Armenia, Turkmenistan, Tajikistan
- Trigger ModeExternal I/O trigger/Radar trigger/Video trigger
- Vehicle TypeCar/Van/Bus/Truck/Light Truck/SUV_MPV/Pickup/Pedestrian/Motorcycle/Tricycle
- Accuracy (Under recommended installation and lighting conditions)
Capture rate > 99%,
Vehicle moving direction recognition accuracy > 98.5%,
LPR accuracy > 98%,
Mistaken capture rate < 2%
- No License Plate DetectionSupported
- Motorcycle LPRSupported
- Vehicle Manufacturer212 Manufacturers: AC SCHNITZER, AITO, APOLLO, Ashok Leyland, Audi, Aston Martin, Acura, Ankai, Ayvip, Alfa Romeo, Asiastar, Artega, ARCFOX, BAIC, Beiben Truck, BLUECAR, Bedford, Benz, BMW, BYD , Bufori, Buick, Bently, Brabus, Bugatti, Borgward, BONLUCK, Besturn, CADILLAC, Celis, Chevrolet, Citroen, Chery, Chrysler, Chang an, CNHTC, CHTC, Caterham, Conquest, C&C Trucks, CAMC, DAIHATSU, DMC, DS, Dacia, Dongnan, Dodge, Dongwo, Denza, Dongfeng, Daewoo, Dima, Denway, DORCEN, Eicher, Emgrand, Equss, EXEED, Ford, FORO, Fornasari, Ferrari, Fuqi, Fiat, Fisker, FQT Motor, Foton, FAW, FORLAND, FUSO, Force Motors, Fxauto, Faralli Mazzanti, GAC, Great Wall, GMC, Geely, Geometry, Hyundai, HENNESSEY, HINO, Honda, Haima, Haval, Hongqi, Isuzu, Infiniti, Iveco, IAT, IM, JAC, JBC, JEEP, Jaguar, JMC, JETOUR, JETTA, Joylong ,Koenigsegg, KIA , Kia-Borrego, King Long, Kama, KTM, LEVC, Lexus, Land Rover, Lincoln, Lamborghini, Lotus, Luxgen, Levdeo, Leopaard, Lynk & Co , Lada, Leading Ideal, LEAPMOTOR, LUMMA, Lorinser, Land Wind, MAN Trucks , MAXUS, MG, MINI, Mahindra, Mitsuoka, Maserati, Meiya , McLaren, Maybach, Mazda, Morgan, Mitsubishi, Mustang, Marvel R, Maple, MANSORY, Modern, NOMA, Nissan, Norinco, Neoplan, NIO, NETA, Opel, Ora, Oushang, Perodua, Porsche, Peugeot, PGO, Proton, Pagani, Polestar, POCCO, Qoros, RAM, Rolls-Royce, Renault, Roewe, Rohens, Ranz, Ruilan, Radar, Renault Samsung, SAAB, SCANIA , SCION, SMART, SML ISUZU, Suzuki, SAIC Datong, Subaru, Skoda, Startek, Soyat, Seat , SWM, Sany, SsangYong, Sojen, Silver, SATE, SOL, Skyworth, SGMW, SITECH DEV, TATA, Tankar, Tesla, Trumpchi, Techart, Toyota, UD, UAES, Volkswagen, VINFAST, Venucia, Volvo, VOYAH, VeiculoLongo, Weltmeister , XCMG, Xinyuan, XPENG, Yutong, YAMAHA, Zhonghua, Zotye, Zhinuo, ZEEKR, Zenvo
- Vehicle Color
Red, yellow, green, blue, pink, purple, cyan, brown, white, grey, black
Recognizable at daytime only.
- License Plate Color RecognitionCustomized to support
- U-Turn Supported (only E-Police mode)
- Red Light Running Supported (only E-Police mode)
- Failing to Yield for Pedestrians Supported (only E-Police mode)
- Stop Vehicle on Intersection Supported (only E-Police mode)
- Not Following Directional Sign Supported (only E-Police mode)
- Driving on Lane Line Detection
Supported
- Lane Change Detection
Supported
- Yellow Box Junction ViolationSupported (only E-Police mode)
- Seatbelt DetectionSupported (with flash supplement light)
- Phone Call DetectionSupported (with flash supplement light)
- Vehicle Window FilmSupported (with flash supplement light)
- Wrong-Way Driving DetectionSupported
- Emergency Lane OccupationSupported (truck forbidden lane, emergency lane, urban bus lane)
- Prohibition Mark ViolationSupported
- SpeedingSupported (with Radar)
- Low-SpeedSupported (with Radar)
- Without HelmetSupported
- Manned Non-Motor VehicleSupported
- Capture Speed Range10 to 320 km/h
- General
- Operating SystemLinux
- PowerAC 100 V to 240 V, 1.5 A, max. 35 W, 3-core terminal block
- MaterialAluminum alloy
- Dimension501.0 mm × 175.6 mm × 144.6 mm (19.72″ × 6.92″ × 5.69″)
- Package Dimension667 mm × 357 mm × 224 mm (26.26″ × 14.06″ × 8.82″)
- Weight Approx. 5.13x kg (11.31x lb.)
- With Package WeightApprox. 7.4x kg (16.31x lb.)
- Operating Condition-40 °C to 70 °C (-40 °F to 158°F). Humidity: 5% to 95% (non-condensing)
- Storage Condition-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- General FunctionHeartbeat,Password protection,Three streams,Pixel counter
- HeaterSupported
- Language7 languages: English, Russian, Croatian, Korean, Spanish, Traditional Chinese, Ukrainian
- Approval
- EMCCE-EMC: EN 55032: 2015/A11:2020+A1:2020, EN IEC61000-3-2: 2019/A1:2021, EN 61000-3-3: 2013+A1:2019/A2:2021, EN 50130-4: 2011 +A1: 2014
- SafetyCB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017,CB: IEC 62368-1: 2018+A11
- EnvironmentCE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006
- ProtectionIK10: IEC 62262:2002,IP67: IEC 60529-2013
