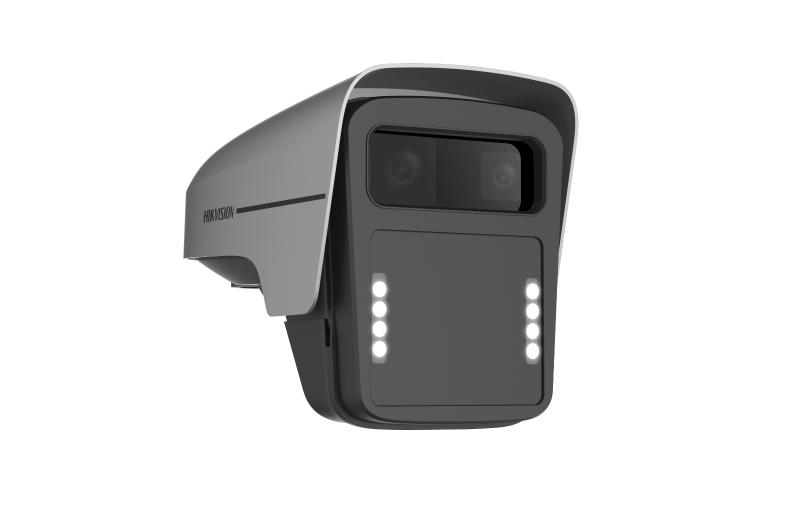

Hikvision iDS-TCV991-HIR

Yenilik

Artikul: 6580409bdfff

İkiqat 9 MP ANPR funksiyalı çoxistiqamətli nəqliyyat kamerası

9 MP ayırdetmə qabiliyyəti (1”GMOS*2) ilə yüksək keyfiyyətli, zəif işıqda görüntüləmə
Yüksək tezlik diapazonunda daxili millimetr dalğalı radar
Əla zəif işıq performansı, Rəngli: 0.001 Lux@(F1.4, AGC ON),B/W: 0.0005 Lux @ (F1.4, AGC ON),
Kamera, radar və əlavə işıqlandırmanı birləşdirən hamısı bir arada dizayn
Nəqliyyat vasitəsinin xüsusiyyətlərinin tanınmasını dəstəkləyir: nəqliyyat vasitəsinin tipi / rəngi / istehsalçısı / dövlət nömrə nişanının rənginin tanınması, nömrəsiz nəqliyyat vasitəsinin tutulması
Qayda pozuntularının aşkarlanması: zolaq xətti üzərində hərəkət, zolaq dəyişmə, əks istiqamətdə hərəkətin aşkarlanması.
Daxili deep learning alqoritmi ilə təchiz olunub, intellektual tanıma funksiyasını dəstəkləyir, dövlət nömrə nişanının tanınmasını (LPR) və hədəfin tam strukturlaşdırılmış analizini dəstəkləyir.
Kamera obyektiv bucağının tənzimlənməsini dəstəkləyir. Kanal 2: 50 mm, P: ± 6°,T±5°;

Texniki pasport

Sürətli çatdırılma

Bakıya – bu gün
Azərbaycan daxilində 1-2 gün

Rəsmi zəmanət

36 aya qədər
istehsalçıdan

100% orijinal

Hikvision-un rəsmi distribyutoru

Texniki dəstək

Avadanlıqların seçilməsi və qurulmasında köməklik

ədəd stokda

2 saata çatdırılma

Sorğu əsasında

Hissə-hissə alın

Partnyorlar üçün qiymət

Endirim tələb edin

Mütəxəssis köməyi

Müqayisə et

Avadanlıq seçməkdə çətinlik çəkirsiniz?

Camera
Image Sensor

1 GMOS *2″
Max. Resolution4096 × 2160
Min. Illumination
Color:0.001 Lux @ (F1.4, AGC ON),

B/W: 0.0005 Lux @ (F1.4, AGC ON),

0 Lux with IR
Shutter Time

54us-40000us
Day & NightIR cut filter

Lens
Lens Type

Channel 1: Fixed focal lens, 25 mm,

Channel 2: Fixed focal lens, 50 mm
Focal Length & FOV

Channel 1:horizontal FOV 32°, vertical FOV 16.8°, diagonal FOV 36.3°,

Channel 2:horizontal FOV 16.2°, vertical FOV 8.6°, diagonal FOV 18.2°
Focus Auto
Iris TypeFixed iris
Aperture

Channel 1: F1.6,

Channel 2: F1.4

Illuminator
Built-in Supplement Light TypeIR light
Light Bead8
IR Wavelength850 nm
Built-in Supplement Light Range for LPRUp to 50 m
External Supplement LightStrobe and flash light

Radar
Working Frequency24.05~24.25 GHz
Modulation WaveformFMCW
Detection Distance

100m
Speed Measuring Range 10 to 300 km/h
Max. Detectable TargetsUp to 32
Speed Measuring Accuracy± 2 km/h
Coverage LanesUp to 6 lane(s)
Trigger ModeApproaching direction,Leaving direction

Video
Main Stream

50 Hz: 25 fps (4096 × 2160, 3840 × 2160, 3392 × 2008, 3072 × 1728, 2688 × 1520, 1920× 1200, 1920 × 1080, 1280 × 720)

60 Hz: 24 fps (4096 × 2160, 3840 × 2160, 3392 × 2008, 3072 × 1728, 2688 × 1520, 1920× 1200, 1920 × 1080, 1280 × 720)
Sub-Stream

50Hz: 25 fps (3072 × 1728, 2688 × 1520, 1920 × 1200, 1920 × 1080, 1280 × 720, 704 × 576)

60 Hz: 24 fps (3072 × 1728, 2688 × 1520, 1920 × 1200, 1920 × 1080, 1280 × 720, 704 × 576)
Third Stream

50 Hz: 25 fps (1280 × 720, 704 × 576, 352 × 288)

60 Hz: 24 fps (1280 × 720, 704 × 576, 352 × 288)
Video Compression
Main stream: H.265/H.264/MJPEG,

Sub-stream: H.265/H.264/MJPEG,

Third stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseline Profile,Main Profile,High Profile
H.265 TypeMain Profile
Scalable Video Coding (SVC)H.264 and H.265 encoding

PTZ
PanChannel 2: ± 6°
TiltChannel 2: ± 5°

Network
ProtocolsTCP/IP,HTTP,HTTPS,DDNS,RTSP,NTP,FTP,SFTP,DHCP,DNS,RTP,IPv4/IPv6,UDP,SSL/TLS,ICMP,RTCP,SNMP,IGMP,802.1X,QoS,ISUP,ARP
Simultaneous Live ViewUp to 10 channels
APIISAPI,SDK,ISUP,ONVIF (PROFILE S, PROFILE G, PROFILE T, PROFILE M)
User/HostUp to 16 users,3 user levels: administrator, operator, and user
SecurityPassword protection,Complicated password,HTTPS encryption,Watermark,Basic and digest authentication for HTTP/HTTPS,RTP/RTSP over HTTPS,Control timeout settings,Security audit log,IP address filter,WSSE and digest authentication for ONVIF,Host authentication (MAC address)
Network StorageMicro SD/TF card (512 GB),Local storage,CVR,NVR,ANR
ClientHik-Central Master,Hik-Central Pro,Hik-Central Enterprise,HikCentral Master Lite
Web BrowserIE9 to IE11,Chrome V61+, IE9 to IE11, Firefox V41+, Edge

Image SettingsSaturation,Brightness,Contrast,Sharpness,AGC
Day/Night SwitchAuto,Schedule,Manual
SNR≥ 60 dB
Image EnhancementBLC,3D DNR

Interface
Ethernet Interface1 RJ45 10M/100M/1000M self-adaptive Ethernet port(s)
On-Board StorageBuilt-in memory card slot, supporting microSD/SDHC/SDXC card, up to 512 GB
Alarm

2 input interfaces(T1,SYNC),7 output interfaces
RS-4853 RS-485

Event
Basic Event

HDD Error, network disconnected, IP address conflicted

Road Traffic and Vehicle Detection
CoverageUp to 6 lane(s)
Trigger ModeVideo trigger
Smart Function
No-plate vehicle capture,

Moving direction detection,

Motorcycle helmet detection,

Manned motorcycle detection,

License plate recognition,

Vehicle type classification,

Vehicle color recognition,

Congestion,

Stopped Vehicle,

Construction,

Fallen Object
LPR Countries/Regions
Middle East: The United Arab Emirates (Abu Dhabi, Ajman, Dubai, Fujairah, Ras Al Khaimah, Sharjah and Umm Al Quwain), Qatar, Iraq, Egypt, Jordan, Kuwait, Saudi Arabia, Pakistan, Oman, Lebanon, Bahrain,

Africa: Nigeria, Kenya, Ivory Coast , South Africa, Tanzania, Mauritius, Morocco, Tunisia, Sierra Leone, Zambia, Ghana, Zimbabwe, Uganda, Angola, Ethiopia, Senegal, Algeria,

Asia-Pacific: Australia, New Zealand, Indonesia, Malaysia, Singapore, South Korea, Thailand, Vietnam, the Philippines, Hong Kong, Macao, Taiwan, Myanmar, India, Mongolia, Cambodia, Laos, Bangladesh, Nepal, Sri Lanka,

America: Canada, Argentina, Chile, Paraguay, Uruguay, El Salvador, Bolivia, Colombia, Brazil, Ecuador, Peru, Mexico, Panama, Costa Rica, Trinidad and Tobago, the Dominican Republic, Guatemala,

Europe: Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, the Republic of North Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, the UK, Ireland, Germany, Italy, Austria, Israel, Palestinian, Belgium, Luxembourg, Albania, Kosovo, Serbia, Romania, Montenegro, Denmark, Finland, Sweden, Slovenia, Portugal, Malta, Cyprus, Iceland, Liechtenstein, Bosnia and Herzegovina,

Russian-Speaking Regions: Azerbaijan, Belarus, Kazakhstan, Lithuania, Georgia, Estonia, Latvia, Russia, Ukraine, Moldova, Uzbekistan, Kyrgyzstan, Armenia, Turkmenistan, Tajikistan
Vehicle Manufacturer212 Manufacturers: AC SCHNITZER, AITO, APOLLO, Ashok Leyland, Audi, Aston Martin, Acura, Ankai, Ayvip, Alfa Romeo, Asiastar, Artega, ARCFOX, BAIC, Beiben Truck, BLUECAR, Bedford, Benz, BMW, BYD , Bufori, Buick, Bently, Brabus, Bugatti, Borgward, BONLUCK, Besturn, CADILLAC, Celis, Chevrolet, Citroen, Chery, Chrysler, Chang an, CNHTC, CHTC, Caterham, Conquest, C&C Trucks, CAMC, DAIHATSU, DMC, DS, Dacia, Dongnan, Dodge, Dongwo, Denza, Dongfeng, Daewoo, Dima, Denway, DORCEN, Eicher, Emgrand, Equss, EXEED, Ford, FORO, Fornasari, Ferrari, Fuqi, Fiat, Fisker, FQT Motor, Foton, FAW, FORLAND, FUSO, Force Motors, Fxauto, Faralli Mazzanti, GAC, Great Wall, GMC, Geely, Geometry, Hyundai, HENNESSEY, HINO, Honda, Haima, Haval, Hongqi, Isuzu, Infiniti, Iveco, IAT, IM, JAC, JBC, JEEP, Jaguar, JMC, JETOUR, JETTA, Joylong ,Koenigsegg, KIA , Kia-Borrego, King Long, Kama, KTM, LEVC, Lexus, Land Rover, Lincoln, Lamborghini, Lotus, Luxgen, Levdeo, Leopaard, Lynk & Co , Lada, Leading Ideal, LEAPMOTOR, LUMMA, Lorinser, Land Wind, MAN Trucks , MAXUS, MG, MINI, Mahindra, Mitsuoka, Maserati, Meiya , McLaren, Maybach, Mazda, Morgan, Mitsubishi, Mustang, Marvel R, Maple, MANSORY, Modern, NOMA, Nissan, Norinco, Neoplan, NIO, NETA, Opel, Ora, Oushang, Perodua, Porsche, Peugeot, PGO, Proton, Pagani, Polestar, POCCO, Qoros, RAM, Rolls-Royce, Renault, Roewe, Rohens, Ranz, Ruilan, Radar, Renault Samsung, SAAB, SCANIA , SCION, SMART, SML ISUZU, Suzuki, SAIC Datong, Subaru, Skoda, Startek, Soyat, Seat , SWM, Sany, SsangYong, Sojen, Silver, SATE, SOL, Skyworth, SGMW, SITECH DEV, TATA, Tankar, Tesla, Trumpchi, Techart, Toyota, UD, UAES, Volkswagen, VINFAST, Venucia, Volvo, VOYAH, VeiculoLongo, Weltmeister , XCMG, Xinyuan, XPENG, Yutong, YAMAHA, Zhonghua, Zotye, Zhinuo, ZEEKR, Zenvo
Accuracy (Under recommended installation and lighting conditions)
Capture rate > 99%,

Vehicle moving direction recognition accuracy > 98.5%,

LPR accuracy > 98%,

Mistaken capture rate < 2%
Motorcycle LPRSupported
Driving on Lane Line Detection

Supported
Lane Change Detection

Supported
Wrong-Way Driving DetectionSupported
Emergency Lane OccupationSupported (truck forbidden lane, emergency lane, urban bus lane)
Capture Speed Range10 to 300 km/h
SpeedingSupported
Low-SpeedSupported

General
Operating SystemLinux
PowerDC 36 V ± 20%, 1.67 A, max. 60 W, 2-core terminal block
Material

Aluminum alloy
Dimension378.5 mm × 202.9 mm × 257.7 mm (14.90″ × 7.99″ × 10.15″) (L × W × H)
Package Dimension530 mm × 480 mm × 365 mm (20.87″ × 18.9″ × 14.37″) (L × W × H)
Weight Approx. 6.64 kg (14.64 lb.)
With Package WeightApprox. 11.3 kg (24.91 lb.)
Operating Condition-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Storage Condition-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (Non-condensing)
General Function

Heartbeat, Password protection, NTP time adjustment, One-key reset
Language8 languages: English, Russian, Croatian, Korean, Russian, Traditional Chinese, Ukrainian, Spanish
