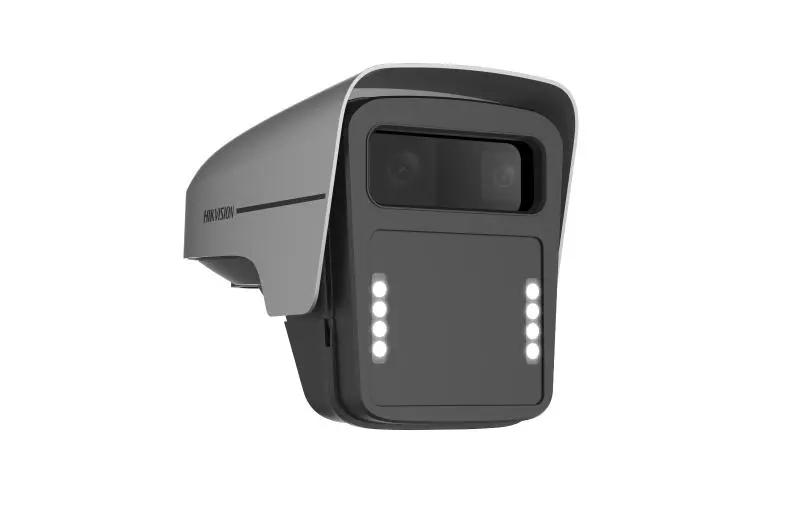

İkiqat 9 MP ANPR funksiyalı çoxistiqamətli nəqliyyat kamerası
İkiqat 9 MP ANPR funksiyalı çoxistiqamətli nəqliyyat kamerası
Sorğu əsasında
Qiymət sorğusu- Camera
- Image Sensor
1 GMOS *2″
- Max. Resolution4096 × 2160
- Min. IlluminationColor: 0.001 Lux @ (F1.4, AGC ON),B/W: 0 Lux with white light
- Shutter Time
54 us-40000 us
- Lens
- Lens Type
Channel 1: Fixed focal lens, 25 mm,
Channel 2: Fixed focal lens, 50 mm
- Focal Length & FOV
Channel 1:horizontal FOV 32°, vertical FOV 16.8°, diagonal FOV 36.3°,
Channel 2:horizontal FOV 16.2°, vertical FOV 8.6°, diagonal FOV 18.2°
- Focus Auto
- Iris TypeFixed iris
- Aperture
Channel 1: F1.6,
Channel 2: F1.4
- Illuminator
- Built-in Supplement Light TypeWhite light
- Light Bead8
- Built-in Supplement Light Range for LPRUp to 50 m
- External Supplement LightStrobe and flash light
- Radar
- Working Frequency24.05 to 24.25 GHz
- Modulation WaveformFMCW
- Detection Distance
100m
- Speed Measuring Range 10 to 300 km/h
- Max. Detectable TargetsUp to 32
- Speed Measuring Accuracy± 2 km/h
- Coverage LanesUp to 6 lane(s)
- Trigger ModeApproaching direction,Leaving direction
- Video
- Main Stream
50 Hz: 25 fps (4096 × 2160, 3840 × 2160, 3392 × 2008, 3072 × 1728, 2688 × 1520, 1920× 1200, 1920 × 1080, 1280 × 720)
60 Hz: 24 fps (4096 × 2160, 3840 × 2160, 3392 × 2008, 3072 × 1728, 2688 × 1520, 1920× 1200, 1920 × 1080, 1280 × 720)
- Sub-Stream
50Hz: 25 fps (3072 × 1728, 2688 × 1520, 1920 × 1200, 1920 × 1080, 1280 × 720, 704 × 576)
60 Hz: 24 fps (3072 × 1728, 2688 × 1520, 1920 × 1200, 1920 × 1080, 1280 × 720, 704 × 576)
- Third Stream
50 Hz: 25 fps (1280 × 720, 704 × 576, 352 × 288)
60 Hz: 24 fps (1280 × 720, 704 × 576, 352 × 288)
- Video Compression
Main stream: H.265/H.264/MJPEG,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 16 Mbps
- H.264 TypeBaseline Profile,Main Profile,High Profile
- H.265 TypeMain Profile
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- PTZ
- PanChannel 2: ± 6°
- TiltChannel 2: ± 5°
- Network
- ProtocolsTCP/IP,HTTP,HTTPS,DDNS,RTSP,NTP,FTP,SFTP,DHCP,DNS,RTP,IPv4/IPv6,UDP,SSL/TLS,ICMP,RTCP,SNMP,IGMP,802.1X,QoS,ISUP,ARP
- Simultaneous Live ViewUp to 10 channels
- APIISAPI,SDK,ISUP,ONVIF (PROFILE S, PROFILE G, PROFILE T, PROFILE M)
- User/HostUp to 16 users,3 user levels: administrator, operator, and user
- SecurityPassword protection,Complicated password,HTTPS encryption,Watermark,Basic and digest authentication for HTTP/HTTPS,RTP/RTSP over HTTPS,Control timeout settings,Security audit log,IP address filter,WSSE and digest authentication for ONVIF,Host authentication (MAC address)
- Network StorageMicro SD/TF card (512 GB),Local storage,CVR,NVR,ANR
- ClientHik-Central Master,Hik-Central Pro,HikCentral Master Lite
- Web BrowserIE9 to IE11,Chrome V61+, IE9 to IE11, Firefox V41+, Edge
- Image
- Image SettingsSaturation,Brightness,Contrast,Sharpness,AGC
- Day/Night SwitchAuto,Schedule,Manual
- SNR≥ 60 dB
- Image EnhancementBLC,3D DNR
- Interface
- Ethernet Interface1 RJ45 10M/100M/1000M self-adaptive Ethernet port(s)
- On-Board StorageBuilt-in memory card slot, supporting micro SD/SDHC/SDXC card, up to 512 GB
- Alarm
2 input interfaces (T1, SYNC), 7 output interfaces
- RS-4853 RS-485
- Event
- Basic Event
HDD Error, network disconnected, IP address conflicted
- Road Traffic and Vehicle Detection
- CoverageUp to 6 lane(s)
- Trigger ModeVideo trigger
- Smart Function
No-plate vehicle capture,
Moving direction detection,
Motorcycle helmet detection,
Manned motorcycle detection,
License plate recognition,
Vehicle color recognition,
Vehicle type classification,
Congestion,
Stopped Vehicle,
Construction,
Fallen Object
- LPR Countries/Regions
Middle East: The United Arab Emirates (Abu Dhabi, Ajman, Dubai, Fujairah, Ras Al Khaimah, Sharjah and Umm Al Quwain), Qatar, Iraq, Egypt, Jordan, Kuwait, Saudi Arabia, Pakistan, Oman, Lebanon, Bahrain,
Africa: Nigeria, Kenya, Ivory Coast , South Africa, Tanzania, Mauritius, Morocco, Tunisia, Sierra Leone, Zambia, Ghana, Zimbabwe, Uganda, Angola, Ethiopia, Senegal, Algeria,
Asia-Pacific: Australia, New Zealand, Indonesia, Malaysia, Singapore, South Korea, Thailand, Vietnam, the Philippines, Hong Kong, Macao, Taiwan, Myanmar, India, Mongolia, Cambodia, Laos, Bangladesh, Nepal, Sri Lanka,
America: Canada, Argentina, Chile, Paraguay, Uruguay, El Salvador, Bolivia, Colombia, Brazil, Ecuador, Peru, Mexico, Panama, Costa Rica, Trinidad and Tobago, the Dominican Republic, Guatemala,
Europe: Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, the Republic of North Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, the UK, Ireland, Germany, Italy, Austria, Israel, Palestinian, Belgium, Luxembourg, Albania, Kosovo, Serbia, Romania, Montenegro, Denmark, Finland, Sweden, Slovenia, Portugal, Malta, Cyprus, Iceland, Liechtenstein, Bosnia and Herzegovina,
Russian-Speaking Regions: Azerbaijan, Belarus, Kazakhstan, Lithuania, Georgia, Estonia, Latvia, Russia, Ukraine, Moldova, Uzbekistan, Kyrgyzstan, Armenia, Turkmenistan, Tajikistan
- Vehicle Manufacturer 212 Manufacturers: AC SCHNITZER, AITO, APOLLO, Ashok Leyland, Audi, Aston Martin, Acura, Ankai, Ayvip, Alfa Romeo, Asiastar, Artega, ARCFOX, BAIC, Beiben Truck, BLUECAR, Bedford, Benz, BMW, BYD , Bufori, Buick, Bently, Brabus, Bugatti, Borgward, BONLUCK, Besturn, CADILLAC, Celis, Chevrolet, Citroen, Chery, Chrysler, Chang an, CNHTC, CHTC, Caterham, Conquest, C&C Trucks, CAMC, DAIHATSU, DMC, DS, Dacia, Dongnan, Dodge, Dongwo, Denza, Dongfeng, Daewoo, Dima, Denway, DORCEN, Eicher, Emgrand, Equss, EXEED, Ford, FORO, Fornasari, Ferrari, Fuqi, Fiat, Fisker, FQT Motor, Foton, FAW, FORLAND, FUSO, Force Motors, Fxauto, Faralli Mazzanti, GAC, Great Wall, GMC, Geely, Geometry, Hyundai, HENNESSEY, HINO, Honda, Haima, Haval, Hongqi, Isuzu, Infiniti, Iveco, IAT, IM, JAC, JBC, JEEP, Jaguar, JMC, JETOUR, JETTA, Joylong ,Koenigsegg, KIA , Kia-Borrego, King Long, Kama, KTM, LEVC, Lexus, Land Rover, Lincoln, Lamborghini, Lotus, Luxgen, Levdeo, Leopaard, Lynk & Co , Lada, Leading Ideal, LEAPMOTOR, LUMMA, Lorinser, Land Wind, MAN Trucks , MAXUS, MG, MINI, Mahindra, Mitsuoka, Maserati, Meiya , McLaren, Maybach, Mazda, Morgan, Mitsubishi, Mustang, Marvel R, Maple, MANSORY, Modern, NOMA, Nissan, Norinco, Neoplan, NIO, NETA, Opel, Ora, Oushang, Perodua, Porsche, Peugeot, PGO, Proton, Pagani, Polestar, POCCO, Qoros, RAM, Rolls-Royce, Renault, Roewe, Rohens, Ranz, Ruilan, Radar, Renault Samsung, SAAB, SCANIA , SCION, SMART, SML ISUZU, Suzuki, SAIC Datong, Subaru, Skoda, Startek, Soyat, Seat , SWM, Sany, SsangYong, Sojen, Silver, SATE, SOL, Skyworth, SGMW, SITECH DEV, TATA, Tankar, Tesla, Trumpchi, Techart, Toyota, UD, UAES, Volkswagen, VINFAST, Venucia, Volvo, VOYAH, VeiculoLongo, Weltmeister , XCMG, Xinyuan, XPENG, Yutong, YAMAHA, Zhonghua, Zotye, Zhinuo, ZEEKR, Zenvo
- Accuracy (Under recommended installation and lighting conditions)
Capture rate > 99%,
Vehicle moving direction recognition accuracy > 98.5%,
LPR accuracy > 98%,
Mistaken capture rate < 2%
- Motorcycle LPRSupported
- Driving on Lane Line Detection
Supported
- Lane Change Detection
Supported
- Wrong-Way Driving DetectionSupported
- Emergency Lane Occupation
Supported
- Capture Speed Range10 to 300 km/h
- SpeedingSupported
- Low-SpeedSupported
- General
- Operating SystemLinux
- PowerDC 36 V ± 20%, 1.67 A, max. 60 W, 2-core terminal block
- Material
Aluminum alloy
- Dimension378.5 mm × 202.9 mm × 257.7 mm (14.90″ × 7.99″ × 10.15″) (L × W × H)
- Package Dimension530 mm × 480 mm × 365 mm (20.86″ × 18.89″ × 14.37″) (L × W × H)
- Weight Approx. 6.64 kg (14.64 lb.)
- With Package WeightApprox. 11.24 kg (24.78 lb.)
- Operating Condition-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Storage Condition-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (Non-condensing)
- General Function
Heartbeat, Password protection, NTP time adjustment, One-key reset
- Language8 languages: English, Russian, Croatian, Korean, Russian, Traditional Chinese, Ukrainian, Spanish
