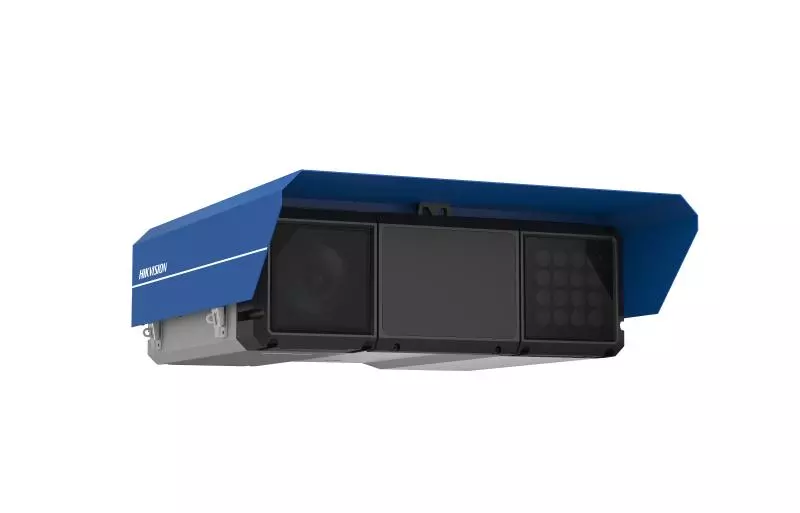

İkiqat 9 MP ANPR çoxfunksiyalı yol hərəkəti kamerası
İkiqat 9 MP ANPR çoxfunksiyalı yol hərəkəti kamerası
Sorğu əsasında
Qiymət sorğusu- Camera
- Image Sensor20 MP (1.1” GMOS)
- Max. Resolution6112 ×3488
- Min. IlluminationColor: 0.007 Lux@(F1.4, AGC ON), 0.005 Lux @ (F1.4, AGC ON)，0 Lux with IR
- Shutter Time25fps 10us-40000us;30fps 10us-33333us
- Day & NightIR cut filter
- Lens
- Lens Type
Varifocal lens, motorized lens, 11 to 40 mm
- Focal Length & FOV11 to 40 mm, horizontal FOV 55.9° to 21.2°, vertical FOV 43.6° to 16.5°, diagonal FOV 71.2° to 27.2°
- Focus Auto
- ApertureF1.6
- Illuminator
- Built-in Supplement Light TypeIR light
- Light Bead16
- Built-in Supplement Light RangeUp to 40 m
- IR Wavelength850 nm
- External Supplement LightStrobe and flash light
- Radar
- Working Frequency24.05 to 24.25 GHz
- Modulation WaveformFMCW
- Detection Distance100 m
- Speed Measuring Range 10 to 320 km/h
- Max. Detectable TargetsUp to 32
- Speed Measuring Accuracy± 2 km/h
- Coverage LanesUp to 4 lane(s)
- Capture Rate≥ 95%
- Trigger ModeApproaching direction,Leaving direction,Bidrection
- Antenna Beam Width35° × 16°
- Video
- Main Stream
50Hz:25fps(6112 × 3488, 4096 × 2160,3296 × 2472,3392 × 2008, 2560 × 1920, 2048 × 1536, 1920 × 1080, 1280 × 720)
60Hz:30fps(6112 × 3488, 4096 × 2160,3296 × 2472,3392 × 2008, 2560 × 1920, 2048 × 1536, 1920 × 1080, 1280 × 720
- Sub-Stream
50 Hz: 25 fps (3392 × 2008, 2688 × 1520, 1920 × 1080, 1280 × 720, 704 × 576)
60 Hz: 30 fps (3392 × 2008, 2688 × 1520, 1920 × 1080, 1280 × 720, 704 × 576)
- Third Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576)
60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 576)
- Video Compression
Main stream: H.265/H.264/MJPEG,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 16 Mbps
- H.264 TypeBaseline profile/Main profile/High profile
- H.265 TypeMain profile
- Network
- ProtocolsTCP/IP,ICMP,HTTP,HTTPS,FTP,DNS,RTP,RTSP,RTCP,NTP,SNMP,IGMP,UDP,IPv4/IPv6,ISUP,ARP,DHCP,802.1X
- Simultaneous Live ViewUp to 10 channels
- APIISAPI,SDK,ISUP,ONVIF (PROFILE S, PROFILE G, PROFILE T, PROFILE M),OTAP
- User/Host
Up to 32 users
3 user levels: administrator, operator and user
- SecurityPassword protection,Complicated password,HTTPS encryption,802.1X authentication (EAP-PEAP, EAP-LEAP, EAP-MD5),Basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for ONVIF,Control timeout settings
- Network StorageMicro SD/TF card (512 GB),Local storage,CVR,NVR,ANR
- ClientHik-Central Master,Hik-Central Pro,HikCentral Master Lite
- Web BrowserChrome V61+, IE9 to IE11, Firefox V41+, Edge
- Image
- Image SettingsSaturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser.
- Day/Night SwitchAuto/Scheduled/Triggered by alarm in
- SNR60 dB
- Image EnhancementBLC, HLC, 3D DNR
- Supplement Detection (Satellite Positioning)
- Satellite PositioningOptional
- Interface
- Ethernet Interface1 RJ45 10M/100M/1000M self-adaptive Ethernet interface
- On-Board StorageBuilt-in memory card slot, supporting microSD/SDHC/SDXC card card, up to 512 GB
- Alarm 6 output interfaces
- RS-4851 RS-485 interface
- Event
- Basic EventHDD Error, network disconnected, IP address conflicted, vehicle detector exception, traffic light detector exception
- Road Traffic and Vehicle Detection
- CoverageUp to 4 lane(s)
- Smart Function
License plate recognition
Vehicle type classification, vehicle color recognition, no-plate vehicle capture, moving direction detection
- LPR Countries/Regions
Middle East: The United Arab Emirates (Abu Dhabi, Ajman, Dubai, Fujairah, Ras Al Khaimah, Sharjah and Umm Al Quwain), Qatar, Iraq, Egypt, Jordan, Kuwait, Saudi Arabia, Pakistan, Oman, Lebanon, Bahrain,
Africa: Nigeria, Kenya, Ivory Coast , South Africa, Tanzania, Mauritius, Morocco, Tunisia, Sierra Leone, Zambia, Ghana, Zimbabwe, Uganda, Angola, Ethiopia, Senegal, Algeria,
Asia-Pacific: Australia, New Zealand, Indonesia, Malaysia, Singapore, South Korea, Thailand, Vietnam, the Philippines, Hong Kong, Macao, Taiwan, Myanmar, India, Mongolia, Cambodia, Laos, Bangladesh, Nepal, Sri Lanka,
America: Canada, Argentina, Chile, Paraguay, Uruguay, El Salvador, Bolivia, Colombia, Brazil, Ecuador, Peru, Mexico, Panama, Costa Rica, Trinidad and Tobago, the Dominican Republic, Guatemala,
Europe: Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, the Republic of North Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, the UK, Ireland, Germany, Italy, Austria, Israel, Palestinian, Belgium, Luxembourg, Albania, Kosovo, Serbia, Romania, Montenegro, Denmark, Finland, Sweden, Slovenia, Portugal, Malta, Cyprus, Iceland, Liechtenstein, Bosnia and Herzegovina,
Russian-Speaking Regions: Azerbaijan, Belarus, Kazakhstan, Lithuania, Georgia, Estonia, Latvia, Russia, Ukraine, Moldova, Uzbekistan, Kyrgyzstan, Armenia, Turkmenistan, Tajikistan
- Trigger ModeExternal I/O trigger/Radar trigger/Video trigger
- Vehicle TypeCar/Van/Bus/Truck/Light Truck/SUV_MPV/Pickup/Pedestrian/Motorcycle/Tricycle
- Accuracy (Under recommended installation and lighting conditions)
Capture rate > 99%,
Vehicle moving direction recognition accuracy > 98.5%,
LPR accuracy > 98%,
Mistaken capture rate < 2%
- Motorcycle LPRSupported
- No License Plate DetectionSupported
- Vehicle Color
Red, yellow, green, blue, pink, purple, cyan, brown, white, grey, black
Recognizable at daytime only.
- Vehicle Manufacturer212 Manufacturers: AC SCHNITZER, AITO, APOLLO, Ashok Leyland, Audi, Aston Martin, Acura, Ankai, Ayvip, Alfa Romeo, Asiastar, Artega, ARCFOX, BAIC, Beiben Truck, BLUECAR, Bedford, Benz, BMW, BYD , Bufori, Buick, Bently, Brabus, Bugatti, Borgward, BONLUCK, Besturn, CADILLAC, Celis, Chevrolet, Citroen, Chery, Chrysler, Chang an, CNHTC, CHTC, Caterham, Conquest, C&C Trucks, CAMC, DAIHATSU, DMC, DS, Dacia, Dongnan, Dodge, Dongwo, Denza, Dongfeng, Daewoo, Dima, Denway, DORCEN, Eicher, Emgrand, Equss, EXEED, Ford, FORO, Fornasari, Ferrari, Fuqi, Fiat, Fisker, FQT Motor, Foton, FAW, FORLAND, FUSO, Force Motors, Fxauto, Faralli Mazzanti, GAC, Great Wall, GMC, Geely, Geometry, Hyundai, HENNESSEY, HINO, Honda, Haima, Haval, Hongqi, Isuzu, Infiniti, Iveco, IAT, IM, JAC, JBC, JEEP, Jaguar, JMC, JETOUR, JETTA, Joylong ,Koenigsegg, KIA , Kia-Borrego, King Long, Kama, KTM, LEVC, Lexus, Land Rover, Lincoln, Lamborghini, Lotus, Luxgen, Levdeo, Leopaard, Lynk & Co , Lada, Leading Ideal, LEAPMOTOR, LUMMA, Lorinser, Land Wind, MAN Trucks , MAXUS, MG, MINI, Mahindra, Mitsuoka, Maserati, Meiya , McLaren, Maybach, Mazda, Morgan, Mitsubishi, Mustang, Marvel R, Maple, MANSORY, Modern, NOMA, Nissan, Norinco, Neoplan, NIO, NETA, Opel, Ora, Oushang, Perodua, Porsche, Peugeot, PGO, Proton, Pagani, Polestar, POCCO, Qoros, RAM, Rolls-Royce, Renault, Roewe, Rohens, Ranz, Ruilan, Radar, Renault Samsung, SAAB, SCANIA , SCION, SMART, SML ISUZU, Suzuki, SAIC Datong, Subaru, Skoda, Startek, Soyat, Seat , SWM, Sany, SsangYong, Sojen, Silver, SATE, SOL, Skyworth, SGMW, SITECH DEV, TATA, Tankar, Tesla, Trumpchi, Techart, Toyota, UD, UAES, Volkswagen, VINFAST, Venucia, Volvo, VOYAH, VeiculoLongo, Weltmeister , XCMG, Xinyuan, XPENG, Yutong, YAMAHA, Zhonghua, Zotye, Zhinuo, ZEEKR, Zenvo
- License Plate Color RecognitionCustomized to support
- U-Turn Support (Only E-Police mode)
- Red Light Running Support (Only E-Police mode)
- Failing to Yield for Pedestrians Support (Only E-Police mode)
- Stop Vehicle on Intersection Support (Only E-Police mode)
- Not Following Directional Sign Support (Only E-Police mode)
- Yellow Box Junction ViolationSupported (only E-Police mode)
- Driving on Lane Line DetectionSupported
- Lane Change Detection
Supported
- Seatbelt DetectionSupported (with flash supplement light)
- Phone Call DetectionSupported (with flash supplement light)
- Vehicle Window FilmSupported (with flash supplement light)
- Wrong-Way Driving DetectionSupported
- Emergency Lane OccupationSupported (truck forbidden lane, emergency lane, urban bus lane)
- Prohibition Mark ViolationSupported
- SpeedingSupported (with Radar)
- Low-SpeedSupported (with Radar)
- Without HelmetSupported
- Manned Non-Motor VehicleSupported
- Capture Speed Range10 to 320 km/h
- General
- Operating SystemLinux
- PowerDC 36 V ±20%, 2 A, max. 70 W, two-core terminal block
- MaterialAluminum alloy
- Dimension457 mm × 396 mm × 139.15 mm (17.99″ × 15.59″ × 5.48″) (L × W × H)
- Package Dimension535 mm × 500 mm × 360 mm (21.06″ × 19.68″ × 14.17″) (L × W × H)
- Weight Approx. 8.13 kg (17.9 lb.)
- With Package WeightApprox. 13.72 kg (30.2 lb.)
- Operating Condition-30 °C to 70 °C (-22 °F to 158 °F). Humidity: 5% to 95% (non-condensing)
- Storage Condition
-30 °C to 70 °C (-22 °F to 158 °F). Humidity: 5% to 95% (non-condensing)
- General FunctionOne-key reset, three streams, heartbeat, password protection, watermark
- Language8 languages: English, Russian, Croatian, Korean, Russian, Traditional Chinese, Ukrainian, Spanish
- Approval
- EMCCE-EMC: EN 55032: 2015/A11:2020+A1:2020, EN IEC61000-3-2: 2019/A1:2021, EN 61000-3-3: 2013+A1:2019/A2:2021, EN 50130-4: 2011 +A1: 2014
- RF
CE-RED: EN 61000-3-3: 2013+ A1:2019+A2:2021, EN IEC 61000-3-2: 2019+A1:2021, EN 301 489-1 V2.2.3, EN 301 489-3 V2.3.2, EN 300 440 V2.1.1, EN 305 550-2 V2.1.0
- SafetyCB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017,CB: IEC 62368-1: 2018+A11
- EnvironmentCE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006
