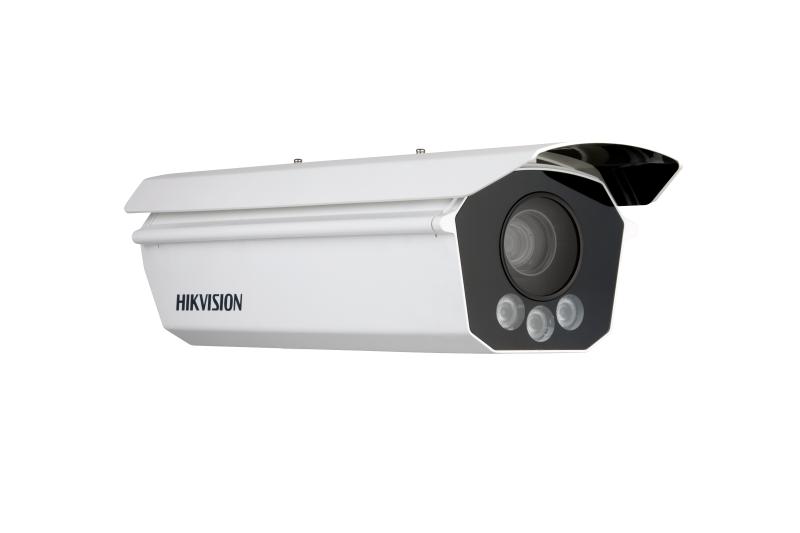

Hikvision iDS-TCV500-HE

Artikul: f342a0f2ceb6

5 MP nəzarət-buraxılış məntəqəsi kamerası

5 MP ayırdetmə qabiliyyəti (2/3”GMOS) ilə yüksək keyfiyyətli görüntüləmə
Əla zəif işıq performansı, Rəngli: 0.001 Lux@(F1.4, AGC ON)
Səmərəli H.265 sıxılma texnologiyası
3D DNR texnologiyası təmiz və kəskin görüntülər təqdim edir
Nömrə nişanının tanınmasını (LPR) dəstəkləyir
Nəqliyyat vasitəsinin xüsusiyyətlərinin tanınması: nəqliyyat vasitəsinin növü / rəngi / istehsalçısı / nömrə nişanının rənginin tanınması, nömrəsiz nəqliyyat vasitəsinin qeydə alınması
Qayda pozuntularının aşkarlanması: zolaq xətti ilə hərəkət, zolaq dəyişmə, əks istiqamətdə hərəkət, təhlükəsizlik kəməri, telefonla danışıq, U-Turn, qırmızı işıqda keçmə, piyadalara yol verməmə, istiqamət nişanına əməl etməmə və yolayrıcında dayanmış nəqliyyat vasitəsinin aşkarlanması.
Tətbiq ssenariləri: magistral yol, tunel, ödəniş məntəqəsi, şəhər yolu və s.

Texniki pasport

Sürətli çatdırılma

Bakıya – bu gün
Azərbaycan daxilində 1-2 gün

Rəsmi zəmanət

36 aya qədər
istehsalçıdan

100% orijinal

Hikvision-un rəsmi distribyutoru

Texniki dəstək

Avadanlıqların seçilməsi və qurulmasında köməklik

ədəd stokda

2 saata çatdırılma

Sorğu əsasında

Hissə-hissə alın

Partnyorlar üçün qiymət

Endirim tələb edin

Mütəxəssis köməyi

Müqayisə et

Avadanlıq seçməkdə çətinlik çəkirsiniz?

Camera
Image Sensor5 MP (2/3” GMOS)
Max. Resolution2464 × 2056
Min. IlluminationColor: 0.001 Lux@(F1.4, AGC ON), 0 Lux with white light
Shutter Time8 us-20000 us
Day & Night24/7 color imaging

Lens
Lens Type

Varifocal lens, motorized lens, 11 to 40 mm
Focal Length & FOV11 to 40 mm, horizontal FOV 36.8° to 13.9°, vertical FOV 30.7° to 11.6°, diagonal FOV 48.0° to 18.1°
Focus Auto
ApertureF1.6

Illuminator
Built-in Supplement Light RangeUp to 30 m
Built-in Supplement Light TypeWhite light
Light Bead3
External Supplement LightStrobe and flash light

Video
Main Stream
50 Hz: 50 fps (2448 × 2048, 2464 × 2056, 2048 × 1536, 1920 × 1080, 704 × 576)

60 Hz: 30 fps(2448 × 2048, 2464 × 2056, 2048 × 1536, 1920 × 1080, 704 × 576)
Sub Stream
50 Hz: 50 fps (2448 × 2048, 2048 × 1536, 1920 × 1080P, 704 × 576)

60 Hz: 30 fps (2448 × 2048, 2048 × 1536, 1920 × 1080P, 704 × 576)
Third Stream

50 Hz: 50 fps (2048 × 1536, 1920 × 1080, 704 × 576)

60 Hz: 30 fps (2048 × 1536, 1920 × 1080, 704 × 576)
Video Compression
Main stream: H.265/H.264/MJPEG

Sub-stream: H.265/H.264/MJPEG

Third stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseline profile/Main profile/High profile
H.265 TypeMain profile

Network
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DNS, RTP, RTSP, RTCP, NTP, SNMP, 802.1X, IPv4/IPv6, UDP, ISUP, ARP, IGMP, SMTP
Simultaneous Live ViewUp to 6 channels
APIISAPI,SDK,ISUP,ONVIF (PROFILE S, PROFILE G, PROFILE T, PROFILE M)
User/Host
Up to 16 users

3 user levels: administrator, operator and user
SecurityPassword protection, Complicated password, HTTPS encryption, Control timeout settings, 802.1X authentication (EAP-PEAP, EAP-LEAP, EAP-MD5), Basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface
Network StorageMicroSD/TF card (512 GB), Local storage and CVR, NVR, ANR
ClientHik-Central Master, Hik-Central Pro, Hik-Central Master Lite
Web BrowserChrome V61+, IE9 to IE11, Firefox V40+, Edge

Image SettingsSaturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser.
Day/Night SwitchAuto/Schedule/Manual
SNR60 dB
Image EnhancementBLC, 3D DNR

Interface
Ethernet Interface2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet interfaces
On-board StorageBuilt-in memory card slot, supporting microSD/SDHC/SDXC card, up to 512 GB
Alarm 2 input interfaces (T1, SYNC), 7 output interfaces
RS-485

3 RS-485 interfaces (half duplex, HIKVISION)
RS-232

1 RS-232 interface
USB1 USB 2.0 interface

Event
Basic EventHDD Error, Network disconnected, IP address conflicted, Traffic light detector exception

Road Traffic and Vehicle Detection
CoverageUp to 2 lane(s)
Smart FunctionLicense plate recognition, Vehicle type classification, vehicle color recognition, no-plate vehicle capture, moving direction detection
LPR Countries/Regions
Mid-East:

United Arab Emirates (Abu Dhabi, Fuchaiha, Dubai, Cape Haima, Ozhman, Sharjah, Umgavan), Qatar,Iraq, Egypt, Jordan, Kuwait, Saudi Arabia, Pakistan, Oman, Lebanon, Bahrain

Africa:

Nigeria, Kenya, Cote d’Ivoire, South Africa, Tanzania, Mauritius, Morocco, Tunisia, Sierra, Leone, Zambia, Ghana, Zimbabwe, Uganda, Angola, Ethiopia, Senegal, Algeria

Asia-Pacific:

Australia, New Zealand, Indonesia, Malaysia, Singapore, South Korea, Thailand, Vietnam, Philippines, Hong Kong, Macao, Taiwan, Burma, India, Mongolia, Cambodia, Laos, Bangladesh

America:

United States of America, Canada, Argentina, Chile, Paraguay, Uruguay, El Salvador, Bolivia, Colombia, Brazil, Ecuador, Peru, Mexico, Panama, Costa Rica, Trinidad and Tobago, Dominican, Guatemala

Europe:

Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, Britain, Ireland, Germany, Italy, Austria, Israel, Palestine, Belgium, Luxembourg ,Albania, Kosovo

Russian-Speaking Regions:

Azerbaijan, Belarus, Kazakhstan, Lithuania, Georgia, Estonia, Latvia, Russian Federation, Ukraine, Moldova, Uzbekistan, Kyrgyzstan, Armenia
Trigger ModeExternal I/O trigger/Radar trigger/Video trigger
Vehicle TypeCar/Van/Bus/Truck/Light Truck/SUV_MPV/Pickup/Pedestrian/Motorcycle/Tricycle
Accuracy (Under recommended installation and lighting conditions)
Capture rate > 99%,

Vehicle moving direction recognition accuracy > 98.5%,

LPR accuracy > 98%,

Mistaken capture rate < 2%
No License Plate DetectionSupported
Motorcycle LPRSupported
Vehicle ColorRed, yellow, green, blue, pink, purple, cyan, brown, white, grey, black
Vehicle Manufacturer212 Manufacturers: AC SCHNITZER, AITO, APOLLO, Ashok Leyland, Audi, Aston Martin, Acura, Ankai, Ayvip, Alfa Romeo, Asiastar, Artega, ARCFOX, BAIC, Beiben Truck, BLUECAR, Bedford, Benz, BMW, BYD , Bufori, Buick, Bently, Brabus, Bugatti, Borgward, BONLUCK, Besturn, CADILLAC, Celis, Chevrolet, Citroen, Chery, Chrysler, Chang an, CNHTC, CHTC, Caterham, Conquest, C&C Trucks, CAMC, DAIHATSU, DMC, DS, Dacia, Dongnan, Dodge, Dongwo, Denza, Dongfeng, Daewoo, Dima, Denway, DORCEN, Eicher, Emgrand, Equss, EXEED, Ford, FORO, Fornasari, Ferrari, Fuqi, Fiat, Fisker, FQT Motor, Foton, FAW, FORLAND, FUSO, Force Motors, Fxauto, Faralli Mazzanti, GAC, Great Wall, GMC, Geely, Geometry, Hyundai, HENNESSEY, HINO, Honda, Haima, Haval, Hongqi, Isuzu, Infiniti, Iveco, IAT, IM, JAC, JBC, JEEP, Jaguar, JMC, JETOUR, JETTA, Joylong ,Koenigsegg, KIA , Kia-Borrego, King Long, Kama, KTM, LEVC, Lexus, Land Rover, Lincoln, Lamborghini, Lotus, Luxgen, Levdeo, Leopaard, Lynk & Co , Lada, Leading Ideal, LEAPMOTOR, LUMMA, Lorinser, Land Wind, MAN Trucks , MAXUS, MG, MINI, Mahindra, Mitsuoka, Maserati, Meiya , McLaren, Maybach, Mazda, Morgan, Mitsubishi, Mustang, Marvel R, Maple, MANSORY, Modern, NOMA, Nissan, Norinco, Neoplan, NIO, NETA, Opel, Ora, Oushang, Perodua, Porsche, Peugeot, PGO, Proton, Pagani, Polestar, POCCO, Qoros, RAM, Rolls-Royce, Renault, Roewe, Rohens, Ranz, Ruilan, Radar, Renault Samsung, SAAB, SCANIA , SCION, SMART, SML ISUZU, Suzuki, SAIC Datong, Subaru, Skoda, Startek, Soyat, Seat , SWM, Sany, SsangYong, Sojen, Silver, SATE, SOL, Skyworth, SGMW, SITECH DEV, TATA, Tankar, Tesla, Trumpchi, Techart, Toyota, UD, UAES, Volkswagen, VINFAST, Venucia, Volvo, VOYAH, VeiculoLongo, Weltmeister , XCMG, Xinyuan, XPENG, Yutong, YAMAHA, Zhonghua, Zotye, Zhinuo, ZEEKR, Zenvo Dongwo, Subaru, Iveco, MINI, JEEP, Porsche, Chery, Dodge, Chrysler, Acura, Alfa Romeo, Great Wall, Infiniti, Smart, Saic Maxus, JAC, Jaguar, GMC, Lincoln, JMC, SAAB, FAW, Yutong, Guangzhou Yunbao, Joylong, Geely, Cadillac, JBC, An‘kai, Haima, Foton, King Long, Dongfeng, Geely-Emgrand, Perodua, UD, BYD, Renault Samsung, Proton, HICOM, Malaysia_Unknown 1, Hyundai-Rohens, SsangYong-Old Version, Equus-Old Version, CNHTC, Rolls-Royce, Beiben Truck, Haval, Hino, Kia-Borrego, Chang‘an, Alfa, FORO
License Plate Color RecognitionCustomized to support
U-Turn Supported (only E-Police mode)
Red Light Running Supported (only E-Police mode)
Failing to Yield for Pedestrians Supported (only E-Police mode)
Stop Vehicle on Intersection Supported (only E-Police mode)
Not Following Directional Sign Supported (only E-Police mode)
Yellow Box Junction ViolationSupported (only E-Police mode)
Driving on Lane Line DetectionSupported
Lane Change Detection

Supported
Phone Call DetectionSupported (with flash supplement light)
Seatbelt DetectionSupported (with flash supplement light)
Vehicle Window FilmSupported (with flash supplement light)
Wrong-Way Driving DetectionSupported
Emergency Lane OccupationSupported (truck forbidden lane, emergency lane, urban bus lane)
Prohibition Mark ViolationSupported
SpeedingSupported (with Radar)
Low-SpeedSupported (with Radar)
Without HelmetSupported
Manned Non-Motor VehicleSupported
Capture Speed Range10 to 320 km/h

General
Operating SystemLinux
PowerAC 100 V to 240 V, 1.5 A, max. 27 W, 3-core terminal block
MaterialAluminum alloy
Dimension501.0 mm × 175.6 mm × 144.6 mm (19.72″ × 6.92″ × 5.69″) (L × W × H)
Package Dimension833 mm × 275 mm × 325 mm (32.80″ × 10.83″ × 12.80″) (L × W × H)
Weight Approx. 5.13 kg (11.31 lb.)
With Package WeightApprox. 7.4 kg (16.31 lb.)
Operating Condition-30 °C to 70 °C (-22 °F to 158 °F). Humidity: 5% to 95% (non-condensing)
Storage Condition

-30 °C to 70 °C (-22 °F to 158 °F). Humidity: 5% to 95% (non-condensing)
General FunctionPassword protection,Three streams,Heartbeat,One-key reset,Pixel counter
HeaterOptional
Language8 languages: English, Thai, Croatian, Korean, Russian, Traditional Chinese, Ukrainian, Spanish

Approval
EMCCE-EMC: EN 55032: 2015/A11:2020+A1:2020, EN IEC61000-3-2: 2019/A1:2021, EN 61000-3-3: 2013+A1:2019/A2:2021, EN 50130-4: 2011 +A1: 2014
Safety
CB: IEC 62368-1: 2018,CB: IEC 62368-1: 2014,CE-LVD: EN 62368-1: 2014+A11: 2017,

CE-LVD:EN IEC 62368-1:2020+A11:2020
EnvironmentCE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006
ProtectionIK10: IEC 62262:2002,IP67: IEC 60529-2013
