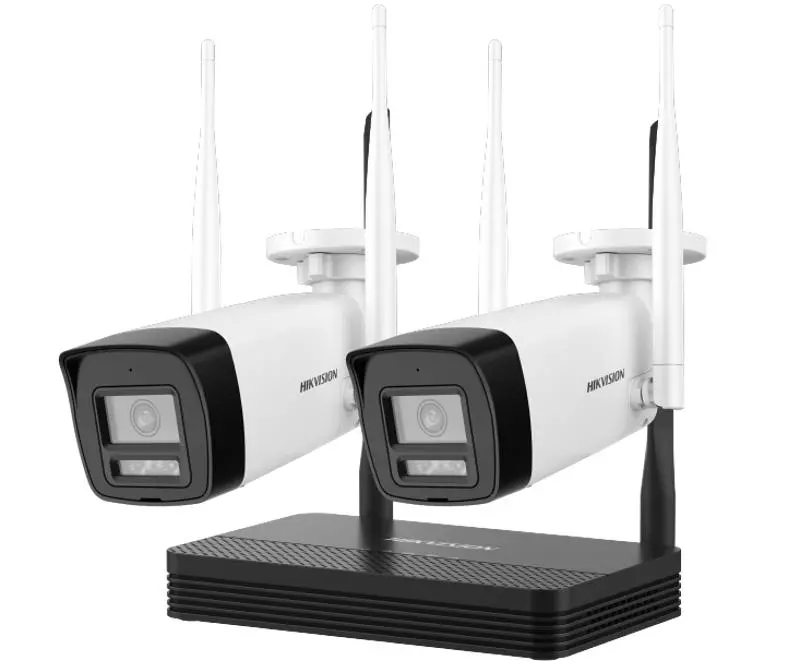

Qiymət sorğusuCamera Case Type | Bullet |
Image Sensor | 1/2.7″ Progressive Scan CMOS |
Day &Night | IR cut filter |
WDR | DWDR |
Angle Adjustment | Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360° |
Protection Level | IP66 |
Wi-Fi Support | Yes |
Focal Length | 2.8 mm |
Aperture | F1.6 |
Focus | Fixed |
FOV | horizontal FOV 94°, vertical FOV 49°, diagonal FOV 114° |
IR Range | Up to 30 m |
Video Compression | H.265;H.264;MJPEG |
H.264 Type | Baseline Profile/Main Profile/High Profile |
H.265 Type | Main Profile |
Video Bit Rate | 32 Kbps to 8 Mbps |
Audio Compression | G.711/AAC-LC |
Audio Bit Rate | 64 Kbps (G.711ulaw)/16 to 64 Kbps (AAC-LC) |
Audio Sampling Rate | 8 kHz/16 kHz |
Environment Noise Filtering | Yes |
Max. Resolution | 4MP |
Main Stream | 50 Hz：25 fps（2560 × 1440，1920 × 1080，1280 × 720）;60 Hz：20 fps（2560 × 1440），24 fps（1920 × 1080，1280 × 720） |
Sub-stream | 50 Hz: 25 fps (768 × 432) ;60 Hz: 30 fps (768 × 432) |
Image Setting | Saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser |
Day/Night Switch | Auto/Scheduled/Day/Night |
Alarm Trigger | Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception |
Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTCP, RTSP, NTP, IGMP, IPv6, UDP, QoS, UPnP |
General Function | One-key reset, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
Reset Button | Yes |
Power Supply | 12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection,A switching adapter is included in the package. |
Consumption | ≤ 6 W |
Working Temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
Working Humidity | 95% or less (non-condensing) |
Dimension (W × D × H) | 260.9 mm × 113.9 mm × 67.4 mm (10.3″ × 4.5″ × 2.7″) |
Weight | 305 g (0.67 lb.) |
IP Video Input | 4-ch |
Incoming/Outgoing Bandwidth | 20 Mbps/20 Mbps |
Video Resolution | 6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
Synchronous Playback | 1-ch |
Network Interface | 1, RJ45 10/100M Ethernet interface |
Frequency Band | 2.4 GHz |
Antenna Structure | High gain antenna |
Transmission Speed | 150 Mbps |
Transmission Standard | IEEE 802.11b/g/n/ax |
SD Card | 32G/64G/128G/256G/512G |
Power Supply | 12 VDC |
Consumption (without HDD and PoE off) | ≤ 6 W |
Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
Working Humidity | 10% to 90% |
Dimension (W × D × H) | 163 x 125 x 26 mm (6.4″ × 4.9″ × 1.0″) |
Weight (without hard disk) | ≤ 500g |
Accessories | Power adaptor: 2 × IPC power adaptor, 1 × NVS power adaptor;Ethernet cable: RJ45, Cat5e UTP, 1 m |
Certification | CB, CE |
Weight (with package) | ≤ 2 kg (4.4 lb) |
