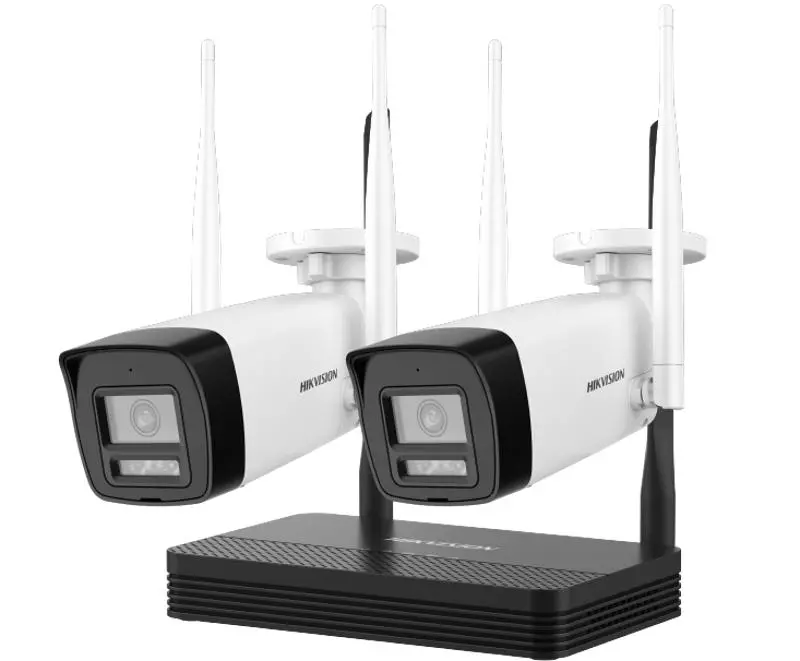

Hikvision NKS422W0H

Camera Case Type

Bullet

Image Sensor

1/3″ Progressive Scan CMOS

Min. Illumination

0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR

Day &Night

IR cut filter

WDR

DWDR

Angle Adjustment

Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360

Protection Level

IP66

Wi-Fi Support

Yes

Focal Length

2.8 mm

Aperture

F2.0

Focus

Fixed

FOV

horizontal FOV 101°, vertical FOV 56°, diagonal FOV 118°

IR Range

Up to 30 m

Video Compression

H.265;H.264;MJPEG

H.264 Type

Baseline Profile/Main Profile/High Profile

H.265 Type

Main Profile

Video Bit Rate

32 Kbps to 8 Mbps

Audio Compression

G.711/AAC-LC

Audio Bit Rate

64 Kbps (G.711ulaw)/16 to 64 Kbps (AAC-LC)

Audio Sampling Rate

8 kHz/16 kHz

Environment Noise Filtering

Yes

Max. Resolution

2MP

Main Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 720, 768 x 432);60 Hz: 30 fps (1920 × 1080, 1280 × 720, 768 x 432)

Sub-stream

50 Hz: 25 fps (768 × 432) ;60 Hz: 30 fps (768 × 432)

Image Setting

Saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser

Day/Night Switch

Auto/Scheduled/Day/Night

Alarm Trigger

Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception

Protocols

TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTCP, RTSP, NTP, IGMP, IPv6, UDP, QoS, UPnP

General Function

One-key reset, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Communication Interface

1 RJ45 10M/100M self-adaptive Ethernet port

Reset Button

Yes

Power Supply

12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection,A switching adapter is included in the package.

Consumption

≤ 6 W

Working Temperature

-30 °C to 60 °C (-22 °F to 140 °F)

Working Humidity

95% or less (non-condensing)

Dimension (W × D × H)

260.9 mm × 113.9 mm × 67.4 mm (10.3″ × 4.5″ × 2.7″)

Weight

305 g (0.67 lb.)

IP Video Input

4-ch

Incoming/Outgoing Bandwidth

20 Mbps/20 Mbps

Video Resolution

6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF

Synchronous Playback

1-ch

Network Interface

1, RJ45 10/100M Ethernet interface

Frequency Band

2.4 GHz

Antenna Structure

High gain antenna

Transmission Speed

150 Mbps

SD Card

32G/64G/128G/256G/512G

Power Supply

12 VDC

Consumption (without HDD and PoE off)

≤ 6 W

Working Temperature

-10 °C to 55 °C (14 °F to 131 °F)

Working Humidity

10% to 90%

Dimension (W × D × H)

163 x 125 x 26 mm (6.4″ × 4.9″ × 1.0″)

Weight (without hard disk)

≤ 500g

Accessories

Power adaptor: 2 × IPC power adaptor, 1 × NVS power adaptor;Ethernet cable: RJ45, Cat5e UTP, 1 m

Certification

CB, CE

Weight (with package)

≤ 2 kg (4.4 lb)
