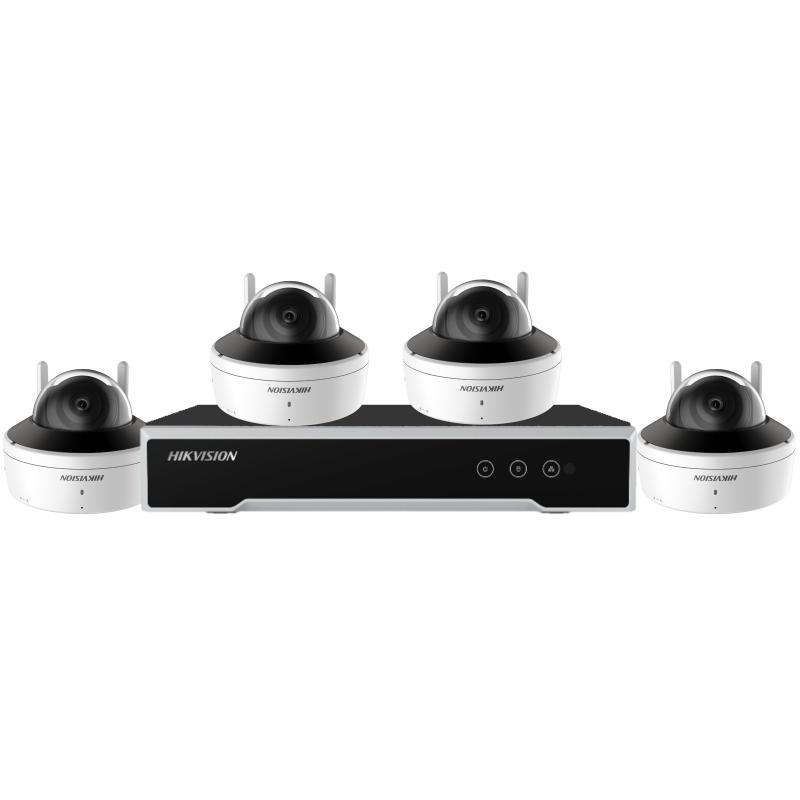

Hikvision NK844W1H-1T(E)

Camera Case Type

Dome

Image Sensor

1/3″ Progressive Scan CMOS

Min. Illumination

Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR

Shutter Speed

1/3 s to 1/100,000 s

Day &Night

IR cut filter

WDR

Digital WDR

Angle Adjustment

Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°

Protection Level

IP66

Material

Base: Metal, front cover: Polycarbonate, back cover: Polycarbonate;

Wi-Fi Support

Yes

Focal Length

2.8 mm

Aperture

F1.6

Focus

Fixed

FOV

horizontal FOV 98°, vertical FOV 54°, diagonal FOV 115°

Lens Mount

M12

IR Range

Up to 30 m

H.265 Type

Main Profile

H.265+

Main stream supports

Video Bit Rate

32 Kbps to 8 Mbps

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Audio Bit Rate

64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

Audio Sampling Rate

8 kHz/16 kHz

Environment Noise Filtering

Yes

Video Compression

Main stream: H.265/H.264,;Sub-stream: H.265/H.264

Max. Resolution

4MP

Main Stream

50 Hz: 20 fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1080, 1280 × 720);60 Hz: 20 fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720)

Sub-stream

50Hz: 25 fps (640 × 360) ;60Hz: 30 fps (640 × 360)

Image Setting

Saturation, brightness, contrast and sharpness are adjustable via client software and web browser

Protocols

TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTCP, RTSP, NTP, IGMP, IPv6, UDP, QoS, UPnP

General Function

One-key reset, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Client

iVMS-4200, Hik-Connect

Communication Interface

1 RJ45 10M/100M self-adaptive Ethernet port

Audio I/O

1 built-in microphone

Video Out

No

Reset Button

Yes

Power Supply

12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug,reverse polarity protection,

Consumption

≤ 6 W

Working Temperature

-30 °C to 60 °C (-22 °F to 140 °F)

Working Humidity

95% or less (non-condensing)

Dimension (W × D × H)

Ø125.9 mm × 96.1 mm (Ø5″ × 3.8″)

Weight

Approx. 590 g (1.3 lb.)

IP Video Input

8-ch

Incoming/Outgoing Bandwidth

50 Mbps/40 Mbps

HDMI/VGA Output

1-ch, resolution: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz;HDMI/VGA simultaneous output

Audio Output

1-ch, RCA (linear, 1 KΩ)

Video Resolution

4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF

Synchronous Playback

8-ch

Capability

4-ch@4 MP (12 fps)/4-ch@1080p (25 fps)

Network Interface

1, RJ-45 10/100 Mbps self-adaptive Ethernet interface

Network Protocol

IPv6, UPnP™, NTP, SADP, DHCP

Remote Connection

16

Frequency Band

2.4 GHz

Antenna Structure

2 × 2MIMO

Transmission Speed

144 Mbps

Transmission Standard

IEEE 802.11b/g/n

SATA

1

Capacity

Up to 6 TB capacity for each disk

USB Interface

Rear panel: 2 × USB 2.0

Alarm In/Out

No

Power Supply

12 VDC, 1.6 A

Consumption (without HDD and PoE off)

≤ 10 W

Working Temperature

-10 °C to 55 °C (14 °F to 131 °F)

Working Humidity

10% to 90%

Dimension (W × D × H)

265 × 246 × 48 mm (10.4″ × 9.7″ × 1.9″)

Weight (without hard disk)

≤ 1.6 kg (without HDD, 3.5 lb.)

Accessories

Power adaptor: 4 × IPC power adaptors, 1 × NVR power adaptor;Ethernet cable: RJ45, Cat5e UTP, 1 m.

Hard Drive

Pre-installed 1 TB HDD

Certification

CE

Weight (with package)

≤ 7 kg (15.4 lb)
