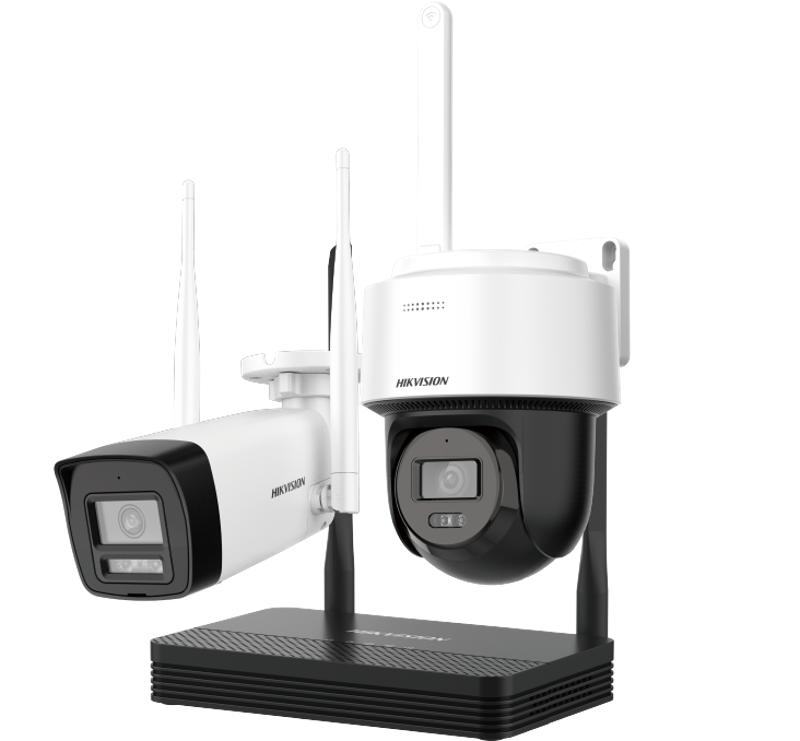

Hikvision NKS424W03H

Camera Case Type

Bullet;Dome

Image Sensor

1/2.7″ Progressive Scan CMOS

Min. Illumination

Bullet： Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR;Dome：Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0.001 Lux @ (F1.6, AGC ON),0 Lux with IR

Day &Night

IR cut filter

WDR

DWDR

Angle Adjustment

Bullet: Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360° ;Dome: Pan: 0° to 345°,tilt: 0° to 80°

Protection Level

IP66

Wi-Fi Support

Yes

Focal Length

2.8 mm

Aperture

F1.6

Focus

Fixed

FOV

horizontal FOV 94°, vertical FOV 49°, diagonal FOV 114°

IR Range

Bullet：Up to 30 m;Dome：IR distance: up to 25 m,White light distance: up to 25 m

Video Compression

H.265;H.264;MJPEG

H.264 Type

Baseline Profile/Main Profile/High Profile

H.265 Type

Main Profile

Video Bit Rate

32 Kbps to 8 Mbps

Audio Compression

G.711ulaw/AAC-LC

Audio Bit Rate

64 Kbps (G.711ulaw)/16 to 64 Kbps (AAC-LC)

Audio Sampling Rate

8 kHz/16 kHz

Environment Noise Filtering

Yes

Max. Resolution

4MP

Main Stream

50 Hz：25 fps（2560 × 1440，1920 × 1080，1280 × 720）;60 Hz：20 fps（2560 × 1440），24 fps（1920 × 1080，1280 × 720）

Sub-stream

50 Hz: 25 fps (768 × 432) ;60 Hz: 30 fps (768 × 432)

Image Setting

Saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser

Day/Night Switch

Auto/Scheduled/Day/Night

Alarm Trigger

Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception

Protocols

TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTCP, RTSP, NTP, IGMP, IPv6, UDP, QoS, UPnP

General Function

One-key reset, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Communication Interface

1 RJ45 10M/100M self-adaptive Ethernet port

Reset Button

Yes

Power Supply

Bullet:12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection,A switching adapter is included in the package.;Dome: 12 VDC ± 25%, reverse polarity protection, 0.75 A, max. 9 W, Ø5.5 mm coaxial power plug

Consumption

Bullet: ≤ 6 W;Dome: ≤ 9 W

Working Temperature

Bullet:-30 °C to 60 °C (-22 °F to 140 °F);Dome: -10 °C to 40 °C (-14 °F to 104 °F)

Working Humidity

95% or less (non-condensing)

Dimension (W × D × H)

Bullet: 260.9 mm × 113.9 mm × 67.4 mm (10.3″ × 4.5″ × 2.7″”);Turret: Ø124 mm × 119 mm (Ø4.89 × 4.68″”)””

Weight

Bullet: 305 g (0.67 lb.);Dome: 600 g (1.32 lb.)

IP Video Input

4-ch

Incoming/Outgoing Bandwidth

20 Mbps/20 Mbps

Video Resolution

6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF

Synchronous Playback

1-ch

Network Interface

1
