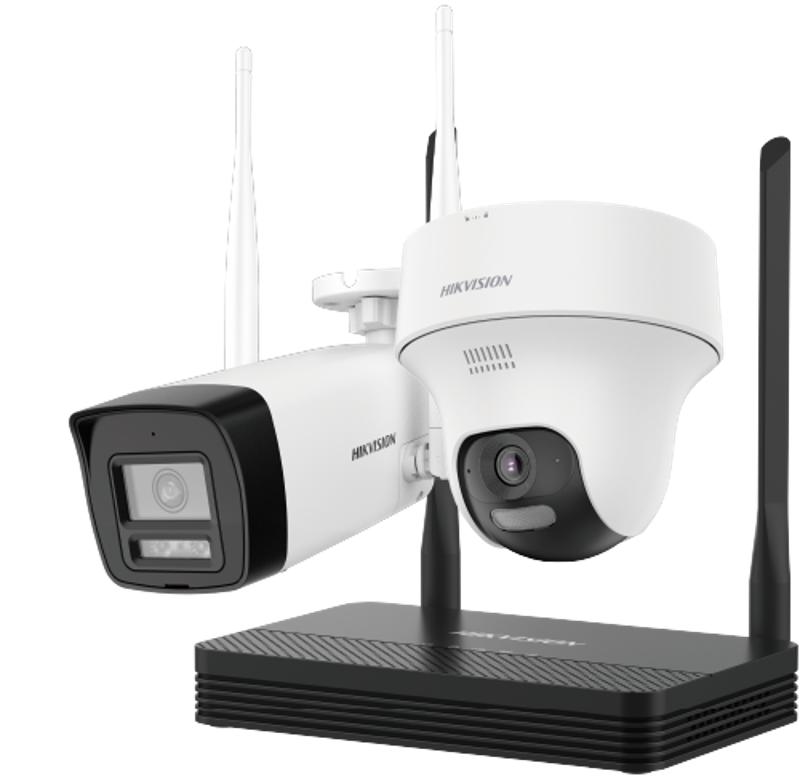

Hikvision NKS422W02H

Camera Case Type

Bullet;Turret

Image Sensor

1/3″ Progressive Scan CMOS

Min. Illumination

Bullet：Color: 0.01 Lux @ (F2.0, AGC ON),B/W: 0 Lux with IR;Turret：Color: 0.03 Lux @ (F2.2, AGC ON), B/W: 0.015Lux @(F2.2, AGC ON), 0 Lux with IR

Day &Night

IR cut filter

WDR

DWDR

Angle Adjustment

Bullet: Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360° ;Turret: Pan: 0° to 350°,tilt: 0° to 75°

Protection Level

Bullet：IP66;Turret：IP54

Wi-Fi Support

Yes

Focal Length

2.8 mm

Aperture

Bullet: F2.0;Turret: F2.2

Focus

Fixed

FOV

Bullet: Horizontal FOV 101°, vertical FOV 56°, diagonal FOV 118°;Turret: Horizontal FOV 96.5°, vertical FOV 52°

IR Range

Bullet: Up to 30 m;Turret: White light distance: Up to 15 m,IR distance: Up to 20 m

Video Compression

H.265;H.264;MJPEG

H.264 Type

Baseline Profile/Main Profile/High Profile

H.265 Type

Main Profile

Video Bit Rate

32 Kbps to 8 Mbps

Audio Compression

G.711ulaw/AAC-LC

Audio Bit Rate

64 Kbps (G.711ulaw)/16 to 64 Kbps (AAC-LC)

Audio Sampling Rate

8 kHz/16 kHz

Environment Noise Filtering

Yes

Max. Resolution

2MP

Main Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 720, 768 x 432);60 Hz: 30 fps (1920 × 1080, 1280 × 720, 768 x 432)

Sub-stream

50 Hz: 25 fps (768 × 432) ;60 Hz: 30 fps (768 × 432)

Image Setting

Saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser

Day/Night Switch

Auto/Scheduled/Day/Night

Alarm Trigger

Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception

Protocols

TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTCP, RTSP, NTP, IGMP, IPv6, UDP, QoS, UPnP

General Function

One-key reset, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Communication Interface

1 RJ45 10M/100M self-adaptive Ethernet port

Reset Button

Yes

Power Supply

Bullet:12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection,A switching adapter is included in the package.;Turret: 12 VDC ± 25%, reverse polarity protection, 0.75 A, max. 9 W, Ø5.5 mm coaxial power plug

Consumption

Bullet: ≤6W;Turret: ≤9W

Working Temperature

Bullet:-30 °C to 60 °C (-22 °F to 140 °F);Turret: -10 °C to 40 °C (-14 °F to 104 °F)

Working Humidity

Bullet: 95% or less (non-condensing);Turret: 95% or less (non-condensing)

Dimension (W × D × H)

Bullet: 260.9 mm × 113.9 mm × 67.4 mm (10.3″ × 4.5″ × 2.7″”);Turret: Ø124 mm × 119 mm (Ø4.89 × 4.68″”)””

Weight

Bullet: 305 g (0.67 lb.);Turret: 290 g (0.6 lb.)

IP Video Input

4-ch

Incoming/Outgoing Bandwidth

20 Mbps/20 Mbps

Video Resolution

6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF

Synchronous Playback

4-ch

Network Interface

1
