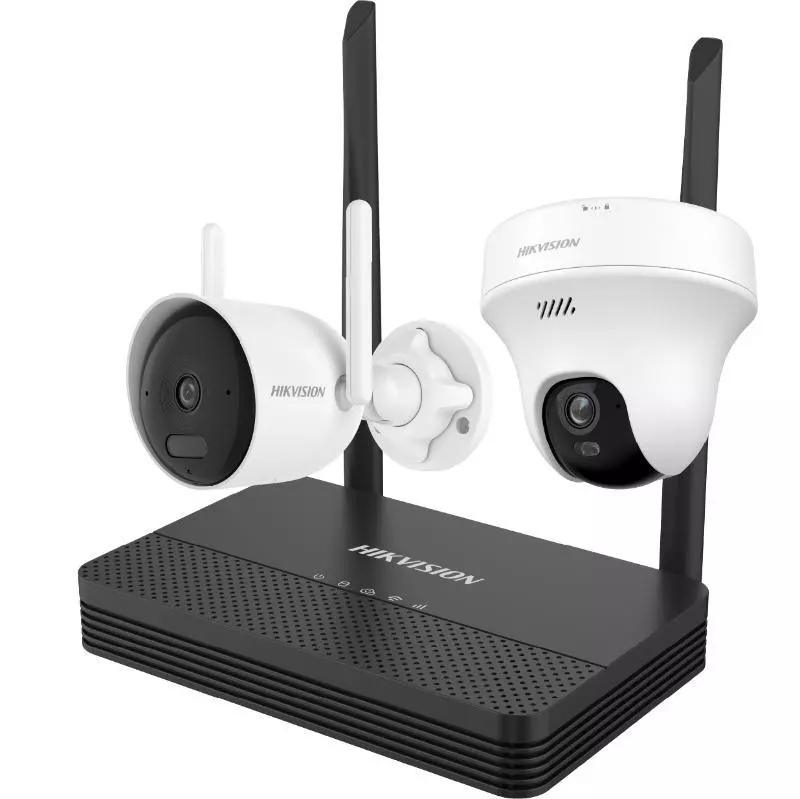

Qiymət sorğusu- Camera
- Camera Case TypeBullet;Turret
- Image Sensor
Bullet：1/3″ Progressive Scan CMOS
Turret：1/2.8 Progressive Scan CMOS”
- Min. Illumination
Bullet：Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux @ (F1.6, AGC ON)
Turret：Color: 0.01 Lux @ (F2.2, AGC ON),B/W: 0 Lux with IR
- Day &NightIR cut filter
- WDRDigital WDR
- Angle Adjustment
Bullet：Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
Turret：Pan: 0° to 345°,tilt: 15° to 85°
- Protection Level
Bullet：IP66
Turret：NA
- Wi-Fi SupportYes
- Camera/General
- Power Supply
Bullet：12 VDC ± 25%, 0.6 A, max. 7.2 W,Ø5.5 mm coaxial power plug,reverse polarity protection,*A switching adapter is included in the package.
Turret：5 VDC ± 5%, 1.6 A, Type-C
- Consumption
Bullet：Max. 7.2W
Turret：Max. 8W
- Working Temperature
Bullet：-30 °C to 50 °C (-22 °F to 122 °F)
Turret：-10 °C to 40 °C (14 °F to 104 °F)
- Working HumidityHumidity 95% or less (non-condensing)
- Dimension (W × D × H)
Bullet：94.1 mm × 75 mm × 174.5 mm (3.7″ × 3.0″ ×6.9″)
Turret：165 mm × 155 mm × 126 mm (6.5 × 6.1″ × 5.0″)”
Bullet：Approx. 270 g (0.6 lb.)
Turret：Approx. 280 g (0.6 lb.)
- Camera/Lens
- Focal Length2.8 mm
- Aperture
Bullet：F1.6
Turret：F2.2
- FocusFixed
- FOV
Bullet：horizontal FOV 109°, vertical FOV 61°, diagonal FOV 125°
Turret：horizontal FOV 106.4°, vertical FOV 58.4°, diagonal FOV 126.6°
- Camera/IR
- IR Range
Bullet： IR: up to 30 m；White Light: up to 30 m
Turret： IR: up to 10 m；White Light: up to 10 m
- Camera/Compression Standard
- Video Compression
Bullet：H264，H265
Turret：H.265
- H.264 Type
Bullet：Baseline Profile,Main Profile,High Profile
Turret：NA
- H.265 TypeMain Profile
- Video Bit Rate
Bullet：32 Kbps to 4 Mbps
Turret：32 Kbps to 2 Mbps
- Audio CompressionG.711(ulaw)/ (AAC-LC)
- Audio Bit Rate64 Kbps (G.711ulaw)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate8 kHz/16 kHz
- Environment Noise FilteringYes
- Camera/Image
- Max. Resolution
Bullet：1920 × 1080
Turret：2304 × 1296
- Main Stream
Bullet：
50 Hz: 25 fps (1920 × 1080, 1280 × 720, 768 x 432)
60 Hz: 30 fps (1920 × 1080, 1280 × 720, 768 x 432)
Turret：
50 Hz: 20 fps (2304 × 1296, 1920 × 1080, 1280 × 720)
60 Hz: 20 fps (2304 × 1296, 1920 × 1080, 1280 × 720)
- Sub-stream
Bullet：
50 Hz: 25 fps (768 × 432)
60 Hz: 30 fps (768 × 432)
Turret：
50 Hz: 20 fps (768 × 432)
60 Hz: 20 fps (768 × 432)
- Image SettingSaturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
- Day/Night Switch Day,Night,Auto,Schedule
- Camera/Network
- Alarm TriggerMotion detection (support alarm triggering by specified target types (human and vehicle))
- Protocols
Bullet：TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTCP, RTSP, NTP, IGMP, IPv4, IPv6, UDP, QoS, UPnP
Turret：TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, UDP, QoS
- General FunctionHeartbeat,mirror,password protection,anti-banding
- Camera/Interface
- Communication Interface
Bullet：1 RJ45 10 M/100 M self-adaptive Ethernet port
Turret：NA
- Reset ButtonYes
- NVR/Video and Audio
- IP Video Input4-ch
- Incoming/Outgoing Bandwidth20 Mbps/20 Mbps
- NVR/Decoding
- Video Resolution6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
- Synchronous Playback2-ch
- NVR/Network
- Network Interface1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
- NVR/Wi-Fi
- Frequency Band2.4 GHz
- Antenna StructureDual high gain antenna
- Transmission Speed573Mbps
- NVR/Auxiliary Interface
- Micro SD2 slots,up to 512GB for each card
- NVR/General
- Power Supply12 VDC, 1 A
- Consumption (without HDD and PoE off)≤ 12W
- Working Temperature0 °C to 40 °C (32 °F to 104 °F)
- Working Humidity10 to 90 %
- Dimension (W × D × H)163 x 125 x 26 mm (6.4″ × 4.9″ × 1.0″)
- Weight (without hard disk)≤ 500 g (1.1 lb)
- Kit
- Accessories
Power cable: 2 × IPC power cables, 1 × NVS power cable
Ethernet cable: RJ45, Cat5e UTP, 1 m
- CertificationCE,CB
- Weight (with package)≤ 2 kg (4.4 lb)
