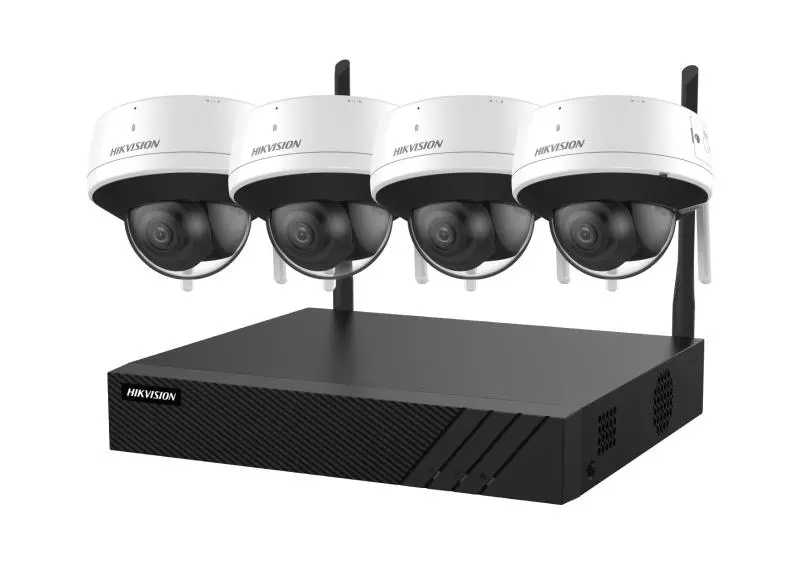

Qiymət sorğusu- Camera
- Camera Case TypeDome
- Image Sensor1/2.7″ Progressive Scan CMOS
- Min. IlluminationColor: 0.01 Lux @ (F2.0, AGC ON),B/W: 0 Lux with IR
- Shutter Speed1/3 s to 1/100,000 s
- Day &Night IR cut filter
- WDR Digital WDR
- Angle Adjustment Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
- Protection LevelIP67
- Material Base: Metal, front cover: Polycarbonate, back cover: Polycarbonate
- Wi-Fi SupportYes
- Camera/Lens
- Focal Length 2.8 mm
- ApertureF2.0
- FocusFixed
- FOVhorizontal FOV 116.4°, vertical FOV 63.8°, diagonal FOV 140.3°
- Lens MountM12
- LensFixed focal lens,
- Camera/IR
- IR RangeIR: up to 30 m
- Camera/Compression Standard
- Video Compression H.265,H.264
- H.264 Type Baseline Profile,Main Profile,High Profile
- H.264+NA
- H.265 Type Main Profile
- H.265+NA
- Video Bit Rate32 Kbps to 4 Mbps
- Audio CompressionG.711(ulaw)/ (AAC-LC)
- Audio Bit Rate 64 Kbps (G.711ulaw)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate8 kHz/16 kHz
- Environment Noise FilteringYes
- Camera/Image
- Max. Resolution2560 × 1440
- Main Stream
50 Hz: 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz: 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
- Sub-Stream
50 Hz: 20 fps (768 × 432)
60 Hz: 20 fps (768 × 432)
- Image Setting Saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
- Day/Night Switch Day,Night,Auto,Schedule
- Image Sensor1/2.7″ Progressive Scan CMOS
- Camera/Network
- Alarm Trigger Motion detection (support alarm triggering by specified target types (human and vehicle))
- Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTCP, RTSP, NTP, IGMP, IPv4, IPv6, UDP, QoS, UPnP
- General Function Heartbeat,mirror,password protection,anti-banding
- Camera/Interface
- Communication Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-board StorageNo
- Audio I/ONo
- Video OutNo
- Alarm I/ONo
- Reset ButtonYes
- NVR/Decoding
- Decoding FormatH.265+;H.265;H.264+;H.264
- Video Resolution 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
- Synchronous Playback8-ch
- Capability 8-ch@1080p (30 fps)
- NVR/Network
- Network Interface 1, RJ45 10/100Mbps Ethernet interface
- Network Protocol TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Remote Connection32
- NVR/Wi-Fi
- Frequency Band2.4GHz
- Antenna Structure 2 × 2MIMO （2T2R）
- Transmission Speed 573 Mbps
- NVR/Auxiliary Interface
- SATA1
- Capacity Up to 8 TB capacity for each disk
- USB Interface Rear panel: 2 × USB 2.0
- Alarm In/OutNA
- Micro SDNA
- NVR/General
- Power Supply12 VDC, 2A
- Consumption (without HDD and PoE off)≤ 24 W
- Working Temperature -10 °C to +55 °C (14 °F to 131 °F)
- Working Humidity 10% to 90%
- Dimension (W × D × H) 263 × 242 × 48 mm (10.3″ × 9.5″ × 1.9″)
- Weight (without Hard Disk) ≤ 1 kg (2.2 lb)
- Kit
- Accessories
Power cable: 2 × IPC power cables, 1 × NVR power cable
Ethernet cable: RJ45, Cat5e UTP, 1 m
- Hard DevicePre-installed 1 TB HDD;No
- CertificationCB,CE-DOC,CE-RED,CE-LVD,CE-EMC,EN18031
- Weight (with Package)≤ 6 kg (13.2 lb)
