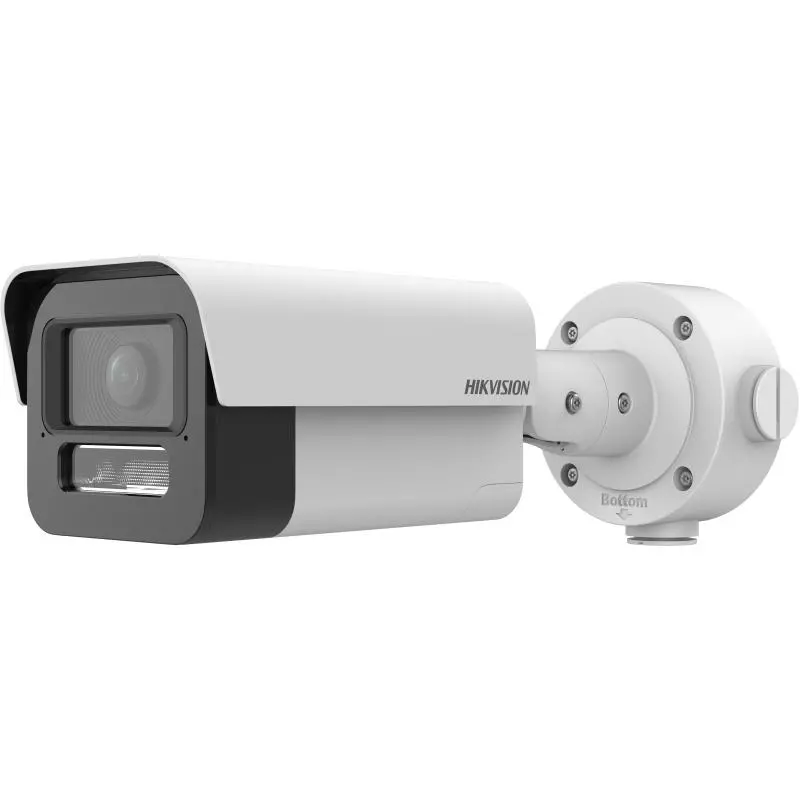

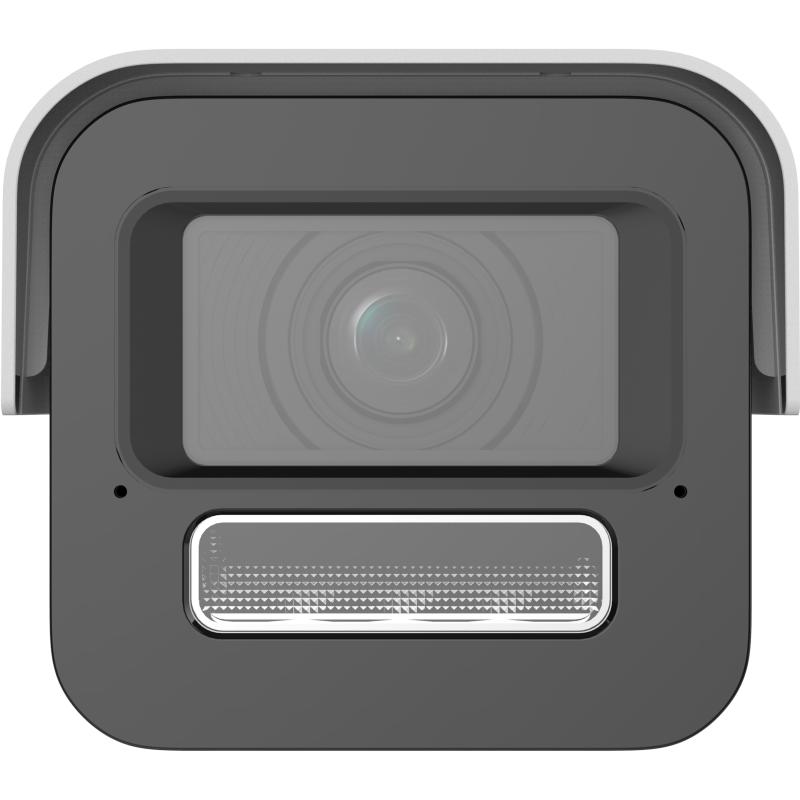

4-мегапиксельная цветная камера видеонаблюдения ColorVu с питанием от солнечной энергии (PT Camera Setup)
4-мегапиксельная цветная камера видеонаблюдения ColorVu с питанием от солнечной энергии (PT Camera Setup)
По запросу
Запрос цены- Camera
- Image Sensor1/1.8″ Progressive Scan CMOS
- Max. Resolution2688 × 1520
- Min. IlluminationColor: 0.0005 Lux @ (F1.2, AGC ON), B/W: 0 Lux with light
- Shutter Time1 s to 1/100,000 s
- Lens
- Focal Length & FOV
2.8 to 12 mm, horizontal FOV 103.9° to 48.2°, vertical FOV 55.1° to 27.2°, diagonal FOV 125.3° to 55.5°
8 to 32 mm, horizontal FOV 42.5° to 15.2°, vertical FOV 23.4° to 8.7°, diagonal FOV 49.7° to 17.3°
- Lens TypeVarifocal lens, motorized lens, 2.8 to 12 mm and 8 to 32 mm optional
- FocusAuto,Semi-auto,Manual
- Iris TypeAuto-iris
- Aperture2.8 to 12 mm: F1.4, 8 to 32 mm: F1.7
- Lens MountAll In One Lens
- DORI
- DORI
2.8 to 12 mm:
Wide: D: 64.7 m, O: 25.7 m, R: 12.9 m, I: 6.5 m
Tele: D: 128.7 m, O: 51.1 m, R: 25.7 m, I: 12.9 m
8 to 32 mm:
Wide: D: 150.3 m, O: 59.7 m, R: 30.1 m, I: 15.0 m
Tele: D: 400 m, O: 158.7 m, R: 80 m, I: 40 m
- Illuminator
- Supplement Light TypeIR and White
- Supplement Light Range
2.8 to 12 mm: Up to 30 m
8 to 32 mm: Up to 50 m
- Smart Supplement LightYes
- Video
- Main Stream
Performance mode:
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Proactive mode:
50 Hz: 12.5 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 15 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub-Stream
Performance mode:
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
Proactive mode:
50 Hz: 12.5 fps (640 × 480, 640 × 360)
60 Hz: 15 fps (640 × 480, 640 × 360)
- Third Stream
Performance mode/Proactive mode::
50 Hz: 1 fps (1280 × 720, 640 × 480)
60 Hz: 1 fps (1280 × 720, 640 × 480)
- Video Compression
Main stream: H.264/H.265
Sub-stream: H.264/H.265/MJPEG
Third Stream: H.265/H.264
*Performance mode: main stream supports H.264+, H.265+
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseline Profile,Main Profile,High Profile
- H.265 TypeMain Profile
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Audio
- Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate8 kHz/16 kHz/32 kHz/48 kHz
- Environment Noise FilteringYes
- Network
- Simultaneous Live ViewUp to 6 channels
- APIONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP, OTAP
- ProtocolsRTSP, DDNS, RTP, ICMP, QoS, IGMP, SNMP, SFTP, DNS, Bonjour, SMTP, IPv4, UDP, NTP, FTP, SSL/TLS, IPv6, HTTPS, HTTP, WebSocket, DHCP, WebSockets, TCP/IP
- User/Host
Up to 32 users
3 user levels: administrator, operator, and user
- SecurityPassword protection, complicated password, HTTPS encryption,watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, TLS 1.2, TLS 1.3
- Network Storage
Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- ClientHik-Connect (proactive mode also supports), HikCentral Professional, iVMS-4200
- Web Browser
Plug-in required live view: IE 10, IE 11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Mobile Communication
- SIM Card TypeMicroSIM
- Frequency
DS-2XS6A46G1-LIZS/4G:
LTE-TDD: Band38/40/41
LTE-FDD: Band1/3/5/7/8/20/28
WCDMA: Band1/5/8
GSM: 850/900/1800 MHz
DS-2XS6A46G1-LIZS/4G(LA):
LTE-TDD: Band38/40
LTE-FDD: Band1/2/3/4/5/7/8/12/17/28/66
WCDMA: Band1/2/3/4/5/8
GSM: 850/900/1800/1900 MHz
- Standard
DS-2XS6A46G1-LIZS/4G: LTE-TDD/LTE-FDD/WCDMA/GSM
DS-2XS6A46G1-LIZS/4G(LA): LTE-TDD/LTE-FDD/WCDMA/GSM
- Image
- Wide Dynamic Range (WDR)120 dB
- Day/Night SwitchDay,Night,Auto,Schedule,Alarm Trigger
- Image EnhancementHLC,BLC,3D DNR
- Image Parameters SwitchYes
- Image SettingsSaturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
- SNR≥ 52 dB
- Privacy Mask4 programmable rectangle privacy masks
- Interface
- On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB,
Built-in eMMC storage, up to 256 GB
- Built-in MicrophoneYes
- Built-in Speaker 1 built-in speaker,Max. power consumption: 1.5 W, max. sound pressure level: 10 cm: 98 dB.
- Alarm 1 input, 1 output (max. 12 VDC, 1 A)
- RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
- Reset KeyYes
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- Power Output12 VDC, max. 1000 mA
- Event
- Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,alarm input and output
- Smart EventLine crossing detection,intrusion detection,region entrance detection,region exiting detection,unattended baggage detection,object removal detection
- LinkageUpload to FTP/NAS/memory card,trigger alarm output,audible warning,trigger recording,notify surveillance center,send email,white light flashing
- Deep Learning Function
- Perimeter Protection
Line crossing detection, intrusion detection, region entrance detection, region exiting detection
Support alarm triggered by specified target types (human and vehicle)
- General
- Power
12 VDC ± 10%,
1. Standby power consumption: 0.14W
2. The average power consumption of 24 hours (4G transmission is excluded): 2.96 W
3. The max. power consumption: 20 W (7 W if without 12 V load)
- MaterialFront cover: metal, body: plastic, bracket: metal
- Dimension286.6 mm × 102.22 mm × 105 mm (11.28″ × 4.02″ × 4.13″) (Max. size of the camera after it is completely assembled)
- Package Dimension385 mm × 158 mm × 155 mm (15.2″ × 6.2″ × 6.1″)
- Approx. 1.13 kg (2.49 lb.)
- With Package WeightApprox. 1.684 kg (3.71 lb.)
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General FunctionAnti-banding, heartbeat, mirror, flash log, password reset via email, pixel counter
- Flashing LightRed and Blue Light
- Approval
- EMC
CE-EMC/UKCA (EN 55032:2015+A11:2020+A1:2020,EN 50130-4:2011+A1:2014);
RCM (AS/NZS CISPR 32: 2015);
IC (ICES-003: Issue 7)
- RF
CE-RED/UKCA (EN 301908-1,EN 301908-2,EN 301908-13, EN 301511,EN 301489-1,EN 301489-52,EN 62133);
ICASA: same as CE-RED;
IC ID (RSS-132 Issue 3, RSS-133 Issue 6, RSS-139 Issue 3, RSS-130 Issue 2, RSS-102 Issue 5);
MIC (Article 49-6-4 and 49-6-5 the relevant articles and MIC Notice No. 1299 of the Ordinance Regulating Radio Equipment)
- Safety
CB (IEC 62368-1:2014+A11)
CE-LVD/UKCA (EN 62368-1:2014/A11:2017)
LOA (IEC/EN 60950-1)
- Environment
CE-RoHS (2011/65/EU);
WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)
- Protection
Camera: IP66 (IEC 60529-2013)
Wind resistance 12 level, up to 40 m/s wind speed resistance
