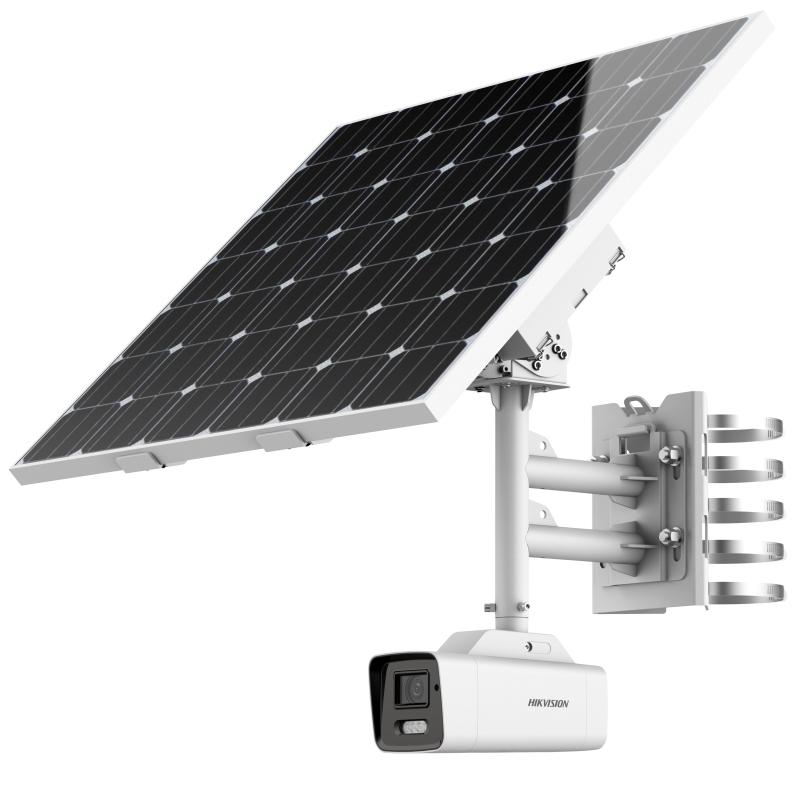

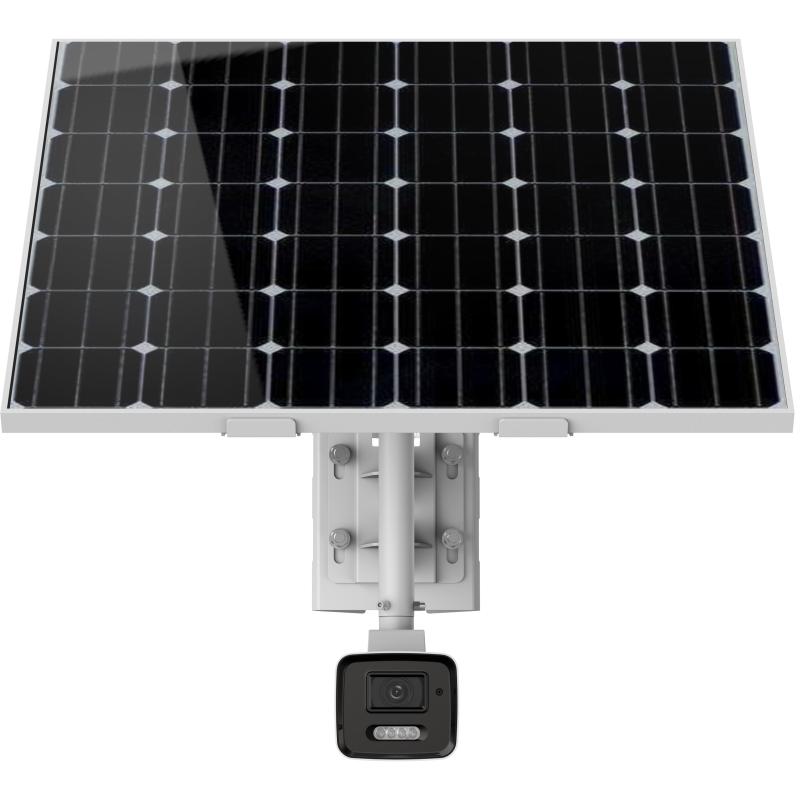

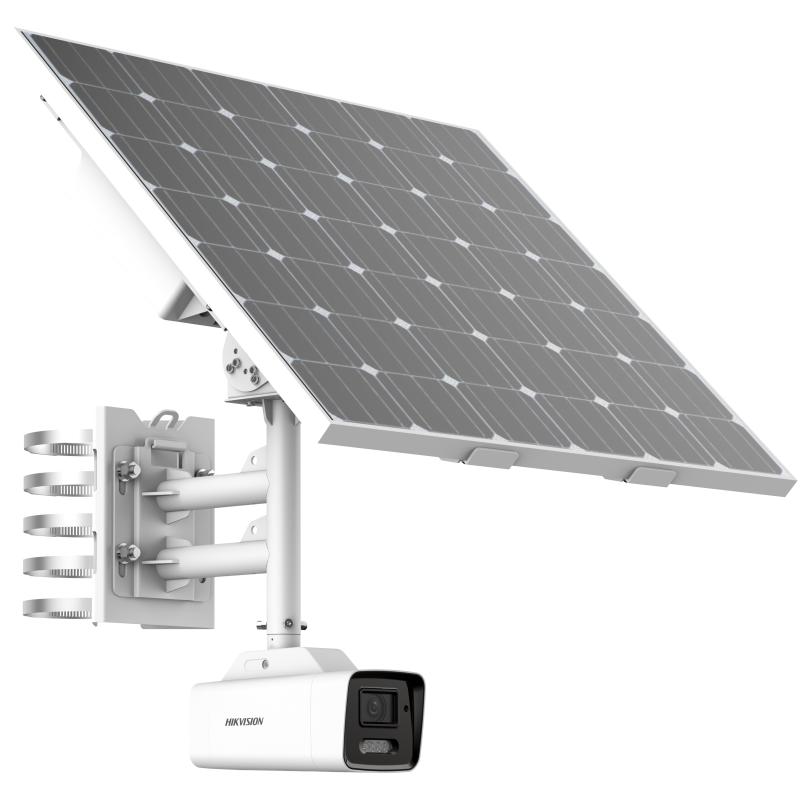

Hikvision DS-2XS6A46G1/P-IZS/C36S80

Image Sensor

1/1.8″ Progressive Scan CMOS

Max. Resolution

2560 × 1440

Min. Illumination

Color: 0.0005 Lux @ (F1.2, AGC ON), B/W: 0 Lux with light

Shutter Time

1 s to 1/100,000 s

Focal Length & FOV

2.8 to 12 mm, horizontal FOV 107.4° to 39.8°, vertical FOV 56° to 22.4°, diagonal FOV 130.1° to 45.7°;8 to 32 mm, horizontal FOV 40.3° to 14.5°, vertical FOV 22.1° to 8.2°, diagonal FOV 46.9° to 16.5°

Lens Type

Auto, Semi-auto, Manual

Iris Type

Auto-iris

Aperture

2.8 to 12 mm: F1.2, 8 to 32 mm: F1.6

Lens Mount

All In One Lens

DORI

2.8 to 12 mm:;Wide: D: 60.0 m, O: 23.8 m, R: 12.0 m, I: 6.0 m;Tele: D: 149.0 m, O: 59.1 m, R: 29.8 m, I: 14.9 m;8 to 32 mm: ;Wide: D: 150.3 m, O: 59.7 m, R: 30.1 m, I: 15.0 m;Tele: D: 400 m, O: 158.7 m, R: 80 m, I: 40 m

Supplement Light Type

IR

Supplement Light Range

2.8 to 12 mm: Up to 30 m;8 to 32 mm: Up to 50 m

Smart Supplement Light

Yes

Main Stream

Performance mode:;50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720);60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720);Proactive mode:;50 Hz: 12.5 fps (2560 × 1440, 1920 × 1080, 1280 × 720);60 Hz: 15 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

Sub-Stream

Performance mode:;50 Hz: 25 fps (640 × 480, 640 × 360);60 Hz: 30 fps (640 × 480, 640 × 360);Proactive mode:;50 Hz: 12.5 fps (640 × 480, 640 × 360);60 Hz: 15 fps (640 × 480, 640 × 360)

Third Stream

50 Hz: 1 fps (1280 × 720, 640 × 480);60 Hz: 1 fps (1280 × 720, 640 × 480)

Video Compression

Main stream: H.264/H.265;Sub-stream: H.264/H.265/MJPEG;Third Stream: H.265/H.264;*Performance mode: main stream supports H.264+, H.265+

Video Bit Rate

32 Kbps to 8 Mbps

H.264 Type

Baseline Profile,Main Profile,High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR/VBR

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Region of Interest (ROI)

4 fixed regions for main stream

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Audio Bit Rate

64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

Audio Sampling Rate

8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Environment Noise Filtering

Yes

Simultaneous Live View

Up to 6 channels

API

Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP, OTAP

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets

User/Host

Up to 32 users;3 user levels: administrator, operator, and user

Security

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, TLS 1.2, TLS 1.3

Network Storage

NAS (NFS, SMB/CIFS), auto network replenishment (ANR);Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Client

Hik-Connect (proactive mode also supports), Hik-central Professional

Web Browser

Plug-in required live view: IE 10+;Plug-in free live view: Chrome 57.0+, Firefox 52.0+;Local service: Chrome 57.0+, Firefox 52.0+

SIM Card Type

MicroSIM

Frequency

LTE-TDD: Band38/40/41;LTE-FDD: Band1/3/5/7/8/20/28;WCDMA: Band1/5/8;GSM: 850/900/1800 MHz

Standard

LTE-TDD/LTE-FDD/WCDMA/GSM

Wide Dynamic Range (WDR)

120 dB

Day/Night Switch

Day, Night, Auto, Schedule, Video Trigger

Image Enhancement

BLC, HLC, 3D DNR, Defog

Image Parameters Switch

Yes

Image Settings

Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser

SNR

≥ 52 dB

Privacy Mask

4 programmable polygon privacy masks

Audio

1 input (line in), max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,;1 output (line out), max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

Alarm

1 input, 1 output (max. 12 VDC, 1 A)

On-Board Storage

Built-in memory card slot, support microSD card, up to 256 GB,;Built-in 8 GB eMMC storage

Reset Key

Yes

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

Wiegand

1 Wiegand (CardID 26bit, SHA-1 26bit, Hik 34bit, NEWG 72 bit)

Basic Event

Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD error)

Smart Event

Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, scene change detection, face detection

Linkage

Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning

Road Traffic and Vehicle Detection

Blocklist and allowlist: up to 10,000 records;Support license plate recognition;License plate recognition rate ≥95%

Power

12 VDC ± 20%, 4-pin M8 waterproof connector;1. Standby power consumption: 45 mW;2. The average power consumption of 24 hours: 3.5 W (4G transmission is excluded).;3. The max. power consumption: 7 W

Material

Front cover: metal, body: metal, bracket: metal

Dimension

816.2 mm × 735.9 mm × 760 mm (32.1″ × 28.9″ × 29.9″) (Max. size of the camera after it is completely assembled)

Package Dimension

862 mm × 352 mm × 762 mm (33.9″ × 13.9″ × 30.0″)

Weight

Approx. 31.885 kg (70.3 lb.)

With Package Weight

Approx. 25.650 kg (56.5 lb.)

Storage Conditions

-20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing)

Language

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

General Function

Anti-banding, heartbeat, mirror, flash log, password reset via email, pixel counter

Battery Type

Lithium

Capacity

360 Wh (90 Wh for each battery)

Battery Voltage

10.8 V

Max. Output Voltage

12.6 V

Operating Temperature

Charging: -20 °C to 45 °C (-4 °F to 113 °F);Discharging: -20 °C to 60 °C (-4 °F to 140 °F)

Battery Life

More than 500 cycles

Cycle Lifetime

Proactive mode: 8 days, Standby mode: 80 days;*in cloudy/rainy days (25 °C)

Battery Weight

Approx. 2.74 kg (6.0 lb.) (0.685 kg (1.5 lb.) for each battery)

EMC

CE-EMC/UKCA (EN 55032:2015+A11:2020+A1:2020,EN 50130-4:2011+A1:2014);;RCM (AS/NZS CISPR 32: 2015);;IC (ICES-003: Issue 7)

RF

CE-RED/UKCA (EN 301908-1,EN 301908-2,EN 301908-13, EN 301511,EN 301489-1,EN 301489-52,EN 62133);;ICASA: same as CE-RED;;IC ID (RSS-132 Issue 3, RSS-133 Issue 6, RSS-139 Issue 3, RSS-130 Issue 2, RSS-102 Issue 5);;MIC (Article 49-6-4 and 49-6-5 the relevant articles and MIC Notice No. 1299 of the Ordinance Regulating Radio Equipment)

Safety

CB (IEC 62368-1:2014+A11);CE-LVD/UKCA (EN 62368-1:2014/A11:2017);LOA (IEC/EN 60950-1)

Environment

CE-RoHS (2011/65/EU); ;WEEE (2012/19/EU); ;Reach (Regulation (EC) No 1907/2006)

Protection

Camera: IP66 (IEC 60529-2013);Wind resistance 12 level, up to 40 m/s wind speed resistance
