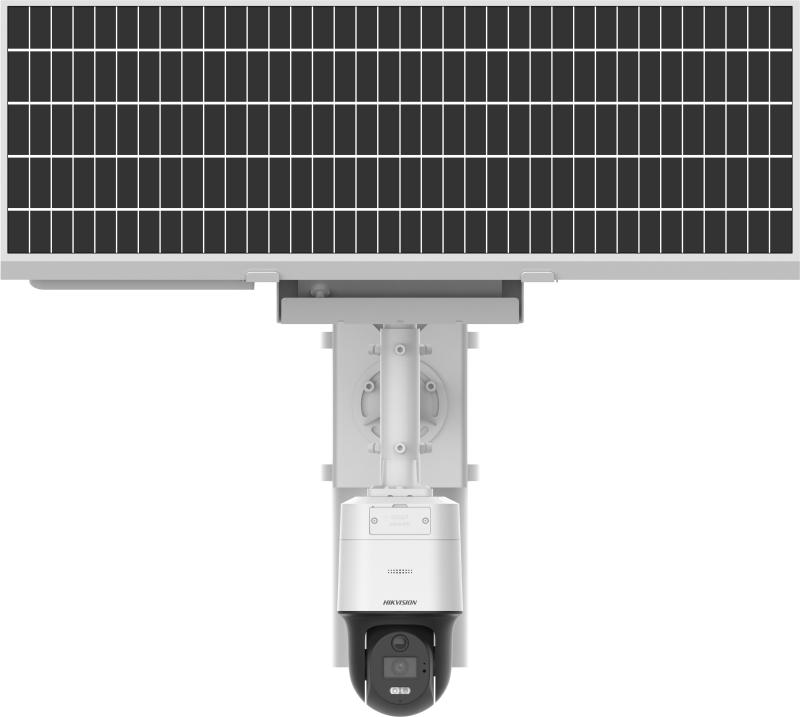

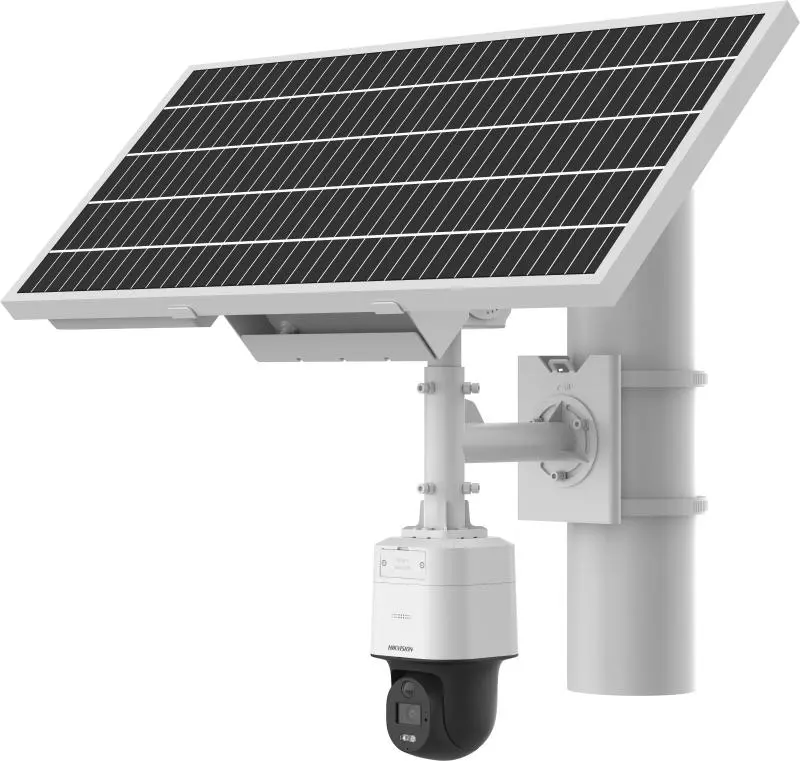

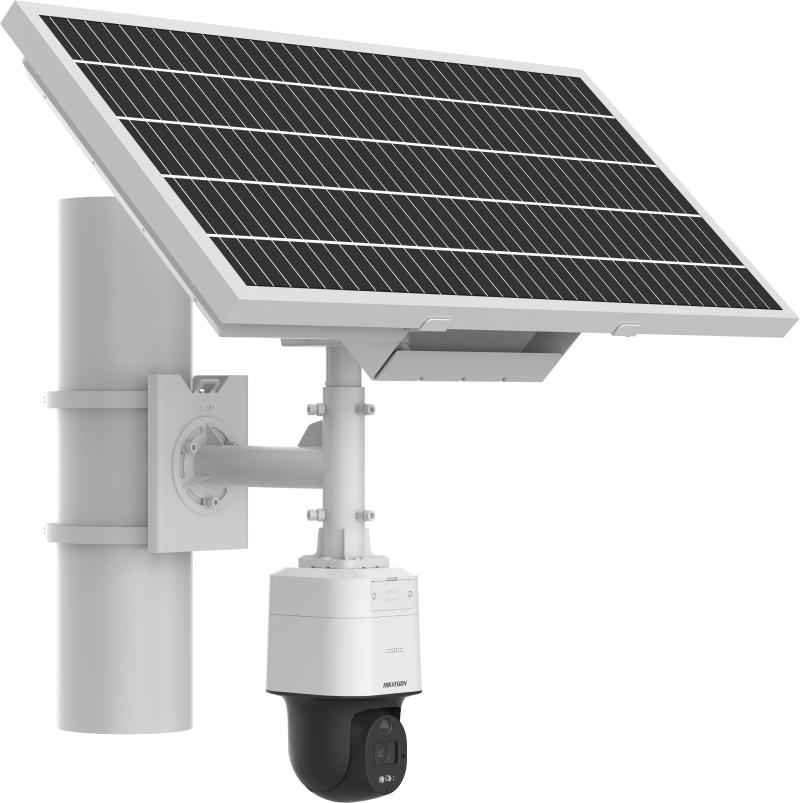

Hikvision DS-2XS3Q47G1-LDH/4G

Image Sensor

1/3″ Progressive Scan CMOS

Max. Resolution

2688 × 1520

Min. Illumination

Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light

Shutter Time

1/3 s to 1/100,000 s

Day & Night

24/7 color imaging

Angle Adjustment

Solar panel: pan: 0° to 358°, tilt: -40° to 0°; camera: pan: 0° to 340°, tilt: -5° to 105°

Lens Type

Fixed focal lens, 4 and 6 mm optional

Iris Type

Fixed

Aperture

F1.0

Depth of Field

4 mm: 2.7 m to ∞;6 mm: 5.9 m to ∞

Focal Length & FOV

4 mm, Horizontal FOV: 75°, Vertical FOV: 40°, Diagonal FOV: 89°;6 mm, Horizontal FOV: 49°, Vertical FOV: 27°, Diagonal FOV: 57°

Lens Mount

M12

DORI

4 mm, D: 82 m, O: 32 m, R: 16 m, I: 8 m;6 mm, D: 120 m, O: 47 m, R: 24 m, I: 12 m

Supplement Light Type

White Light

Supplement Light Range

Performance mode: up to 30 m, proactive mode: up to 10 m

Smart Supplement Light

Yes

Main Stream

50 Hz: 12.5 fps (2688 × 1520, 1920 × 1080, 1280 × 720);60 Hz: 15 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 12.5 fps (1280 × 720, 640 × 480, 640 × 360);60 Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360)

Video Compression

Main stream: H.265/ H.264;Sub-stream: H.265/H.264/MJPEG;H.264+ and H.265+: main stream supports under performance mode

Video Bit Rate

32 Kbps to 8 Mbps

H.264 Type

Baseline Profile,Main Profile,High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR,VBR

Region of Interest (ROI)

1 fixed region for main stream

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Audio Sampling Rate

8 kHz/16 kHz

Environment Noise Filtering

Yes

Audio Compression

G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3

Audio Bit Rate

64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

Security

Password protection, complicated password, basic and digest authentication for HTTP, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface

Simultaneous Live View

Up to 6 channels

API

Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK

Protocols

TCP/IP, ICMP, HTTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP

User/Host

Up to 32 users;3 user levels: administrator, operator, and user

Network Storage

Auto Network Replenishment (ANR)

Client

iVMS-4200,Hik-Connect,Hik-Central

Web Browser

Plug-in required live view: IE 10, IE11,;Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,;Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

SIM Card Type

Micro SIM

Uplink and Downlink Data Rate

Cat 4, uplink: 50 Mbps, downlink: 150 Mbps

Frequency

EU:;LTE-TDD: B38/B40/B41;LTE-FDD: B1/B3/B5/B7/B8/B20/B28;WCDMA: B1/B5/B8;GSM: B3/B5/B8;LA:;LTE-TDD: B38/B40;LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B17/B28/B66;WCDMA:B1/B2/B3/B4/B5/B8;GSM: B2/B3/B5/B8;US:;LTE-FDD: B2/B4/B5/B12/B13/B17/B66/B71;WCDMA: B2/B4/B5

Standard

LTE-TDD,LTE-FDD,WCDMA,GSM

SNR

≥ 52 dB

Wide Dynamic Range (WDR)

120 dB

Privacy Mask

4 programmable polygon privacy masks

Day/Night Switch

Day,Night,Auto,Schedule

Image Enhancement

BLC,HLC,3D DNR

Image Settings

Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

On-Board Storage

Built-in eMMC storage, up to 64 GB,;Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB,For eMMC storage, 50 GB is available for recording.

Built-in Microphone

Yes

Built-in Speaker

Yes

Reset Key

Yes

Basic Event

Motion detection,video tampering alarm,network disconnected,IP address conflict,illegal login,HDD full,HDD error

Linkage

Upload to NAS/memory card,notify surveillance center,trigger recording,trigger capture,audible warning

Power

Power Consumption and Current:;Typical power scenarios: 1.85 W (4G working);Standby scenarios: 40 mW;Max. power consumption: 6 W;Power Supply:;12 VDC ± 25%;*For debugging only;40 W (deviation: ± 2 W) Solar panels;Power Interface:;Power supply interface: Ø5.5 mm coaxial power plug;Extened solar panel: four-core aviation connector

Material

Camera: Plastic; Solar panel: Metal

Storage Conditions

-20 °C to 50 °C (-4 °F to 122 °F). Humidity 95% or less (non-condensing)

Language

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

General Function

Heartbeat,mirror,flash log

Startup and Operating Conditions

-20 °C to 50 °C (-4 °F to 122 °F). Humidity 95% or less (non-condensing)

Dimension

686.6 mm × 442.6 mm × 760 mm (27.03″ × 17.42″ × 29.9″)

Package Dimension

902 mm × 342 mm × 440 mm (35.5″ × 13.5″ × 17.3″)

Weight

;Approx. 11.70 kg (25.8 lb.)

With Package Weight

;Approx. 15.01 kg (33.1 lb.)

Battery Type

Ternary Lithium

Capacity

8.4 Ah × 2 packs

Max. Charging Voltage

12.6 V

Operating Temperature

Charging: -20 °C to 45 °C (-4 °F to 113 °F);Discharging: -20 °C to 60 °C (-4 °F to 140 °F)

Battery Voltage

9 V to 12.6 V

Battery Life

More than 500 cycles

Cycle Lifetime

Performance mode: 3.6 days,;Proactive mode: 6 days,;Standby mode: 30 days

Battery Weight

Approx. 1400 g (3.1 lb.)

EMC

;CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,;RCM: AS/NZS CISPR 32: 2015, ;IC: ICES-003: Issue 7,;*IC certification is only for the device sold in the North American region. CE and RCM certifications are only for the device sold in the European region.

RF

IC ID (RSS-247(BT or 2.4G)),;CE-RED: EN 301489-1 V2.1.1 (BT or 2.4G), EN 301489-17 V3.1.1 (BT or 2.4G), EN 300328 V2.1.1 (BT or 2.4G), EN 62311: 2008 (BT or 2.4G);*IC certification is only for the device sold in the North American region. CE certification is only for the device sold in the European region.

Safety

;CB: IEC 62368-1: 2014+A11,;CE-LVD: EN 62368-1: 2014/A11: 2017,;LOA: IEC/EN 60950-1,;*CE and LOA certifications are only for the device sold in the European region.

Environment

CE-RoHS: 2011/65/EU, ;WEEE: 2012/19/EU, ;Reach: Regulation (EC) No 1907/2006,;*CE certification is only for the device sold in the European region.

Protection

;IP65: IEC60529-2013
