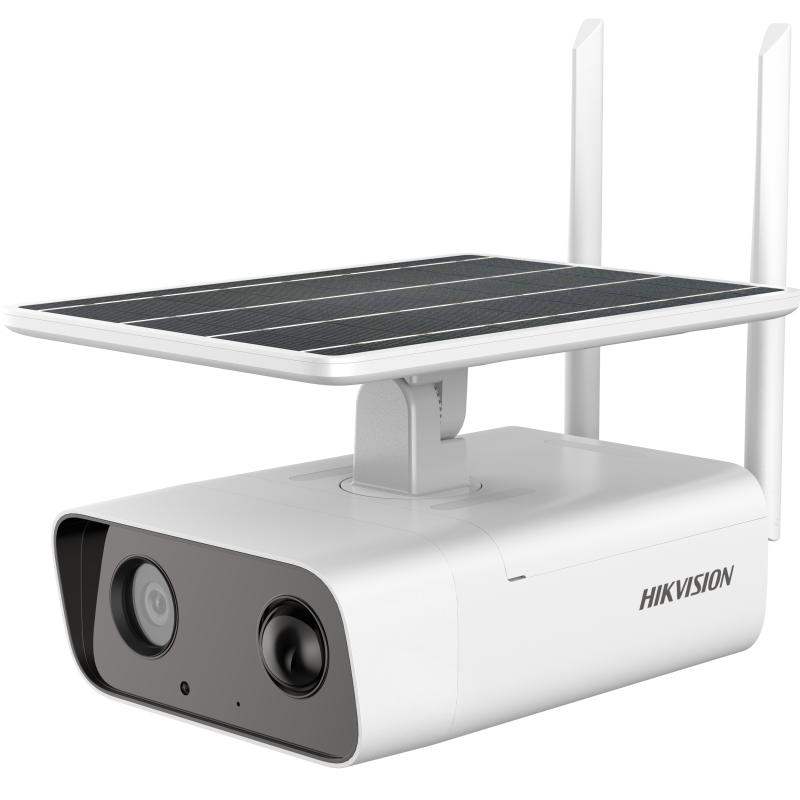

Hikvision DS-2XS2T41G0-ID/4G/C04S05

Image Sensor

1/3″ Progressive Scan CMOS

Max. Resolution

2688 × 1520

Min. Illumination

Color: 0.01 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR

Shutter Time

1/3 s to 1/100,000 s

Day & Night

IR cut filter

Lens Type

Fixed focal lens, 4 and 6 mm optional

Aperture

F1.6

Iris Type

Fixed

Focal Length & FOV

4 mm, horizontal FOV 83.7°, vertical FOV 44°, diagonal FOV 99.5°;6 mm, horizontal FOV 51.8°, vertical FOV 27.9°, diagonal FOV 60.5°

Lens Mount

M12

Supplement Light Range

Performance mode: up to 30 m;Proactive mode: up to 10 m

IR Wavelength

850 nm

Smart Supplement Light

Yes

Main Stream

50 Hz: 12.5 fps (2688 × 1520, 1920 × 1080, 1280 × 720);60 Hz: 15 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 12.5 fps (640 × 480, 640 × 360);60 Hz: 15 fps (640 × 480, 640 × 360)

Video Compression

Main stream: H.265+(performance mode)/H.265/H.264+(performance mode)/ H.264;Sub-stream: H.265/H.264/MJPEG;

Video Bit Rate

32 Kbps to 8 Mbps

H.264 Type

Baseline Profile/Main Profile/High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR/VBR

Region of Interest (ROI)

1 fixed region for main stream

Audio Sampling Rate

8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Environment Noise Filtering

Yes

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM/AAC/MP3

Audio Bit Rate

64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)

Simultaneous Live View

Up to 6 channels

API

EZVIZ

Protocols

TCP/IP, ICMP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, UDP, Bonjour, SSL/TLS

User/Host

Up to 32 users. 3 user levels: administrator, operator and user

Network Storage

Auto network replenishment (ANR)

Client

iVMS-4200, Hik-Connect, Hik-Central;Proactive mode: Hik-Connect

Web Browser

Plug-in required live view: IE 10+;Plug-in free live view: Chrome 57.0+, Firefox 52.0+;Local service: Chrome 57.0+, Firefox 52.0+

Frequency

LTE-TDD: Band 38/40/41;;LTE-FDD: Band 1/3/5/7/8/20/28;;WCDMA: Band 1/5/8;;GSM: band 3/5/8;

Standard

LTE-TDD, LTE-FDD, WCDMA, GSM

Wide Dynamic Range (WDR)

120 dB

Day/Night Switch

Day, Night, Auto, Schedule

Image Enhancement

BLC, HLC, 3D DNR, Defog, EIS, Distortion correction

Image Settings

Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

PIR Range

Up to 10 m

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

On-Board Storage

Built-in memory card slot, support microSD/SDHC/SDXC/TF card, up to 256 GB;Built-in 8 GB eMMC storage (6 GB avaible for recording)

Built-in Microphone

Yes

Built-in Speaker

Yes

Reset Key

Yes

Basic Event

PIR, exception

Linkage

Upload to memory card, notify surveillance center, audible warning, trigger recording, trigger capture, send email

Power

Typical power scenarios: 1.85 W (4G working);Standby scenarios: 40 mW;Max. power consumption: 4.8 W;Power supply: 5 VDC ± 10%, reverse polarity protection;Power supply interface: microUSB;Extened solar panel: Ø3.5 mm, 5 VDC

General Function

Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter

Startup and Operating Conditions

0 °C to 40 °C (32 °F to 104 °F), humidity 95% or less (non-condensing)

Dimension

245.8 mm × 156 mm × 214 mm (9.7″ × 6.1″ × 8.4″)

Package Dimension

730 mm × 722 mm × 285 mm (28.7″ × 28.4″ × 11.2″)

Weight

4G model: approx. 1235 g (2.7 lb.)

With Package Weight

4G model: approx. 1890 g (4.2 lb.)

PV Panel

Dimension: 205.1 mm × 145.1 mm × 2.35 mm (8.1″ × 5.7″ × 0.1″»);Standard output consumption: 5 W;Standard testing condition: AM = 1.5
