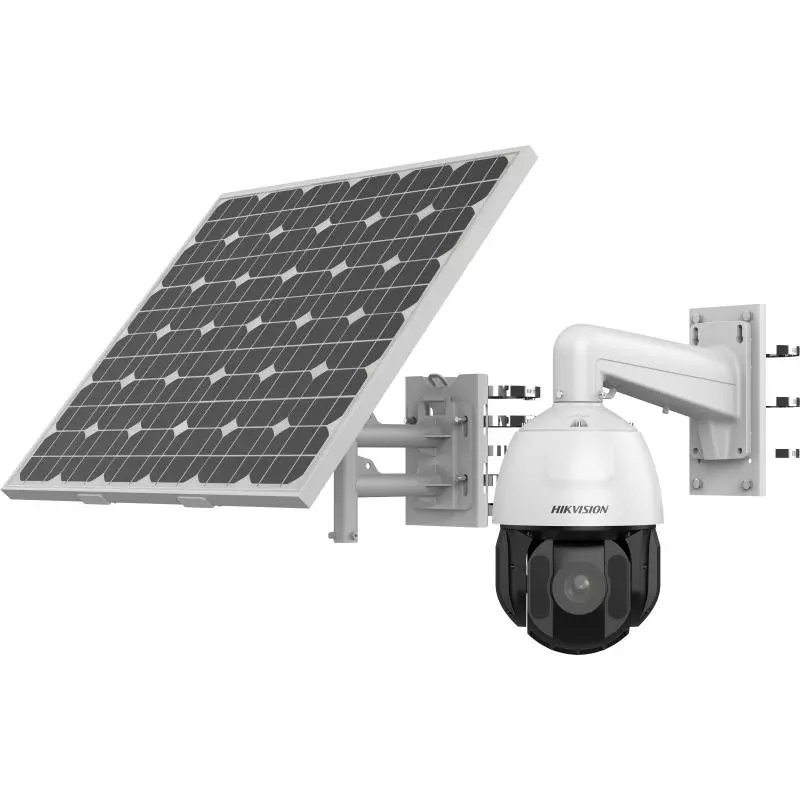

Hikvision DS-2DE5425IWG-K/4G

Image Sensor

1/2.8″ progressive scan CMOS

Max. Resolution

2560 × 1440

Min. Illumination

color: 0.05Lux @ (F1.6，AGC ON)||B/W: 0.01Lux @(F1.6，AGC ON)||0 Lux with IR

Shutter Speed

1 s~1/30,000 s

Day & Night

IR cut filter

Zoom

25 × optical,16 × digital

Slow Shutter

yes

HLC

yes

3D DNR

yes

Focal Length

4.8 mm~120 mm

FOV

Horizontal field of view: 55° to 2.4° (wide-tele),;Vertical field of view: 33° to 1.4° (wide-tele),;Diagonal field of view: 61.5° to 2.8° (wide-tele)

Focus

semi-auto||manual||auto

Aperture

F1.6

Zoom Speed

approx.3.6s

Supplement Light Type

IR

Supplement Light Range

IR distance: up to 150 m

Movement Range (Pan)

360°

Movement Range (Tilt)

-15° to 90° (auto flip)

Pan Speed

pan speed: configurable from 0.1° to 120°/s; preset speed: 120°/s

Tilt Speed

tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s

Proportional Pan

yes

Presets

300

Preset Freezing

yes

Patrol Scan

8 patrols, up to 32 presets for each patrol

Pattern Scan

4 pattern scans

Park Action

preset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan

3D Positioning

yes

PTZ Status Display

yes

Scheduled Task

preset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan||dome reboot||dome adjust||aux output

Power-off Memory

yes

Main Stream

50 Hz：25 fps（2560 × 1440，1920 × 1080，1280 × 960，1280 × 720）;60 Hz：30 fps（2560 × 1440，1920 × 1080，1280 × 960，1280 × 720）

Sub-Stream

50 Hz：25 fps（704 × 576，640 × 480，352 × 288）;60 Hz：30 fps（704 × 480，640 × 480，352 × 240）

Third Stream

50 Hz：25 fps（1920 × 1080，1280 × 960，1280 × 720，704 × 576，640 × 480，352 × 288）;60 Hz：30 fps（1920 × 1080，1280 × 960，1280 × 720，704 × 480，640 × 480，352 × 240）

Video Compression

H.265||H.264||MJPEG

H.264 Type

Baseline Profile||Main Profile||High Profile

H.265 Type

Main Profile

Scalable Video Coding (SVC)

yes

Region of Interest (ROI)

fixed region

Audio Compression

G.711,G.722.1,G.726,MP2L2,MP3,PCM,AAC-LC

Audio Sampling Rate

MP2L2: 16 kHz, 32 kHz, 48 kHz,AAC-LC: 16 kHz, 32 kHz, 48 kHz,PCM: 8 kHz, 16 kHz, 32 kHz，48kHz,MP3: 8 kHz, 16 kHz, 32 kHz, 48 kHz

Environment Noise Filtering

yes

Protocols

IPv4/IPv6||HTTP||HTTPS||802.1x||Qos||FTP||SMTP||UPnP||SNMP||DNS||DDNS||NTP||RTSP||RTCP||RTP||TCP/IP||UDP||IGMP||ICMP||DHCP||Bonjour||WebSocket||WebSockets

API

Open-ended API|| ISAPI||Hikvision SDK||Third-party management platform||Hik-Connect||ISUP||Open Network Video Interface

User/Host

32

Security

Authenticated username and password||MAC address binding||HTTPS encryption||802.1X authenticated access||IP address filter

Network Storage

NAS (NFS, SMB/ CIFS)

Client

iVMS-4200

Web Browser

Chrome 57+、Firefox 52+、Safari 12+||IE10-11

Wireless Range

Up to 20 m (The performance varies based on actual environment)

Frequency

LTE FDD/LTE TDD/WCDMA/HSPA+/GSM/GPRS/EDGE

Standard

LTE FDD:Band 1,3,5,7,8,20,28LTE TDD:Band 38,40,41WCDMA/HSPA+:Band 1,5,8GSM/GPRS/EDGE:850/900/1800MH

Image Parameters Switch

yes

Image Settings

saturation||brightness||contrast||sharpness

Day/Night Switch

day||night||auto||scheduled-switch

Wide Dynamic Range (WDR)

yes

SNR

＞52dB

Defog

yes

Image Enhancement

BLC

Privacy Mask

up to 24 masks||mask color configurable

Regional Focus

yes

Regional Exposure

yes

Ethernet Interface

RJ45, self-adaptive 10M/100M Ethernet port

On-board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB,Built-in eMMC storage, up to 256 GB

Audio

1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%, 1 audio output, line level, impedance: 600 Ω

Alarm

2 alarm inputs

Reset

yes

Power Output

12 VDC, max. 1000 mA

Basic Event

Motion detection,video tampering alarm,alarm input and output,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)

Smart Event

Line crossing detection,intrusion detection,region entrance detection,region exiting detection,unattended baggage detection,object removal detection,audio exception detection,;Face detection

Linkage

Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,and PTZ actions (such as preset, patrol scan, pattern scan)

Power

12 VDC

Dimension

Ø208 mm × 344.8 mm

Weight

Approx. 29.9 kg (65.9 lb.);With Package Weight:Approx. 35.3 kg (77.8 lb.)

Material

Metal

Operating Condition

-30℃ to 65℃ (-22°F to 149°F)

Demist

yes

Power Consumption andCurrent

Max. 20 W (including max. 7 W for IR and max. 1.6 W for heater);

Battery Type

Lithium

Battery Voltage

10.8 V

Capacity

360 WH (90 WH for each battery)

Operating Temperature

Charging: -20 °C to 45 °C (-4 °F to 113 °F) Discharging: -20 °C to 60 °C (-4 °F to 140 °F)

Cycle Lifetime

Proactive mode: 8 days, Standby mode: 80 days *in cloudy/rainy days (25 °C)

Battery Life

More than 500 cycles

Battery Weight

Approx. 2.74 kg (6.0 lb.) (0.685 kg (1.5 lb.) for each battery)

Protection

IP66 Standard; 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
