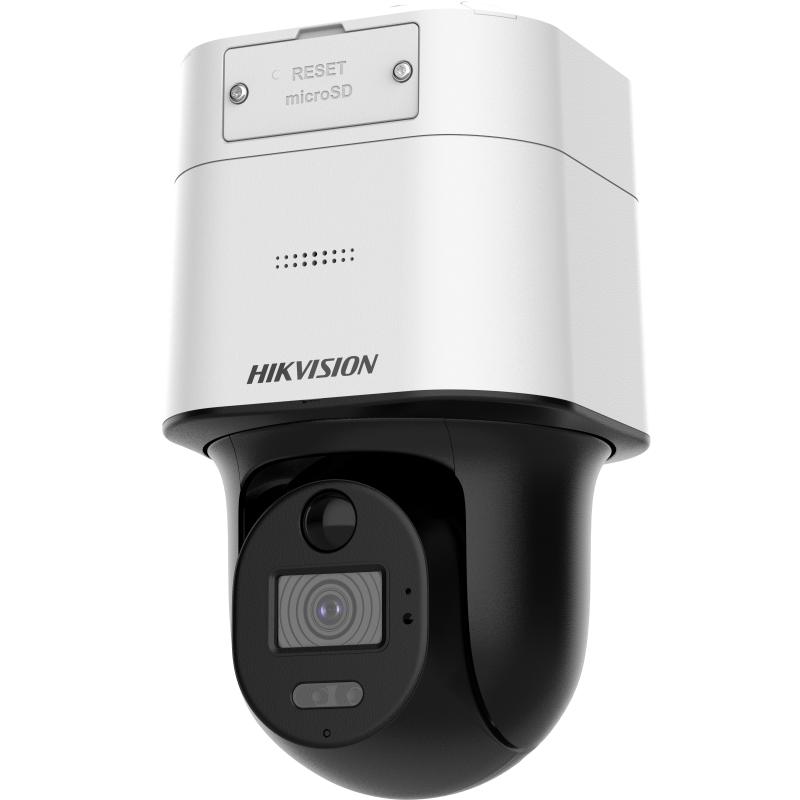

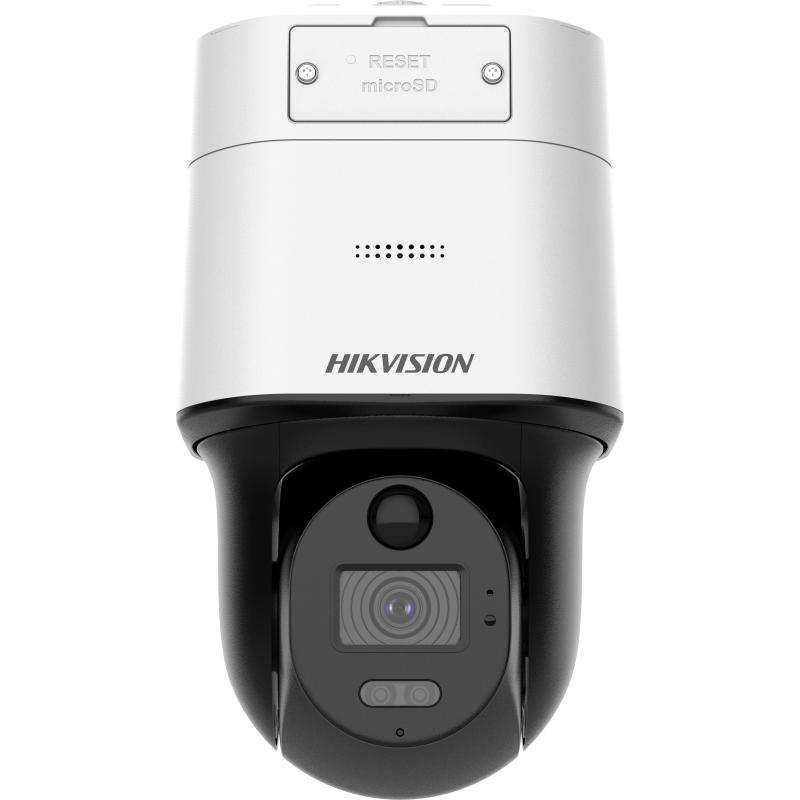

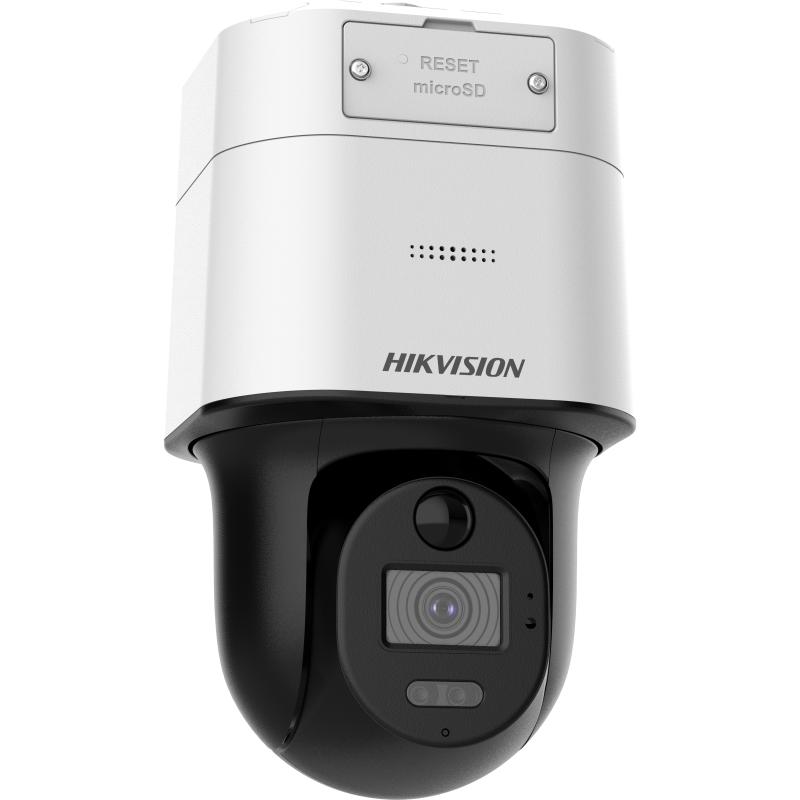

Hikvision DS-2XS3Q47G1-LDW(H)/C18S40

Image Sensor

1/3″ Progressive Scan CMOS

Max. Resolution

2560 × 1440

Min. Illumination

Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light

Shutter Time

1/3 s to 1/100,000 s

Day & Night

24/7 color imaging

Angle Adjustment

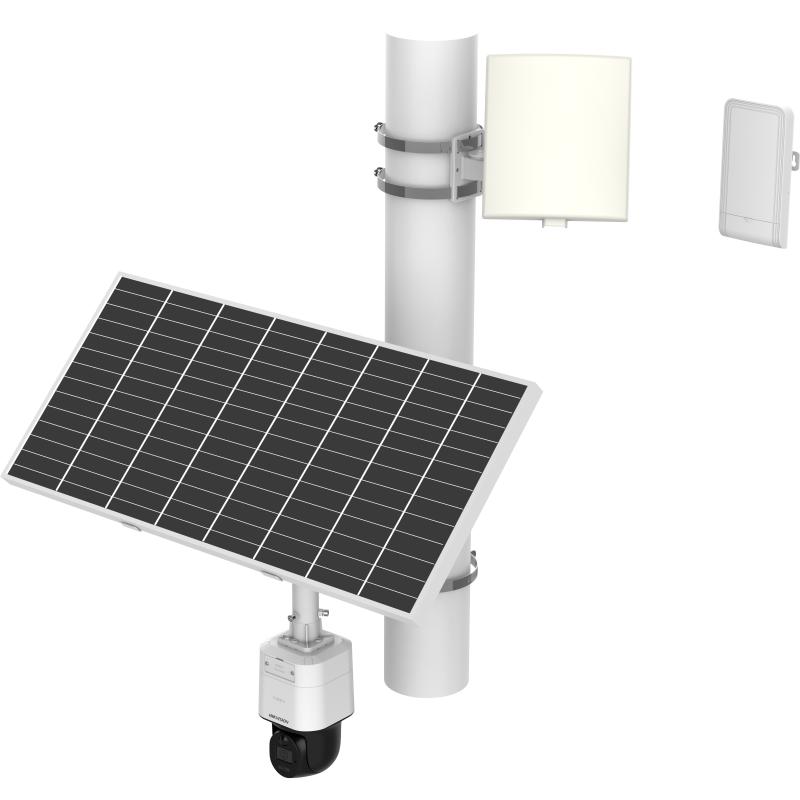

Solar panel: pan: 0° to 358°, tilt: -40° to 0°; camera: pan: 0° to 340°, tilt: -5° to 105°

Lens Type

Fixed focal lens, 2.8, 4, and 6 mm optional

Focal Length & FOV

2.8 mm, horizontal FOV 96°, vertical FOV 52°, diagonal FOV 113°;4 mm, horizontal FOV 76°, vertical FOV 41°, diagonal FOV 89°;6 mm, horizontal FOV 50°, vertical FOV 27°, diagonal FOV 58°

Lens Mount

M12

Iris Type

Fixed

Aperture

F1.0

Depth of Field

2.8 mm: 2 m to ∞;4 mm: 2.7 m to ∞;6 mm: 5.9 m to ∞

Movement Range (Pan)

0° to 340°

Movement Range (Tilt)

-5° to 105°

Pan Speed

Configurable from 4° to 21°/s

Tilt Speed

Configurable from 4° to 19°/s

DORI

2.8 mm, D: 64 m, O: 25 m, R: 12 m, I: 6 m;4 mm, D: 82 m, O: 32 m, R: 16 m, I: 8 m;6 mm, D: 120 m, O: 47 m, R: 24 m, I: 12 m

Supplement Light Type

White Light

Supplement Light Range

Up to 30 m

Smart Supplement Light

Yes

Main Stream

50 Hz: 12.5 fps (2560 × 1440, 1920 × 1080, 1280 × 720);60 Hz: 15 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 12.5 fps (1280 × 720, 640 × 480, 640 × 360);60 Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360)

Video Bit Rate

32 Kbps to 8 Mbps

Video Compression

Main stream: H.265/H.264,;Sub-stream: H.265/H.264/MJPEG,;H.264+ and H.265+: main stream supports under performance mode

H.264 Type

Baseline Profile,Main Profile,High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR,VBR

Region of Interest (ROI)

1 fixed region for main stream

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Audio Sampling Rate

8 kHz/16 kHz

Environment Noise Filtering

Yes

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC

Audio Bit Rate

64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

Security

Password protection, complicated password, basic and digest authentication for HTTP, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface

Simultaneous Live View

Up to 6 channels

API

Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP

Protocols

TCP/IP, ICMP, HTTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP

User/Host

Up to 32 users;3 user levels: administrator, operator, and user

Network Storage

Auto Network Replenishment (ANR)

Client

iVMS-4200,Hik-Connect,Hik-Central

Web Browser

Plug-in required live view: IE 10, IE 11,;Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Encryption Mode

64/128-bit WEP, WPA-EAP/WPA2-EAP, WPA-PSK/WPA2-PSK, WPS

Wi-Fi Protocol

IEEE802.11g,IEEE802.11b,IEEE802.11n

Frequency Range

2.4 GHz to 2.4835 GHz

Channel Bandwidth

20/40 MHz

Modulation

802.11b: CCK, QPSK, BPSK,802.11g: OFDM ,802.11n: OFDM

Transfer Rate

11b: up to 11 Mbps,11g: up to 54 Mbps,11n: up to 150 Mbps

Wireless Range

Up to 1000 m ;(The performance varies based on actual environment)

Antenna

1 Antenna

SNR

≥ 52 dB

Wide Dynamic Range (WDR)

Digital WDR

Privacy Mask

4 programmable polygon privacy masks

Day/Night Switch

Day,Night,Auto,Schedule

Image Enhancement

BLC,HLC,3D DNR

Image Settings

Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser

Detection Angle

Horizontal: 80°, vertical: 40°

Detection Range

Up to 7 m

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

On-Board Storage

;Built-in eMMC storage, up to 64 GB,Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

Built-in Microphone

Yes

Built-in Speaker

Max. power consumption: 1.5 W, max. sound pressure level: 10 cm: 97 dB.

Reset Key

Yes

Indicator

Yes

Basic Event

Motion detection,video tampering alarm,network disconnected,IP address conflict,illegal login,HDD full,HDD error

Linkage

Upload to memory card, notify surveillance center, trigger recording, trigger capture, audible warning

Power

12 VDC ± 25%, 1 A, max. 12 W

Dimension

686.6 mm × 442.6 mm × 760 mm (27.03″ × 17.42″ × 29.92″)

Package Dimension

902 mm × 342 mm × 440 mm (35.51″ × 13.46″ × 17.32″)

Weight

Approx. 13.30 kg (29.3 lb.)

With Package Weight

Approx. 16.65 kg (36.7 lb.)

Storage Conditions

-20 °C to 50 °C (-4 °F to 122 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

With -H: -20 °C to 50 °C (-4 °F to 122 °F). Humidity 95% or less (non-condensing),;Without -H: 0 °C to 60 °C (32 °F to 140 °F). Humidity 95% or less (non-condensing)

Language

English, Ukrainian

General Function

Heartbeat,mirror,flash log

Flashing Light

Yes

Battery Type

Lithium

Battery Voltage

9 V to 12.6 V

Capacity

8.4 Ah × 2 packs

Max. Charging Voltage

18 to 24 V

Max. Output Voltage

12.6 V

Operating Temperature

With -H: ;Charging: -20 °C to 45 °C (-4 °F to 113 °F);Discharging: -20 °C to 60 °C (-4 °F to 140 °F);Without -H model:;Charging: 0 °C to 45 °C (32 °F to 113 °F);Discharging: -20 °C to 60 °C (-4 °F to 140 °F)

Cycle Lifetime

Performance mode: 3.6 days,;Proactive mode: 6 days,;Standby mode: 30 days

Battery Life

More than 500 cycles

Battery Weight

Approx. 1400 g (3.1 lb.)

Extended Dimension

84 mm × 221 mm × 37.3 mm (3.31″ × 8.70″ × 1.47″)

RF

CE-RED: 2014/53/EU

EMC

;CE-EMC: EN 55032:2015+A11:2020+A1:2020 EN 50130-4:2011+A1:2014; RCM: AS/NZS CISPR 32: 2015

Safety

;CB IEC: 62368-1:2014; CE-LVD: EN 62368-1: 2014+A11: 2017; LOA: SANS IEC 60950

Environment

CE-RoHS: 2011/65/EU, ;WEEE: 2012/19/EU, ;Reach: Regulation (EC) No 1907/2006

Protection

IP65: IEC 60529-2013
