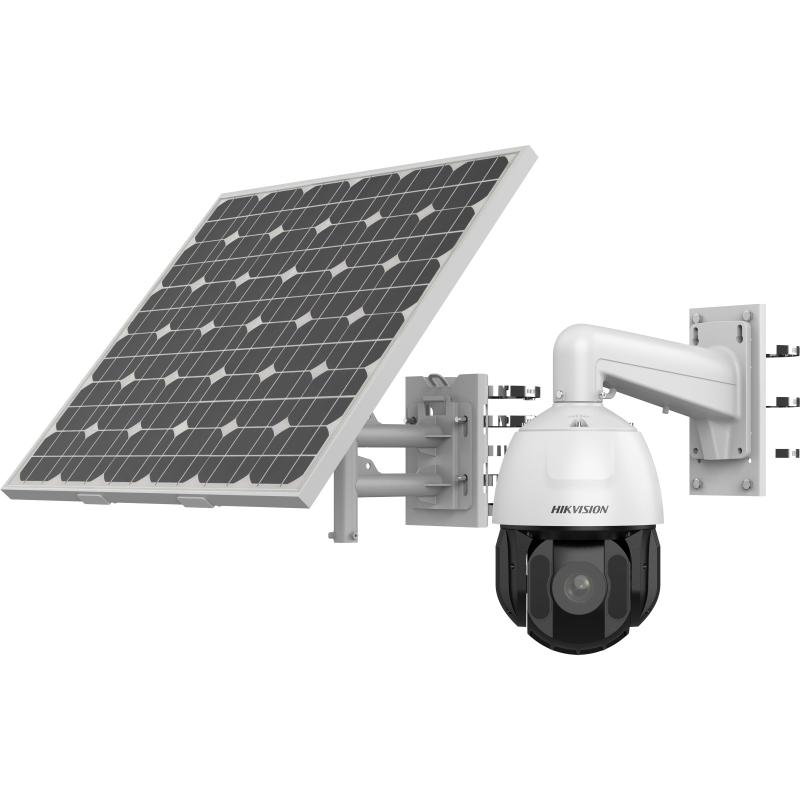

4 MP ColorVu günəş enerjili təhlükəsizlik PT kamera dəsti
4 MP ColorVu günəş enerjili təhlükəsizlik PT kamera dəsti
Sorğu əsasında
Qiymət sorğusu- Camera
- Image Sensor1/2.8″ progressive scan CMOS
- Max. Resolution2560 × 1440
- Min. Illuminationcolor: 0.05Lux @ (F1.6，AGC ON)||B/W: 0.01Lux @(F1.6，AGC ON)||0 Lux with IR
- Shutter Speed1 s~1/30,000 s
- Day & NightIR cut filter
- Zoom25 × optical,16 × digital
- Slow Shutteryes
- HLCyes
- 3D DNRyes
- Lens
- Focal Length4.8 mm~120 mm
- FOV
Horizontal field of view: 55° to 2.4° (wide-tele),
Vertical field of view: 33° to 1.4° (wide-tele),
Diagonal field of view: 61.5° to 2.8° (wide-tele)
- Focussemi-auto||manual||auto
- ApertureF1.6
- Zoom Speedapprox.3.6s
- Illuminator
- Supplement Light TypeIR
- Supplement Light RangeIR distance: up to 150 m
- PTZ
- Movement Range (Pan)360°
- Movement Range (Tilt)-15° to 90° (auto flip)
- Pan Speedpan speed: configurable from 0.1° to 120°/s; preset speed: 120°/s
- Tilt Speedtilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
- Proportional Panyes
- Presets300
- Preset Freezingyes
- Patrol Scan8 patrols, up to 32 presets for each patrol
- Pattern Scan4 pattern scans
- Park Actionpreset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan
- 3D Positioningyes
- PTZ Status Displayyes
- Scheduled Taskpreset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan||dome reboot||dome adjust||aux output
- Power-off Memoryyes
- Video
- Main Stream
50 Hz：25 fps（2560 × 1440，1920 × 1080，1280 × 960，1280 × 720）
60 Hz：30 fps（2560 × 1440，1920 × 1080，1280 × 960，1280 × 720）
- Sub-Stream
50 Hz：25 fps（704 × 576，640 × 480，352 × 288）
60 Hz：30 fps（704 × 480，640 × 480，352 × 240）
- Third Stream
50 Hz：25 fps（1920 × 1080，1280 × 960，1280 × 720，704 × 576，640 × 480，352 × 288）
60 Hz：30 fps（1920 × 1080，1280 × 960，1280 × 720，704 × 480，640 × 480，352 × 240）
- Video CompressionH.265||H.264||MJPEG
- H.264 TypeBaseline Profile||Main Profile||High Profile
- H.265 TypeMain Profile
- Scalable Video Coding (SVC)yes
- Region of Interest (ROI)fixed region
- Audio
- Audio CompressionG.711,G.722.1,G.726,MP2L2,MP3,PCM,AAC-LC
- Audio Sampling RateMP2L2: 16 kHz, 32 kHz, 48 kHz,AAC-LC: 16 kHz, 32 kHz, 48 kHz,PCM: 8 kHz, 16 kHz, 32 kHz，48kHz,MP3: 8 kHz, 16 kHz, 32 kHz, 48 kHz
- Environment Noise Filteringyes
- Network
- ProtocolsIPv4/IPv6||HTTP||HTTPS||802.1x||Qos||FTP||SMTP||UPnP||SNMP||DNS||DDNS||NTP||RTSP||RTCP||RTP||TCP/IP||UDP||IGMP||ICMP||DHCP||Bonjour||WebSocket||WebSockets
- APIOpen-ended API|| ISAPI||Hikvision SDK||Third-party management platform||Hik-Connect||ISUP||Open Network Video Interface
- User/Host32
- SecurityAuthenticated username and password||MAC address binding||HTTPS encryption||802.1X authenticated access||IP address filter
- Network StorageNAS (NFS, SMB/ CIFS)
- ClientiVMS-4200
- Web BrowserChrome 57+、Firefox 52+、Safari 12+||IE10-11
- Wireless (Wi-Fi)
- Wireless RangeUp to 20 m (The performance varies based on actual environment)
- Wireless (Mobile Communication)
- FrequencyLTE FDD/LTE TDD/WCDMA/HSPA+/GSM/GPRS/EDGE
- StandardLTE FDD:Band 1,3,5,7,8,20,28LTE TDD:Band 38,40,41WCDMA/HSPA+:Band 1,5,8GSM/GPRS/EDGE:850/900/1800MH
- Image
- Image Parameters Switchyes
- Image Settingssaturation||brightness||contrast||sharpness
- Day/Night Switchday||night||auto||scheduled-switch
- Wide Dynamic Range (WDR)yes
- SNR＞52dB
- Defogyes
- Image EnhancementBLC
- Privacy Maskup to 24 masks||mask color configurable
- Regional Focusyes
- Regional Exposureyes
- Interface
- Ethernet InterfaceRJ45, self-adaptive 10M/100M Ethernet port
- On-board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB,Built-in eMMC storage, up to 256 GB
- Audio1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%, 1 audio output, line level, impedance: 600 Ω
- Alarm2 alarm inputs
- Resetyes
- Power Output12 VDC, max. 1000 mA
- Event
- Basic EventMotion detection,video tampering alarm,alarm input and output,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
- Smart Event
Line crossing detection,intrusion detection,region entrance detection,region exiting detection,unattended baggage detection,object removal detection,audio exception detection,
Face detection
- LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,and PTZ actions (such as preset, patrol scan, pattern scan)
- General
- Power12 VDC
- DimensionØ208 mm × 344.8 mm
Approx. 29.9 kg (65.9 lb.)
With Package Weight:Approx. 35.3 kg (77.8 lb.)
- MaterialMetal
- Operating Condition-30℃ to 65℃ (-22°F to 149°F)
- Demistyes
- Power Consumption andCurrentMax. 20 W (including max. 7 W for IR and max. 1.6 W for heater);
- Battery
- Battery TypeLithium
- Battery Voltage 10.8 V
- Capacity360 WH (90 WH for each battery)
- Operating TemperatureCharging: -20 °C to 45 °C (-4 °F to 113 °F) Discharging: -20 °C to 60 °C (-4 °F to 140 °F)
- Cycle LifetimePerformance mode: 2 days. Proactive mode: 2.5 days. Standby mode: 80 days *in cloudy/rainy days (25 °C)
- Battery LifeMore than 500 cycles
- Battery WeightApprox. 2.74 kg (6.0 lb.) (0.685 kg (1.5 lb.) for each battery)
- Approval
- ProtectionIP66 Standard; 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
- Solar
- Solar Panel TypePolycrystalline Glass Solar Panel
- Conversion Efficiency18.5%
- Power Consumption80W(±5%)/19.18V/4.19A
- Solar Panel Dimensions & Weight760(±0.5) x 644(±0.5) x 25(±0.3) mm,5.8KG
