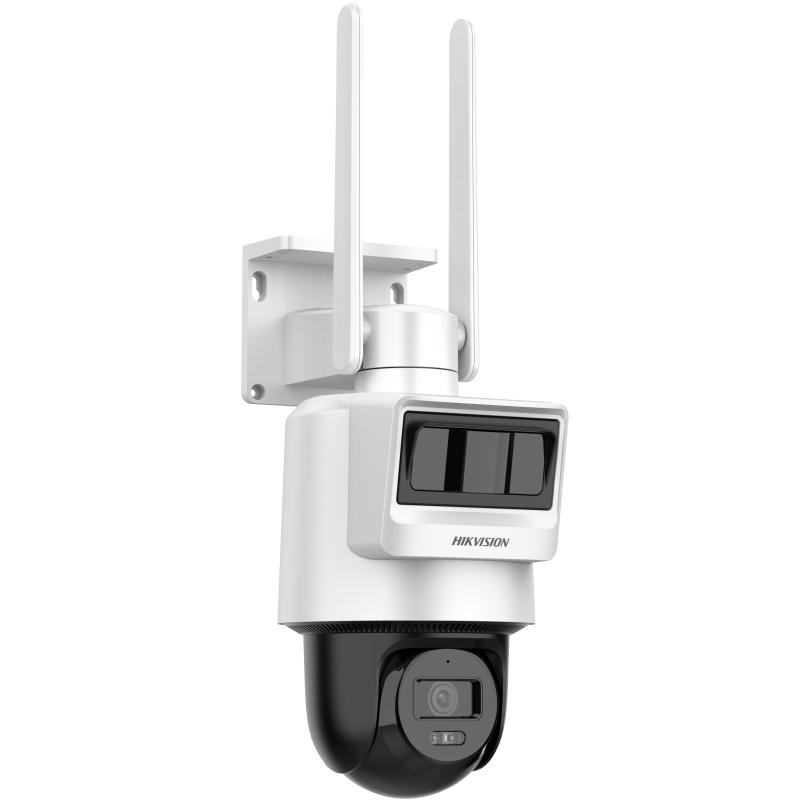

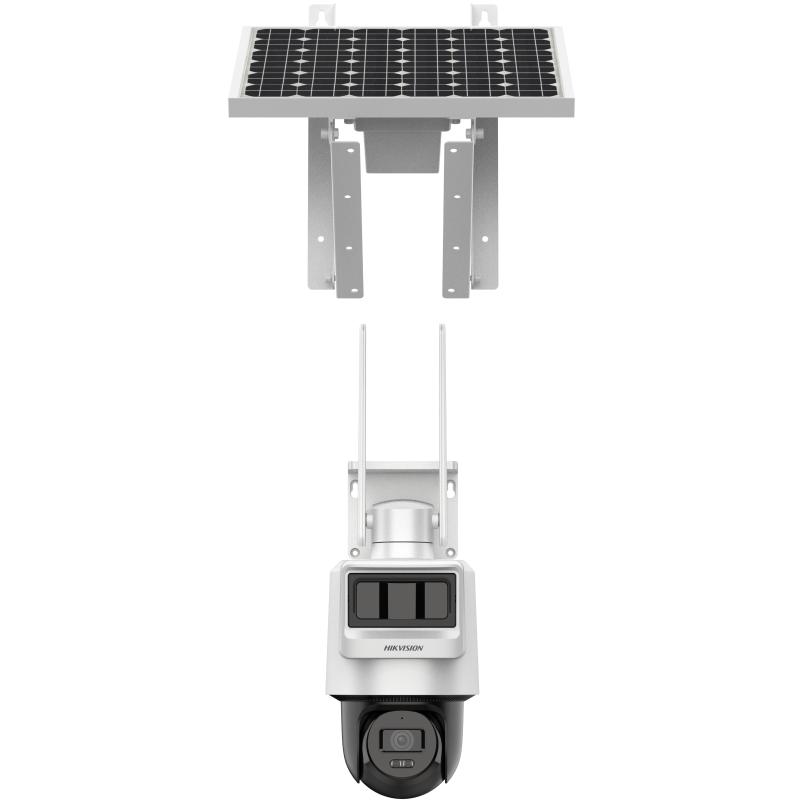

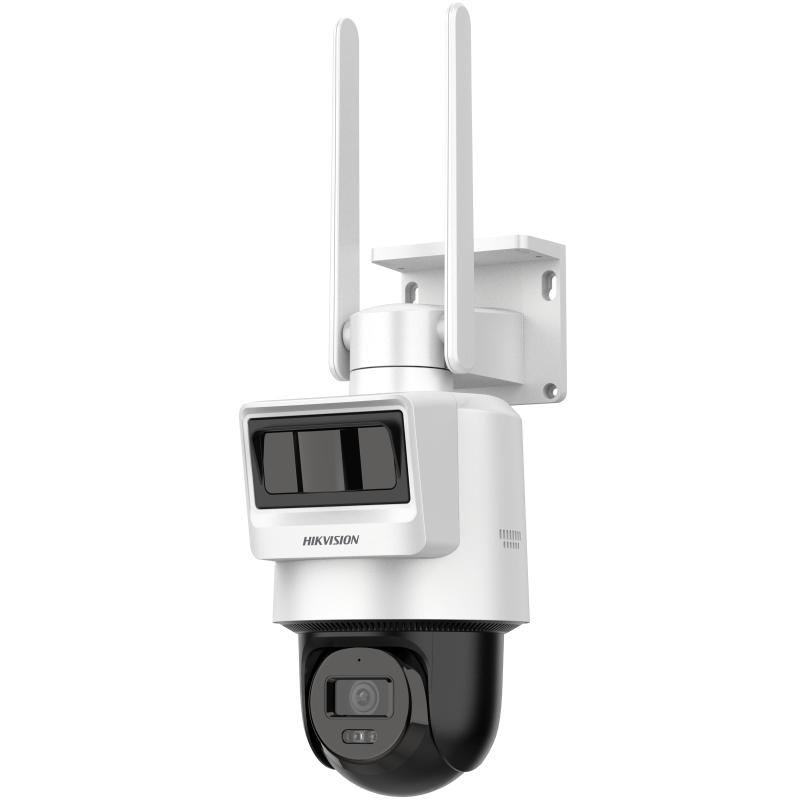

Hikvision DS-2DE2C400IWG-K/4G/C05S10

Image Sensor

1/2.7″ Progressive Scan CMOS

Max. Resolution

2560 × 1440

Min. Illumination

Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR

Shutter Time

1/3 s to 1/100,000 s

Day & Night

IR cut filter

Lens Type

Fixed focal lens, 2.8 and 4 mm optional

Focal Length & FOV

2.8 mm, horizontal FOV 94°, vertical FOV 49°, diagonal FOV 114°;4 mm, horizontal FOV 70°, vertical FOV 35°, diagonal FOV 85°

Lens Mount

M12

Iris Type

Fixed

Aperture

F1.6

Movement Range (Pan)

0° to 340°

Movement Range (Tilt)

0° to 80°

Pan Speed

Up to 25°/s

Tilt Speed

Up to 25°/s

DORI

2.8 mm, D: 68 m, O: 27 m, R: 13 m, I: 6 m;4 mm, D: 100 m, O: 39 m, R: 20 m, I: 10 m

Supplement Light Type

IR

Supplement Light Range

Up to 30 m

Smart Supplement Light

Yes

IR Wavelength

850 nm

Main Stream

50 Hz: 12.5 fps (2560 × 1440, 1920 × 1080, 1280 × 720);60 Hz: 15 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 12.5 fps (1280 × 720, 640 × 480, 640 × 360);60 Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360)

Video Compression

Main stream: H.265/H.264,;Sub-stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 8 Mbps

H.264 Type

Baseline Profile,Main Profile,High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR,VBR

Region of Interest (ROI)

1 fixed region for main stream

Audio Type

Mono sound

Audio Sampling Rate

8 kHz/16 kHz

Environment Noise Filtering

Yes

Audio Compression

G.722.1/G.711/MP2L2/PCM/G.726/AAC-LC

Audio Bit Rate

16 Kbps(G.722.1)/64 Kbps(G.711ulaw/G.711alaw)/32~160 Kbps(MP2L2)/8~48 Kbps(PCM)/16 Kbps(G.726)/16~64 Kbps(AAC-LC)

API

ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK

Security

Password protection, complicated password, basic and digest authentication for HTTP, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface

Simultaneous Live View

Up to 6 channels

Protocols

TCP/IP, DHCP, IPv4

User/Host

Up to 32 users;3 user levels: administrator, operator, and user

Client

Hik-Connect,HikCentral Professional, Hik-Partner Pro

Web Browser

Local service: IE 11, Chrome 57.0+, Firefox 52.0+, Edge 89+

Standard

LTE-FDD,LTE-TDD,UMTS

Frequency

EU:;LTE-FDD: B1/3/5/7/8/20/28;IN:;LTE-FDD: B1/3/5/8;LTE-TDD: B34/38/39/40/41;LA:;LTE-FDD: B2/3/4/5/7/8/28/66;NA:;LTE-FDD: B2/4/5/12/13/17/66/71;UMTS: B2/4/5

Uplink and Downlink Data Rate

EU: uplink: 5.1 Mbps, downlink: 10.3 Mbps;IN: uplink: 5.1 Mbps, downlink: 10.3 Mbps;LA: uplink: 5.1 Mbps, downlink: 10.3 Mbps;NA: uplink: 50 Mbps, downlink: 150 Mbps

SIM Card Type

Nano SIM

Wide Dynamic Range (WDR)

Digital WDR

SNR

≥ 52 dB

Day/Night Switch

Day,Night,Auto,Schedule

Image Enhancement

BLC,HLC,3D DNR

Image Settings

Saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser

Transducer Type

PIR + Radar

Detection Angle

Horizontal: 80°, vertical: 30°

Detection Range

Up to 12 m

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

On-Board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

Built-in Microphone

1 built-in microphone

Built-in Speaker

1 built-in speaker,Max. power consumption: 1.5 W, max. sound pressure level: 10 cm: 95 dB.

Reset Key

Yes

Basic Event

Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception

Linkage

Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning, flashing light, auto-tracking lite

Power

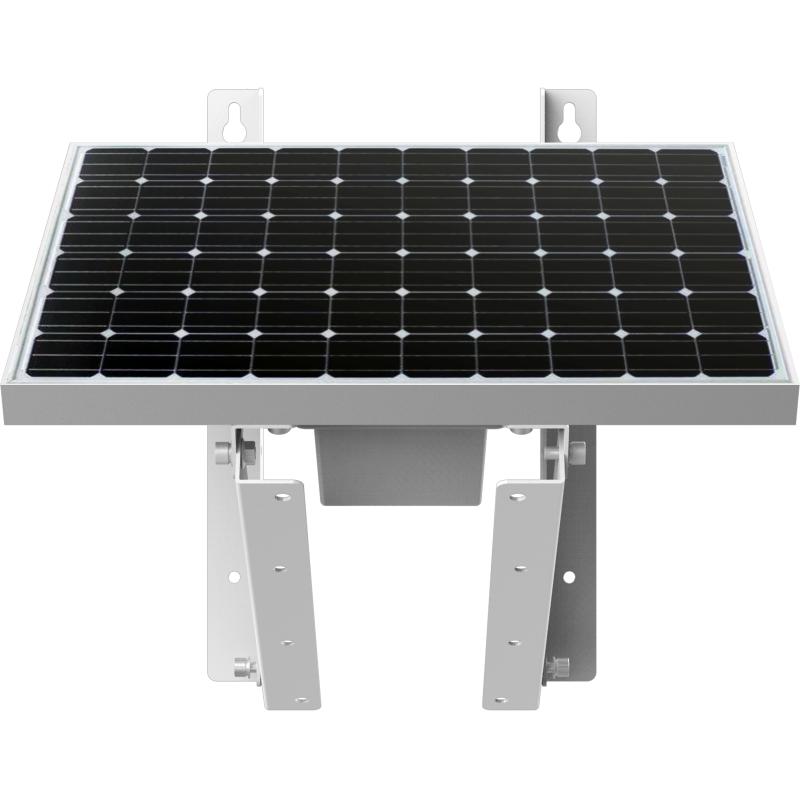

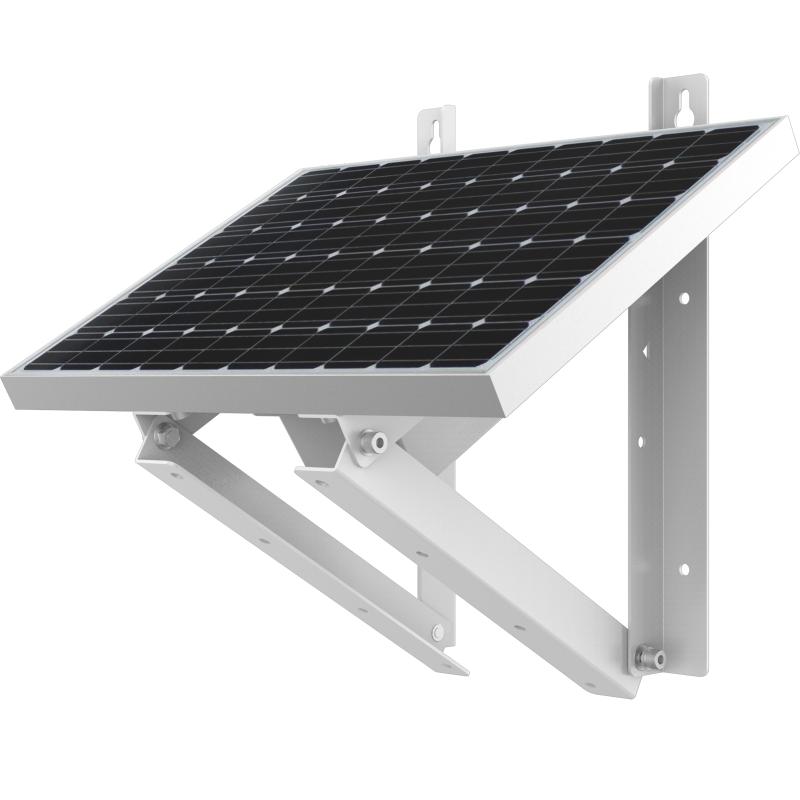

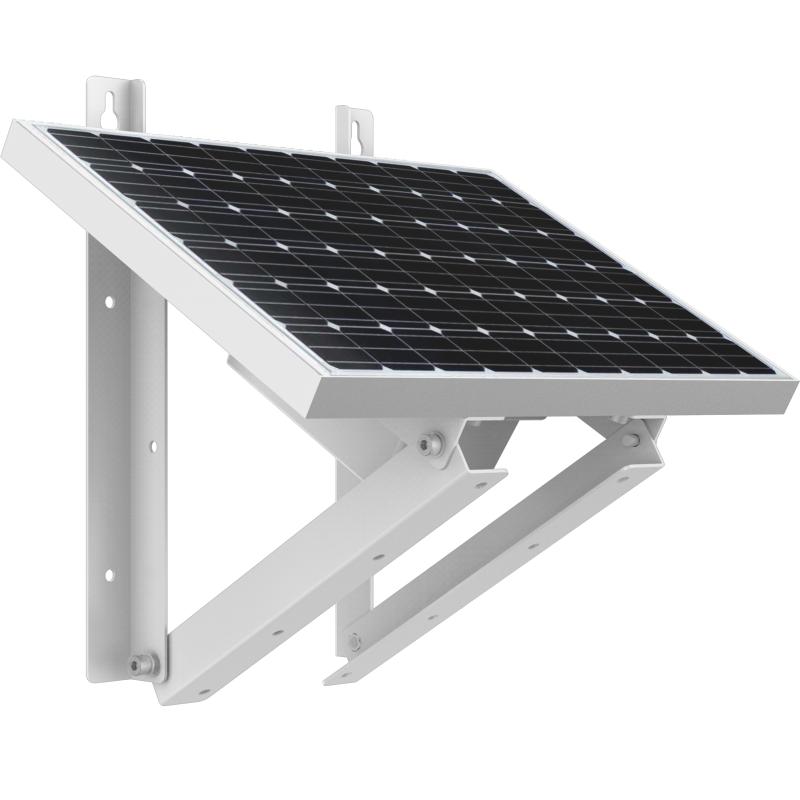

Power Consumption and Current:;Typical power scenarios: 1.85 W (4G working);Standby scenarios: 80 mW;Max. Power consumption: 7 W;Power Supply: 12 VDC ± 25%;*For debugging only;10 W (deviation: ± 5%) Solar panels;Power Interface:;Power supply interface: four-core aviation connector;Extened solar panel: four-core aviation connector

Dimension

133.1 mm × 177.64 mm × 382.44 mm/412.44 mm (5.24″ × 6.99″ × 15.06″/16.24″)

Material

Plastic

Package Dimension

375 mm × 305 mm × 398 mm (14.76″ × 12.01″ × 15.67″)

Weight

Approx. 850 g (1.87 lb.)

With Package Weight

Approx. 5400 g (11.88 lb.)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

0 °C to 50 °C (32 °F to 122 °F). Humidity 95% or less (non-condensing)

Language

English, Ukrainian

General Function

Heartbeat,anti-banding,mirror,password protection,password reset via email

Battery Type

Ternary Lithium

Cycle Lifetime

27 hours (1.85 W) ;Full charge battery runtime without solar input.

Battery Voltage

9 V to 12.6 V

Capacity

50.76 Wh

Max. Charging Voltage

12.6 V

Max. Output Voltage

12.6 V

Operating Temperature

Charging: 0 °C to 45 °C (32 °F to 113 °F);Discharging: -20 °C to 55 °C (-4 °F to 131 °F)

Battery Life

More than 800 cycles

RF

CE-RED: EN 301489-1 V2.1.1 (BT or 2.4G), EN 301489-17 V3.1.1 (BT or 2.4G), EN 300328 V2.1.1 (BT or 2.4G), EN 62311: 2008 (BT or 2.4G);*CE certification is only for the device sold in the European region.

EMC

CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, ;IC: ICES-003: Issue 7,;KC: KN32: 2015, KN35: 2015

Safety

CB: IEC 62368-1: 2014+A11,;CE-LVD: EN 62368-1: 2014/A11: 2017,;BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005

Environment

CE-RoHS: 2011/65/EU, ;WEEE: 2012/19/EU, ;Reach: Regulation (EC) No 1907/2006

Protection

IP66: IEC 60529-2013
