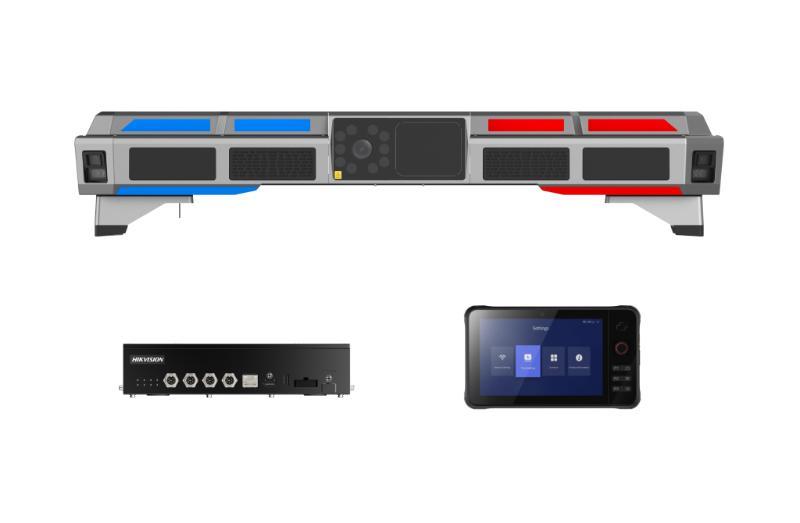

Mobil Ağıllı Panoramik Mövqeləndirmə Sistemi
Mobil Ağıllı Panoramik Mövqeləndirmə Sistemi
Sorğu əsasında
Qiymət sorğusu- Camera
- Image SensorFront Camera and Rear Camera:1/1.8” Progressive Scan CMOS, Left Camera and Right Camera:1/3”Progressive Scan CMOS
- Max. Resolution
Front Camera and Rear Camera:3840×2160, Left Camera and Right Camera:2688×1944
- Min. Illumination
Front Camera and Rear Camera: Color: 0.001 Lux @ (F1.2, AGC ON)
Left Camera and Right Camera: Color: 0.005 Lux @ (F1.5，AGC ON)
- Shutter Time1/25 s to 1/30000 s
- Day & NightIR cut filter
- Lens
- Focal Length & FOV
Front Camera and Rear Camera: 8 mm,horizontal FOV: 37.3°, vertical FOV: 20.9°, diagonal FOV: 42.8°, Left Camera and Right Camera: 4 mm,horizontal FOV: 79.6°, vertical FOV: 43.7°, diagonal FOV:93.8°
- Focus Fixed
- Iris TypeFixed iris
- ApertureFront Camera and Rear Camera: F1.6,Left Camera and Right Camera: F2.0
- Illuminator
- Built-in Supplement Light Type IR light(only Front Camera and Rear Camera)
- Built-in Supplement Light Range
Front Camera and Rear Camera: Up to 30 m
- IR Wavelength850 nm
- Radar
- Working Frequency76 to 77 GHz
- Modulation WaveformFMCW
- Horizontal Detection Angle±60°
- Vertical Detection Angle± 7°
- Detection Distance120 m
- Distance Measurement Accuracy≤ ±0.4 m
- Speed Measuring Range
up to 250 km/h
- Speed Measuring Accuracy± 2 km/h
- Max. Detectable TargetsUp to 64
- Angle Resolution±0.5°
- Video
- Main Stream
Front Camera and Rear Camera: 50Hz(25fps)/60Hz(30fps):3840×2160,3392×2008,3072×1728,2688×1520,1920×1200,1920×1080,1280×720,704×576,352×288
Left Camera and Right Camera: 50Hz(25fps)/60Hz(30fps):2688×1944,1920×1080,1280×720,704×576,352×288
- Sub-Stream
Front Camera and Rear Camera: 50Hz(25fps)/60Hz(30fps):1920×1080,1280×720,704×576,352×288
Left Camera and Right Camera: 50Hz(25fps)/60Hz(30fps):1920×1080,1280×720,704×576,352×288
- Third Stream
Front Camera and Rear Camera: 50Hz(25fps)/60Hz(30fps):1280×720,704×576,352×288
Left Camera and Right Camera: None
- Video Compression
Main stream: H.264/ H.265/MJPEG,
Sub-stream: H.264/ H.265/MJPEG,
Third stream: H.264/ H.265/MJPEG
- Video Bit Rate32 Kbps to 16 Mbps
- H.264 TypeBaseline Profile,Main Profile,High Profile
- H.265 TypeMain Profile
- Network
- ProtocolsTCP/IP,ICMP,HTTP,HTTPS,FTP,SFTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP,SNMP,IGMP,QoS,IPv4/IPv6,UDP,SSL/TLS,ISUP,ARP,802.1X
- Simultaneous Live ViewUp to 6 channels
- APIONVIF (PROFILE S, PROFILE G, PROFILE T),ISAPI,SDK,ISUP
- User/HostUp to 32 users
- SecurityPassword protection,Complicated password,HTTPS encryption,802.1X authentication (EAP-PEAP, EAP-LEAP, EAP-MD5),Watermark,IP address filter,Basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for ONVIF,RTP/RTSP over HTTPS,Control timeout settings,Security audit log,TLS 1.1,Host authentication (MAC address)
- Network StorageLocal storage,CVR,NVR,ANR
- Web Browser
Chrome 89.0+, Edge
- Wireless (Mobile Communication)
- Frequency
LTE FDD: Band 1/3/5/8 LTE TDD: Band 38/39/40/41 WCDMA/HSPA+: Band 1/8 TD-SCDMA: Band 34/39 GSM/GPRS/EDGE: 900/1800MHz
- StandardLTE-TDD,LTE-FDD,EVDO,GPRS,CDMA,GSM,EDGE
- SIM Card TypeNano SIM
- Image
- Image SettingsSaturation,Brightness,Contrast,Sharpness,Gain,White balance,Adjustable by client software or web browser.
- Day/Night SwitchAuto,Schedule,Alarm Trigger
- Wide Dynamic Range (WDR)140 dB
- Image Enhancement3D DNR
- Supplement Detection (Satellite Positioning)
- Satellite PositioningGPS
- Interface
- Ethernet Interface1 RJ45 10M/100M/1000M self-adaptive Ethernet port(s)
- Alarm 1 input(s),1 output(s)
- USB
1 × USB 3.0 (5.0 V, 1.0 A)
- Event
- Basic EventHDD error,Network disconnected,IP address conflict
- Road Traffic and Vehicle Detection
- CoverageUp to 3 lane(s)
- Smart Function
Front Camera and Rear Camera: License plate recognition, Vehicle type classification, color identification, no-plate vehicle capture, vehicle driving direction detection,
Left Camera and Right Camera: License plate recognition,
Motorcycle helmet detection and Manned motorcycle detection ( Optional )
- LPR Countries/Regions
Middle East: The United Arab Emirates (Abu Dhabi, Ajman, Dubai, Fujairah, Ras Al Khaimah, Sharjah and Umm Al Quwain), Qatar, Iraq, Egypt, Jordan, Kuwait, Saudi Arabia, Pakistan, Oman, Lebanon, Bahrain,
Africa: Nigeria, Kenya, Ivory Coast , South Africa, Tanzania, Mauritius, Morocco, Tunisia, Sierra Leone, Zambia, Ghana, Zimbabwe, Uganda, Angola, Ethiopia, Senegal, Algeria,
Asia-Pacific: Australia, New Zealand, Indonesia, Malaysia, Singapore, South Korea, Thailand, Vietnam, the Philippines, Hong Kong, Macao, Taiwan, Myanmar, India, Mongolia, Cambodia, Laos, Bangladesh, Nepal, Sri Lanka,
America: Canada, Argentina, Chile, Paraguay, Uruguay, El Salvador, Bolivia, Colombia, Brazil, Ecuador, Peru, Mexico, Panama, Costa Rica, Trinidad and Tobago, the Dominican Republic, Guatemala,
Europe: Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, the Republic of North Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, the UK, Ireland, Germany, Italy, Austria, Israel, Palestinian, Belgium, Luxembourg, Albania, Kosovo, Serbia, Romania, Montenegro, Denmark, Finland, Sweden, Slovenia, Portugal, Malta, Cyprus, Iceland, Liechtenstein, Bosnia and Herzegovina,
Russian-Speaking Regions: Azerbaijan, Belarus, Kazakhstan, Lithuania, Georgia, Estonia, Latvia, Russia, Ukraine, Moldova, Uzbekistan, Kyrgyzstan, Armenia, Turkmenistan, Tajikistan
- Accuracy (Under recommended installation and lighting conditions)
Capture rate > 90%,
Vehicle moving direction recognition accuracy > 98.5%,
LPR accuracy > 95%,
Mistaken capture rate < 10%
- No License Plate DetectionSupported
- Motorcycle LPRSupported
- Vehicle Type
Car,Van,Bus,Truck,Light Truck,SUV(MPV),Pickup,Motorcycle,Tricycle,
(Only the front and rear cameras support)
- Vehicle Color
Red, yellow, green, blue, pink, purple, cyan, brown, white, grey, black
Recognizable at daytime only.,
(Only the front and rear cameras support)
- Vehicle Manufacturer212 Manufacturers: AC SCHNITZER, AITO, APOLLO, Ashok Leyland, Audi, Aston Martin, Acura, Ankai, Ayvip, Alfa Romeo, Asiastar, Artega, ARCFOX, BAIC, Beiben Truck, BLUECAR, Bedford, Benz, BMW, BYD , Bufori, Buick, Bently, Brabus, Bugatti, Borgward, BONLUCK, Besturn, CADILLAC, Celis, Chevrolet, Citroen, Chery, Chrysler, Chang an, CNHTC, CHTC, Caterham, Conquest, C&C Trucks, CAMC, DAIHATSU, DMC, DS, Dacia, Dongnan, Dodge, Dongwo, Denza, Dongfeng, Daewoo, Dima, Denway, DORCEN, Eicher, Emgrand, Equss, EXEED, Ford, FORO, Fornasari, Ferrari, Fuqi, Fiat, Fisker, FQT Motor, Foton, FAW, FORLAND, FUSO, Force Motors, Fxauto, Faralli Mazzanti, GAC, Great Wall, GMC, Geely, Geometry, Hyundai, HENNESSEY, HINO, Honda, Haima, Haval, Hongqi, Isuzu, Infiniti, Iveco, IAT, IM, JAC, JBC, JEEP, Jaguar, JMC, JETOUR, JETTA, Joylong ,Koenigsegg, KIA , Kia-Borrego, King Long, Kama, KTM, LEVC, Lexus, Land Rover, Lincoln, Lamborghini, Lotus, Luxgen, Levdeo, Leopaard, Lynk & Co , Lada, Leading Ideal, LEAPMOTOR, LUMMA, Lorinser, Land Wind, MAN Trucks , MAXUS, MG, MINI, Mahindra, Mitsuoka, Maserati, Meiya , McLaren, Maybach, Mazda, Morgan, Mitsubishi, Mustang, Marvel R, Maple, MANSORY, Modern, NOMA, Nissan, Norinco, Neoplan, NIO, NETA, Opel, Ora, Oushang, Perodua, Porsche, Peugeot, PGO, Proton, Pagani, Polestar, POCCO, Qoros, RAM, Rolls-Royce, Renault, Roewe, Rohens, Ranz, Ruilan, Radar, Renault Samsung, SAAB, SCANIA , SCION, SMART, SML ISUZU, Suzuki, SAIC Datong, Subaru, Skoda, Startek, Soyat, Seat , SWM, Sany, SsangYong, Sojen, Silver, SATE, SOL, Skyworth, SGMW, SITECH DEV, TATA, Tankar, Tesla, Trumpchi, Techart, Toyota, UD, UAES, Volkswagen, VINFAST, Venucia, Volvo, VOYAH, VeiculoLongo, Weltmeister , XCMG, Xinyuan, XPENG, Yutong, YAMAHA, Zhonghua, Zotye, Zhinuo, ZEEKR, Zenvo
- Capture Speed Range
up to 250 km/h (Only the front and rear cameras support)
- Face Detection
- Face Capture
Detects up to 40 faces simultaneously,
Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°,
Uploads face with background and closed-up face pictures
- Face ComparisonFront Camera and Rear Camera:Up to 10 face libraries. Up to 10,000 faces for each library. 100,000 faces in total, Left Camera and Right Camera:Up to 1 face libraries. Up to 5,000 faces for each library. 5,000 faces in total, Supports face library encryption
- General
- Operating SystemLinux
- Power
DC12V~DC14V, 18.3A,max. 220W,bare wire
- MaterialAluminum alloy,PC plastics
- Dimension1128.7 mm × 360 mm × 232 mm (44.4″ × 14.2″ × 9.1″) (L × W × H)
- Package Dimension1338 mm × 492 mm × 443 mm (52.7″ × 19.4″ × 17.5″) (L × W × H)
- Weight Approx. 34.5 kg (76.1 lb.)
- With Package WeightApprox. 36.7 kg (80.9 lb.)
- Operating Condition-30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (non-condensing)
- Storage Condition-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (Non-condensing)
- General FunctionPassword protection,One-key reset,Heartbeat
- Storage1TB SSD (Supports up to 2*2TB 2.5-inch SSD)
- Approval
- RF
CE-RED: EN 301 091-1 V2.1.1;301 489-1 V2.2.3;301 489-51 V2.1.1 ;50130-4:2011+A1:2014;55032:2015+A1:2020+A11:2020; 55035:2017+A11:2020;61010-1:2010+A1:2019;IEC 61326-1:2021;IEC 62311:2020
- EMC
CE-EMC: EN 50130-4:2011+A1:2014;55032:2015+A11:2020+A1:2020;55035:2017+A11:2020;IEC 61326-1:2021
- SafetyCB: IEC 61010-1:2010;IEC 61010-1:2010/AMD1:2016;CE-LVD: EN 61010-1:2010+A1:2019
- Environment
CE-RoHS: EN IEC 63000:2018,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006
