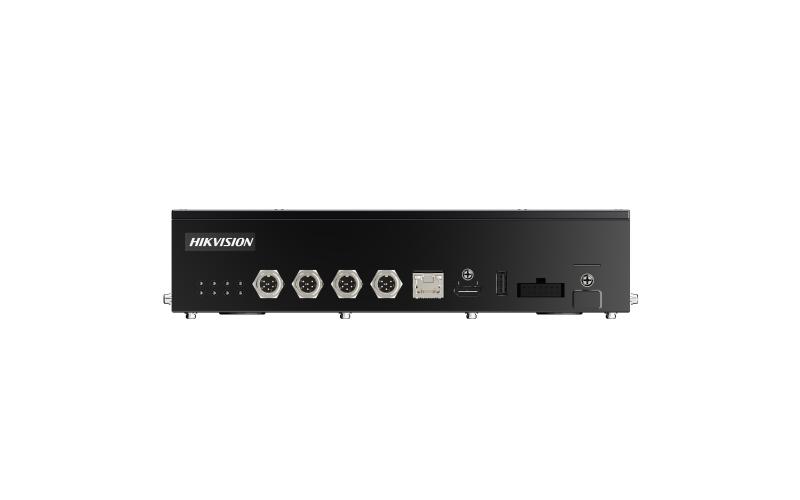

Hikvision DS-TP50-09H

Artikul: HC-DS-TP50-09H

Hikvision DS-TP50-09H — Mobile Enforcement video qeydiyyatçı

Video Compression: H.264;H.265
Video Input: 5 CH access, up to 4MP resolution
Protocols: TCP/IP,UDP,IPv4/IPv6,ARP,ICMP,DHCP,802.1X,QoS,DNS,DDNS,SSL/TLS,HTTP,HTTPS,NTP,IGMP,RTP,RTSP,RTCP,FTP,SNMP,SSH2
API: ISUP,ONVIF (PROFILE S, PROFILE G, PROFILE T),ISAPI,SDK,OTAP
Security: Password protection,Complicated password,HTTPS encryption,802.1X authentication (EAP-PEAP; EAP-LEAP; EAP-MD5),Watermark,Basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for ONVIF,RTP/RTSP over HTTPS,Control timeout settings,Security audit log,TLS 1.1
User/Host: Up to 128 users,3 user levels: administrator, operator, and user
Client: Hik-Central Master, Hik-Central Pro, HikCentral Master Lite
Web Browser: Chrome 89.0+, Edge

Mövcudluq təsdiqləndikdən sonra
Azərbaycan daxilində 1-2 gün

36 aya qədər
istehsalçıdan

Hikvision-un rəsmi distribyutoru

Avadanlıqların seçilməsi və qurulmasında köməklik

Mövcudluğu dəqiqləşdirin

Sorğu əsasında

Partnyorlar üçün qiymət

Endirim tələb edin

Mütəxəssis köməyi

Avadanlıq seçməkdə çətinlik çəkirsiniz?

Network
ProtocolsTCP/IP,UDP,IPv4/IPv6,ARP,ICMP,DHCP,802.1X,QoS,DNS,DDNS,SSL/TLS,HTTP,HTTPS,NTP,IGMP,RTP,RTSP,RTCP,FTP,SNMP,SSH2
APIISUP,ONVIF (PROFILE S, PROFILE G, PROFILE T),ISAPI,SDK,OTAP
SecurityPassword protection,Complicated password,HTTPS encryption,802.1X authentication (EAP-PEAP; EAP-LEAP; EAP-MD5),Watermark,Basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for ONVIF,RTP/RTSP over HTTPS,Control timeout settings,Security audit log,TLS 1.1
User/HostUp to 128 users,3 user levels: administrator, operator, and user
Client
Hik-Central Master,
Hik-Central Pro,
HikCentral Master Lite
Web BrowserChrome 89.0+, Edge

Wireless (Mobile Communication)
FrequencyLTE FDD: Band 1/3/5/7/8/20/28
LTE TDD: Band 38./40/41
WCDMA/HSPA+: Band 1/5/8
TD-SCDMA: Band 34/39
GSM/GPRS/EDGE: 850/900/1800MHz
StandardLTE-TDD,LTE-FDD,TD-SCDMA,EVDO,GPRS,GSM,CDMA
SIM Card TypeNano SIM

Interface
Network Interface1 RJ45 10M/100M/1000M self-adaptive Ethernet port(s)
Indicator8 x indicator (1 x Power Indicator, 1 x RDY Indicator, 1 x REC Indicator, 1 x PTZ Indicator, 4 x IPC Indicator)
USB1 × USB 3.0 (5.0 V, 1.0 A)
Aviation Plug6 × Aviation Plug(4 × IPC, 1 × PTZ, 1 × AVOUT)
HDMI Interface1 × HDMI
VGA Interface1 × VGA
Alarm1 × input, 1 × output

System
Indicator8 x indicator (1 x Power Indicator, 1 x RDY Indicator, 1 x REC Indicator, 1 x PTZ Indicator, 4 x IPC Indicator)

General
Operation SystemLinux
Operating GUIWeb
Power
DC 8 V to 36 V, 10 A, max. 80 W, 6-core terminal block
StorageBuilt-in 1 × 1T SSD, maximum optional 2 × 2T SSD
Dimensions269 mm × 191.68 mm × 62.3 mm (10.59″ × 7.55″ × 2.45″) (L × W × H)
Package Dimensions374 mm × 345 mm × 90 mm (14.72″ × 13.58″ × 3.54″) (L × W × H)
Weight Approx. 1.9 kg (4.2 lb.)
With Package WeightApprox. 3 kg (6.62 lb.)
Operating Condition-30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (non-condensing)
Storage Condition-30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (Non-condensing)

Approval
EMC
EN 55032: 2015+A11:2020+A1:2020,
EN 50130-4: 2011 +A1:2014
RF
EN 301 489-1 V2.2.3;EN 301 489-3 V2.3.2;EN 301 489-17 V3.3.1; EN 301 489-19 V2.2.1;EN 301 489-52 V1.2.1;EN 300 328 V2.2.2; EN 301 893 V2.1.1;EN 300 440 V2.1.1;EN 303 413 V1.2.1; EN 301 511 V12.5.1:TS 151 010-1 V13.13.0: EN 301 908-1 V15.2.1:EN 301 908-2 V13.1.1: ETSI TS 134 121-1 V16.2.0:EN 301 908-13 V13.2.1: ETSI TS 136 521-1 V18.4.0;EN IEC 62311: 2020
Safety
CB: IEC 62368-1:2014; CB: IEC 62368-1: 2018; CE-LVD: EN 62368-1:2014+A11:2017
EnvironmentCE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
