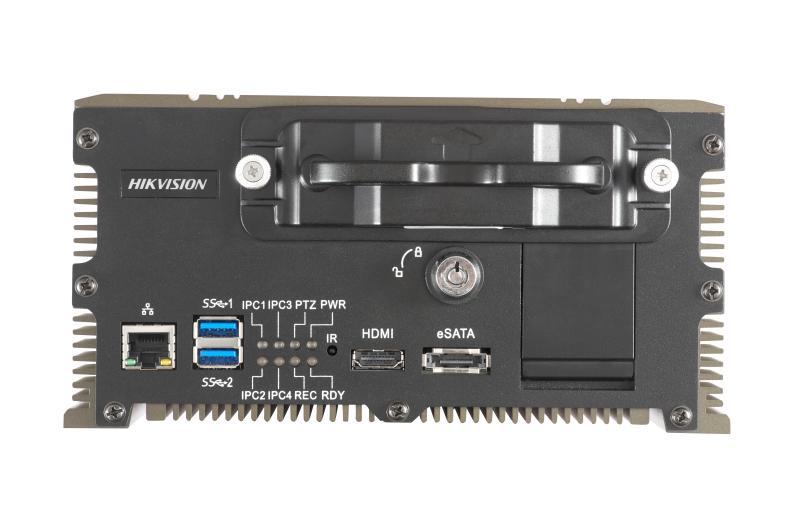

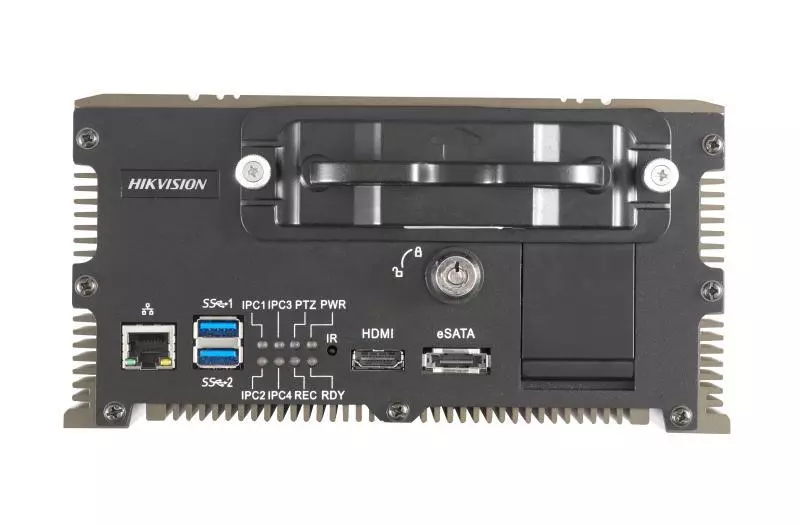

Mobil Ağıllı Panoramik Mövqeləndirmə Sistemi
Mobil Ağıllı Panoramik Mövqeləndirmə Sistemi
Sorğu əsasında
Qiymət sorğusu- Audio
- Audio CompressionG.711, G.722
- Stream TypeVideo, video & audio
- Video
- Video Output3: 1 CVBS output (PAL: 720 × 576, NTSC: 704 × 576), 1 VGA output (1280 × 800), 1 HDMI output
- IP Camera1 positioning system lite, 4 network cameras (1080p/960p/720p/D1)
- Audio Output2-ch. Aviation plug (linear, 600 Ω)
- Two-way Audio1 (2.0Vp-p, 1K Ω)
- Storage
- HDD/SSD2 × 2.5 inch HDD/SSD, up to 2 TB for each HDD/SSD,A dummy HDD with USB 3.0 interface
- Wireless Network
- 3G/4G Dialing1 × 3G/4G card slot, 1 × Rosenberger antenna
- Wi-Fi1 × 2.4 G Wi-Fi SMA antenna
- Positioning
- GNSS (Global Navigation Satellite System)GPS (Global Positioning System), 1 ×Rosenberger antenna
- External Interface
- Network InterfaceFront panel: 1 × 10M/100M/1000M RJ45 self-adaptive Ethernet interface; Rear panel: 4 × 6-pin aviation plug
- Serial Port1 × RS-232
- USB InterfaceFront panel: 2 × Type-A USB 3.0; Rear panel: 1 × USB 2.0 of 5-pin aviation plug
- Alarm Input8
- Alarm Output2
- eSATA Interface1 (reserved)
- Feature and Function
- Video CompressionH.264;H.265
- Frame RatePAL: 1 to 25fps; NTSC: 1 to 30fps
- General
- Dimension202 × 252 × 87 mm (8.0 × 9.9 × 3.4 inch)
- Working TemperatureDevice that provides dummy HDD with heating function: -30 °C to +60 °C (-22 °F to +140°F); Other devices: -10 °C to +60 °C (14 °F to 140°F)
- Working Humidity10% to 90%
- Power Supply9 to 32 VDC
- Power ConsumptionStandby: ≤ 0.5 W; Full load: ≤ 80 W
- ≤ 4.5 Kg (9.9 lb)
- Operating MethodMouse, IR remote control, Web control
