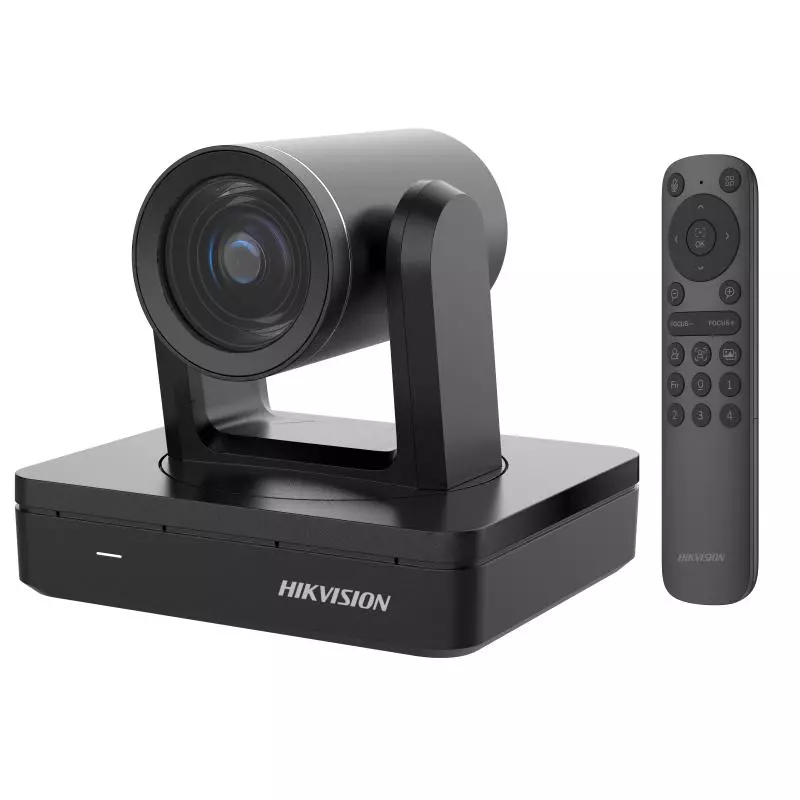

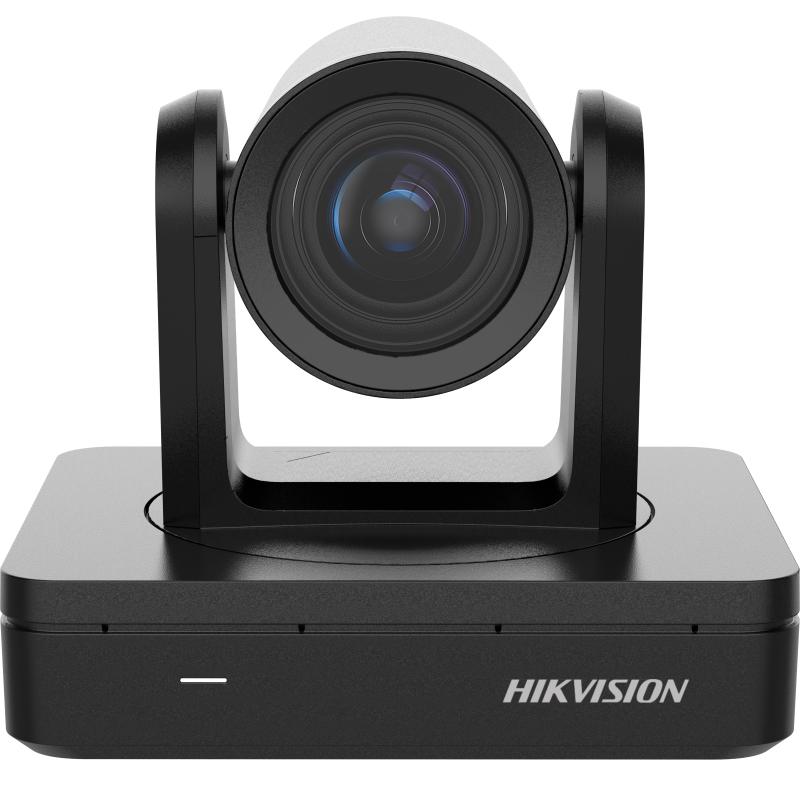

2-мегапиксельная PTZ-камера для видеоконференций
2-мегапиксельная PTZ-камера для видеоконференций
По запросу
Запрос цены- Camera
- Image Sensor1/2.8″2 MP CMOS
- Max. Resolution1920 (H) × 1080 (V)
- USB Output
MJPG/H.264:
1920 × 1080, 1280 × 960, 1280 × 720, 640 × 480, 640 ×360 @60/50/30/25 fps
YUY2/NV12:
1920 × 1080, 1280 × 960, 1280 × 720, 640 × 480, 640 ×360 @60/50/30/25 fps
- SDI Output
SDI:
1920 × 1080 @60/50/30/25 fps
- Shutter TimePAL: 1/25 s to 1/10,000 s,NTSC: 1/30 s to 1/10,000 s
- Object Distance Range
Wide: 0.1 m to ∞
Tele: 1.5 m to ∞
- Angle AdjustmentPan: -165° to 165°,Tilt: -90° to 30°
- Optical Zoom20×
- Digital Zoom16×
- HDMI Output
RGB888 (RGB24):
1920 × 1080 @60/50/30/25 fps
- Network
- Main Stream
50 Hz:
25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 1024 × 576, 720 × 480, 640 × 480, 640 × 360, 480 × 272, 320 × 240, 320 × 180)
60 Hz:
30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 1024 × 576, 720 × 480, 640 × 480, 640 × 360, 480 × 272, 320 × 240, 320 × 180)
100 Hz:
50 fps (1920 × 1080, 1280 × 960, 1280 × 720, 1024 × 576, 720 × 480, 640 × 480, 640 × 360, 480 × 272, 320 × 240, 320 × 180)
120 Hz:
60 fps (1920 × 1080, 1280 × 960, 1280 × 720, 1024 × 576, 720 × 480, 640 × 480, 640 × 360, 480 × 272, 320 × 240, 320 × 180)
- Sub-Stream
50 Hz:
25 fps (1920 × 1080, 1280 × 720, 1024 × 576, 950 × 540, 640 × 480, 640 × 360, 320 × 240, 320 × 180)
60 Hz:
30 fps (1920 × 1080, 1280 × 720, 1024 × 576, 950 × 540, 640 × 480, 640 × 360, 320 × 240, 320 × 180)
- Third Stream
50 Hz:
25 fps (1920 × 1080, 1280 × 720, 640 × 360)
60 Hz:
30 fps (1920 × 1080, 1280 × 720, 640 × 360)
- Video Compression
Main stream: H.264/H.265/MJPEG
Sub-stream: H.264/H.265/MJPEG
Third stream: H.264/H.265/MJPEG
- Video Bit Rate32 Kbps to 163,840 Kbps
- H.264 TypeBaseline Profile, Main Profile, High Profile
- H.265 TypeMain Profile
- Audio Encoding FormatG722.1/G.711ulaw/G.711alaw/MP2L2/G726/AAC-LC/PCM/MP3
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
- APISDK, ONVIF
- Web BrowserChrome 80+, Firefox 80+, Edge 89+, Safari 13+
- Lens
- Focal Length & FOV
Varifocal lens: 3.5 mm to 70 mm, horizontal FOV 78.7° to 4.9°, vertical FOV 48.4° to 2.8°, diagonal FOV 87.2° to 5.6°
Equivalent focal length: 23.8 mm to 476 mm
- FocusAuto, Semi-auto
- Microphone
- TypeMEMS
- Polar Pattern360° omni-directional
- Pickup DistanceIn a radius of up to 5 m
- AmountQuad-microphone
- Frequency Response100 Hz to 8 kHz
- Sensitivity-38 ± 1.5 dBV/Pa
- SNR64 dB(A)
- Sampling Rate16kHz/32kHz/48kHz
- Functions
- Image FunctionSupport adjustment of related parameters such as exposure, white balance, image settings (including image mode, contrast, sharpness, saturation, hue, Gamma and mirror), and wide dynamic range
- Audio FunctionSupport steady and transient smart noise reduction, automatic gain control, time domain equalization algorithm, ambient noise suppression and enhanced vocals to enhance speech quality and offer audio in high quality
- Smart FunctionHuman body following, sound source localization
- LED Indicator
Device startup: solid white -> flashing white -> solid white
Device working: solid white
Device mute: solid red
Device shutdown: light off
- Communication
- Communication MethodCamera and remote control: 2.4 GHz wireless
- Wired Communication DistanceCamera and remote control: 10 m
- Image
- Wide Dynamic Range (WDR)≥120 dB
- Interface
- USB1 USB Type-C interface (for transmitting audio and video), supporting USB 2.0 protocol
- HD Interface
1 HDMI port (for transmitting audio and video), supporting HDMI 1.4 protocol
1 3G-SDI port (for transmitting audio and video), supporting SMPTE 424M protocol
- Ethernet Interface1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
- Audio
1 input (line in), 3.5 mm three-segment TRS interface
1 output (line out), 3.5 mm three-segment TRS interface
- Communication Interface
1 RS-232 IN port, 1 RS-232 OUT port, supports VISCA protocol (RS-232) keyboard control interface, baud rate: 9600; supports PTZ control, zoom control, preset settings, calling, and deletion; presets: 255
1 RS-485 port, supports HIKVISION, PELCO-D, and PELCO-P protocols, and (RS-485) keyboard control interface, baud rate: 2400/4800/9600/19200/38400, default baud rate: 9600; supports PTZ control, zoom control, preset settings, calling, and deletion; presets: 255
- Power Interface12 VDC, Ø2.1 mm coaxial power plug
- Other1 HDBT interface
- Compatibility
- System Requirement
Operating System:
Windows 7/8/10/11
Android 8.1 and above version
Linux 4.14 and above version
macOS 10.12 and above version
- General
- Power12 VDC ± 25% PoE: IEEE 802.3at, Class 4, max. 23.1 W
- Operating Condition-10 °C to 45 °C (14 °F to 113 °F). Humidity 90% or less (non-condensing)
- Dimension206.7 mm × 163.3 mm × 227.9 mm (8.14″ × 6.43″× 8.97″)
- Package Dimension328 mm × 240 mm × 250 mm (12.91″ × 9.45″× 9.84″)
- Approx. 2,420 g (5.34 lb.)
- With Package WeightApprox. 4,110 g (9.06 lb.)
- Packing List
Camera (including lens cover) × 1
Remote Control × 1
Power Adapter (1.2 m, with American, British, and European plug adapter) × 1
Power Adapter Extension Cable (3 m) × 1
USB 2.0 Cable (4.5 m) × 1
Bracket × 1
Screws × 1
Battery × 2
Regulatory Compliance and Safety Information × 1
