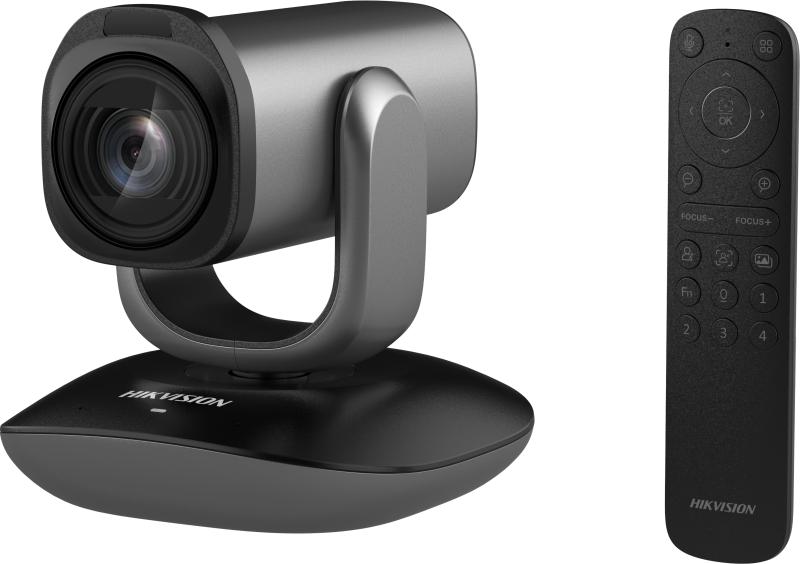

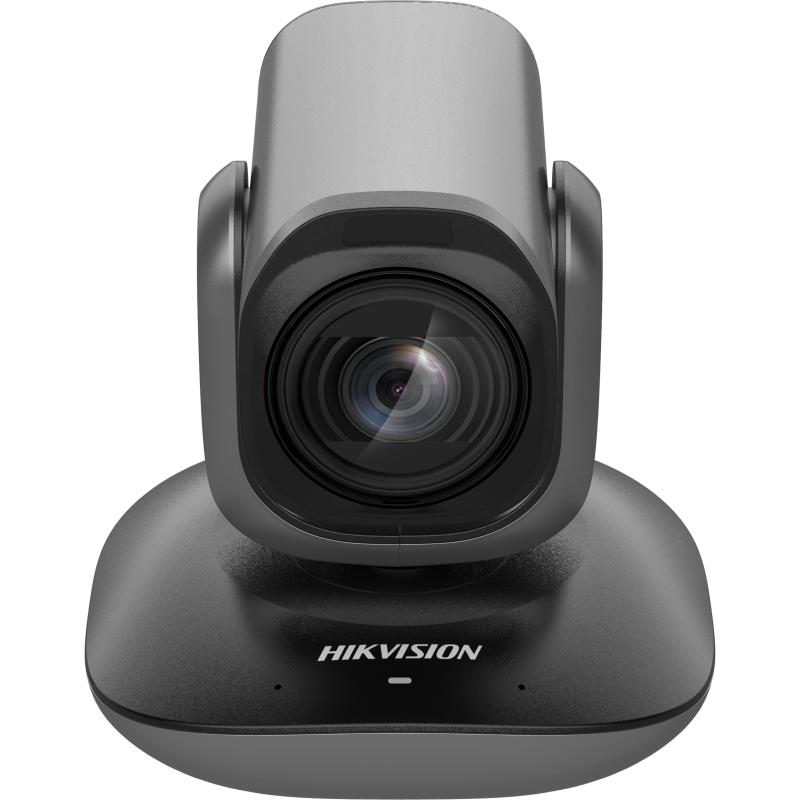

2-мегапиксельная PTZ-камера для видеоконференций
2-мегапиксельная PTZ-камера для видеоконференций
По запросу
Запрос цены- Camera
- Image Sensor1/2.8″ 2 MP CMOS
- Max. Resolution1920 × 1080
- USB Output
MJPG:
1920 × 1080, 1280 × 960, 1280 × 720 @60/50/30/25 fps
H.264:
1920 × 1080, 1280 × 960, 1280 × 720, 640 × 480, 640 × 360 @60/50/30/25 fps
YUY2/NV12:
1920 × 1080 @5 fps
1280 × 960 @10 fps
1280 × 720 @15 fps
640 × 480, 640 × 360 @30/25 fps
- Shutter TimePAL: 1/25 s to 1/10,000 s,NTSC: 1/30 s to 1/10,000 s
- Object Distance RangeWide: 0.1 m to ∞, Tele: 1.5 m to ∞
- Optical Zoom×12
- Digital Zoom×4 (YUV Format: ×1.5)
- Angle AdjustmentPan: -165° to 165°,Tilt: -30° to 30°
- Lens
- Focal Length & FOV
Varifocal lens: 3.4 mm to 40.8 mm, equivalent focal length: 23.1 mm to 277.2 mm
Horizontal FOV: 80.5° to 7.6°, vertical FOV: 50.5° to 4.4°, diagonal FOV: 88.9° to 8.7°
- FocusAuto/Semi-auto mode, supporting selection of focus area
- Microphone
- TypeMEMS
- Polar Pattern360° omni-directional
- Pickup DistanceIn a radius of up to 5 m
- AmountDual-microphone
- Frequency Response100 Hz to 8 kHz
- Sensitivity-32 ± 3 dBV/Pa
- SNR70 dB(A)
- Sampling Rate16 kHz/32 kHz/48 kHz
- Functions
- Image FunctionSupport adjustment of related parameters such as exposure, white balance and image settings (including image DNR, contrast, sharpness, saturation, hue, Gamma, etc.)
- Audio FunctionSupport steady and transient smart noise reduction, automatic gain control, echo suppression, time domain equalization algorithm, ambient noise suppression and enhanced vocals to enhance speech quality and offer audio in high quality
- Smart FunctionSupport human body following and face focus
- LED Indicator
Device startup: solid white -> flashing white -> solid white
Device working: solid white
Device mute: solid red
Device shutdown: light off
- Communication
- Communication MethodCamera and remote control: 2.4G wireless
- Wireless Communication DistanceCamera and remote control: 10 m
- Image
- Wide Dynamic Range (WDR)≥120 dB
- Interface
- USB1 USB Type-C interface (for transmitting audio and video), supporting USB 2.0 protocol
- Audio
1 audio input (line in), 3.5 mm three-segment TRS interface
1 audio output (line out), 3.5 mm three-segment TRS interface
- Power Interface12 VDC, Ø2.1 mm
- Compatibility
- System Requirement
Operating System:
Windows 7/8/10/11
Android 8.1 and above version
Linux 4.14 and above version
macOS 10.12 and above version
- General
- Power12 VDC ± 25%, max. 15.9 W
- Operating Condition-10 °C to 45 °C (14 °F to 113 °F). Humidity 90% or less (non-condensing)
- Dimension148.9 mm × 145.7 mm × 152.1 mm (5.86″ × 5.74″ × 5.99″ )
- Package Dimension308 mm × 216 mm × 187 mm (12.13″ × 8.5″ × 7.36″ )
- Approx. 1185 g (2.61 lb.)
- With Package WeightApprox. 2705 g (5.96 lb.)
- Packing List
Camera (including lens cover) × 1
Remote Control × 1
Power Adapter (1.2 m, with American, British, and European plug adapter) × 1
Power Adapter Extension Cable (3 m) × 1
USB 2.0 Cable (4.5 m) × 1
Bracket × 1
Screws × 1
Battery × 2
Regulatory Compliance and Safety Information × 1
