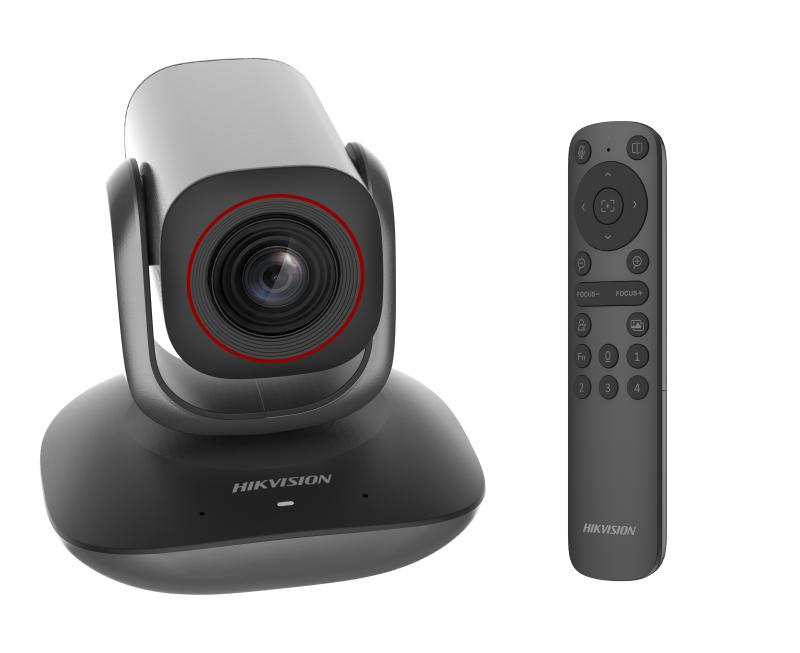

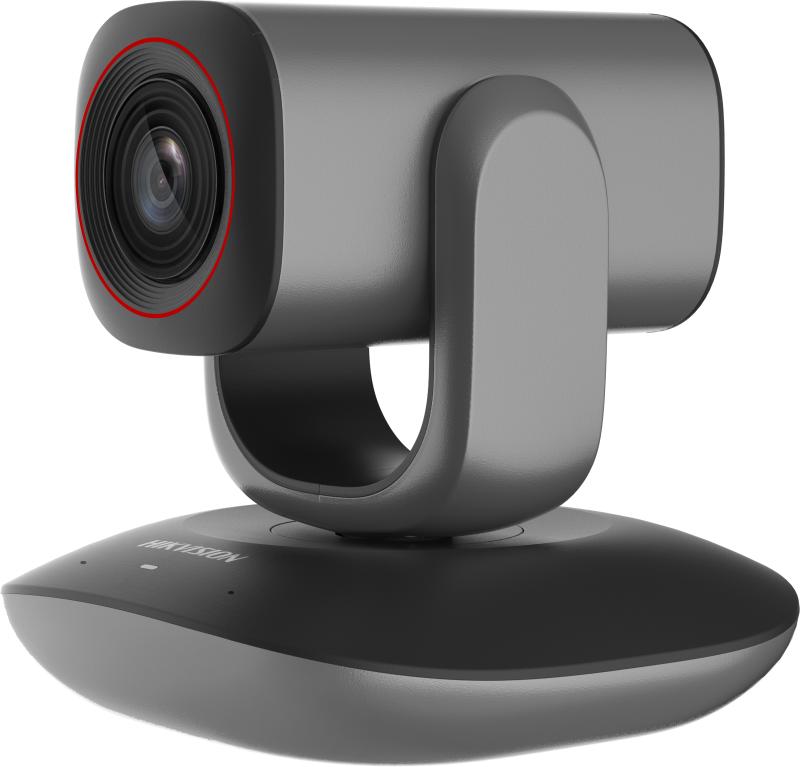

Hikvision DS-UVC-P18

Image Sensor

1/2.8″ 4KCMOS

Max. Resolution

3840 (H) × 2160 (V)

Min. Illumination

0.2 Lux @ (F1.8 to 2.8，AGC ON)

Shutter Time

PAL: 1/25 s to 1/10,000 s;NTSC: 1/30 s to 1/10,000 s

Angle Adjustment

Pan: -165° to 165°,Tilt: -30° to 30°

Digital Zoom

× 4

Optical Zoom

× 5

Lens Type

Varifocal lens, 3 to 15 mm

Focal Length & FOV

Horizontal FOV: 85° to 24°;Vertical FOV: 53° to 14°;Diagonal FOV: 93° to 27°

Object Distance Range

Wide: 0.1 m to ∞; Tele: 0.5 m to ∞

Amount

dual mic

Polar Pattern

360° omni-directional

Pickup Distance

In a radius of up to 5 m

Sensitivity

-32 ± 3 dBV/Pa

SNR

70 dB(A)

Frequency Response

100 Hz to 8 kHz

Type

ECM

Sampling Rate

16 kHz/32 kHz/48 kHz

Image Function

Auto/Manual White Balance, Backlight Compensation, Left/Right Flip / Up/Down Flip/Center Mirror

Audio Function

Supports steady and transient smart noise reduction, automatic gain control, echo suppression, time domain equalization algorithm, ambient noise suppression and enhanced vocals to enhance speech quality and offer audio in high quality

LED Indicator

Flashing white: powering on and starting;Solid white: normally working;Solid red: mute;Light off: standby

Auto Focus

Yes

Communication Method

USB cable

Wired Communication Distance

Cable length: 2 m. Transmission distance: 2 m.

Frame Rate

MJPG/H.264:;3840 × 2160 @30 fps/25 fps;2560 × 1440 @30 fps/25 fps;1920 × 1080 @60 fps/50 fps/30 fps/25 fps;1280 × 960 @60 fps/50 fps/30 fps/25 fps;1280 × 720 @60 fps/50 fps/30 fps/25 fps;640 × 480 @60 fps/50 fps/30 fps/25 fps;640 × 360 @60 fps/50 fps/30 fps/25 fps;YUY2:;1920 × 1080 @30 fps/25 fps;1280 × 960 @30 fps/25 fps;1280 × 720 @30 fps/25 fps;640 × 480 @30 (default) /25fps;640 × 360 @30 fps/25 fps;NV12:;1920 × 1080 @30 fps/25 fps;1280 × 960 @30 fps/25 fps;1280 × 720 @30 fps/25 fps;640 × 480 @30 fps/25 fps;640 × 360 @30 fps/25 fps

Wide Dynamic Range (WDR)

≥120 dB

Audio

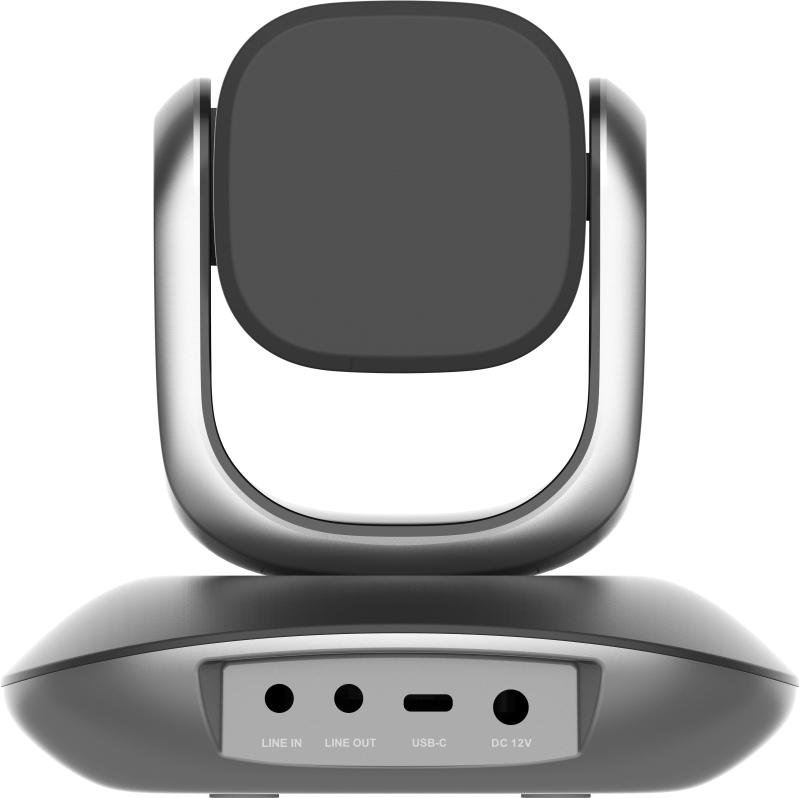

1 line in, 3.5 mm connector;1 line out, 3.5 mm connector

Cable

USB Cable: Type C to Type A interface;Adapter Extension Cable: DC plug to DC socket

Device Interface

USB Type C interface, Power interface

System Requirement

Windows 7/8/10/11 (resolution higher than 1080 p is only available in Windows 8.1 and above version);Android 8.1 and above version;Linux 4.14 and above version;macOS 10.12 and above version

Operating Condition

-10 °C to 45 °C (14 °F to 113 °F). Humidity 90% or less (non-condensing)

Material

Metal, plastic

Dimension

145.3 mm × 145.6 mm × 145.8 mm (5.7″ × 5.7″ × 5.7″)

Weight

Approx. 960 g (2.12 lb.)

Packing List

Camera (including lens cover) × 1;Remote Control × 1;Power Adapter (1.2 m) × 1;Power Adapter Extension Cable (3 m) × 1;Power Adapter Plug × 3 (for British, American, and European standards);USB 3.0 Cable (2 m) × 1;Bracket × 1;Screws × 1;Battery × 2;Quick Start Guide × 1

Power

12 VDC ± 5%, max. 10.2 W

Package Dimension

365 mm × 210 mm × 183 mm (14.37″ × 8.27″ × 7.2″)

With Package Weight

Approx. 2350 g (5.18 lb.)

Color

Space gray
