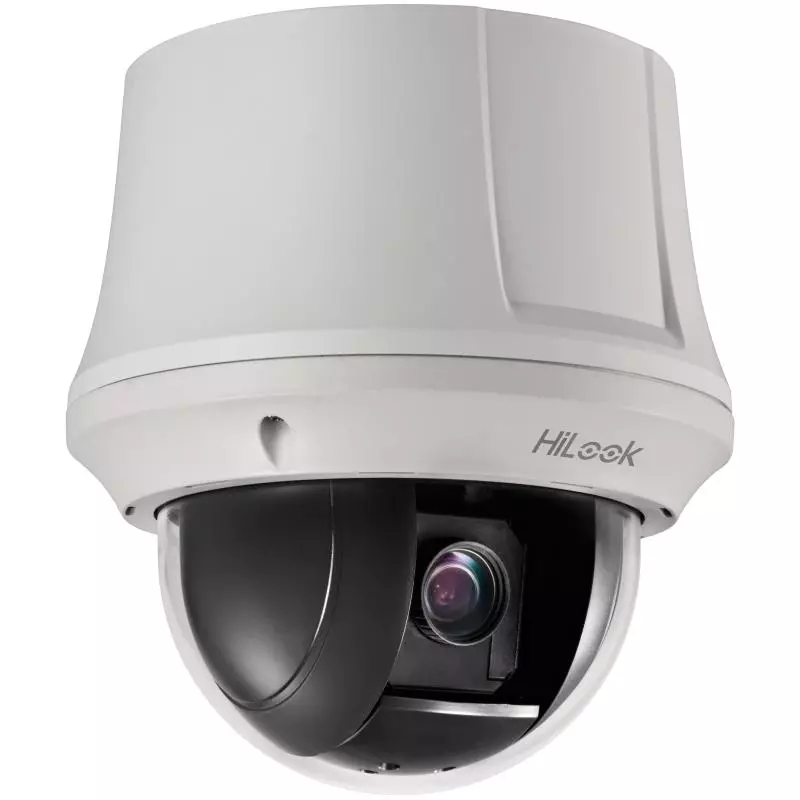

HiLook PTZ-N4215-DE3

FOV

Horizontal field of view: 53.8° to 4.0° (wide-tele),Vertical field of view: 31.9° to 2.3° (wide-tele),Diagonal field of view: 60.4° to 4.6°(wide-tele)

Focal Length

5 mm to 75 mm, 15× optical

Zoom Speed

Approx. 2.4 s (optical lens, wide-tele)

Working Distance

10 mm to 1500 mm (wide-tele)

Aperture Range

F1.6 to F3.0

Basic Event Detection

Motion Detection, Video Tampering Detection, Exception Detection

Smart Detection

Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Unattended Baggage Detection, Object Removal Detection

Smart Record

ANR (Automatic Network Replenishment), Dual-VCA

ROI

Main stream, sub-stream and third stream respectively support four fixed areas.

Security Measures

User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering

Network Storage

Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS), ANR

Protocols

IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour

API

Open-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform

Simultaneous Live View

Up to 20 channels

User/Host

Up to 32 users. ,3 levels: Administrator, Operator and User

Client

iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect

Web Browser

IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51

Image Enhancement

HLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus

Sub-Stream

50Hz: 25fps (704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)

Max. Resolution

1920 × 1080

Main Stream

50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)

Third Stream

50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Network Interface

1 RJ45 10 M/100 M Ethernet Interface; PoE+ (802.3at, class4)

AGC

Auto/Manual

Image Sensor

1/2.8″ progressive scan CMOS

Min. Illumination

Color: 0.005 Lux @(F1.6, AGC ON),B/W: 0.001 Lux @(F1.6, AGC ON)

White Balance

Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp

Shutter Time

1/1 s to 1/30,000 s

Day & Night

IR Cut Filter

Digital Zoom

16×

Privacy Mask

24 programmable privacy masks

Focus Mode

Auto/Semi-automatic/Manual

WDR

120 dB WDR

Material

ADC 12, PC, PMMA

Dimensions

Φ165 mm × 168 mm (Φ 6.5″×6.6″) (In-ceiling mounting indoor model)

Weight

Approx. 2 kg (4.41 lb)

Protection Level

TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection

Power

12 VDC, 2.0 A and PoE (802.3at), 42.5 to 57 VDC, 0.6 A, class4;Max.: 18 W

Working Temperature

-10°C to 55°C (14°F to 131°F)

Working Humidity

≤ 90%

Movement Range (Pan)

360° endless

Pan Speed

Configurable, from 0.1°/s to 100°/s,Preset Speed: 100°/s

Movement Range (Tilt)

From 0° to 90° (Auto-flip)

Tilt Speed

Configurable, from 0.1°/s to 80°/s,Preset Speed: 80°/s

Proportional Zoom

Support

Presets

300

Patrol Scan

8 patrols, up to 32 presets for each patrol

Pattern Scan

4 pattern scans, record time over 10 minutes for each scan

Power-off Memory

Support

Park Action

Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan

PTZ Status Display

Support

Preset Freezing

Support

Scheduled Task

Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust

H.264+

Support

H.265+

Support

H.264 Type

Baseline Profile/Main Profile/High Profile

Video Compression

Main Stream: H.265+/H.265/H.264+/H.264,Sub-Stream: H.265/H.264/MJPEG,Third Stream: H.265/H.264/MJPEG

H.265 Type

Main Profile

Video Bitrate

32 Kbps to 16384 Kbps

SVC

Support
