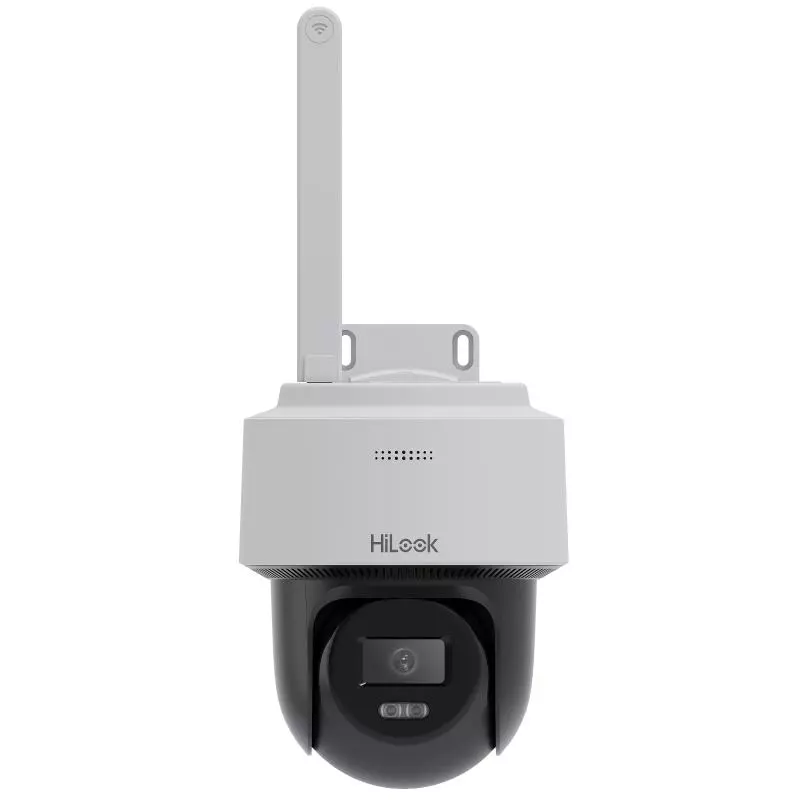

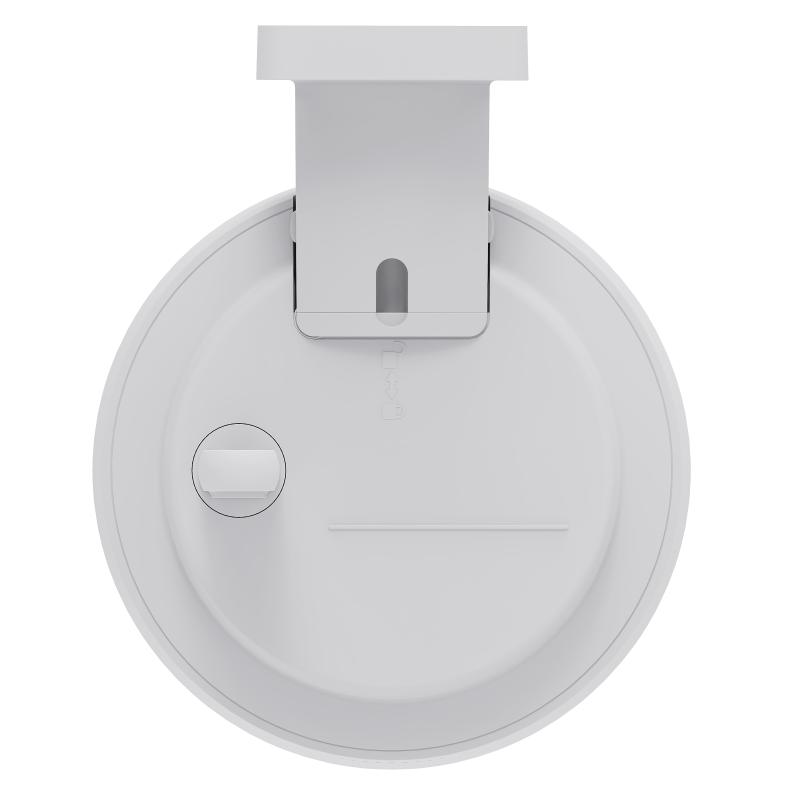

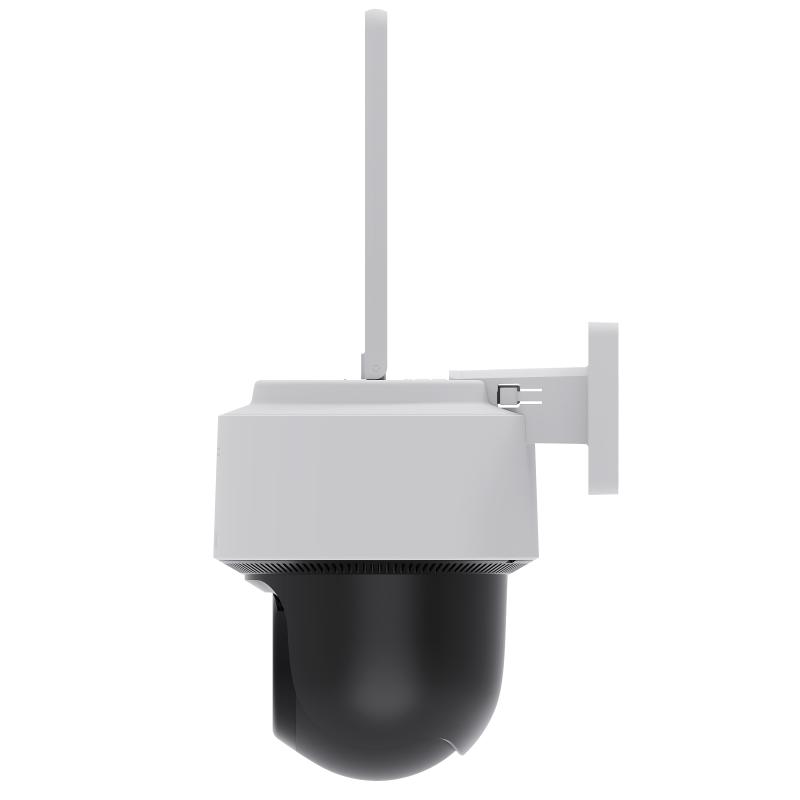

HiLook PTZ-N2C400I-W(W)

Image Sensor

1/2.9″ Progressive Scan CMOS

Max. Resolution

2560 × 1440

Min. Illumination

Color: 0.01 Lux @ (F1.6, AGC ON),B/W: 0.005 Lux @ (F1.6, AGC ON),0 Lux with IR

Focal Length

2.8 mm, 4 mm

FOV

2.8 mm,horizontal FOV 91°, vertical FOV 49°, diagonal FOV 108°;4 mm, horizontal FOV 74°, vertical FOV 40°, diagonal FOV 87°

Aperture

F1.6

Supplement Light Type

IR

Supplement Light Range

IR distance: up to 30 m

IR Wavelength

850 nm

Movement Range (Pan)

0° to 345°

Movement Range (Tilt)

0° to 80°

Pan Speed

Up to 25°/s

Tilt Speed

Up to 20°/s

Main Stream

50 Hz: 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720);60 Hz: 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (1280 × 720, 768 × 432, 512 × 288) ;60 Hz: 30 fps (1280 × 720, 768 × 432, 512 × 288)

Video Compression

Main stream: H.265/H.264,;Sub-stream: H.265/H.264

Video Bit Rate

256 Kbps to 2 Mbps

H.264 Type

Baseline profile,Main profile,High profile

H.265 Type

Main profile

Audio Compression

G.711,AAC-LC

Audio Bit Rate

64 Kbps (G.711ulaw/G.711alaw), 16 to 64 Kbps (AAC-LC)

Audio Sampling Rate

8 kHz,16 kHz

Environment Noise Filtering

Yes

Protocols

TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,RTP,RTSP,RTCP,NTP,UPnP,IGMP,QoS,IPv4,IPv6,UDP,Bonjour,SSL/TLS

API

ONVIF, SDK

Security

Password protection,HTTPS encryption,security audit log,basic and digest authentication for HTTP/HTTPS,TLS 1.1/1.2, WSSE for Open Network Video Interface

Client

iVMS-4200, HiLookVision, Hik-Partner-Pro

Encryption Mode

WPA-PSK/WPA2-PSK

Wi-Fi Protocols

IEEE802.11b,IEEE802.11g,IEEE802.11n

Frequency Range

2.412 GHz to 2.472 GHz

Channel Bandwidth

20 MHz

Modulation

802.11b: CCK, QPSK, BPSK,;802.11g: OFDM,;802.11n: OFDM

Transfer Rate

11b: up to 54 Mbps,11g: up to 54 Mbps,11n: up to 150 Mbps

Wireless Range

Up to 50 m ;(The performance varies based on actual environment)

Image Settings

Saturation, brightness, contrast, and sharpness adjustable by client software

Wide Dynamic Range (WDR)

Digital WDR

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

Built-in Microphone

1 built-in microphone

On-board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

Built-in Speaker

1 built-in speaker

Basic Event

Motion detection (support alarm triggering by specified target type (human and vehicle)), exception

Linkage

Upload to memory card, notify surveillance center, trigger capture, audible warning, auto-tracking lite

Perimeter Protection

Line crossing, intrusion, region entrance, region exiting;Support alarm triggered by specified target types (human and vehicle)

Power

12 VDC ± 10%, 1 A, max. 10 W, Ø2 mm coaxial power plug, reverse polarity protection

Dimension

163.9 mm × 185.8 mm × 131.9 mm (6.45″ × 7.31″ × 5.19″)

Weight

Camera weight: 565 g (1.25 lb.) With package weight: 1020 g (2.25 lb.)

Material

Plastic

Operating Condition

-30 °C to 50 °C (-22 °F to 122 °F). Humidity 95% or less (non-condensing)

General Function

heartbeat,mirror

EMC

CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014)

Safety

CB (IEC 62368-1: 2014 + A11),CE-LVD (EN 62368-1: 2014/A11: 2017)

Environment

CE-RoHS (2011/65/EU),WEEE (2012/19/EU)

Protection

IP66 (IEC 60529-2013)
