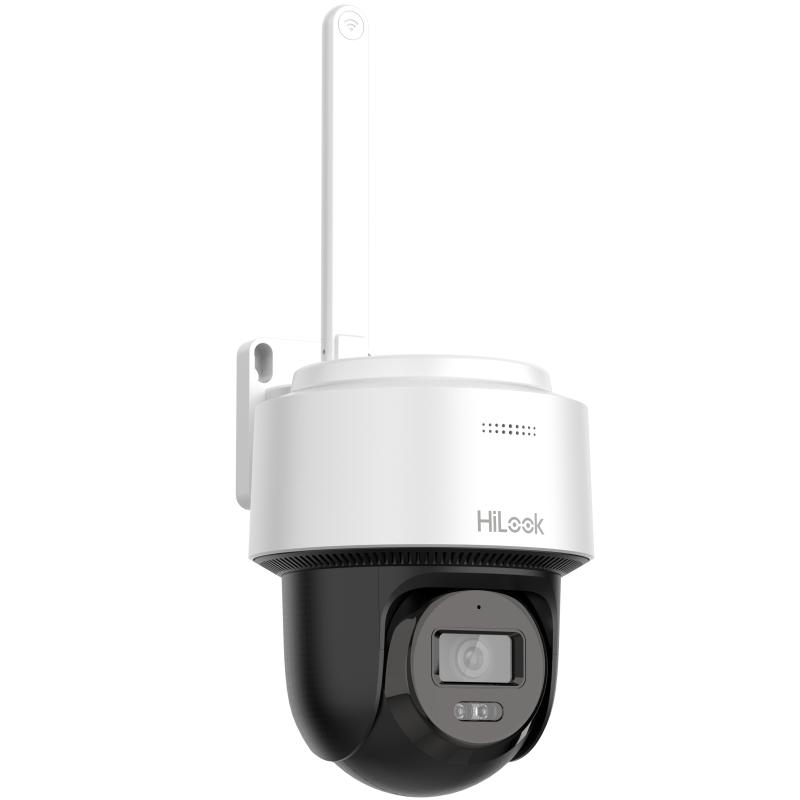

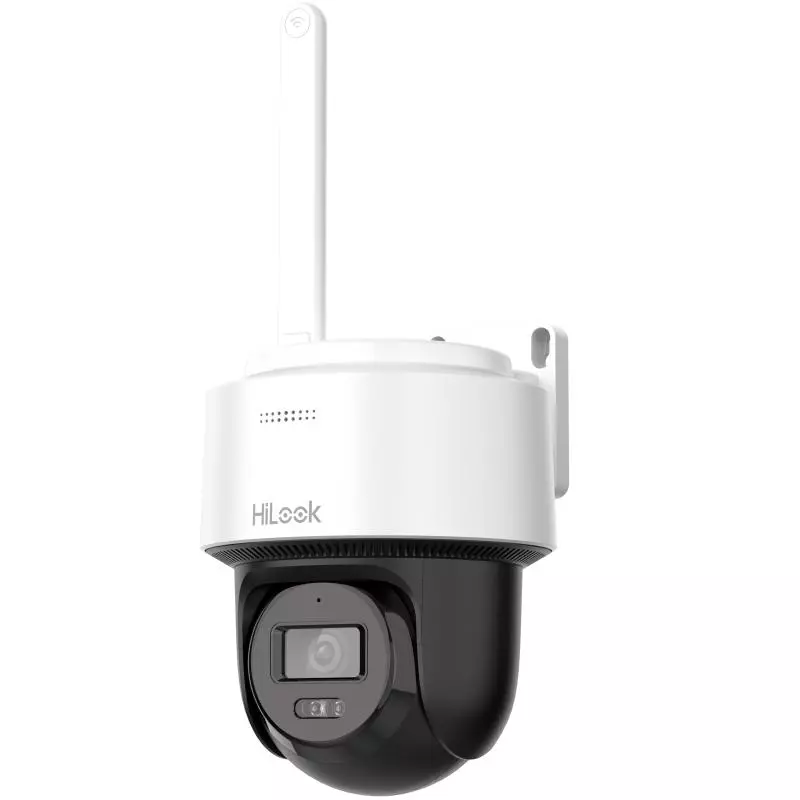

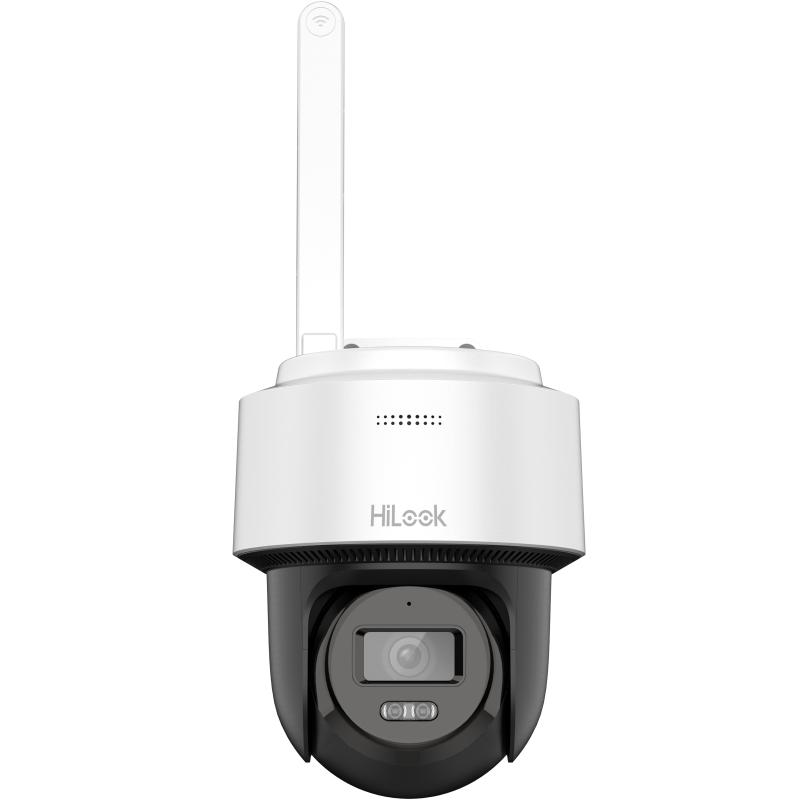

HiLook PTZ-N2C200M-D/W

Image Sensor

1/3″ Progressive Scan CMOS

Max. Resolution

1920 × 1080

Min. Illumination

Color: 0.04 Lux @ (F2.0, AGC ON),B/W: 0.04 Lux @ (F2.0, AGC ON),0 Lux with IR

Focal Length

2.8 mm, 4 mm

FOV

2.8 mm, horizontal FOV 101°, vertical FOV 56°, diagonal FOV 118°;4 mm, horizontal FOV 78°, vertical FOV 42°, diagonal FOV 92°

Aperture

F2.0

Supplement Light Type

IR,White Light

Supplement Light Range

IR distance: up to 25 m, White light distance: up to 25 m

IR Wavelength

850 nm

Movement Range (Pan)

0° to 345°

Movement Range (Tilt)

0° to 80°

Pan Speed

Up to 25°/s

Tilt Speed

Up to 20°/s

Power-off Memory

Yes

Main Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 720, 768 x 432);60 Hz: 30 fps (1920 × 1080, 1280 × 720, 768 x 432)

Sub-Stream

50 Hz: 20 fps (768 x 432);60 Hz: 20 fps (768 x 432)

Video Compression

H.265, H.264, MJPEG

Video Bit Rate

32 Kbps to 8 Mbps

H.264 Type

Baseline Profile/Main Profile/High Profile

H.265 Type

Main Profile

Audio Compression

G.711ulaw/AAC-LC

Audio Bit Rate

AAC-LC: 16 Kbps, 32 Kbps, 64 Kbps;G.711ulaw: 64 Kbps

Audio Sampling Rate

8 kHz/16 kHz

Environment Noise Filtering

Yes

Wi-Fi Protocols

IEEE802.11b, IEEE802.11g, IEEE802.11n, IEEE802.11ax

Frequency Range

2.4 GHz to 2.4835 GHz

Channel Bandwidth

20/40 MHz

Protocols

IPv4/IPv6, HTTP, QoS, SMTP, NTP, RTSP, RTP, RTCP, TCP/IP, UDP, DHCP, Bonjour, SNMP, DNS, DDNS

API

ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK

User/Host

Up to 32 users;3 user levels: administrator, operator, and user

Security

Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)

Image Settings

Saturation, brightness, contrast, and sharpness adjustable by client software or web browser

Wide Dynamic Range (WDR)

Digital WDR

Image Enhancement

BLC, HLC, 3D DNR

Privacy Mask

4 programmable rectangle privacy masks

Ethernet Interface

1 RJ45 10M/100M self-adaptive Ethernet port

Built-in Microphone

1 built-in microphone

On-board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

Built-in Speaker

1 built-in speaker

Basic Event

Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception

Linkage

Notify surveillance center, send email, trigger recording, trigger capture, audible warning

Protection

IP66 (IEC 60529-2013)

Power

12 VDC ± 25%, reverse polarity protection, 0.75 A, max. 9 W, Ø5.5 mm coaxial power plug,;*A switching adapter is included in the package.

Dimension

131.9 mm × 163.9 mm × 312.6 mm (5.19″ × 6.45″ × 12.31″)

Weight

Weight: 600 g (1.32 lb.) ;With Package Weight: 900 g (2.0 lb.)

Material

Plastic

Operating Condition

-10 °C to 40 °C (-14 °F to 104 °F). Humidity 90% or less (non-condensing)

General Function

Heartbeat, anti-banding, mirror, password protection, password reset via email

Language

English, Ukrainian
