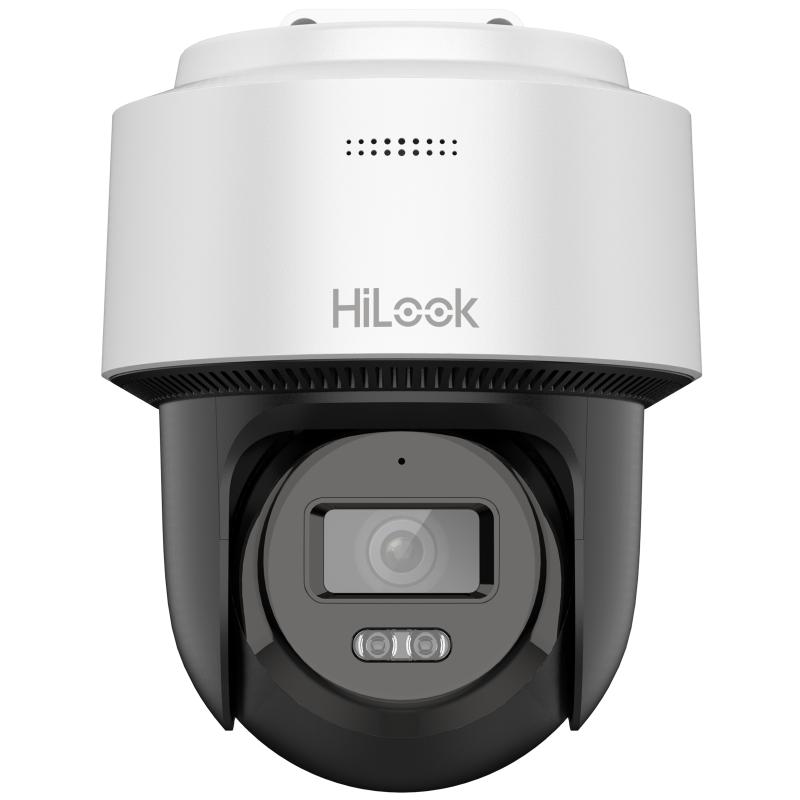

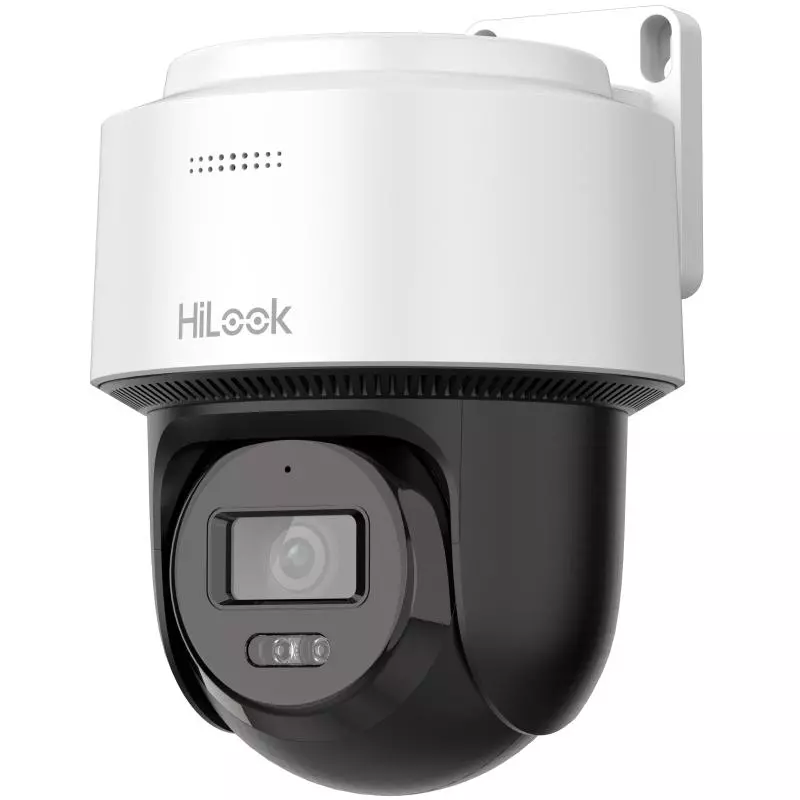

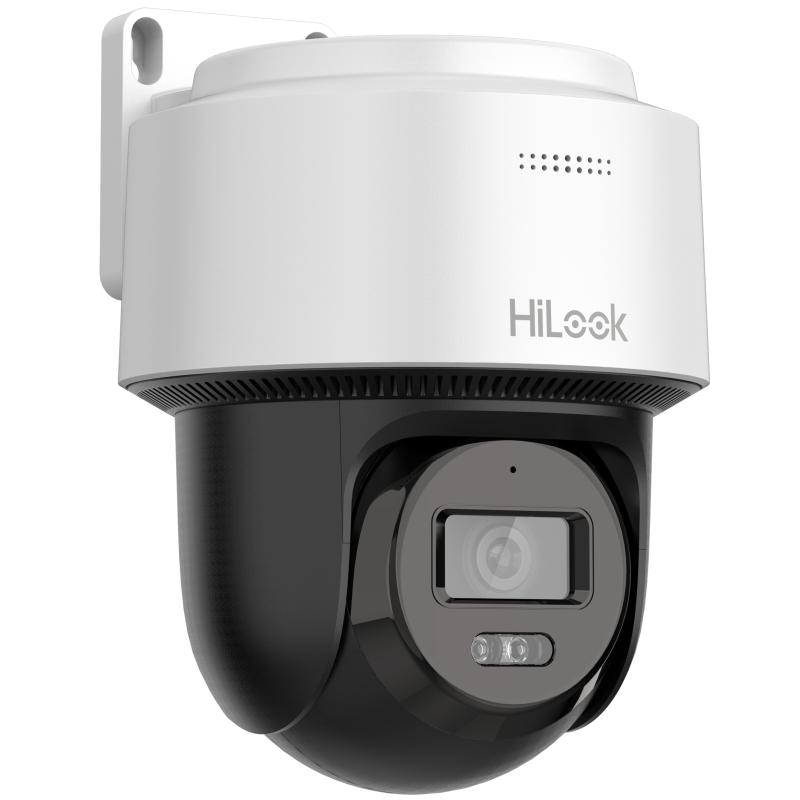

HiLook PTZ-N2C400M-DE

Image Sensor

1/3″ Progressive Scan CMOS

Max. Resolution

2560 × 1440

Min. Illumination

Color: 0.01 Lux @(F1.2，AGC ON), B/W: 0 Lux with light

Focal Length

2.8 mm, 4 mm

FOV

2.8 mm, horizontal FOV 104.9°, vertical FOV 58.3°, diagonal FOV 123.3°;4 mm, horizontal FOV 81.3°, vertical FOV 43.7°, diagonal FOV 96.9°

Aperture

F1.6

Supplement Light Type

IR & White Light

Supplement Light Range

White Light Distance: up to 30 m;IR Distance: up to 30 m

Smart Supplement Light

Yes

IR Wavelength

850 nm

Movement Range (Pan)

0° to 345°

Movement Range (Tilt)

0° to 80°

Pan Speed

Pan speed: configurable from 4° to 25°/s

Tilt Speed

Tilt speed: configurable from 4° to 20°/s

Video Compression

H.265, H.264, MJPEG

H.264 Type

Baseline Profile, Main Profile, High Profile

H.265 Type

Main Profile

Main Stream

50 Hz: 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720);60 Hz: 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360）;60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)

Video Bit Rate

32 Kbps to 8 Mbps

Audio Compression

G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/AAC/PCM

Audio Bit Rate

16 Kbps (G.722.1)/64 Kbps (G.711)/32 to 192 Kbps (MP2L2)/16 Kbps (G.726)/16 to 64 Kbps (AAC-LC)/8 to 48 Kbps (PCM)

Audio Sampling Rate

8 kHz/16 kHz

Environment Noise Filtering

Yes

Protocols

IPv4/IPv6, HTTP, HTTPS, Qos, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP, Bonjour

API

ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP

Image Settings

Saturation, brightness, contrast, and sharpness adjustable by client software or web browser

Wide Dynamic Range (WDR)

Digital WDR

Image Enhancement

BLC, HLC, 3D DNR

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

On-board Storage

Built-in memory card slot, support microSD/SDHC/SDXC card, up to 512 GB

Built-in Microphone

1 built-in microphone

Built-in Speaker

1 built-in speaker

Reset

Yes

Basic Event

Motion detection (support alarm triggering by specified target type (human)), video tampering alarm, exception

Alarm Linkage

Upload to FTP/memory card, notify surveillance center, send email, trigger capture, audible warning, auto-tracking lite

Operating Condition

-10 °C to 40 °C (-14 °F to 104 °F). Humidity 90% or less (non-condensing)

General Function

Mirror, password protection, watermark

Power

12 VDC ± 25%, 0.75 A, max. 9 W, Ø5.5 mm coaxial power plug, reverse polarity protection, ;PoE: IEEE 802.3af, 36 V to 57 V, 0.2 A to 0.3 A, max. 10.5 W

Dimensions

Camera dimension: 163.9 mm × 185.8 mm × 131.9 mm (6.45″ × 7.31″ × 5.19″»);With package dimension: 224 mm × 164 mm × 230 mm (8.82 × 6.46″» × 9.06″»)»»

Weight

Camera weight: 600 g (1.32 lb.);With package weight: 900 g (2.0 lb.)

EMC

CE-EMC (EN 55032: 2015
