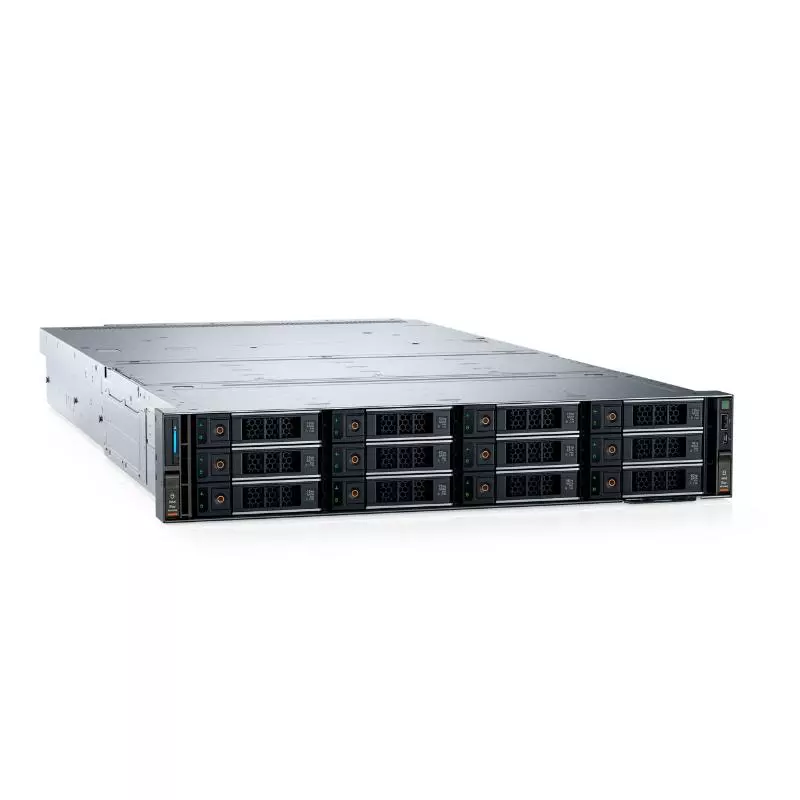

Hikvision DS-VH22-R/HW828(4514Y) — Dual-socket Rackmount Server
CPU: • Up to two 4th Generation Xeon Scalable processors, with up to 32 cores per processor • Up to two 5th Generation Xeon Scalable processors, with up to 28 cores per processor
Memory: •16 DDR5 DIMM slots, supports RDIMM 1.5 TB max, speeds up to 5600 MT/s •Supports registered ECC DDR5 DIMMs only Note: The maximum memory speed the system will support is 4800 MT/s due to the limitation of the processor. Note: 5600 MT/s RDIMMs are applicable for 5th Gen Xeon Scalable Processors.
Hard Disks: Front bays: •Up to 12 x 3.5-inch SAS/SATA max 264 TB Mid bays: •Up to 12 x 3.5-inch SAS/SATA max 264 TB Rear bays: •Up to 4 x 3.5-inch SAS/SATA max 88 TB •Up to 4 x 2.5-inch NVMe with 3.5-inch carrier max 30.72 TB •Up to 2 x 2.5-inch NVMe max 15.36 TB •4 x E3.S NVMe max 61.44 TB
Supported Operating Systems: •Canonical Ubuntu Server LTS •Microsoft Windows Server with Hyper-V •Red Hat Enterprise Linux •SUSE Linux Enterprise Server •VMware ESXi
Graphic Card: •Up to 2 x 75 W SW, 1 x 75 W SW + 1 x 150 W SW or 1 x 180 W DW
PCIe Slots: Up to five PCIe slots: •Slot 1: 1 x16 Gen4 Low profile, Half length •Slot 2: 1 x8 (x16 connector) Gen4 Low profile, Half length or 1 x16 Gen4 Full height, Full length or 1 x16 Gen4 Full height, Half length •Slot 3: 1 x16 Gen4 Low profile, Half length or 1 x16 Gen4 Full height, Full length or 1 x16 Gen4 Full height, Half length •Slot 4: 1 x16 Gen4 Low profile, Half length •Slot 5: 1 x16 Gen4 Low profile, Half length Note: Slot 5 is dedicated for internal PERC card
Front Ports: Front Ports •1 x iDRAC Direct (Micro-AB USB) port •1 x USB 2.0
Rear Ports: Rear Ports •1 x Dedicated iDRAC Ethernet port •1 x USB 2.0 •1 x USB 3.0 •1 x VGA
Быстрая доставка
После подтверждения наличия По Азербайджану 1-2 дня
CPU• Up to two 4th Generation Xeon Scalable processors, with up to 32 cores per processor • Up to two 5th Generation Xeon Scalable processors, with up to 28 cores per processor
Memory•16 DDR5 DIMM slots, supports RDIMM 1.5 TB max, speeds up to 5600 MT/s •Supports registered ECC DDR5 DIMMs only Note: The maximum memory speed the system will support is 4800 MT/s due to the limitation of the processor. Note: 5600 MT/s RDIMMs are applicable for 5th Gen Xeon Scalable Processors.
Hard DisksFront bays: •Up to 12 x 3.5-inch SAS/SATA max 264 TB Mid bays: •Up to 12 x 3.5-inch SAS/SATA max 264 TB Rear bays: •Up to 4 x 3.5-inch SAS/SATA max 88 TB •Up to 4 x 2.5-inch NVMe with 3.5-inch carrier max 30.72 TB •Up to 2 x 2.5-inch NVMe max 15.36 TB •4 x E3.S NVMe max 61.44 TB
Supported Operating Systems•Canonical Ubuntu Server LTS •Microsoft Windows Server with Hyper-V •Red Hat Enterprise Linux •SUSE Linux Enterprise Server •VMware ESXi
Graphic Card•Up to 2 x 75 W SW, 1 x 75 W SW + 1 x 150 W SW or 1 x 180 W DW
PCIe SlotsUp to five PCIe slots: •Slot 1: 1 x16 Gen4 Low profile, Half length •Slot 2: 1 x8 (x16 connector) Gen4 Low profile, Half length or 1 x16 Gen4 Full height, Full length or 1 x16 Gen4 Full height, Half length •Slot 3: 1 x16 Gen4 Low profile, Half length or 1 x16 Gen4 Full height, Full length or 1 x16 Gen4 Full height, Half length •Slot 4: 1 x16 Gen4 Low profile, Half length •Slot 5: 1 x16 Gen4 Low profile, Half length Note: Slot 5 is dedicated for internal PERC card
Ports
Front PortsFront Ports •1 x iDRAC Direct (Micro-AB USB) port •1 x USB 2.0
Rear PortsRear Ports •1 x Dedicated iDRAC Ethernet port •1 x USB 2.0 •1 x USB 3.0 •1 x VGA
General
Net Weight43.6 kg (102.07 lb)
Gross Weight80.00 kg (176.37 lb)
Dimension (W × H × D)481.6 mm × 86.8 mm × 907.74 mm (18.96» × 3.41» × 35.74»)
Package Dimensions (W × H × D)610.0 mm × 338.0 mm × 1140.0 mm (24.02» × 13.31» × 44.88»)
Operating Temperature10 °C to 35 °C (50 °F to 95 °F)
Storage Temperature-40 °C to 65 °C (-40 °F to 149 °F)
Operating Humidity8% to 80% (no condensation)
Storage Humidity5% to 95% (no condensation)
Power Supply•1800 W Titanium 200—240 VAC or 240 VDC, hot swap redundant •1400 W Platinum 100—240 VAC or 240 VDC, hot swap redundant •1400 W Titanium 277 VAC or 336 VDC, hot swap redundant •1400 W Titanium 100—240 VAC or 240 VDC, hot swap redundant •1100 W Titanium 100—240 VAC or 240 VDC, hot swap redundant •1100W LVDC –48 — –60 VDC, hot swap redundant •700 W Titanium 200—240 VAC or 240 VDC, hot swap redundant
Form Factor2U RACK
