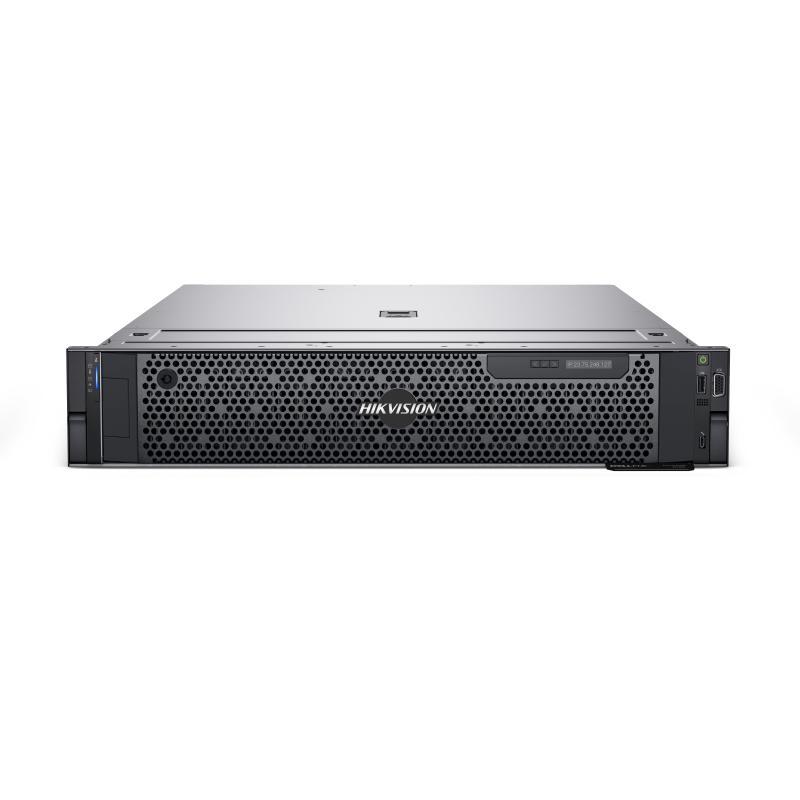

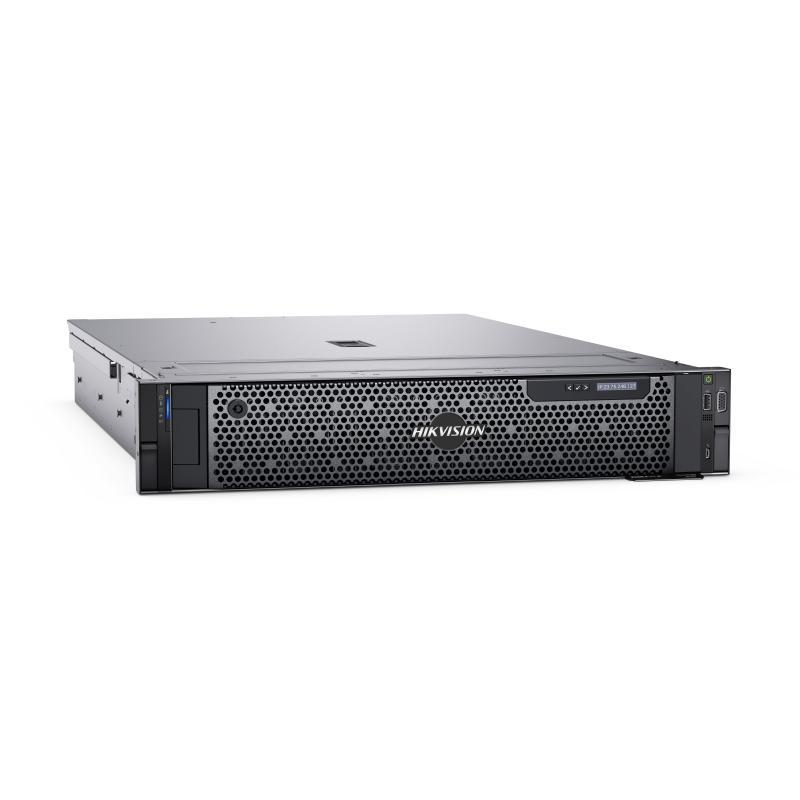

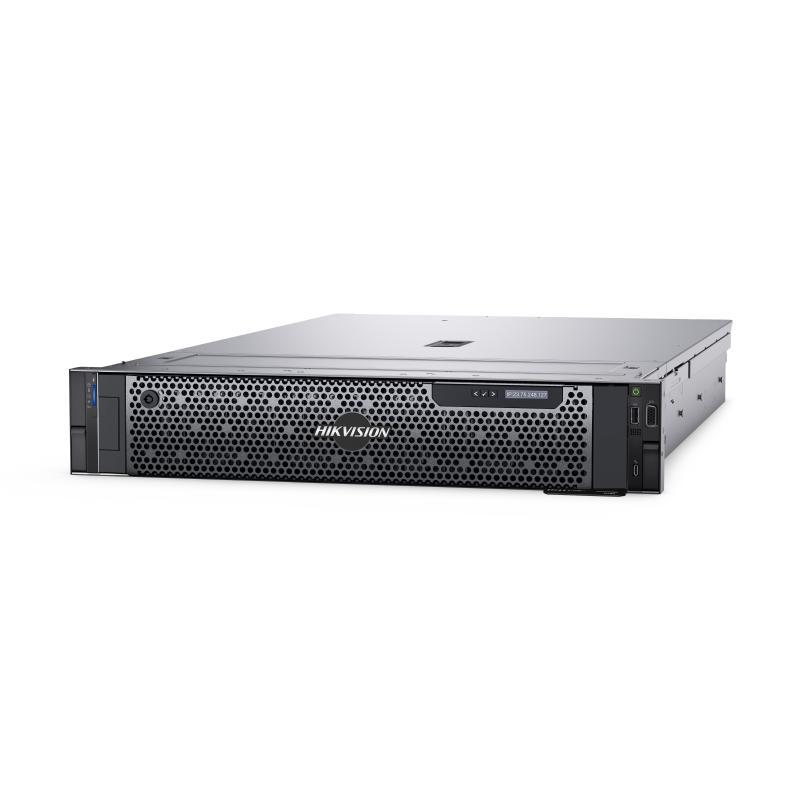

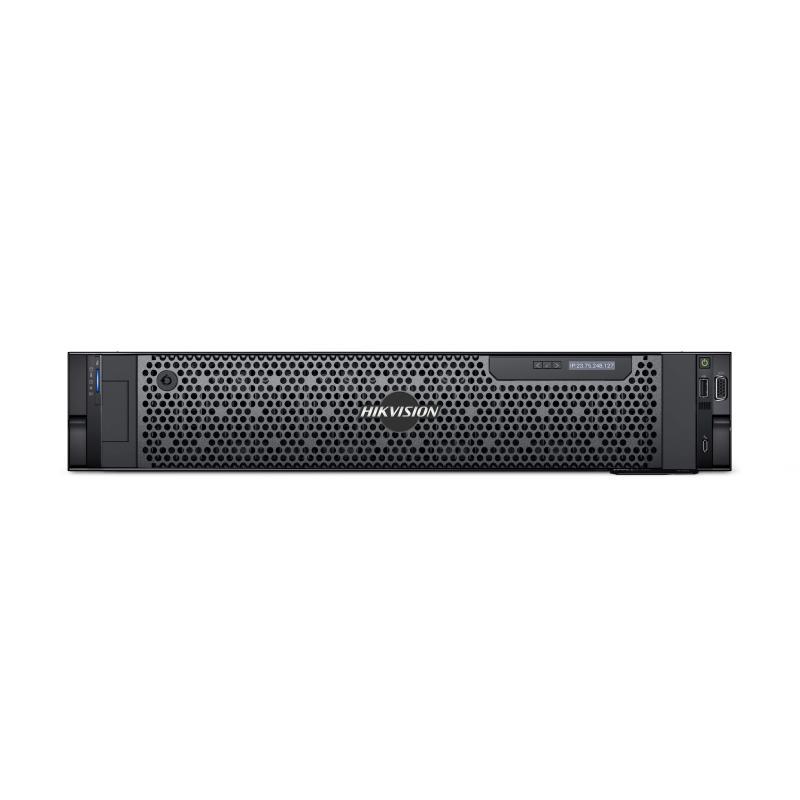

Hikvision DS-VD22D-C/HW6E

CPU

4310 ×2， 2.1GHz,18MB Cache， 12 Cores,24 Threads

Memory

Standard Config：2 × 16GB UDIMM，3200MT/s;Scalability：16 × 64GB UDIMM

Hard Disks

Standard config: 2x2TB 7.2K RPM SATA 3.5 inch HDD; Scalability: 6 x 22TB 7.2K RPM SATA 3.5 inch HDD

Storage Controller

Standard Config：PERC H355 adaptor LP (support RAID 0/1);Compatibility：Independent SAS hardware RAID card ( support RAID 5/10 ), ≥ 8GB cache

Supported Operating Systems

Without any OS pre-installed

PCIe Slots

Two Slots Capability：;5 × PCIe Semi-high Gen 4 PCle slots;1 × PCIe Semi-high Gen 3 PCle slots

Remote Manage

iDrac9 Enterprise

OpenManage™ Software

Support OpenManage Enterprise and Plugins (PowerManager, SupportAssist, and Update Manager)

Integrations and Connections

Integrations: Microsoft® System Center, VMware® vCenter™, BMC Truesight (available from BMC), Red Hat Ansible;;Connections: Nagios Core & Nagios XI, Micro Focus Operations Manager i (OMi), IBM Tivoli Netcool / OMNIbus

Security

Support Cryptographically signed firmware; Secure Boot; Secure Erase; Silicon Root of Trust; System Lockdown (requires iDRAC9 Enterprise or Datacenter);

USB 3.0

0（Front）+1（Rear）

USB 2.0

1（Front）+1（Rear）

Ethernet Port

6 x 1GbE

VGA

1

iDRAC Direct (Micro-AB USB) Port

1

iDRAC Ethernet Port

1

Manager Port

1

Net Weight

28.76 kg (63.40 lb)

Gross Weight

33.5 kg (73.85 lb)

Dimension (W × H × D)

482.0 mm × 86.8 mm × 707.78 mm (19.0» × 3.4» × 27.85»)

Package Dimensions (W × H × D)

667.0 mm × 327.0 mm × 1010.0 mm (26.26» × 12.87» × 39.76»)

Operating Temperature

10 °C to 35 °C (50 °F to 95 °F)

Storage Temperature

-40 °C to 65 °C (-104 °F to 149 °F)

Operating Humidity

8% to 80% (no condensation)

Storage Humidity

5% to 95% (no condensation)

Power Supply

800 W，50/60 Hz，100-240 VAC (Auto adjustment)，9.2-4.7 A

Form Factor

2U Rack
