Hikvision DS-VE11D-C/HW01(C)

CPU

E-2324G×1， 3.1GHz,8MB Cache， 4 Cores,4 Threads

Memory

Standard Config：1 × 16GB UDIMM，3200MT/s;Scalability：4 × 128GB UDIMM

Hard Disks

Standard Config： 2×1 TBSATA HDD; Scalability： 2×22 TB3.5 inch SATA HDD

Storage Controller

Standard Config：PERC H355 adaptor LP (support RAID 0/1);Compatibility：Independent SAS hardware RAID card ( support RAID 5/10 ), ≥ 8GB cache

Supported Operating Systems

WinSvr2019 multilingual version pre-installed

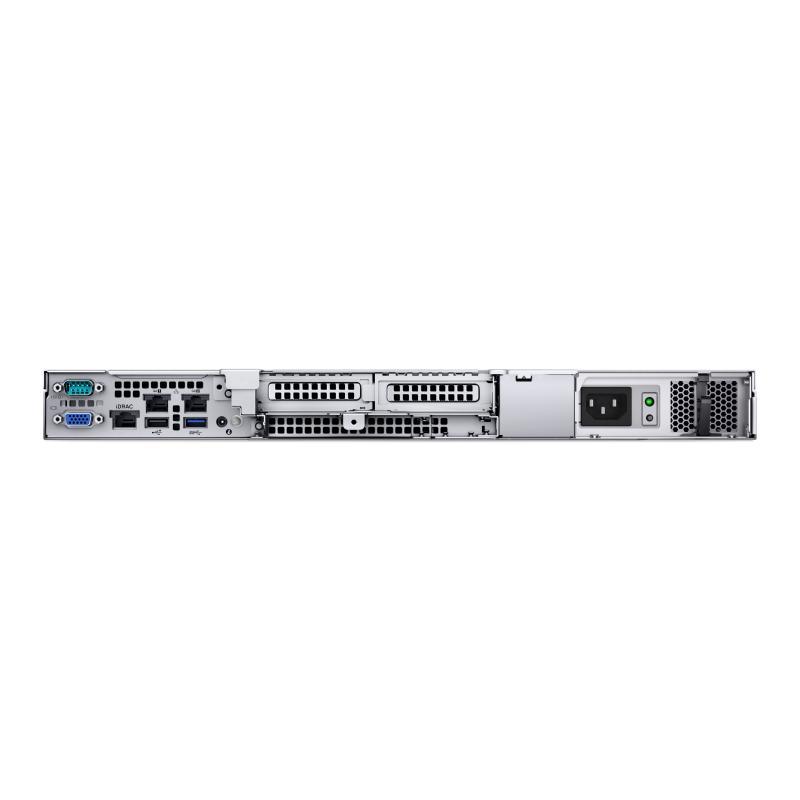

PCIe Slots

Two Slots Capability： 1 x X8 Semi-high Gen 4 PCle slots； 1 x X8 Semi-high Gen 4 PCle slots

Remote Manage

iDrac9 Enterprise

OpenManage™ Software

Support OpenManage Enterprise and Plugins (PowerManager, SupportAssist, and Update Manager)

Integrations and Connections

Integrations: Microsoft® System Center, VMware® vCenter™, BMC Truesight (available from BMC), Red Hat Ansible;;Connections: Nagios Core & Nagios XI, Micro Focus Operations Manager i (OMi), IBM Tivoli Netcool / OMNIbus

Security

Support Cryptographically signed firmware; Secure Boot; Secure Erase; Silicon Root of Trust; System Lockdown (requires iDRAC9 Enterprise or Datacenter);

USB 3.0

0（Front）+1（Rear）

USB 2.0

1（Front）+0（Rear）

Ethernet Port

2× LAN10/100/1000

VGA

1

iDRAC Direct (Micro-AB USB) Port

1

iDRAC Ethernet Port

1

Net Weight

12.2 kg (26.9 lb)

Gross Weight

18.5 kg (40.79 lb)

Dimension (W × H × D)

482.0 mm × 42.8 mm × 598.64 mm (18.97» × 1.68» × 23.56»)

Package Dimensions (W × H × D)

595.0 mm × 251.0 mm × 923.0 mm (23.43» × 9.88» × 36.34»)

Operating Temperature

10 °C to 35 °C (50 °F to 95 °F)

Storage Temperature

-40 °C to 65 °C (-40 °F to 149 °F)

Operating Humidity

8% to 80% (no condensation)

Storage Humidity

5% to 95% (no condensation)

Power Supply

≥450 W，50/60 Hz，100-240 VAC (Auto adjustment)，6.5-3.5 A

Form Factor

1U Rack
