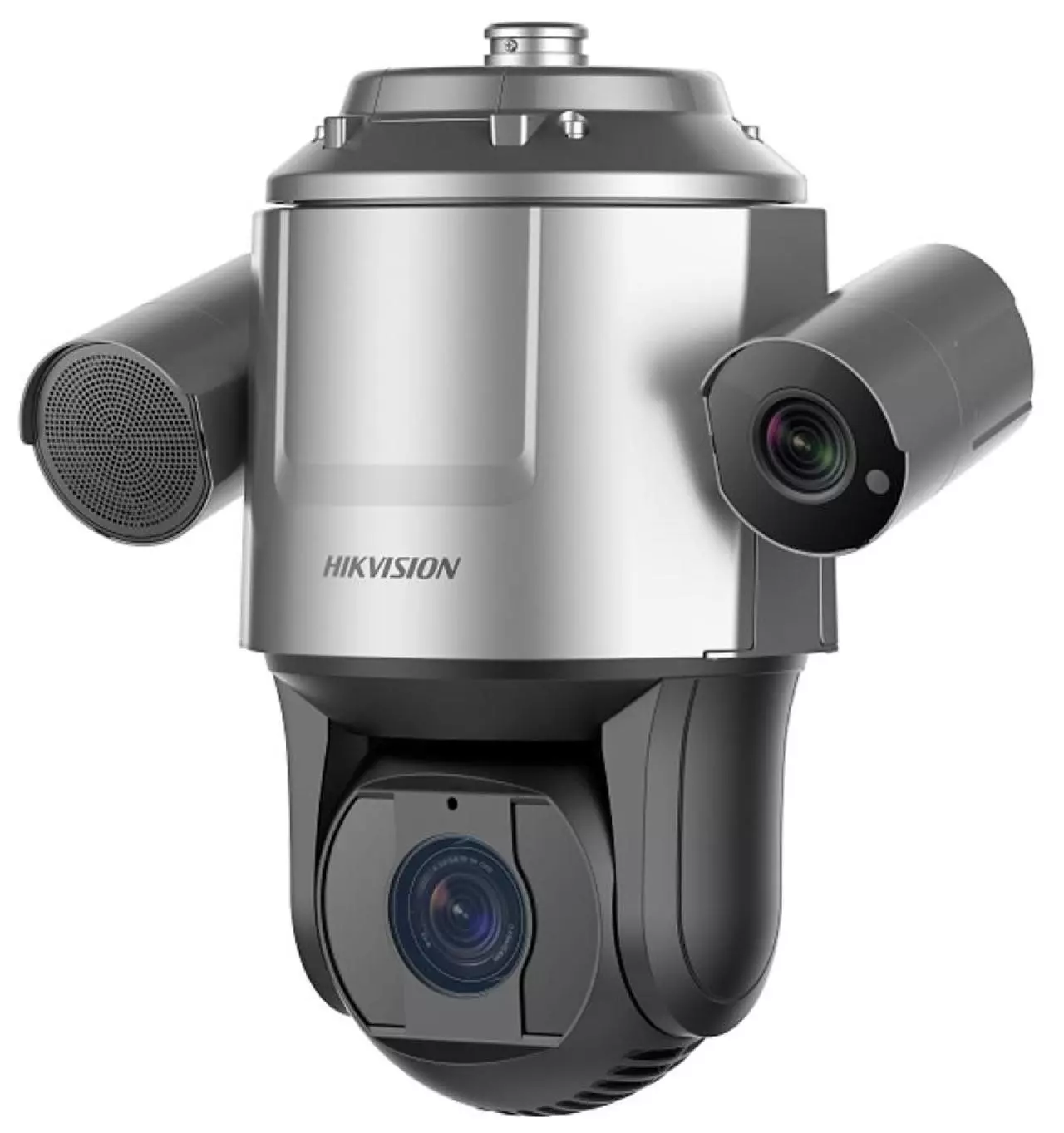

Hikvision DS-2DP8A440IXG-LEF/416(F0)(B)
16-мегапиксельная панорамная камера с углом обзора 180° и функцией PTZ.
16-мегапиксельная панорамная камера с углом обзора 180° и функцией PTZ.
По запросу
Запрос цены- Camera
- Image Sensor[Panoramic channel]: 1/1.8″ progressive scan CMOS, [PTZ channel]: 1/1.8″ progressive scan CMOS
- Min. Illumination[Panoramic channel]: Color: 0.0005 Lux @ (F1.4, AGC ON), B/W: 0.0001 Lux @ (F1.4, AGC ON), 0 Lux with IR; [PTZ channel]: Color: 0.0005 Lux @ (F1.2, AGC ON), B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR
- Shutter Speed1/25 s to 1/30000 s
- Slow Shutteryes
- Day & NightICR
- Zoom[panoramic channel] no; [PTZ channel] 16x
- Optical Zoom40 ×
- DORI3310.3 1313.6 662.1 331.0
- Max. Resolution2560 × 1440
- Lens
- Focusauto,manual,semi-auto
- Focal Length[Panoramic channel]: 2.8 to 12 mm; [PTZ channel]: 6.0 to 240 mm
- Zoom Speed[Panoramic channel] approx. 2.3 s, [PTZ channel] approx. 4.8 s
- FOV[Panoramic channel]: 90° to 34.5°; [PTZ channel]: 56.6° to 1.8°
- Aperture[Panoramic channel] F1.4, [PTZ channel] F1.2
- Constant Fx throughout the zoom range[panoramic channel]: yes; [PTZ channel]: no
- Illuminator
- Supplement Light Range[Panoramic channel]: up to 50 m; [PTZ channel]: up to 500 m
- Smart Supplement Lightyes
- PTZ
- Movement Range (Pan)[panoramic channel] 0-90°, [PTZ channel] 0-360°
- Movement Range (Tilt)[panoramic channel] -5° to 30°, [PTZ channel] -20° to 90°
- Pan Speed[panoramic channel] pan speed: configurable from 0.1° to 20°/s; [PTZ channel] pan speed: configurable from 0.1° to 210°/s; preset speed: 280°/s
- Tilt Speed[panoramic channel] tilt speed: configurable from 0.1° to 20°/s; [PTZ channel] tilt speed: configurable from 0.1° to 150°/s, preset speed 150°/s
- Proportional Pan[panoramic channel]: no; [PTZ channel]: yes
- Presets300
- Patrol Scan8 patrols
- Pattern Scan4 pattern scans
- Power-off Memoryyes
- Park Actionpreset,frame scan,tilt scan,patrol scan,random scan,auto scan,pattern scan,panorama scan
- 3D Positioningyes
- PTZ Status Displayyes
- Preset Freezingyes
- Scheduled Taskdome reboot,preset,random scan,patrol scan,dome adjust,pattern scan,tilt scan,panorama scan,frame scan,aux output,auto scan
- Video
- Main Stream50 Hz: 25/50 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720);
60 Hz: 30/60 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) - Sub-Stream50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288);
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) - Third Stream50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288);
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) - Video CompressionH.265,H.264,MJPEG
- Video Bit Rate32 to 16384 kbps
- H.264 Typemain profile,baseline profile,high profile
- H.265 Typemain profile
- Scalable Video Coding (SVC)yes
- Region of Interest (ROI)fixed region
- Audio
- Audio CompressionPCM,G.726,MP2L2,G.722.1,AAC,G.711alaw,G.711ulaw
- Audio Bit RateMP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps, 192 kbps,AAC: 16 kbps, 32 kbps, 64 kbps
- Audio Sampling RateMP2L2：16kHz，32kHz，48kHz,AAC：16kHz，32kHz，48kHz,PCM：8kHz，16kHz，32kHz，48kHz
- Environment Noise Filteringyes
- Network
- Network StorageNAS (NFS, SMB/ CIFS), ANR
- ProtocolsTCP/IP,SMTP,RTSP,FTP,IGMP,Qos,RTCP,HTTPS,PPPoE,SNMP,NTP,RTP,UDP,DNS,HTTP,DHCP,Bonjour,802.1x,IPv4/IPv6,DDNS,ICMP,UPnP
- APIOpen-ended API,Ehome,萤石, ISAPI,ISUP,Hikvision SDK,ONVIF,GB/T28181协议
- Simultaneous Live View20
- User/Host32
- Security802.1X authenticated access,MAC address binding,Authenticated username and password,IP address filter,HTTPS encryption
- ClientiVMS-4200
- Web BrowserSafari11+,Chrome41+,IE8+,Firefox30+
- Image
- Day/Night Switchauto,day,night,scheduled-switch
- Image EnhancementBLC,HLC,3D DNR
- Wide Dynamic Range (WDR)120 dB WDR
- DefogOptical defog
- Image Stabilizationyes
- Regional Exposureyes
- Regional Focusyes
- Image Settingssharpness,saturation,brightness,contrast
- Image Parameters Switchyes
- Privacy Maskrectangle region ,[panoramic channel] 8 masks, [PTZ channel] 24 masks,mask color configurable
- SNR≥52dB
- Interface
- Ethernet Interface1 RJ45 1000M self-adaptive Ethernet port
- On-board Storage(Optional) Supports built-in memory card. The memory card needs to be installed before leaving the factory
- Alarm7 input(s), 2 output(s)
- Audio1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%,
1 output (line out), line level, output impedance: 600 Ω - RS-485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive
- Resetyes
- Event
- Basic Eventaudio exception,video tampering alarm,motion detection
- Smart Eventregion entrance detection,line crossing detection,intrusion detection,region exiting detection
- Smart Trackingmanual tracking,support patrol tracking among multiple detection scenes,event tracking,panorama tracking
- Linkagewhite light flashing, upload to FTP,sending email,notify surveillance center,patrol scan,preset,audible warning,pattern scan,smart tracking,alarm output
- Deep Learning Function
- Multi-Target-Type Detectionboth channels support multi-target-type detection and capture of human body, face and vehicles
- General
- General Functionpassword protection,mirror,watermark,IP address filter
- Power36 VDC
- Power InterfaceDC input
- Power Consumption and CurrentMax. 90 W
- Operating Condition-40℃ to 70℃
- MaterialADC12
- DimensionΦ 485 mm × 487 mm (Φ 19.09″ × 19.17″)
- Approx. 17 kg (37.48 lb.)
- LanguageEnglish
