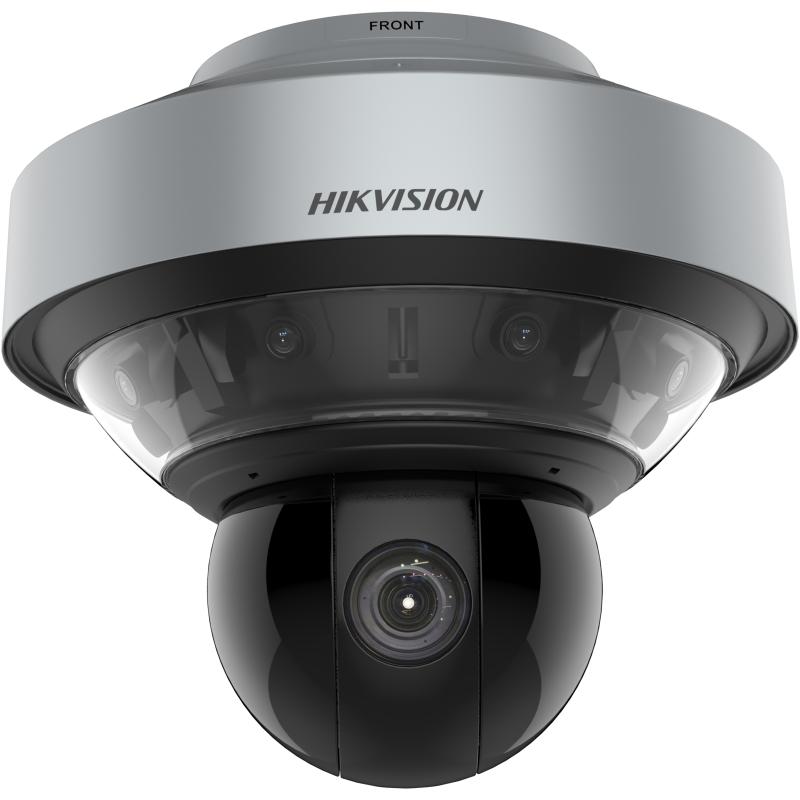

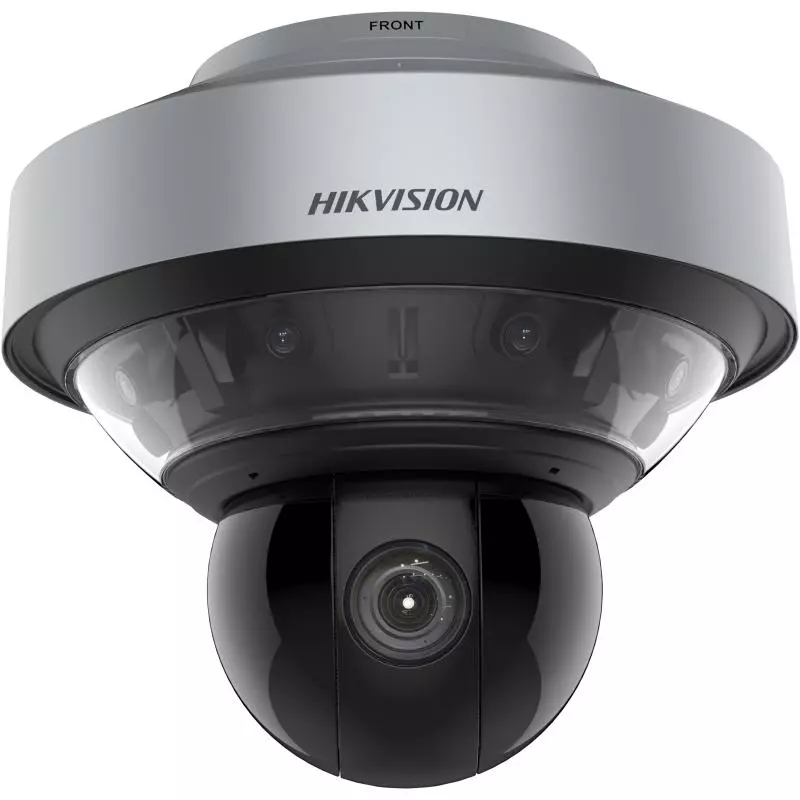

Hikvision DS-2DP8A845IXG-LF/864(F0)

Image Sensor

[Panoramic channel]: 1/1.8″ progressive scan CMOS, [PTZ channel]: 1/1.8″ progressive scan CMOS

Max. Resolution

8160*3616

Min. Illumination

[Panoramic channel] Color: 0.0005 Lux (F1.0, AGC ON), B/W: 0.0001 Lux (F1.0, AGC ON);;[PTZ channel]: 0.0005 Lux (F1.5, AGC ON), B/W: 0.0001 Lux (F1.5, AGC ON), 0 Lux with IR

Shutter Speed

1 s to 1/30000 s

Day & Night

IR cut filter

Zoom

[PTZ channel] 45x optical, 16x digital

Slow Shutter

Yes

Focal Length

[panoramic channel] 2.8 mm; [PTZ channel] 7.1~320 mm

FOV

[panoramic channel];Horizontal field of view: 180°;Vertical field of view: 85°;[PTZ channel];Horizontal field of view: 56.1° to 2.0° (Wide-Tele);Vertical field of view: 33.4° to 1.1° (Wide-Tele);Diagonal field of view: 62.9° to 2.3° (Wide-Tele)

Focus

Auto, semi-auto, manual, rapid focus

Aperture

[panoramic channel] F1.0, [PTZ channel] F1.5

Zoom Speed

[panoramic channel] no, [PTZ channel] approx. 7.8 s

Supplement Light Type

Laser

Supplement Light Range

Up to 500 m

Smart Supplement Light

Yes

Movement Range (Pan)

360°

Movement Range (Tilt)

-15° to 90° (auto flip)

Pan Speed

Pan speed: configurable from 0.1° to 210°/s; preset speed: 240°/s

Tilt Speed

Tilt speed: configurable from 0.1° to 150°/s, preset speed 200°/s

Proportional Pan

[Panoramic channel]: no; [PTZ channel]: yes

Presets

300

Preset Freezing

Yes

Patrol Scan

8 patrols, up to 32 presets for each patrol

Pattern Scan

4 pattern scans, record time over 10 minutes for each scan

Park Action

Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan

3D Positioning

Yes

PTZ Status Display

Yes

Scheduled Task

Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output

Power-off Memory

Yes

Main Stream

[Panoramic channel]:;50Hz: 25fps (32M：8160*3616×2,5520*2400×2，8M：4096*1800×2,3840*1680×2,2720*1192×2);;60Hz: 30fps (32M：8160*3616×2,5520*2400×2，8M：4096*1800×2,3840*1680×2,2720*1192×2) ;[PTZ channel]:;50Hz:25fps (3840×2160,2560×1440,1920×1080,1280×960,1280×720);60Hz: 24fps(3840×2160,2560×1440,1920×1080,1280×960,1280×720)

Sub-Stream

[Panoramic channel]:;50Hz: 25fps (32M：1560*656×2,704*320×2，8M：704*320×2,512*232×2) ;60Hz: 30fps (32M:1560*656×2,704*320×2，8M：704*320×2,512*232×2);[PTZ channel]:;50Hz:25fps(704×576,640×480,352×288); ;60Hz:24fps(704×480,640×480,352×240)

Third Stream

[PTZ channel]:;50Hz:25fps (1920×1080,1280×960,1280×720,704×576,640×480,352×288);60Hz: 24fps(1920×1080,1280×960,1280×720,704×480,640×480,352×240)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264;Sub-stream: H.265/H.264/MJPEG;Third stream: H.265/H.264/MJPEG

Audio Compression

G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC, PCM

Audio Sampling Rate

PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz; MP2L2: 16 kHz, 32 kHz, 48 kHz; AAC: 16 kHz, 32 kHz, 48 kHz

Protocols

IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour

Simultaneous Live View

Up to 20 channels

API

Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP

User/Host

Up to 32 users. 3 user levels: administrator, operator, and user

Security

Authenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter

Network Storage

NAS (NFS, SMB/CIFS), ANR

Client

iVMS-4200, HikCentral Pro, Hik-Connect

Web Browser

IE10-11, Chrome 57+, Firefox 52+, Safari 12+

Image Parameters Switch

Yes

Image Settings

Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser

Day/Night Switch

Day, night, auto, scheduled-switch

Wide Dynamic Range (WDR)

[Panoramic channel] digital WDR, [PTZ channel] 120 dB

SNR

≥ 55 dB

Defog

[Panoramic channel]: no; [PTZ channel]: optical defog

Image Stabilization

OIS，EIS

Image Enhancement

BLC, HLC, 3D DNR

Privacy Mask

Programmable polygon privacy masks (8 for panoramic channel, 24 for PTZ channel), mask color or mosaic configurable

Regional Focus

Yes

Regional Exposure

Yes

Ethernet Interface

1 RJ45 10M/100M/1000M self-adaptive Ethernet port

On-board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC cards, up to 256 GB

Audio

1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω

Alarm

7 alarm inputs, 2 alarm outputs

RS-485

1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

Reset

Yes

Fiber Optical

1 FC interface, built-in fiber module, 1000M, TX1310/RX1550 nm wavelength, single module fiber, up to 20 km transmission distance

Smart Event

Intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection，face capture

Linkage

memory card video recording,alarm output,sending email,notify surveillance center, upload to FTP,NAS video recording,audible warning

Smart Tracking

Manual tracking,auto-tracking

Power

36 VDC

Dimension

Ø 433.5 mm x 430.4 mm (Ø 17.07″ x 16.94″)

Weight

Approx. 18 kg (39.68 lb.)

Material

ADC12

Operating Condition

Temperature: -40°C to 70°C (-40°F to 158°F)，Humidity: ≤ 95%

Wiper

No

Demist

Yes

Power Consumption andCurrent

max. 135 W, including max. 12 W for IR

Safety

UL (UL 62368-1); ;CB (IEC 62368-1: 2014+A11); ;CE-LVD (EN 62368-1:2014/A11:2017);

Environment

CE-RoHS (2011/65/EU); WEEE (2012/19/EU); ;Reach (Regulation (EC) No 1907/2006)

Protection

IP67 Standard, Lightning Protection, Surge Protection and Voltage Transient Protection, ±6kV Line to Gnd, ±3kV Line to Line, IEC61000-4-5, IK10
