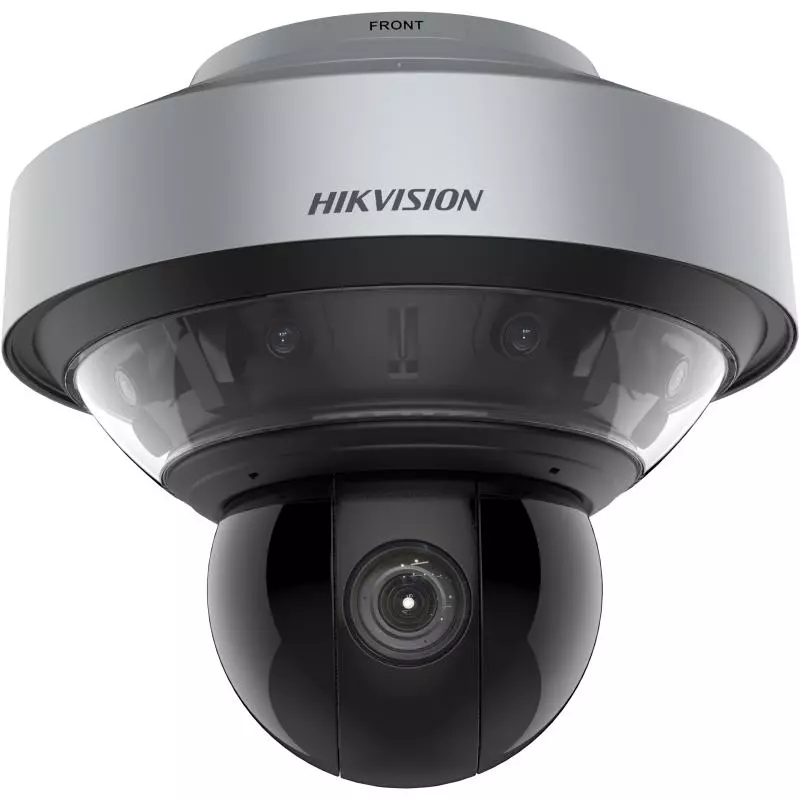

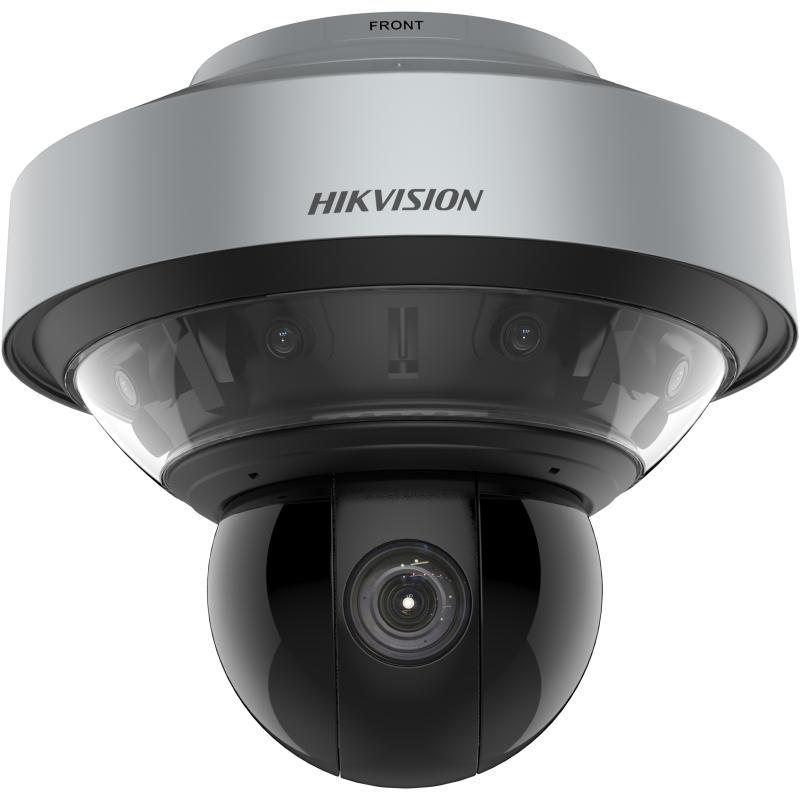

Hikvision DS-2DP8A845IXG-LF/432(F0)

Image Sensor

[panoramic channel]: 1/1.8″ progressive scan CMOS||[PTZ channel]: 1/1.8″ progressive scan CMOS

Max. Resolution

8160*3616

Min. Illumination

[Panoramic channel] Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0.0005 Lux @ (F1.0, AGC ON),;[PTZ channel] Color: 0.0005 Lux @ (F1.2, AGC ON), B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 lux with IR

Shutter Speed

1~1/30000

Day & Night

ICR

Zoom

[PTZ channel] 16x digital

Slow Shutter

yes

Optical Zoom

45x

Focal Length

[panoramic channel] 2.8 mm; [PTZ channel]7.1~320 mm

FOV

[panoramic channel];Horizontal field of view: 180°;Vertical field of view: 85°;[PTZ channel];Horizontal field of view: 56.1° to 2.0° (Wide-Tele);Vertical field of view: 33.4° to 1.1° (Wide-Tele);Diagonal field of view: 62.9° to 2.3° (Wide-Tele)

Focus

semi-auto||manual||auto

Aperture

[Panoramic channel] F1.0, [PTZ channel] F1.5

Zoom Speed

[panoramic channel] no, [PTZ channel] approx. 7.8 s

Supplement Light Type

Laser

Supplement Light Range

IR distance: up to 500 m

Smart Supplement Light

yes

Movement Range (Pan)

0-360°

Movement Range (Tilt)

-15° to 90° (auto flip)

Pan Speed

pan speed: configurable from 0.1° to 210°/s; preset speed: 240°/s

Tilt Speed

tilt speed: configurable from 0.1° to 150°/s, preset speed 200°/s

Proportional Pan

[panoramic channel]: no; [PTZ channel]: yes

Presets

300

Preset Freezing

yes

Patrol Scan

8 patrols

Pattern Scan

4 pattern scans

Park Action

preset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan

3D Positioning

yes

PTZ Status Display

yes

Scheduled Task

preset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan||dome reboot||dome adjust||aux output

Power-off Memory

yes

Main Stream

[panoramic channel];50Hz: 25fps (32 MP video output mode: 8160 × 3616，5520*2400; 8 MP video output mode: 4096 × 1800, 3840 × 1680, 2720 × 1192); ;60Hz: 30fps (32 MP video output mode: 8160 × 3616; 8 MP video output mode: 5520*2400，4096 × 1800, 3840 × 1680, 2720 × 1192);[PTZ channel];50Hz: 25fps (3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720);60Hz: 24fps (3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

Sub-Stream

[panoramic channel];50Hz: 25fps (32 MP video output mode: 1560 × 656, 704 × 320; 8 MP video output mode: 704 × 320, 512 × 232); ;60Hz: 30fps (32 MP video output mode: 1560 × 656, 704 × 320，8 MP video output mode: 704 × 320, 512 × 232);[PTZ channel];50Hz: 25fps (704 × 576, 640 × 480, 352 × 288); ;60Hz: 24fps (704 × 480, 640 × 480, 352 × 240)

Third Stream

[PTZ channel];50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288);60Hz: 24fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Video Compression

H.265||H.264

Audio Compression

G.711alaw||G.711ulaw||G.722.1||G.726||MP2L2||PCM

Audio Sampling Rate

MP2L2: 16kHz, 32kHz, 44.1kHz, 48kHz||PCM: 8kHz, 16kHz, 32kHz, 44.1kHz, 48kHz

Protocols

IPv4/IPv6||HTTP||HTTPS||802.1x||Qos||FTP||SMTP||UPnP||SNMP||DNS||DDNS||NTP||RTSP||RTCP||RTP||TCP/IP||UDP||IGMP||ICMP||DHCP||PPPoE||Bonjour

Simultaneous Live View

20

API

Open-ended API, ONVIF (Profile S, Profile G), ISAPI, Hikvision SDK, Third-party management platform, ISUP

Smooth Streaming

yes

User/Host

32

Security

Authenticated username and password||MAC address binding||HTTPS encryption||802.1X authenticated access||IP address filter

Network Storage

NAS (NFS, SMB/ CIFS)|| ANR

Client

iVMS-4200

Web Browser

IE8+

Image Parameters Switch

yes

Image Settings

saturation||brightness||contrast||sharpness

Day/Night Switch

day, night, auto, scheduled-switch

Wide Dynamic Range (WDR)

[Panoramic channel] Digital WDR, [PTZ channel] 120 dB

SNR

≥55dB

Defog

yes

Image Stabilization

EIS

Image Enhancement

BLC, HLC, 3D DNR

Privacy Mask

mask color or mosaic configurable

Regional Focus

yes

Regional Exposure

yes

Compass

no

Ethernet Interface

RJ45||Self-adaptive 10M/100M/1000M Ethernet port

On-board Storage

Built-in microSD slot|| support microSD/microSDHC/microSDXC cards||up to 256 GB

Audio

1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω

Alarm

7 alarm inputs

RS-485

Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive

Reset

yes

Fiber Optical

1 FC interface, built-in fiber module, 1000M, TX1310/RX1550 nm wavelength, single module fiber, up to 20 km transmission distance

Smart Event

face capture||intrusion detection||line crossing detection||region entrance detection||region exiting detection||unattended baggage detection||object removal detection

Linkage

memory card video recording||alarm output||sending email||notify surveillance center|| upload to FTP||audible warning||NAS video recording

Smart Tracking

manual tracking||panorama tracking||event tracking||support patrol tracking among multiple detection scenes

Power

36 VDC

Dimension

Φ391.8 mm × 400.5 mm (Φ 15.43″×15.77″)

Weight

Approx. 18 kg (39.68 lb)

Material

ADC12

Operating Condition

Temperature: -40°C to 70°C (-40°F to 158°F)，Humidity: ≤ 95%

Wiper

no

De-icing

NO

Demist

Yes

Power Consumption andCurrent

max. 135 W, including max. 12 W for IR

Protection

IK10||IP66 Standard, 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
