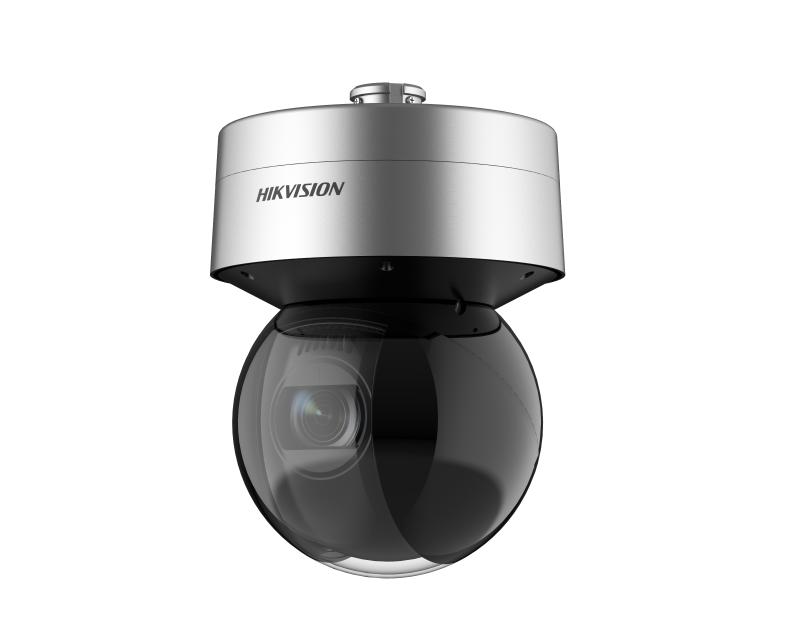

Hikvision DS-2DF7A436IXG-EL(Y)

Image Sensor

1/1.8＂ progressive scan CMOS

Max. Resolution

2688 × 1520

Min. Illumination

Color: 0.0005 Lux @ (F1.2, AGC ON),B/W: 0.0005 Lux @ (F1.2, AGC ON),0 Lux with IR

Shutter Speed

1/30 s to 1/30,000 s

Day & Night

ICR

Zoom

36 × optical,16 × digital

Slow Shutter

yes

Focal Length

6.0 mm to 216 mm

FOV

Horizontal field of view: 59.1° to 2°, vertical field of view: 34.1° to 1.1°, diagonal field of view: 67.1° to 2.3°

Focus

Auto,semi-auto,manual,rapid focus

Aperture

F1.2

Zoom Speed

Approx. 4.5 s

Supplement Light Range

IR distance: up to 300 m

Movement Range (Pan)

360°

Movement Range (Tilt)

-20° to 90° (auto flip)

Pan Speed

Pan speed: configurable from 0.1° to 550°/s, preset speed: 550°/s,Up to MAX 700°/s

Tilt Speed

Tilt speed: configurable from 0.1° to 300°/s, preset speed 300°/s,Up to MAX 300°/s

Proportional Pan

yes

Presets

300

Preset Freezing

yes

Patrol Scan

8 patrols, up to 32 presets for each patrol

Park Action

Preset,patrol scan

3D Positioning

yes

PTZ Status Display

yes

Scheduled Task

Preset,patrol scan,dome reboot,dome adjust,aux output

Power-off Memory

yes

Main Stream

50 Hz: 100 fps (1920 × 1080) 50 fps (2688 × 1520, 2560 × 1440, 1280 × 720) 60 Hz: 120 fps (1920 × 1080) 60 fps (2688 × 1520, 2560 × 1440, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) ;60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

Third Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) ;60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Video Compression

H.265||H.264||MJPEG

Video Bit Rate

32 Kbps to 16384 Kbps

H.264 Type

baseline profile||main profile||high profile

H.265 Type

main profile

Scalable Video Coding (SVC)

yes

Region of Interest (ROI)

fixed region

Audio Compression

G.711,G.722.1,G.726,MP2L2,PCM,AAC-LC

Audio Bit Rate

64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)16 Kbps to 64 Kbps(AAC-LC)

Protocols

IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP/IP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,WebSocket,WebSockets

Simultaneous Live View

Up to 20 channels

API

ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP

User/Host

Up to 32 users. 3 levels: Administrator, Operator and User

Security

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.3, host authentication (MAC address)

Network Storage

NAS (NFS, SMB/CIFS)

Client

iVMS-4200,Hik-Connect,HikCentral Pro

Web Browser

IE11, Chrome 57.0+, Firefox 52.0+, Safari 11+

Day/Night Switch

day, night, auto, scheduled-switch

SNR

≥52dB

Defog

Optical defog

Wide Dynamic Range (WDR)

150 dB

Image Stabilization

EIS (Built-in gyroscope to improve EIS performance)

Image Enhancement

BLC, HLC, 3D DNR

Privacy Mask

mask color or mosaic configurable,24 programmable polygon privacy masks

Regional Focus

yes

Regional Exposure

yes

Video Output

CVBS: 1.0 V[p-p]/75 Ω, PAL/NTSC, BNC connector

Ethernet Interface

RJ45, self-adaptive 10M/100M Ethernet port

On-board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1024 GB

Audio

1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%, ;1 output (line out), line level, output impedance: 600 Ω

Alarm

7 alarm inputs, 2 alarm outputs

RS-485

HIKVISION, Pelco-P, Pelco-D, self-adaptive

Basic Event

Motion detection,video tampering alarm,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error),alarm input and output

Smart Event

Line crossing detection,intrusion detection,region entrance detection,region exiting detection,unattended baggage detection,object removal detection

Linkage

Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, Audible Warning,etc.

Smart Tracking

Manual tracking,auto-tracking

Face Capture

Support detecting up to 30 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face.

Multi-Target-Type Detection

Supports simultaneous detection and capture of human body, face and vehicle,;Gets 7 face features, 14 human body features and 8 vehicle features

Road Traffic and Vehicle Detection

Smart Function:;Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario);Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc.;Support vehicle and non-vehicle counting;Blocklist and allowlist: up to 10,000 records;LPR Countries/Regions:;4 areas (Europe, Middle East, Asia-Pacific, Africa) and more than 124 countries/regions;Accuracy (Under recommended installation and lighting conditions):;License plate recognition rate ≥98%;Capture rate ≥99%;Driving direction accuracy rate ≥98%;Vehicle Capture Speed:;Front installation in checkpoint scenario: up to 120 km/h;Side installation: up to 80 km/h;Capture Mode: License Plate and Vehicle Mode, Vehicle Priority Mode

Power

;PoE (PoE (bt)), Class 8, 42.5-57V, max. 90W,36 VDC ± 25%, max. 90 W

Dimension

Ø214.95 mm × 297.1 mm (Ø8.46″ × 11.7″)

Weight

Approx. 5 kg (11.02 lb.)

Operating Condition

Temperature: -40°C to 70°C (-40°F to 158°F)，Humidity: ≤ 95%

General Function

mirror, password protection, watermark, IP address filter

Language

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

EMC

CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014),IC VoC (ICES-003: Issue 6, 2019),RCM (AS/NZS CISPR 32: 2015),KC (KN 32: 2015, KN 35: 2015)

Safety

CB (IEC 62368-1: 2014 + A11),CE-LVD (EN 62368-1: 2014/A11: 2017),BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005),LOA (IEC/EN 60950-1)

Environment

CE-RoHS (2011/65/EU); WEEE (2012/19/EU); ;Reach (Regulation (EC) No 1907/2006)

Protection

Lightning Protection, Surge Protection and Voltage Transient Protection,±6kV Line to Gnd, ±3kV Line to Line,IEC61000-4-5||IP67 Standard||IK10

Anti-Corrosion Protection

NEMA 4X (NEMA 250-2018)
