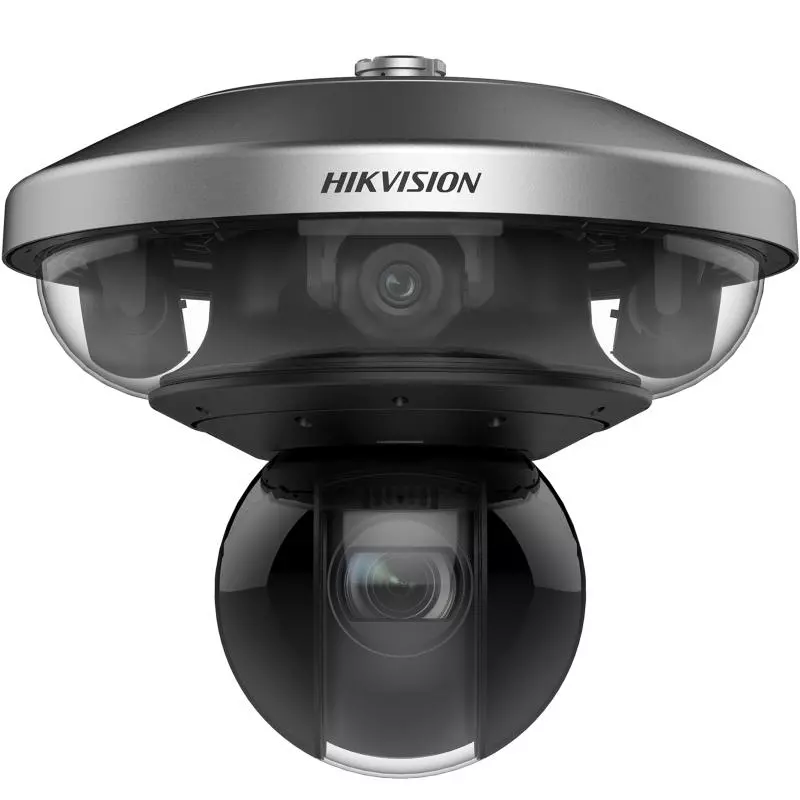

Hikvision DS-2DP8A440IXG-LEF/416(F0)(B)
16-мегапиксельная панорамная камера с углом обзора 180° и функцией PTZ.
16-мегапиксельная панорамная камера с углом обзора 180° и функцией PTZ.
По запросу
Запрос цены- Camera
- Image Sensor[Panoramic channel] 1/1.8″ Progressive Scan CMOS, [PTZ channel] 1/1.8″ Progressive Scan CMOS
- Max. Resolution[Panoramic channel] 2688 × 1520, [PTZ channel] 2688 × 1520
- Min. Illumination
Color: 0.0005 Lux @ (F1.0, AGC ON),
[PTZ channel] Color: 0.0005 Lux @ (F1.2, AGC ON), B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 lux with IR
- Shutter Speed1/30 s to 1/30000 s
- Day & NightIR cut filter
- Zoom25 × optical,16 × digital
- Slow ShutterYes
- Lens
- Focal Length[Panoramic channel] 2.8 mm, [PTZ channel] 5.9mm to 147.5 mm mm
- FOV
[Panoramic channel]
horizontal field of view: 106.3°, vertical field of view: 56.2°, diagonal field of view: 131.3°,
[PTZ channel]
horizontal field of view: 57.6° to 3.3°, vertical field of view: 32.3° to 1.8°, diagonal field of view: 67.1° to 2.3°
- FocusAuto,semi-auto,manual,rapid focus
- Aperture[Panoramic channel] Max. F1.0, [PTZ channel] Max. F1.6
- Zoom SpeedApprox. 4.5 s
- Illuminator
- Supplement Light TypeIR
- Supplement Light Range300 m
- PTZ
- Movement Range (Pan) [PTZ channel] 0° to 360°,[Panoramic channel] 0° to 175°
- Movement Range (Tilt)[Panoramic channel] 9° to 65°, [PTZ channel] -20° to 90°
- Movement Range (Rotate)[Panoramic channel] -90° to 90°
- Pan Speed[PTZ channel] pan speed: configurable from 0.1° to 700°/s, preset speed: 700°/s
- Tilt Speed[PTZ channel] tilt speed: configurable from 0.1° to 500°/s, preset speed 500°/s
- Proportional Pan[Panoramic channel] No, [PTZ channel] Yes
- Presets300
- Preset FreezingYes
- Patrol Scan8 patrols, up to 32 presets for each patrol
- Pattern Scan4 pattern scans, record time over 10 minutes for each scan
- Park ActionPreset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan
- 3D PositioningYes
- PTZ Status DisplayYes
- Scheduled TaskPreset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output
- Power-off MemoryYes
- Video
- Main Stream
[PTZ channel] Channel 1:
50 Hz: 50 fps (2688 × 1520, 2560 × 1440), 100 fps (1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz: 60 fps (2688 × 1520, 2560 × 1440), 120 fps (1920 × 1080, 1280 × 960, 1280 × 720)
[Panoramic channel] Channel 2,3,4,5:
50 Hz: 50 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 960)
60 Hz: 60 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 960)
- Sub-Stream
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
- Third Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
- Video Compression
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 16 Mbps
- H.264 TypeBaseline profile,Main profile,High profile
- H.265 TypeMain profile
- Region of Interest (ROI)8 fixed regions for each stream
- Audio
- Audio CompressionG.711,G.722.1,G.726,MP2L2,PCM
- Audio Bit Rate32 to 192 Kbps (MP2L2)
- Audio Sampling RateMP2L2: 16 to 48 kHz,PCM: 8 to 48 kHz
- Environment Noise FilteringYes
- Network
- ProtocolsIPv4/IPv6,HTTP,HTTPS,802.1X,QoS,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP/IP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,FTP
- Simultaneous Live ViewUp to 20 channels
- API ONVIF (Profile S, Profile G, Profile T),ONVIF (Profile M),ISAPI,SDK,ISUP,EZVIZ
- User/HostUp to 32 users. 3 user levels: administrator, operator, and user
- SecurityPassword protection,complicated password,IP address filter,HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),host authentication (MAC address),watermark
- Network StorageNAS (NFS, SMB/CIFS),auto network replenishment (ANR)
- ClientiVMS-4200,HikCentral Pro,Hik-Connect
- Web BrowserIE 10+, Chrome 57+, Firefox 52+, Safari 12+
- Image
- Image Parameters SwitchYes
- Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
- Day/Night SwitchDay,night,auto,schedule
- Wide Dynamic Range (WDR)[Panoramic channel] 120 dB, [PTZ channel] 150 dB
- SNR≥ 52 dB
- DefogDigital defog
- Image StabilizationEIS (Built-in gyroscope to improve EIS performance)
- Image EnhancementHLC,3D DNR
- Privacy Maskmask color or mosaic configurable,24 programmable polygon privacy masks
- Regional FocusYes
- Regional ExposureYes
- Supplement Detection
- Satellite PositioningNo
- GyroscopeYes
- CompassNo
- Interface
- Ethernet Interface1 RJ45 10M/100M/1000MM self-adaptive Ethernet port
- Audio1 input (line in), two-core terminal, max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ,1 output (line out), two-core terminal, max. output amplitude: 3.3 vpp, output impedance: 4.7K Ω
- Alarm7 input(s), 2 output(s)
- RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
- ResetYes
- On-board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB .
- Built-in Microphone1 built-in microphone,picking upsounds in the radius up to 5 meters
- Built-in Speaker1 built-in speaker, with effective distance reaching max. 8 meters
- Fiber Optical1 FC interface, built-in fiber module, 1000M, TX1310/RX1550 nm wavelength, single module fiber, up to 20 km transmission distance
- Event
- Basic EventMotion detection,video tampering alarm,exception,alarm input and output
- LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture
- Smart TrackingManual tracking,auto-tracking,panorama tracking
- Smart Linkage3D positioning, manual tracking, auto tracking, linked tracking capture
- Deep Learning Function
- Multi-Target-Type Detection[PTZ channel] Supports simultaneous detection and capture of human body and face
- Perimeter ProtectionLine crossing detection;intrusion detection;region entrance detection;region exiting detection
- Linkage and Tracking
- Smart TrackingManual tracking, auto-tracking 3.0
- Smart LinkageManual tracking, auto tracking, tracking takeover, linked tracking capture
- Object TrackingSupport person arming. When the device detects the armed face or human body in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.Support vehicle arming. When the device detects the armed vehicles in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.
- General
- Power
36 VDC± 25%, max. 100 W (Max. 80 W, including max. 6.8 W for IR )
PoE 802.3bt, type4, class8, max. 90 W (Max. 75 W, including max. 6.8 W for IR)
- DimensionØ402.37 mm × 363.22 mm (Ø15.84″ × 14.3″)
- Weight Approx. 9.67 kg (21.32 lb.) With Package Weight Approx. 12.69 kg (27.98 lb.)
- MaterialADC12
- Operating Condition-40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (non-condensing),For speaker: -30 °C to 55°C (-22°F to 122°F)
- General Functionmirror,password protection
- WiperNo
- DemistYes
- Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- Approval
- EMCCE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014)
- SafetyCE-LVD (EN 62368-1: 2014/A11: 2017)
- EnvironmentCE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No 1907/2006)
- ProtectionIP67 (IEC 60529-2013),TVS 6000 V lightning protection, surge protection and voltage transient protection
- Anti-Corrosion ProtectionNEMA 4X (NEMA 250-2018)
