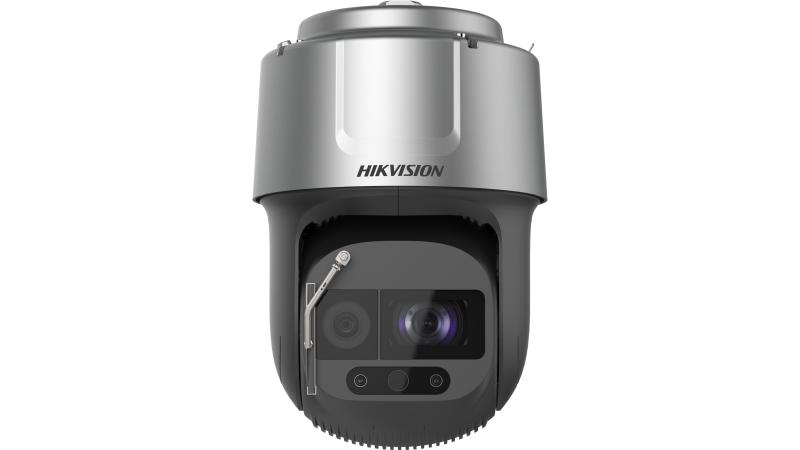

Hikvision DS-2DP8A440IXG-LEF/416(F0)(B)
16-мегапиксельная панорамная камера с углом обзора 180° и функцией PTZ.
16-мегапиксельная панорамная камера с углом обзора 180° и функцией PTZ.
По запросу
Запрос цены- Camera
- Image Sensor1/1.2″ progressive scan CMOS
- Max. Resolution2560×1440
- Min. IlluminationColor: 0.0005 Lux @ (F1.6, AGC ON),B/W: 0.0001 Lux @ (F1.6, AGC ON),0 Lux with light
- Shutter Speed1/1 to 1/30,000s
- Zoom53x optical, 16x digital
- Slow ShutterYes
- Lens
- Focal Length6.6 mm to 350 mm
- FOVHorizontal field of view: 61.0° to 1.8°(wide-tele)
Vertical field of view: 35.9° to 1.1°(wide-tele)
Diagonal field of view: 68.5° to 2.1° (wide-tele) - FocusAuto, semi-auto, manual, rapid focus
- ApertureMax. F1.6
- Zoom SpeedApprox. 8.7s
- Illuminator
- Supplement Light RangeLaser distance: up to 800 m
- Smart Supplement LightYes
- PTZ
- Movement Range (Pan)360°
- Movement Range (Tilt)-25° to 90° (auto flip)
- Pan SpeedPan speed: configurable from 0.1° to 210°/s; preset speed: 280°/s
- Tilt SpeedTilt speed: configurable from 0.1° to 150°/s, preset speed 250°/s
- Proportional PanYes
- Presets300
- Preset FreezingYes
- Patrol Scan8 patrols, up to 32 presets for each patrol
- Pattern Scan4 pattern scans, record time over 10 minutes for each scan
- Park ActionPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
- 3D PositioningYes
- PTZ Status DisplayYes
- Scheduled TaskPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
- Power-off MemoryYes
- Video
- Main Stream50Hz: 25fps (2560 × 1440，1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (2560 × 1440，1920 × 1080, 1280 × 960, 1280 × 720) - Sub-Stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288)
60Hz: 30fps (704 × 480, 640 × 480, 352 × 240) - Third Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) - Video CompressionMain stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264/MJPEG - Video Bit Rate32 Kbps to 16384 Kbps
- H.264 TypeBaseline profile, main profile, high profile
- H.265 TypeMain profile
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region of Interest (ROI)8 fixed regions for each stream
- Audio
- Audio CompressionG.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM
- Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 192 Kbps(MP2L2)
- Network
- ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
- Simultaneous Live ViewUp to 20 channels
- APIONVIF (Profile S, Profile G, Profile T), ISAPI, Hikvision SDK
- User/HostUp to 32 users, 3 user levels: administrator, operator, and user
- SecurityAuthenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter
- Web BrowserIE 8 to 11, Chrome 57+, Firefox 52+, Safari 12+
- Image
- Image Parameters SwitchYes
- Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
- Day/Night SwitchDay, night, auto, scheduled-switch
- Wide Dynamic Range (WDR)140 dB WDR
- SNR≥ 55 dB
- DefogOptical defog
- Image StabilizationOIS
- Image EnhancementBLC, HLC, 3D DNR
- Privacy MaskUp to 24 masks, polygon region, mosaic mask, mask color configurable
- Regional FocusYes
- Regional ExposureYes
- Interface
- Video Output1.0V[p-p]/75Ω, PAL, NTSC, BNC connector
- Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port
- On-board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC cards, up to 256 GB
- Audio1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%;
1 output (line out), line level, output impedance: 600 Ω - Alarm7 inputs, 2 output
- RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
- Event
- Basic EventMotion detection, video tampering alarm, alarm input and output, exception
- Smart EventObject removal detection, unattended baggage detection, intrusion detection, line crossing detection, region entrance detection, region exiting detection, audio exception detection
- LinkagePreset, patrol scan, pattern scan, memory card video recording, alarm output, send email, notify surveillance center, upload to FTP, smart tracking, NAS video recording
- Smart TrackingManual tracking, auto-tracking
- Deep Learning Function
- Face CaptureDetects up to 30 faces at the same time. Supports detecting, tracking, capturing, grading, selecting of face in motion, and outputs the best face picture
- Road TrafficSupports vehicle detection (license plate number,vehicle model, and vehicle color recognition)
- General
- Power36 VDC, max. 90 W, including max. 18 W for IR
- DimensionΦ 293 mm × 422 mm (Φ 11.5″ × 16.6″)
- Approx. 13 kg (28.7 lb)
- MaterialADC12
- Operating ConditionTemperature: -40°C to 70°C (-40°F to 158°F), Humidity: ≤ 95%
- General FunctionMirror, password protection, watermark, IP address filter
- Vandal-proof AlarmYes
- WiperYes. Rain-sensing auto control
- Language32 languages. English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
- Approval
- EMCLightning Protection, Surge Protection and Voltage Transient Protection, ±6kV Line to Gnd, ±3kV Line to Line, IEC61000-4-5
- ProtectionIP67
