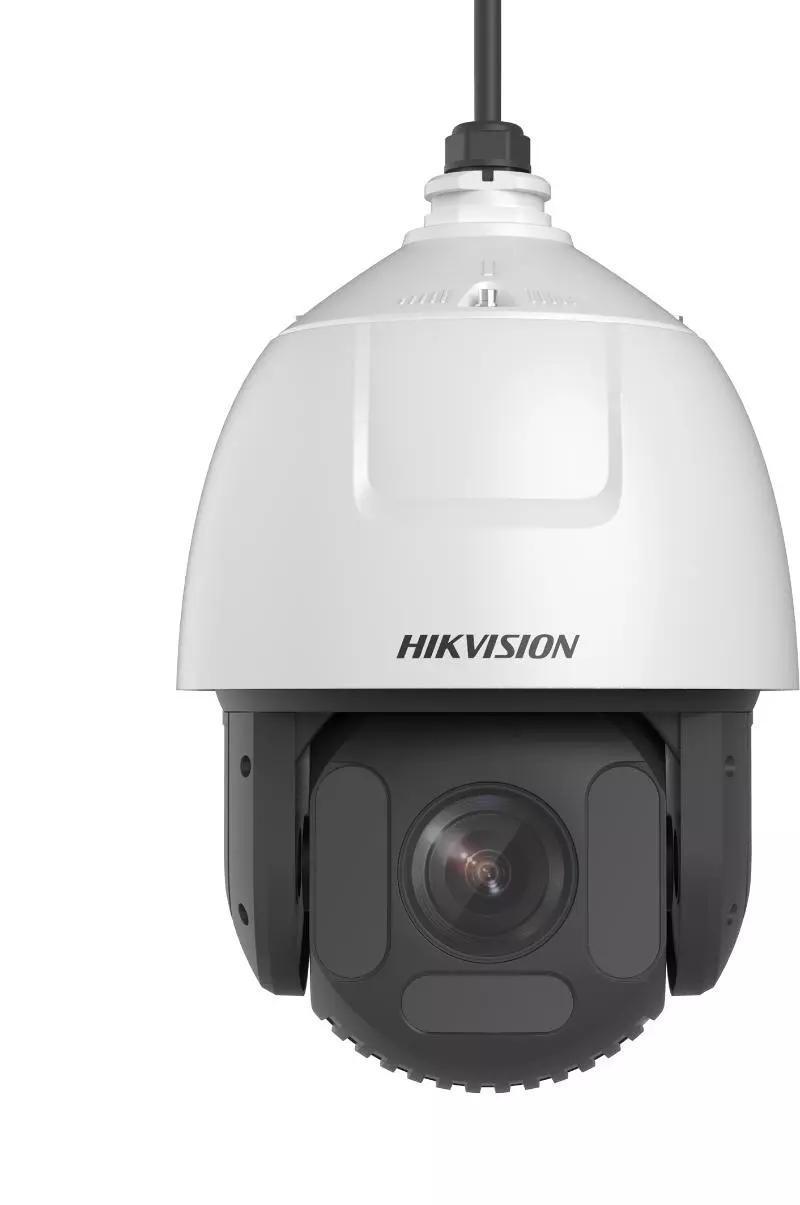

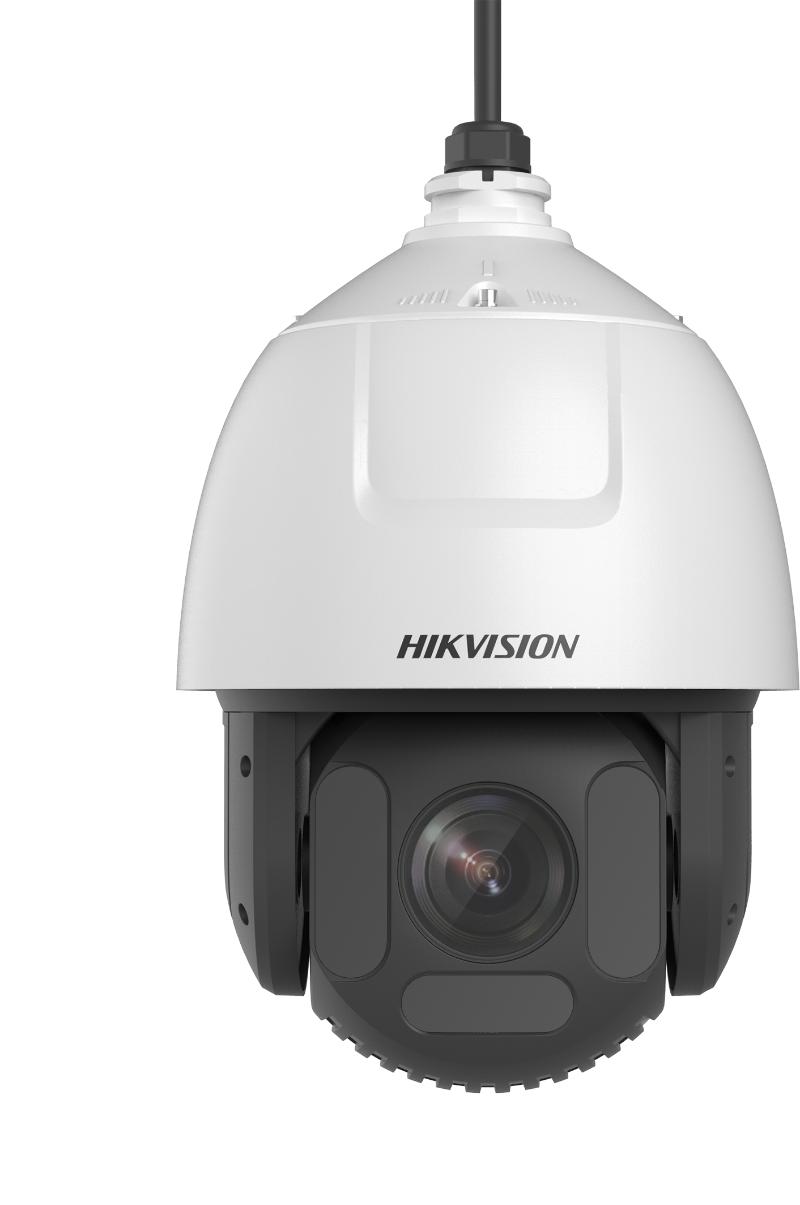

Hikvision DS-2DF7C445IXR-AEL(T5)

Image Sensor

1/1.8″ progressive scan CMOS

Max. Resolution

2560 × 1440

Min. Illumination

Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.0005 Lux @ (F1.5, AGC ON), 0 Lux with IR

Shutter Speed

1/1 s to 1/30,000 s

Day & Night

IR cut filter

Zoom

45 × optical, 16 × digital

Slow Shutter

Yes

Focal Length

5.9 to 265.5 mm

FOV

Horizontal field of view：60.2° to 1.7°;Vertical field of view：35.2° to 1°;Diagonal field of view：67.4° to 1.8 °

Focus

Auto, semi-auto, manual, rapid focus

Aperture

Max. F1.5

Zoom Speed

Approx. 8.5 s

Supplement Light Type

IR

Supplement Light Range

Up to 300 m

Movement Range (Pan)

360°

Movement Range (Tilt)

-15° to 90° (auto flip)

Pan Speed

Pan speed: configurable from 0.1° to 160°/s; preset speed: 240°/s

Tilt Speed

Tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s

Proportional Pan

Yes

Presets

300

Preset Freezing

Yes

Patrol Scan

8 patrols, up to 32 presets for each patrol

Pattern Scan

4 pattern scans, record time over 10 minutes for each scan

Park Action

Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan

3D Positioning

Yes

PTZ Status Display

Yes

Scheduled Task

Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output

Power-off Memory

Yes

Main Stream

50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720), ;60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288);;60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

Third Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288);;60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264;Sub-stream: H.265/H.264/MJPEG;Third stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 16384 Kbps

H.264 Type

Baseline profile, main profile, high profile

H.265 Type

Main profile

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Region of Interest (ROI)

8 fixed regions for each stream

Audio Compression

G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM

Audio Bit Rate

MP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps

Protocols

IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour

API

Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK

User/Host

Up to 32 users. 3 user levels: administrator, operator, and user

Security

Password protection, complicated password, HTTPS encryption, 802.1X authentication, watermark, IP address filter, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)

Network Storage

NAS (NFS, SMB/CIFS), ANR

Client

iVMS-4200, HikCentral, Hik-Connect

Web Browser

IE11, Chrome 57.0+, Firefox 52.0+, Safari 11+

Image Parameters Switch

Yes

Image Settings

Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser

Wide Dynamic Range (WDR)

120 dB

SNR

≥ 52 dB

Defog

Digital defog

Image Stabilization

EIS (Built-in gyroscope to improve EIS performance)

Image Enhancement

BLC, HLC, 3D DNR

Privacy Mask

24 programmable polygon privacy masks, mask color or mosaic configurable

Regional Focus

Yes

Regional Exposure

Yes

Ethernet Interface

1 RJ45 10M/100M self-adaptive Ethernet port

On-board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB

Audio

1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω

Alarm

7 inputs, 2 outputs

RS-485

1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

Basic Event

Motion detection, video tampering alarm, exception, alarm input and output

Smart Event

Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection

Linkage

Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)

Smart Tracking

Manual tracking, auto-tracking

Face Capture

Detects up to 15 faces simultaneously.;Supports detecting, capturing, grading, selecting of face in motion, and outputs the best face picture

Power

24 VAC, 3.0 A, 50/60 Hz & Hi-PoE, 42.5 to 57 VDC, 1.41 A;(Max. 40 W, includes max. 16 W for IR and max. 10 W for heater)

Dimension

Ø 226 mm × 354 mm (Ø 8.90″ × 13.94″)

Weight

Approx. 5.0 kg (11.02 lb.)

General Function

Mirror, password protection

Operating Condition

-40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (non-condensing)

EMC

FCC SDoC (47 CFR Part 15, Subpart B); ;CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); ;RCM (AS/NZS CISPR 32: 2015); ;IC VoC (ICES-003: Issue 6, 2019);;KC (KN 32: 2015, KN 35: 2015)

Safety

UL (UL 62368-1);CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); ;CE-LVD (EN 62368-1:2014+A11:2017), ;BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); ;LOA (SANS IEC60950-1)

Environment

CE-RoHS (2011/65/EU); WEEE (2012/19/EU); ;Reach (Regulation (EC) No 1907/2006)

Protection

IP66 (IEC 60529-2013), Lightning Protection, Surge Protection and Voltage Transient Protection, ±6kV Line to Gnd, ±3kV Line to Line, IEC61000-4-5
