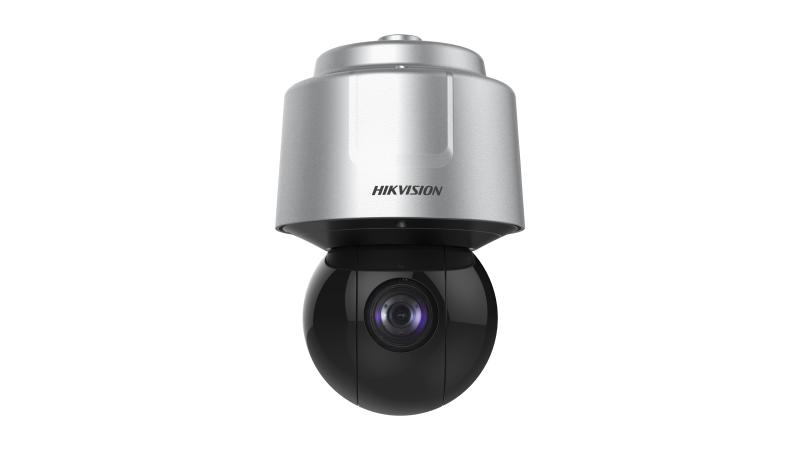

Hikvision DS-2DF6A836X-AEL(T5)

1/1.8＂ progressive scan CMOS

color: 0.005Lux @ (F1.2，AGC ON),B/W: 0.0005Lux @ (F1.2，AGC ON)

1/1 s to 1/30,000 s

yes

auto;semi-auto;manual

ICR

day, night, auto, scheduled-switch

yes

140 dB WDR

yes

yes

yes

Yes. Built-in gyroscope to improve EIS performance.

yes

yes

auto;ATW;sodium lamp;fluorescent lamp;indoor;outdoor;MWB;Locked WB

16x

36x

up to 24 masks;polygon region ;mosaic mask ;mask color configurable

Detect (25px/m): 4300 m
Observe (63px/m): 1706.3 m
Recognize (125px/m): 860 m
Identify (250px/m): 430 m

≥52dB

mirror, password protection, watermark, IP address filter

yes

6.0 mm to 216 mm, 36× Optical

approx. 4.5 s

Horizontal field of view: 56.6° to 1.7° (wide-tele),
Vertical field of view: 33.7° to 0.9° (wide-tele),
Diagonal field of view: 63.4° to 1.9° (wide-tele)

F1.2

360°

-20° to 90° (auto flip)

pan speed: configurable from 0.1° to 300°/s; preset speed: 540°/s

tilt speed: configurable from 0.1° to 240°/s, preset speed 400°/s

yes

300

8 patrols, up to 32 presets for each patrol

4 pattern scans, record time over 10 minutes for each scan

yes

preset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan

yes

yes

yes

preset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux output

3840 × 2160

50 Hz: 25 fps (3840 × 2160, 2560×1440, 1920×1080, 1280×960, 1280×720)
60 Hz: 24 fps (3840 × 2160, 2560×1440, 1920×1080, 1280×960, 1280×720)

50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 24 fps (704 × 480, 640 × 480, 352 × 240)

50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 24 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

H.265;H.264;MJPEG

32 Kbps to 16384 Kbps

baseline profile;main profile;high profile

main profile

yes

yes

yes

fixed region

G.722.1;G.711alaw;G.711ulaw;MP2L2;G.726;PCM

64 Kbps(G.711)/16 Kbps(G.722.1)/16 Kbps(G.726)/32~192 Kbps(MP2L2)

NAS (NFS, SMB/ CIFS);ANR

IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour

ISAPI;Hikvision SDK;ONVIF (Profile S, Profile G, Profile T);Open-ended API;Third-party management platform;ISUP;Ehome

Up to 20 channels

Up to 32 users. 3 levels: Administrator, Operator and User

yes

User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering

Hikcentral;iVMS-4200;Hik-Connect

IE11, Chrome 57.0+, Firefox 52.0+, Safari 11+

RJ45, self-adaptive 10M/100M Ethernet port

Built-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR

7 alarm inputs

2 alarm outputs

1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%

1 audio output, line level, impedance: 600 Ω

NTSC;PAL;1.0V[p-p]/75Ω;BNC connector

HIKVISION, Pelco-P, Pelco-D, self-adaptive

24 VAC±25% (Max. 45 W, including max. 6 W for heater), Hi-PoE (Max. 50 W, including max. 6 W for heater)

Temperature: -40°C to 70°C (-40°F to 158°F)，Humidity: ≤ 95%

⌀ 231.1 mm × 355.6 mm (⌀ 9.10″ × 14″)

Approx. 6 kg (13.23 lb.)

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

FCC SDoC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC VoC (ICES-003: Issue 6, 2019);
KC (KN 32: 2015, KN 35: 2015)

UL (UL 62368-1)
CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
CE-LVD (EN 62368-1:2014+A11:2017),
BIS (IS 13252(Part 1):2010+A1:2013+A2:2015);
LOA (SANS IEC60950-1)

CE-RoHS (2011/65/EU); WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)

IP67 Standard;IK10;Lightning Protection, Surge Protection and Voltage Transient Protection,±6kV Line to Gnd, ±3kV Line to Line,IEC61000-4-5

Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)

Support detecting up to 30 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face.

Support vehicle detection (license plate number,vehicle model, and vehicle color recognition)

alarm input and output;motion detection;video tampering alarm;exception

object removal detection;unattended baggage detection;vandal-proof alarm;parking detection;region entrance detection;region exiting detection;line crossing detection;intrusion detection;audio exception detection

manual tracking;auto-tracking;event tracking

ANR;Dual-VCA

Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.
