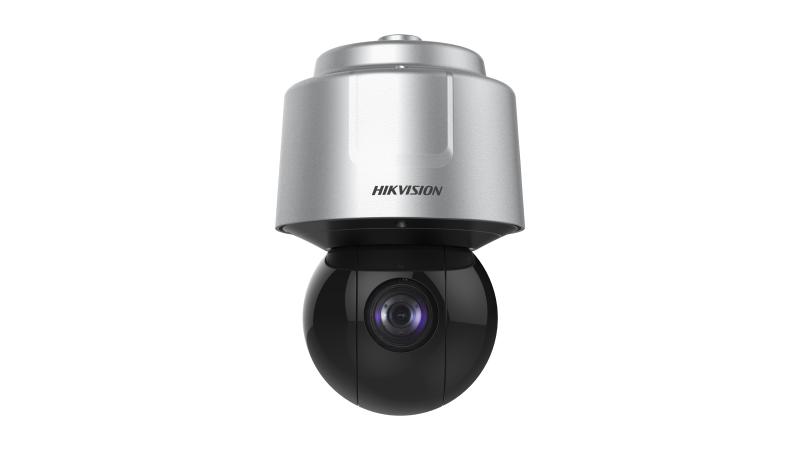

Hikvision DS-2DP8A440IXG-LEF/416(F0)(B)
16-мегапиксельная панорамная камера с углом обзора 180° и функцией PTZ.
16-мегапиксельная панорамная камера с углом обзора 180° и функцией PTZ.
По запросу
Запрос цены- Camera
- Image Sensor
1/1.8″ progressive scan CMOS
- Max. Resolution
1920 × 1080
- Min. Illumination
Color: 0.002 Lux @ (F1.5, AGC ON), B/W: 0.0002 Lux @ (F1.5, AGC ON)
- Shutter Speed
1/1 s to 1/30,000 s
- Day & Night
IR cut filter
- Zoom
25x optical, 16x digital
- Slow Shutter
Yes
- DORI
Detect (25px/m): 2034.5 m
Observe (63px/m): 807.3 m
Recognize (125px/m): 406.9 m
Identify (250px/m): 203.4 m
- Lens
- Focal Length
5.9 mm to 147.5 mm
- FOV
Horizontal field of view: 59.8° to 3.3° (wide-tele),
Vertical field of view: 33.7° to 1.9° (wide-tele),
Diagonal field of view: 65° to 3.8° (wide-tele) - Focus
Semi-auto, manual, auto, rapid focus
- Aperture
Max. F1.5
- Zoom Speed
Approx. 4.8 s
- PTZ
- Movement Range (Pan)
360°
- Movement Range (Tilt)
-20° to 90° (auto flip)
- Pan Speed
Pan speed: configurable from 0.1° to 300°/s; preset speed: 540°/s
- Tilt Speed
Tilt speed: configurable from 0.1° to 240°/s, preset speed 400°/s
- Proportional Pan
Yes
- Presets
300
- Preset Freezing
Yes
- Patrol Scan
8 patrols, up to 32 presets for each patrol
- Pattern Scan
4 pattern scans, record time over 10 minutes for each scan
- Park Action
Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
- 3D Positioning
Yes
- PTZ Status Display
Yes
- Scheduled Task
Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
- Power-off Memory
Yes
- Video
- Main Stream
50 Hz: 25 fps (1920×1080, 1280×960, 1280×720)
60 Hz: 24 fps (1920×1080, 1280×960, 1280×720) - Sub-Stream
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 24 fps (704 × 480, 640 × 480, 352 × 240) - Third Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 24 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) - Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264/MJPEG - Video Bit Rate
32 Kbps to 16384 Kbps
- H.264 Type
Baseline profile, main profile, high profile
- H.265 Type
Main profile
- Scalable Video Coding (SVC)
H.264 and H.265 encoding
- Region of Interest (ROI)
8 fixed regions for each stream
- Audio
- Audio Compression
G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM
- Audio Bit Rate
64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)
- Network
- Protocols
IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour
- Simultaneous Live View
Up to 20 channels
- API
Open-ended API, ISAPI, Hikvision SDK, Third-party management platform, ISUP, Open Network Video Interface (Profile S, Profile G, Profile T)
- Smooth Streaming
Yes
- User/Host
Up to 32 users. 3 levels: Administrator, Operator and User
- Security
User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
- Network Storage
NAS (NFS, SMB/ CIFS), ANR
- Client
iVMS-4200, Hik-Connect, HikCentral
- Web Browser
IE11, Chrome 57.0+, Firefox 52.0+, Safari 11+
- Image
- Day/Night Switch
Day, night, auto, scheduled-switch
- Wide Dynamic Range (WDR)
140 dB WDR
- SNR
≥ 52 dB
- Defog
Optical defog
- Image Stabilization
EIS (Built-in gyroscope to improve EIS performance)
- Image Enhancement
BLC, HLC, 3D DNR
- Privacy Mask
24 programmable polygon privacy masks, mask color or mosaic configurable
- Regional Focus
Yes
- Regional Exposure
Yes
- Interface
- Video Output
1.0V[p-p]/75Ω, PAL, NTSC, BNC connector
- Ethernet Interface
1 RJ45 10M/100M self-adaptive Ethernet port
- On-board Storage
Built-in memory card slot, support MicroSD/MicroSDHC/MicroSDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR
- Audio
1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
- Alarm
7 alarm inputs, 2 alarm outputs
- RS-485
HIKVISION, Pelco-P, Pelco-D, self-adaptive
- Event
- Basic Event
Motion detection, video tampering alarm, alarm input and output, exception
- Smart Event
Intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, vandal-proof alarm, audio exception detection
- Linkage
Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.
- Smart Tracking
Manual tracking, auto-tracking
- Deep Learning Function
- Face Capture
Support detecting up to 30 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture
- Perimeter Protection
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle) - Road Traffic
Support vehicle detection (license plate number,vehicle model, and vehicle color recognition)
- General
- Power
24 VAC±25% (Max. 45 W, including max. 6 W for heater), Hi-PoE (Max. 50 W, including max. 6 W for heater)
- Dimension
⌀ 231.1 mm × 355.6 mm (⌀ 9.10″ × 14″)
-
Approx. 6 kg (13.23 lb.)
- Operating Condition
Temperature: -40°C to 70°C (-40°F to 158°F), Humidity: ≤ 95%
- General Function
Mirror, password protection, watermark, IP address filter
- Language
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- Approval
- EMC
FCC SDoC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC VoC (ICES-003: Issue 7);
KC (KN 32: 2015, KN 35: 2015) - Safety
UL (UL 62368-1)
CB (IEC 62368-1:2014+A11);
CE-LVD (EN 62368-1:2014+A11:2017),
BIS (IS 13252(Part 1):2010/ IEC 60950-1: 2005);
LOA (IEC/EN 60950-1) - Environment
CE-RoHS (2011/65/EU); WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006) - Protection
Lightning Protection, Surge Protection and Voltage Transient Protection, ±6 kV Line to Gnd, ±3kV Line to Line, IK10 (IEC 62262:2002), IP67 (IEC 60529-2013)
