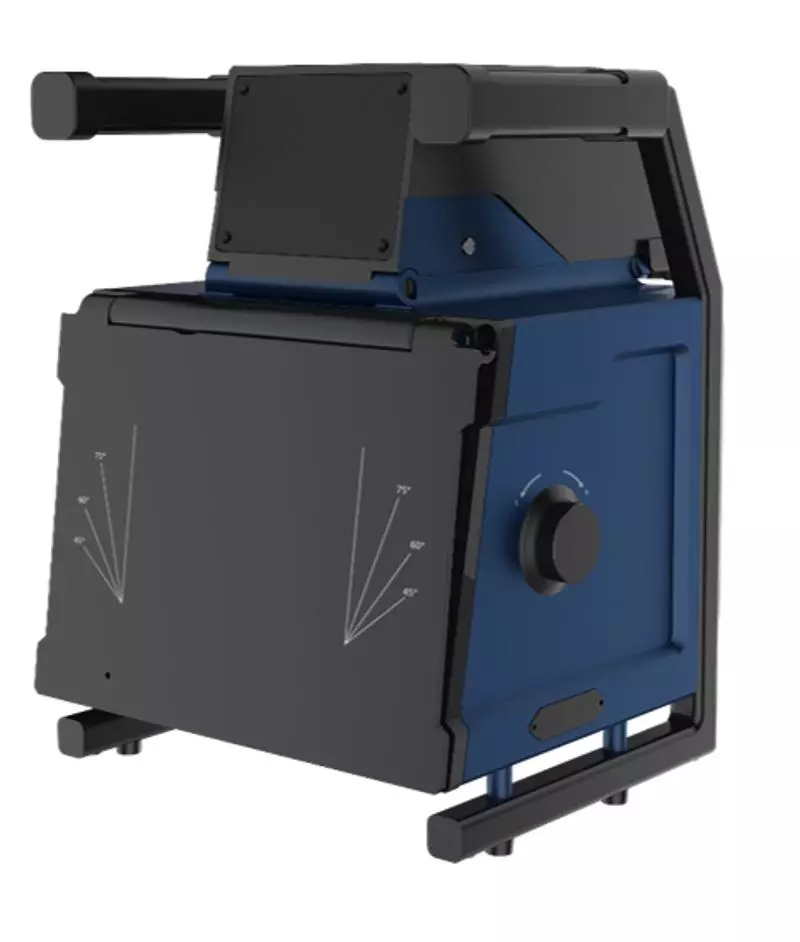

Hikvision iDS-TDI900-A(C)/M

Image Sensor

1″ Progressive Scan GMOS

Max. Resolution

4096 × 2160

Min. Illumination

0.1 Lux @ (F1.2, AGC ON)

Shutter Time

1/25 s to 1/100,000 s

Lens Type

DC drive

Iris Type

C/CS Interface

Flashlight Control

Supports light control/time control

Working Frequency

24.15 GHz ± 45 MHz

Speed Range

10 to 320 km/h

Speed Measurement Accuracy

-2 to 2 km/h

Trigger Mode

Trigger vehicle head, trigger vehicle tail, and trigger vehicle head and tail

Antenna Beam Width

4.9 × 17.3°

Main Stream

50Hz: 25 fps (4096 × 2160, 3392 × 2008, 2944 × 1656, 1920 × 1080, 1280 × 720, 704 × 576)↵ 60 Hz: 30 fps (4096 × 2160, 3392 × 2008, 2944 × 1656, 1920 × 1080, 1280 × 720, 704 × 576)

Sub-Stream

;50 Hz: 25 fps (3392 × 2008, 2944 × 1656, 1920 × 1080, 1280 × 720, 704 × 576);60 Hz: 30 fps (3392 × 2008, 2944 × 1656, 1920 × 1080, 1280 × 720, 704 × 576)

Third Stream

50 Hz: 30 fps (1280 × 720);60 Hz: 30 fps (1280 × 720)

Video Compression

H.265/H.264/MJPEG;JPEG encoding

Video Bit Rate

32 Kbps to 16 Mbps

Protocols

TCP/IP, HTTP, DHCP, DNS, RTP, RTSP, NTP, FTP

Simultaneous Live View

Up to 6 channels

API

ONVIF (PROFILE T, PROFILE S, PROFILE G), ISAPI, SDK

User/Host

Up to 16 users;3 user levels: administrator, operator and user

Security

Password protection, HTTPS encryption, digest authentication for HTTP/HTTPS, digest;authentication for ONVIF (Version 2.1)

Network Storage

Built-in solid state disk (500 GB)

Client

iVMS-4200 (Only for video live view and LPR information search)

Web Browser

IE8-IE11, plug-in free live view supported

Image Settings

Saturation, brightness, contrast, white balance, gain and 3D DNR are adjustable via client;software.

Day/Night Switch

Auto/Scheduled/Triggered by alarm in

Image Enhancement

BLC, HLC, 3D DNR

Picture Overlay

LOGO picture can be overlaid on video with 128 × 128 24-bit bmp format.

Satellite Positioning

GPS

Video Output

3 outputs for flashlight control

Ethernet Interface

1 RJ45 10M/100M/1000M Ethernet interface

USB

1 USB 3.0

Basic Event

HDD Error, network disconnected, IP address conflicted, vehicle detector exception, traffic light;detector exception

Coverage

Up to 3 lanes

Smart Function

License Plate Recognition

LPR Countries/Regions

Middle East:;The United Arab Emirates (Abu Dhabi, Ajman, Dubai, Fujairah, Ras Al Khaimah, Sharjah and Umm Al Quwain), Qatar, Iraq, Egypt, Jordan, Kuwait, Saudi Arabia, Pakistan, Oman, Lebanon, Bahrain;Africa:;Nigeria, Kenya, Ivory Coast , South Africa, Tanzania, Mauritius, Morocco, Tunisia, Sierra Leone, Zambia, Ghana, Zimbabwe, Uganda, Angola, Ethiopia, Senegal, Algeria;Asia-Pacific:;Australia, New Zealand, Indonesia, Malaysia, Singapore, South Korea, Thailand, Vietnam, the Philippines, Hong Kong, Macao, Taiwan, Myanmar, India, Mongolia, Cambodia, Laos, Bangladesh, Nepal, Sri Lanka;America:;Canada, Argentina, Chile, Paraguay, Uruguay, El Salvador, Bolivia, Colombia, Brazil, Ecuador, Peru, Mexico, Panama, Costa Rica, Trinidad and Tobago, the Dominican Republic, Guatemala;Europe:;Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, the Republic of North Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, the UK, Ireland, Germany, Italy, Austria, Israel, Palestinian, Belgium, Luxembourg, Albania, Kosovo, Serbia, Romania, Montenegro, Denmark, Finland, Sweden, Slovenia, Portugal, Malta, Cyprus, Iceland, Liechtenstein, Bosnia and Herzegovina;Russian-Speaking Regions:;Azerbaijan, Belarus, Kazakhstan, Lithuania, Georgia, Estonia, Latvia, Russia, Ukraine, Moldova, Uzbekistan, Kyrgyzstan, Armenia, Turkmenistan, Tajikistan

Accuracy (Under recommended installation and lighting conditions)

Capture rate > 90%;LPR accuracy > 95%;Mistaken capture rate < 3%

No License Plate Detection

Supported

Operating System

Linux

Power

19 VDC, Max.25 W, and embedded 10.8V lithium battery

Weight

Approx. 9 kg (19.84 lb)

Operating Condition

Temperature: -30 °C to +70 °C (-22 °F to +158 °F);Humidity: 90% or less (non-condensing);Temperature: -20 °C to +60 °C (-4 °F to +140 °F);Humidity: 90% or less (non-condensing)

General Function

One-key reset, three streams, heartbeat, password protection, watermark and NTP time sync.

Protection

IP54
