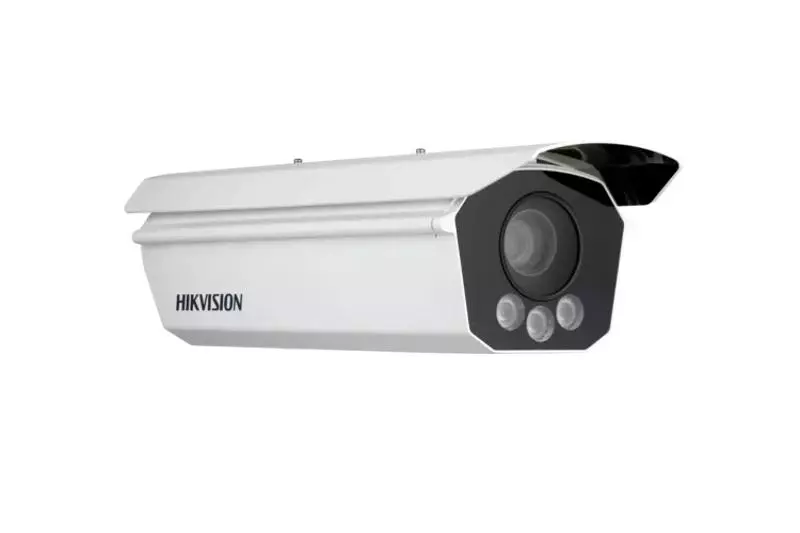

5 MP IR ANPR Yoxlama Nöqtəsi Tutma Qurğusu
5 MP IR ANPR Yoxlama Nöqtəsi Tutma Qurğusu
Sorğu əsasında
Qiymət sorğusuImage Sensor | ;9 MP (1” GMOS ) |
Max. Resolution | 4096 × 2160 |
Min. Illumination | Color: 0.001 Lux @ (F1.4, AGC ON),;B/W: 0.0005 Lux @ (F1.4, AGC ON),;0 Lux with IR |
Shutter Time | ;50 us to 20000 us |
Day & Night | IR cut filter |
Lens Type | Fixed focal lens, 25 mm,;Varifocal lens, manual adjustment, 11 to 40 mm,;(AF)Model: Varifocal lens, motorized lens, 11 to 40 mm |
Focal Length & FOV | ;25 mm, horizontal FOV 31.6°, vertical FOV 16.9°, diagonal FOV 35.4°,11 to 40 mm, horizontal FOV 62° to 23.6°, vertical FOV 32.2° to 12.2°, diagonal FOV 70° to 26.8° |
Focus | Manual,(AF) Model: Auto |
Aperture | F1.6-C/F1.6-25/F1.6 |
Built-in Supplement Light Type | IR light |
Light Bead | 3 |
Built-in Supplement Light Range | Up to 30 m |
IR Wavelength | 850 nm |
External Supplement Light | Strobe and flash light |
Main Stream | ;50 Hz: 50 fps (4096 × 2160, 3840 × 2160, 3392 × 2008, 3072 × 1728, 2688 × 1520, 1920 × 1200, 1920 × 1080, 1280 × 720);60 Hz: 30 fps (4096 × 2160, 3840 × 2160, 3392 × 2008, 3072 × 1728, 2688 × 1520, 1920 × 1200, 1920 × 1080, 1280 × 720) |
Sub-Stream | ;50 Hz: 50 fps (3392 × 2008, 2688 × 1520, 1920 × 1080, 1280 × 720, 704 × 576);60 Hz: 30 fps (3392 × 2008, 2688 × 1520, 1920 × 1080, 1280 × 720, 704 × 576) |
Third Stream | ;50 Hz: 50 fps (1920 × 1080, 1280 × 720, 704 × 576);60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 576) |
Video Compression | Main stream: H.265/H.264/MJPEG,;Sub-stream: H.265/H.264/MJPEG,;Third stream: H.265/H.264/MJPEG |
Video Bit Rate | 32 Kbps to 16 Mbps |
H.264 Type | Baseline profile/Main profile/High profile |
H.265 Type | Main Profile |
Protocols | TCP/IP,ICMP,HTTP,HTTPS,FTP,DNS,RTP,RTSP,RTCP,NTP,SNMP,802.1X,IPv4/IPv6,UDP,ISUP,ARP,IGMP |
Simultaneous Live View | Up to 6 channels |
API | ISAPI,SDK,ISUP,ONVIF (PROFILE S, PROFILE G, PROFILE T, PROFILE M) |
User/Host | Up to 32 users;3 user levels: administrator, operator and user |
Security | Password protection,Complicated password,HTTPS encryption,Control timeout settings,802.1X authentication (EAP-PEAP, EAP-LEAP, EAP-MD5),Basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for Open Network Video Interface |
Network Storage | Micro SD/TF card (512 GB),Local storage,CVR,NVR,ANR |
Client | Hik-Central Master,Hik-Central Pro,HikCentral Master Lite |
Web Browser | Chrome V61+, IE9 to IE11, Firefox V41+, Edge |
Image Settings | Saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser. |
Day/Night Switch | Auto,Schedule,Manual |
SNR | 60 dB |
Image Enhancement | BLC, HLC, 3D DNR |
Ethernet Interface | 2 RJ45 10 M/100 M/1000M self-adaptive Ethernet port(s) |
On-Board Storage | Built-in memory card slot, supporting microSD/SDHC/SDXC card card, up to 512 GB |
Alarm | 2 input interfaces (T1, SYNC), 7 output interfaces |
RS-485 | 3 RS-485 interfaces (half duplex, HIKVISION) |
RS-232 | 1 RS-232 interface |
USB | 1 USB 2.0 interface |
Basic Event | HDD Error, network disconnected, IP address conflicted, vehicle detector exception, traffic light detector exception |
Coverage | Up to 3 lane(s) |
Trigger Mode | External I/O trigger/Radar trigger/Video trigger |
Smart Function | License plate recognition,Vehicle type classification,Vehicle color recognition,No-plate vehicle capture,Moving direction detection |
LPR Countries/Regions | Middle East: The United Arab Emirates (Abu Dhabi, Ajman, Dubai, Fujairah, Ras Al Khaimah, Sharjah and Umm Al Quwain), Qatar, Iraq, Egypt, Jordan, Kuwait, Saudi Arabia, Pakistan, Oman, Lebanon, Bahrain,;Africa: Nigeria, Kenya, Ivory Coast , South Africa, Tanzania, Mauritius, Morocco, Tunisia, Sierra Leone, Zambia, Ghana, Zimbabwe, Uganda, Angola, Ethiopia, Senegal, Algeria,;Asia-Pacific: Australia, New Zealand, Indonesia, Malaysia, Singapore, South Korea, Thailand, Vietnam, the Philippines, Hong Kong, Macao, Taiwan, Myanmar, India, Mongolia, Cambodia, Laos, Bangladesh, Nepal, Sri Lanka,;America: Canada, Argentina, Chile, Paraguay, Uruguay, El Salvador, Bolivia, Colombia, Brazil, Ecuador, Peru, Mexico, Panama, Costa Rica, Trinidad and Tobago, the Dominican Republic, Guatemala,;Europe: Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, the Republic of North Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, the UK, Ireland, Germany, Italy, Austria, Israel, Palestinian, Belgium, Luxembourg, Albania, Kosovo, Serbia, Romania, Montenegro, Denmark, Finland, Sweden, Slovenia, Portugal, Malta, Cyprus, Iceland, Liechtenstein, Bosnia and Herzegovina,;Russian-Speaking Regions: Azerbaijan, Belarus, Kazakhstan, Lithuania, Georgia, Estonia, Latvia, Russia, Ukraine, Moldova, Uzbekistan, Kyrgyzstan, Armenia, Turkmenistan, Tajikistan |
Accuracy (Under recommended installation and lighting conditions) | Capture rate > 99%,;Vehicle moving direction recognition accuracy > 98.5%,;LPR accuracy > 98%,;Mistaken capture rate < 2% |
No License Plate Detection | Supported |
Motorcycle LPR | Supported |
Vehicle Type | Car,Van,Bus,Truck,Light Truck,SUV(MPV),Pickup,Motorcycle,Tricycle |
Vehicle Color | Red, yellow, green, blue, pink, purple, cyan, brown, white, grey, black;Recognizable at daytime only. |
Vehicle Manufacturer | 84 manufacturers: Hyundai, Toyota, KIA, Honda, Volkswagen, Benz, Nissan, Ford, Isuzu, BMW, Chevrolet, Mitsubishi, Renault, Opel, Suzuki, Skoda, Daewoo, Audi, Mazda, GAC HINO, Peugeot, SsangYong, Citroen, Fiat, Scania, MAN, Volvo, Lexus, Seat, Land Rover, Daihatsu,;Dongwo, Subaru, Iveco, MINI, JEEP, Porsche, Chery, Dodge, Chrysler, Acura, Alfa Romeo, Great Wall, Infiniti, Smart, Saic Maxus, JAC, Jaguar, GMC, Lincoln, JMC, SAAB, FAW, Yutong, Guangzhou Yunbao, Joylong, Geely, Cadillac, JBC, An‘kai, Haima, Foton, King Long, Dongfeng, Geely-Emgrand, Perodua, UD, BYD, Renault Samsung, Proton, HICOM, Malaysia_Unknown 1, Hyundai-Rohens, SsangYong-Old Version, Equus-Old Version, CNHTC, Rolls-Royce, Beiben Truck, Haval, Hino, Kia-Borrego, Chang‘an, Alfa, FORO |
License Plate Color Recognition | Customized |
Driving on Lane Line Detection | Supported (only strobe light mode) |
Lane Change Detection | Supported (only strobe light mode) |
Wrong-Way Driving Detection | Supported |
Emergency Lane Occupation | Supported (truck forbidden lane, emergency lane, urban bus lane) |
Seatbelt Detection | Supported (with flash supplement light) |
Phone Call Detection | Supported (with flash supplement light) |
Capture Speed Range | 10 to 320 km/h |
Operating System | Linux |
Power | AC 100 V to 240 V, 2.9 A, max. 35 W, 3-core terminal block ,DC 24 model:DC 24 V, 2 A, max. 50 W |
Material | Aluminum alloy |
Dimension | 501.0 mm × 175.6 mm × 144.6 mm (19.72″ × 6.92″ × 5.69″) (L × W × H) |
Package Dimension | 667 mm × 357 mm × 224 mm (26.26″ × 14.06″ × 8.82″) (L × W × H) |
Weight | Approx. 5.13 kg (11.31 lb.) |
With Package Weight | Approx. 7.40 kg (16.31 lb.) |
Operating Condition | -30 °C to 70 °C (-22 °F to 158°F). Humidity: 5% to 95% (non-condensing) |
Storage Condition | -30 °C to +60 °C (-22 °F to +140 °F). Humidity 95% or less (Non-condensing) |
General Function | Password protection,Three streams,Heartbeat,One-key reset,Pixel counter |
Heater | Supported |
Language | 8 languages: English, Thai, Croatian, Korean, Russian, Traditional Chinese, Ukrainian, Spanish |
EMC | CE-EMC: EN 55032: 2015/A11:2020+A1:2020, EN IEC61000-3-2: 2019/A1:2021, EN 61000-3-3: 2013+A1:2019/A2:2021, EN 50130-4: 2011 +A1: 2014 |
Safety | CB: IEC 62368-1: 2014,CE-LVD: EN 62368-1: 2014+A11: 2017,CB: IEC 62368-1: 2018 |
Environment | CE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006 |
Protection | IK10: IEC 62262:2002,IP67: IEC 60529-2013 |
