Hikvision iDS-TCVK00-FE

Artikul: HC-iDS-TCVK00-FE

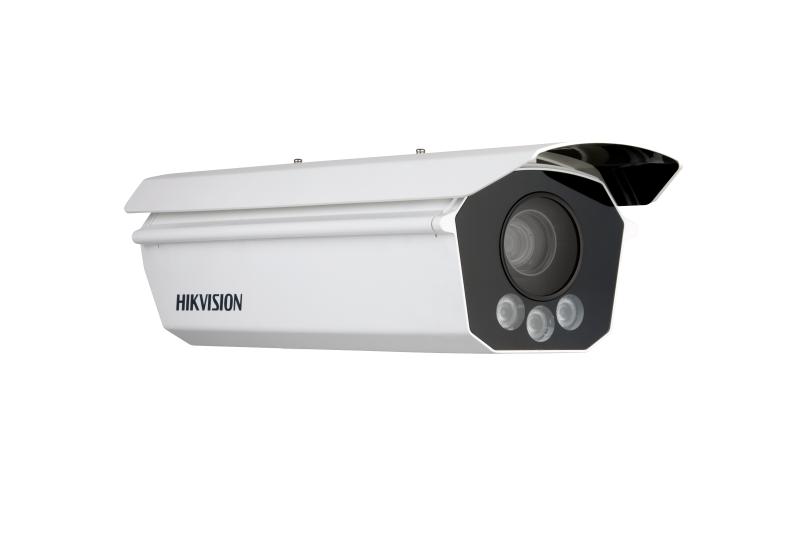

Hikvision iDS-TCVK00-FE — 20 MP ANPR Checkpoint Capture Unit

Image Sensor: 20 MP (1.1” GMOS)
Max. Resolution: 5328 × 4000
Min. Illumination: Color: 0.001 Lux @ (F1.4, AGC ON)
Shutter Time: 50 us-20000 us
Day & Night: 24/7 color imaging
Focal Length & FOV: 11 to 40 mm, horizontal FOV 55.9° to 21.2°, vertical FOV 43.6° to 16.5°, diagonal FOV 71.2° to 27.2°,25 mm, horizontal FOV 28.7°, vertical FOV 22.6°, diagonal FOV 36.0°
Focus: Manual
Aperture: F1.6-25

Sürətli çatdırılma

Mövcudluq təsdiqləndikdən sonra
Azərbaycan daxilində 1-2 gün

Rəsmi zəmanət

36 aya qədər
istehsalçıdan

100% orijinal

Hikvision-un rəsmi distribyutoru

Texniki dəstək

Avadanlıqların seçilməsi və qurulmasında köməklik

Mövcudluğu dəqiqləşdirin

Sorğu əsasında

Hissə-hissə alın

Partnyorlar üçün qiymət

Endirim tələb edin

Mütəxəssis köməyi

Müqayisə et

Avadanlıq seçməkdə çətinlik çəkirsiniz?

Camera
Image Sensor20 MP (1.1” GMOS)
Max. Resolution5328 × 4000
Min. IlluminationColor: 0.001 Lux @ (F1.4, AGC ON)
Shutter Time50 us-20000 us
Day & Night24/7 color imaging

Lens
Focal Length & FOV11 to 40 mm, horizontal FOV 55.9° to 21.2°, vertical FOV 43.6° to 16.5°, diagonal FOV 71.2° to 27.2°,25 mm, horizontal FOV 28.7°, vertical FOV 22.6°, diagonal FOV 36.0°
Focus Manual
ApertureF1.6-25

Illuminator
Built-in Supplement Light TypeWhite light
Light Bead3
Built-in Supplement Light RangeUp to 30 m
External Supplement LightStrobe and flash light

Video
Main Stream50Hz:25fps(5328 × 4000, 4096 × 2160,3296 × 2472,3392 × 2008, 2560 × 1920, 2048 × 1536, 1920 × 1080, 1280 × 720) 60Hz:24fps(5328 × 4000, 4096 × 2160,3296 × 2472,3392 × 2008, 2560 × 1920, 2048 × 1536, 1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 50 fps (3392 × 2008, 2688 × 1520, 1920 × 1080, 1280 × 720, 704 × 576)
60 Hz: 30 fps (3392 × 2008, 2688 × 1520, 1920 × 1080, 1280 × 720, 704 × 576)
Third Stream
50 Hz: 50 fps (1920 × 1080, 1280 × 720, 704 × 576)
60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 576)
Video Compression Main stream: H.265/H.264/MJPEG,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseline profile/Main profile/High profile
H.265 TypeMain Profile

Network
ProtocolsTCP/IP,ICMP,HTTP,HTTPS,FTP,DNS,RTP,RTSP,RTCP,NTP,SNMP,802.1X,IPv4/IPv6,UDP,ISUP,ARP,IGMP
Simultaneous Live ViewUp to 6 channels
APIONVIF (PROFILE S, PROFILE G, PROFILE T),ISAPI,SDK,ISUP
User/HostUp to 32 users,3 user levels: administrator, operator, and user
SecurityPassword protection,Complicated password,HTTPS encryption,Control timeout settings,802.1X authentication (EAP-PEAP, EAP-LEAP, EAP-MD5),Basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for Open Network Video Interface
Network StorageMicro SD/TF card (512 GB),Local storage,CVR,NVR,ANR
ClientiVMS-4200 (Only for live view and LPR information search),Hik-Central Master,Hik-Central Pro,HikCentral Master Lite
Web BrowserChrome V61+, IE9 to IE11, Firefox V41+, Edge

Image SettingsSaturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser.
Day/Night SwitchAuto,Schedule,Manual
SNR60 dB
Image EnhancementBLC, HLC, 3D DNR

Interface
Ethernet Interface2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet interfaces
On-Board StorageBuilt-in memory card slot, supporting SD/SDHC/SDXC card, up to 512 GB
Alarm 2 input interfaces (T1, SYNC), 7 output interfaces
RS-4853 RS-485 interfaces (half duplex, HIKVISION)
RS-2321 RS-232 interface
USB1 USB 2.0 interface
Reset KeyYes

Event
Basic EventHDD Error, network disconnected, IP address conflicted, vehicle detector exception, traffic light detector exception

Road Traffic and Vehicle Detection
CoverageUp to 4 lane(s).
Note: 4 lane(s) recommended. The license plate pixels cannot be less than 20. The recognizable number of lanes depends on the actual size of the local license plate.
Trigger ModeExternal I/O trigger/Radar trigger/Video trigger
Smart FunctionLicense plate recognition,Vehicle type classification,Vehicle color recognition,No-plate vehicle capture,Moving direction detection
LPR Countries/RegionsMiddle East: The United Arab Emirates (Abu Dhabi, Ajman, Dubai, Fujairah, Ras Al Khaimah, Sharjah and Umm Al Quwain), Qatar, Iraq, Egypt, Jordan, Kuwait, Saudi Arabia, Pakistan, Oman, Lebanon, Bahrain,
Africa: Nigeria, Kenya, Ivory Coast , South Africa, Tanzania, Mauritius, Morocco, Tunisia, Sierra Leone, Zambia, Ghana, Zimbabwe, Uganda, Angola, Ethiopia, Senegal, Algeria,
Asia-Pacific: Australia, New Zealand, Indonesia, Malaysia, Singapore, South Korea, Thailand, Vietnam, the Philippines, Hong Kong, Macao, Taiwan, Myanmar, India, Mongolia, Cambodia, Laos, Bangladesh, Nepal, Sri Lanka,
America: Canada, Argentina, Chile, Paraguay, Uruguay, El Salvador, Bolivia, Colombia, Brazil, Ecuador, Peru, Mexico, Panama, Costa Rica, Trinidad and Tobago, the Dominican Republic, Guatemala,
Europe: Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, the Republic of North Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, the UK, Ireland, Germany, Italy, Austria, Israel, Palestinian, Belgium, Luxembourg, Albania, Kosovo, Serbia, Romania, Montenegro, Denmark, Finland, Sweden, Slovenia, Portugal, Malta, Cyprus, Iceland, Liechtenstein, Bosnia and Herzegovina,
Russian-Speaking Regions: Azerbaijan, Belarus, Kazakhstan, Lithuania, Georgia, Estonia, Latvia, Russia, Ukraine, Moldova, Uzbekistan, Kyrgyzstan, Armenia, Turkmenistan, Tajikistan
Accuracy (Under recommended installation and lighting conditions)Capture rate > 99%,
Vehicle moving direction recognition accuracy > 98.5%,
LPR accuracy > 98%,
Mistaken capture rate < 2%
No License Plate DetectionSupported
Motorcycle LPRSupported
Vehicle TypeCar/Van/Bus/Truck/Light Truck/SUV_MPV/Pickup/Pedestrian/Motorcycle/Tricycle
Vehicle ColorRed, yellow, green, blue, pink, purple, cyan, brown, white, grey, black
Recognizable at daytime only.
Vehicle Manufacturer84 manufacturers: Hyundai, Toyota, KIA, Honda, Volkswagen, Benz, Nissan, Ford, Isuzu, BMW, Chevrolet, Mitsubishi, Renault, Opel, Suzuki, Skoda, Daewoo, Audi, Mazda, GAC HINO, Peugeot, SsangYong, Citroen, Fiat, Scania, MAN, Volvo, Lexus, Seat, Land Rover, Daihatsu,
Dongwo, Subaru, Iveco, MINI, JEEP, Porsche, Chery, Dodge, Chrysler, Acura, Alfa Romeo, Great Wall, Infiniti, Smart, Saic Maxus, JAC, Jaguar, GMC, Lincoln, JMC, SAAB, FAW, Yutong, Guangzhou Yunbao, Joylong, Geely, Cadillac, JBC, An‘kai, Haima, Foton, King Long, Dongfeng, Geely-Emgrand, Perodua, UD, BYD, Renault Samsung, Proton, HICOM, Malaysia_Unknown 1, Hyundai-Rohens, SsangYong-Old Version, Equus-Old Version, CNHTC, Rolls-Royce, Beiben Truck, Haval, Hino, Kia-Borrego, Chang‘an, Alfa, FORO
License Plate Color RecognitionCustomized to support
Driving on Lane Line DetectionSupported (only strobe light mode)
Lane Change DetectionSupported (only strobe light mode)
Wrong-Way Driving DetectionSupported
Emergency Lane OccupationSupported (truck forbidden lane, emergency lane, urban bus lane)
Seatbelt DetectionSupported (with flash supplement light)
Phone Call DetectionSupported (with flash supplement light)
Capture Speed Range10 to 320 km/h

General
Operating SystemLinux
PowerAC 100 V to 240 V, 1.5 A, max. 35 W, 3-core terminal block
MaterialAluminum alloy
Dimension525.7 mm × 175.7 mm × 142.2 mm (20.7″ × 6.92″ × 5.6″)
Package Dimension667 mm × 357 mm × 224 mm (26.26″ × 14.06″ × 8.82″)
Weight Approx. 5.13x kg (11.31x lb.)
With Package WeightApprox. 7.4x kg (16.31x lb.)
Operating Condition-40 °C to 70 °C (-40 °F to 158°F). Humidity: 5% to 95% (non-condensing)
Storage Condition-30 °C to +60 °C (-22 °F to +140 °F). Humidity 95% or less (Non-condensing)
General FunctionHeartbeat,Password protection,Three streams,Pixel counter
HeaterSupported
Language7 languages: English, Russian, Croatian, Korean, Russian, Traditional Chinese, Ukrainian, Thai

Approval
EMCCE-EMC: EN 55032: 2015/A11:2020+A1:2020, EN IEC61000-3-2: 2019/A1:2021, EN 61000-3-3: 2013+A1:2019/A2:2021, EN 50130-4: 2011 +A1: 2014
SafetyCB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017,CB: IEC 62368-1: 2018+A11
EnvironmentCE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006
ProtectionIK10: IEC 62262:2002,IP66: IEC 60529-2013
