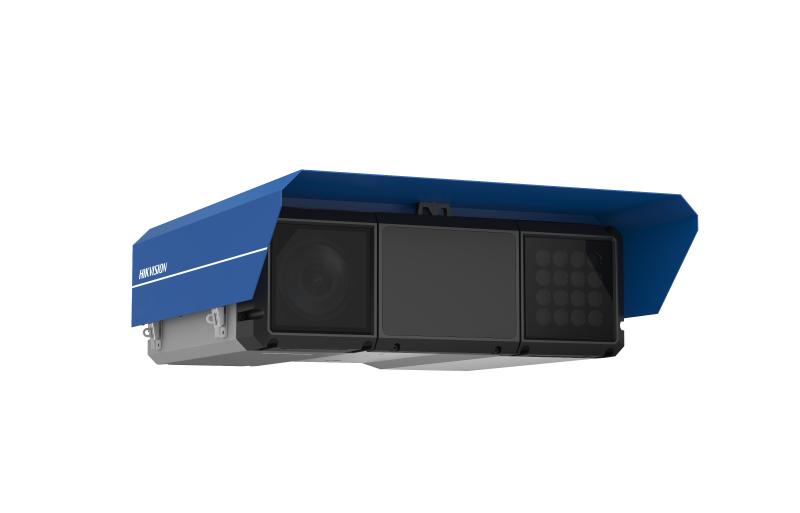

5 MP IR ANPR Yoxlama Nöqtəsi Tutma Qurğusu
5 MP IR ANPR Yoxlama Nöqtəsi Tutma Qurğusu
Sorğu əsasında
Qiymət sorğusuImage Sensor | 9 MP (1” GMOS) |
Max. Resolution | 4096 × 2160 |
Min. Illumination | Color: 0.001 Lux@(F1.4, AGC ON), B/W: 0.0005 Lux@(F1.4, AGC ON), 0 Lux with IR |
Shutter Time | 50 us-20000 us |
Day & Night | IR cut filter |
Lens Type | Varifocal lens, manual adjustment, 11 to 40 mm,;Varifocal lens, motorized lens, 11 to 40 mm |
Focal Length & FOV | 11 to 40 mm, horizontal FOV 61.8° to 23.5°, vertical FOV 32.4° to 12.2°, diagonal FOV 70.0° to 26.8° |
Focus | Manual,(AF)Model: Auto |
Aperture | F1.6-25,(AF)model: F1.6 |
Built-in Supplement Light Type | IR light |
Light Bead | 16 |
Built-in Supplement Light Range | Up to 40 m |
IR Wavelength | 850 nm |
External Supplement Light | Strobe and flash light |
Working Frequency | 24.05 to 24.25 GHz |
Modulation Waveform | FMCW |
Antenna Beam Width | 35° × 16° |
Detection Distance | 40 m |
Speed Measuring Range | 10 to 320 km/h |
Max. Detectable Targets | Up to 32 |
Speed Measuring Accuracy | ±2 km/h |
Coverage Lanes | Up to 3 lane(s) |
Capture Rate | ≥ 95% |
Trigger Mode | Approaching direction,Leaving direction,Bidrection |
Main Stream | ;50 Hz: 50 fps (4096 × 2160, 3840 × 2160, 3392 × 2008, 3072 × 1728, 2688 × 1520, 1920 × 1200, 1920 × 1080, 1280 × 720);60 Hz: 30 fps (4096 × 2160, 3840 × 2160, 3392 × 2008, 3072 × 1728, 2688 × 1520, 1920 × 1200, 1920 × 1080, 1280 × 720) |
Sub-Stream | ;50 Hz: 50 fps (3392 × 2008, 2688 × 1520, 1920 × 1080, 1280 × 720, 704 × 576);60 Hz: 30 fps (3392 × 2008, 2688 × 1520, 1920 × 1080, 1280 × 720, 704 × 576) |
Third Stream | ;50 Hz: 50 fps (1920 × 1080, 1280 × 720, 704 × 576);60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 576) |
Video Compression | Main stream: H.265/H.264/MJPEG,;Sub-stream: H.265/H.264/MJPEG,;Third stream: H.265/H.264/MJPEG |
Video Bit Rate | 32 Kbps to 16 Mbps |
H.264 Type | Baseline profile/Main profile/High profile |
H.265 Type | Main profile |
Protocols | TCP/IP,ICMP,HTTP,HTTPS,FTP,DNS,RTP,RTSP,RTCP,NTP,SNMP,IGMP,UDP,IPv4/IPv6,ISUP,ARP,DHCP,802.1X |
Simultaneous Live View | Up to 6 channels |
API | ONVIF (PROFILE S, PROFILE G, PROFILE T),ISAPI,SDK,ISUP |
User/Host | Up to 32 users;3 user levels: administrator, operator and user |
Security | Password protection,Complicated password,HTTPS encryption,802.1X authentication (EAP-PEAP, EAP-LEAP, EAP-MD5),Basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for ONVIF,Control timeout settings |
Network Storage | Micro SD/TF card (512 GB),Local storage,CVR,NVR,ANR |
Client | iVMS-4200 (Only for live view and LPR information search),Hik-Central Master,Hik-Central Pro,HikCentral Master Lite |
Web Browser | Chrome V61+, IE9 to IE11, Firefox V41+, Edge |
Image Settings | Saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser. |
Day/Night Switch | Auto,Schedule,Manual |
SNR | 60 dB |
Image Enhancement | BLC, HLC, 3D DNR |
Satellite Positioning | Optional |
Ethernet Interface | 1 RJ45 10M/100M/1000M self-adaptive Ethernet interface |
On-Board Storage | Built-in memory card slot, supporting microSD/SDHC/SDXC card card, up to 512 GB |
Alarm | 6 output interfaces |
RS-485 | 1 RS-485 interface |
Basic Event | HDD Error, network disconnected, IP address conflicted, vehicle detector exception, traffic light detector exception |
Coverage | Up to 3 lane(s) |
Trigger Mode | External I/O trigger/Radar trigger/Video trigger |
Smart Function | License plate recognition;Vehicle type classification, vehicle color recognition, no-plate vehicle capture, moving direction detection |
LPR Countries/Regions | Middle East: The United Arab Emirates (Abu Dhabi, Ajman, Dubai, Fujairah, Ras Al Khaimah, Sharjah and Umm Al Quwain), Qatar, Iraq, Egypt, Jordan, Kuwait, Saudi Arabia, Pakistan, Oman, Lebanon, Bahrain,;Africa: Nigeria, Kenya, Ivory Coast , South Africa, Tanzania, Mauritius, Morocco, Tunisia, Sierra Leone, Zambia, Ghana, Zimbabwe, Uganda, Angola, Ethiopia, Senegal, Algeria,;Asia-Pacific: Australia, New Zealand, Indonesia, Malaysia, Singapore, South Korea, Thailand, Vietnam, the Philippines, Hong Kong, Macao, Taiwan, Myanmar, India, Mongolia, Cambodia, Laos, Bangladesh, Nepal, Sri Lanka,;America: Canada, Argentina, Chile, Paraguay, Uruguay, El Salvador, Bolivia, Colombia, Brazil, Ecuador, Peru, Mexico, Panama, Costa Rica, Trinidad and Tobago, the Dominican Republic, Guatemala,;Europe: Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, the Republic of North Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, the UK, Ireland, Germany, Italy, Austria, Israel, Palestinian, Belgium, Luxembourg, Albania, Kosovo, Serbia, Romania, Montenegro, Denmark, Finland, Sweden, Slovenia, Portugal, Malta, Cyprus, Iceland, Liechtenstein, Bosnia and Herzegovina,;Russian-Speaking Regions: Azerbaijan, Belarus, Kazakhstan, Lithuania, Georgia, Estonia, Latvia, Russia, Ukraine, Moldova, Uzbekistan, Kyrgyzstan, Armenia, Turkmenistan, Tajikistan |
Accuracy (Under recommended installation and lighting conditions) | Capture rate > 99%,;Vehicle moving direction recognition accuracy > 98.5%,;LPR accuracy > 98%,;Mistaken capture rate < 2% |
No License Plate Detection | Supported |
Motorcycle LPR | Supported |
Vehicle Type | Car/Van/Bus/Truck/Light Truck/SUV_MPV/Pickup/Pedestrian/Motorcycle/Tricycle |
Vehicle Color | Red, yellow, green, blue, pink, purple, cyan, brown, white, grey, black;Recognizable at daytime only. |
Vehicle Manufacturer | 84 manufacturers: Hyundai, Toyota, KIA, Honda, Volkswagen, Benz, Nissan, Ford, Isuzu, BMW, Chevrolet, Mitsubishi, Renault, Opel, Suzuki, Skoda, Daewoo, Audi, Mazda, GAC HINO, Peugeot, SsangYong, Citroen, Fiat, Scania, MAN, Volvo, Lexus, Seat, Land Rover, Daihatsu,;Dongwo, Subaru, Iveco, MINI, JEEP, Porsche, Chery, Dodge, Chrysler, Acura, Alfa Romeo, Great Wall, Infiniti, Smart, Saic Maxus, JAC, Jaguar, GMC, Lincoln, JMC, SAAB, FAW, Yutong, Guangzhou Yunbao, Joylong, Geely, Cadillac, JBC, An‘kai, Haima, Foton, King Long, Dongfeng, Geely-Emgrand, Perodua, UD, BYD, Renault Samsung, Proton, HICOM, Malaysia_Unknown 1, Hyundai-Rohens, SsangYong-Old Version, Equus-Old Version, CNHTC, Rolls-Royce, Beiben Truck, Haval, Hino, Kia-Borrego, Chang‘an, Alfa, FORO |
License Plate Color Recognition | Customized to support |
Driving on Lane Line Detection | Supported (only strobe light mode) |
Lane Change Detection | Supported (only strobe light mode) |
Wrong-way Driving Detection | Supported |
Emergency Lane Occupation | Supported (truck forbidden lane, emergency lane, urban bus lane) |
Seatbelt Detection | Supported (with flash supplement light) |
Phone Call Detection | Supported (with flash supplement light) |
Capture Speed Range | 10 to 320 km/h |
Operating System | Linux |
Power | DC 36 V ±20%, 2 A, max. 70 W, two-core terminal block |
Material | Aluminum alloy |
Dimension | 369.0 mm × 437.4 mm × 151.1 mm (15.59″ × 17.22″ × 5.95″) (L × W × H) |
Package Dimension | 535 mm × 500 mm × 390 mm (21.06″ × 19.68″ × 15.35″) (L × W × H) |
Weight | Approx. 8.00 kg (17.6 lb.) |
With Package Weight | Approx. 13.7 kg (30.2 lb.) |
Operating Condition | -30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (non-condensing) |
Storage Condition | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (Non-condensing) |
General Function | One-key reset, three streams, heartbeat, password protection, watermark |
Heater | Supported |
Language | 8 languages: English, Thai, Croatian, Korean, Russian, Traditional Chinese, Ukrainian, Spanish |
EMC | CE-EMC: EN 55032: 2015/A11:2020+A1:2020, EN IEC61000-3-2: 2019/A1:2021, EN 61000-3-3: 2013+A1:2019/A2:2021, EN 50130-4: 2011 +A1: 2014 |
Environment | CE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006 |
RF | CE-RED:EN 301489-1 V2.2.3, EN 301489-3 V2.1.1, EN 301489-17 V3.2.4，EN 301489-52 V1.2.1，EN 300440 V2.1.1, EN 302288-2 V1.6.1 |
Safety | CE-LVD: EN 62368-1: 2014+A11: 2017,CB: IEC 62368-1: 2018 |
Protection | IK10: IEC 62262:2002,IP66: IEC 60529-2013 |
