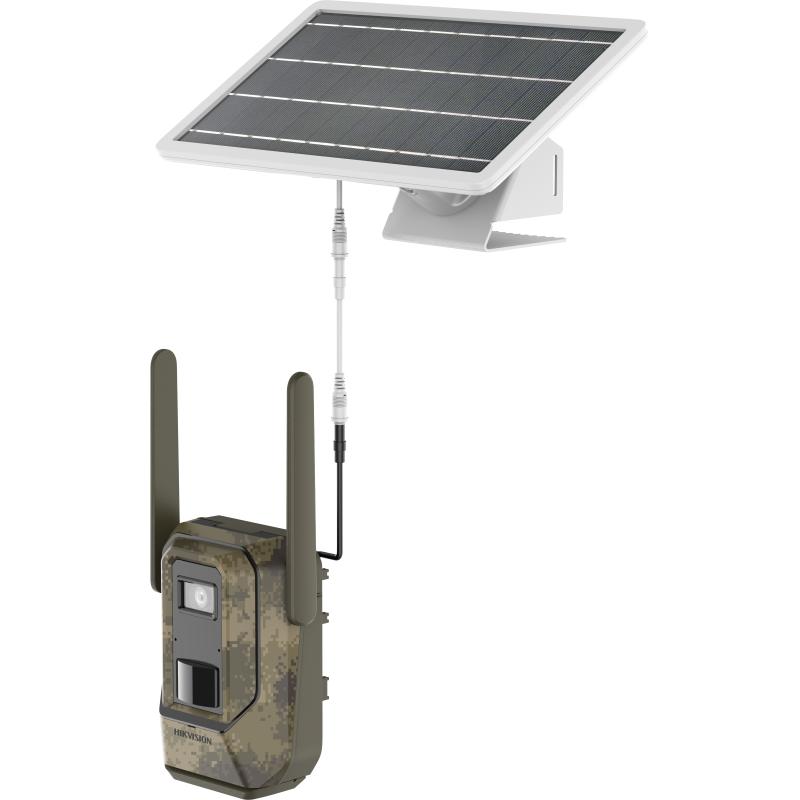

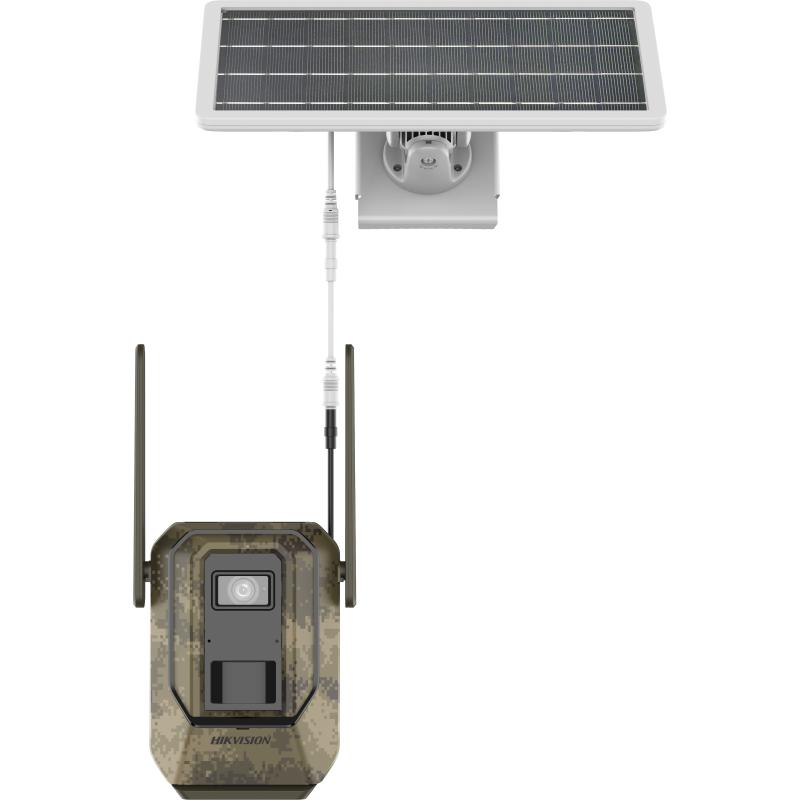

4 MP ColorVu günəş enerjili təhlükəsizlik PT kamera dəsti
4 MP ColorVu günəş enerjili təhlükəsizlik PT kamera dəsti
Sorğu əsasında
Qiymət sorğusu- Camera
- Image Sensor1/3″ Progressive Scan CMOS
- Max. Resolution2688 × 1520
- Min. IlluminationColor: 0.005 Lux @ (F1.2, AGC ON),B/W: 0.001 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR
- Shutter Time1 s to 1/100,000 s
- Day & NightIR cut filter
- Lens
- Focal Length & FOV
2.8 mm, horizontal FOV 103.6°, vertical FOV 57.2°, diagonal FOV 121.6°
4 mm, horizontal FOV 81.1°, vertical FOV 48.6°, diagonal FOV 90.6°
- ApertureF1.6
- Lens MountM12
- DORI
- DORI
2.8 mm: D: 63.6 m, O: 25.2 m, R: 12.7 m, I: 6.4 m
4 mm: D: 66.0 m, O: 26.2 m, R: 13.2 m, I: 6.6 m
- Illuminator
- Supplement Light TypeIR
- IR Wavelength850 nm
- Supplement Light RangeUp to 15 m
- Smart Supplement LightYes
- Video
- Main Stream
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- Video Compression Main stream: H.265
- Video Bit Rate32 Kbps to 8 Mbps
- H.265 TypeBaseline Profile,Main Profile,High Profile
- Bit Rate ControlCBR,VBR
- Scalable Video Coding (SVC)H.265
- Audio
- Environment Noise FilteringYes
- Audio Sampling Rate8 kHz/16 kHz/32 kHz/48 kHz
- Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio TypeMono sound
- Network
- Simultaneous Live ViewUp to 6 channels
- APIISAPI,SDK,ISUP
- ProtocolsTCP/IP, IPv6, DDNS, RTSP, HTTPS, HTTP, FTP, QoS, Bonjour, SNMP, WebSocket, WebSockets
- User/Host
Up to 32 users
3 user levels: administrator, operator, and user
- Network Storage
Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- ClientiVMS-4200,Hik-Connect
- Web Browser
Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
Local service: Chrome 57.0+, Firefox 52.0+, Safari 13+, Edge 89+
- Mobile Communication
- Frequency
LTE-TDD Band 38/40/41
LTE-FDD Band 1/3/5/7/8/20/28
WCDMA Band 1/5/8
GSM 850/900/1800MHz
- StandardLTE-TDD/LTE-FDD/WCDMA/GSM
- Image
- Day/Night SwitchDay,Night,Auto,Schedule
- Wide Dynamic Range (WDR)120 dB
- Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
- Image EnhancementBLC,HLC,Defog,3D DNR
- Image Parameters SwitchYes
- Image SettingsSaturation,brightness,contrast,sharpness,AGC,white balance,adjustable by client software or web browser
- SNR≥ 52 dB
- Transducer
- Transducer TypePIR
- Detection RangeUp to 15 m
- Detection Angle2.8 mm: Horizontal: 90° ± 5°, vertical: 25° ± 5°; 4 mm: Horizontal: 50° ± 5°, vertical: 20° ± 5°
- Satellite Positioning
- Satellite Positioning DetectionSupport GPS and searching longitude and latitude of the device
- Interface
- Built-in Microphone1 built-in microphone
- On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Ethernet Interface1 six-core 1.25 mm interface (it can be transferred as 1 12 VDC coaxial interface and 1 RJ 45 10 m/100 m self-adaptive Ethernet port)
- Reset Key
Yes,
Press to switch between performance mode and proactive mode. Hold the button for 10 sec to restore to defaults.
- Event
- Basic Event Exception,PIR Alarm
- LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording
- General
- Power6 to 8.4 VDC, 1.03 to 0.73 A, max. 6.2 W
- General FunctionHeartbeat,one-key reset,anti-banding,password protection,watermark, IP address filter
- MaterialPlastic
- DimensionWith antennas folded: 172.8 mm × 139.7 mm × 86.7 mm (6.8″ × 5.5″ × 3.4″), with antennas extending: 283.3 mm × 139.7 mm × 86.7 mm (11.2″ × 5.5″ × 3.4″)
- Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- Package Dimension477 mm × 257 mm × 253 mm (10.2″ × 8.5″ × 9.5″)
- Approx. 0.63 kg (1.39 lb.)
- With Package WeightApprox. 2.880 kg (6.35 lb.)
- Storage Conditions-20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions-20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing)
- Battery
- Battery TypeChargeable lithium battery
- Battery Voltage
Rated voltage: 7.2 VDC
Charging voltage: 8.4 VDC
Discharging cut-off voltage: 5.6 VDC
- Capacity9.4 Ah
- Operating Temperature-20 °C to 60°C (-4 °F to 140 °F)
- Cycle Lifetime
Cycle lifetime is calculated under the condition that the camera captures pictures 10 times per day (9 times during the day and 1 time at night), uploads once per day, and keeps alive for 3 hours per day with the ambient temperature at 25 °C (77 °F).
Cycle lifetime: 125 days
Make sure the battery is fully charged before using the device.
- Approval
- RFCE-RED: EN 301489-1 V2.2.3, EN 301489-17 V3.2.4, EN 301489-52 V1.2.1, EN 300 328 V2.2.2, EN IEC 62311:2020
- EMC
CE-EMC: EN 55032:2015+A11:2020+A1:2020,EN 50130-4:2011+A1:2014,
RCM: AS/NZS CISPR 32: 2015
- SafetyCB: IEC 62368-1: 2014+A11
- Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
- ProtectionIP67: IEC 60529-2013
