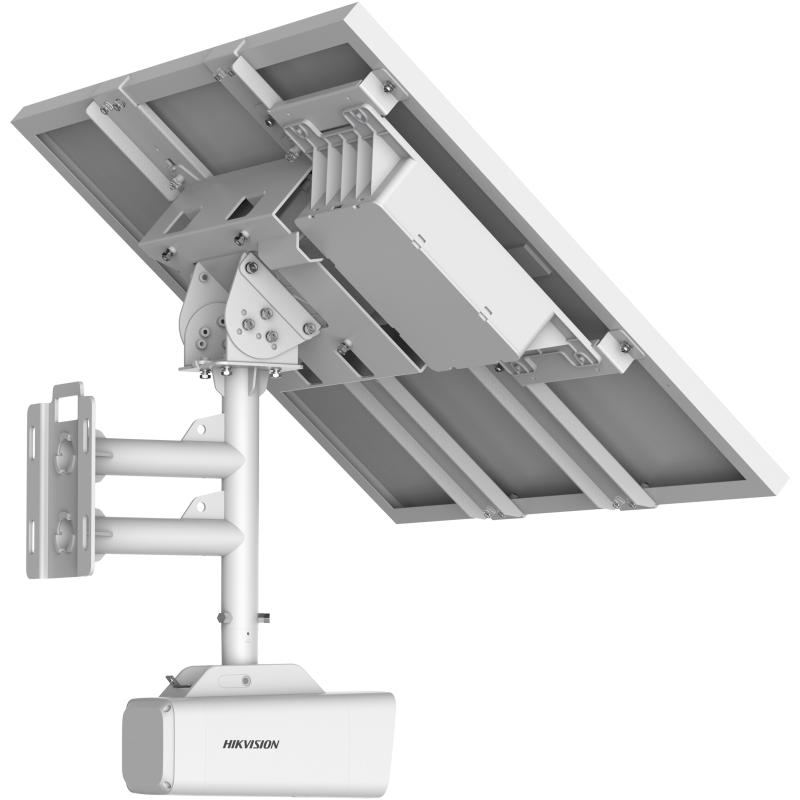

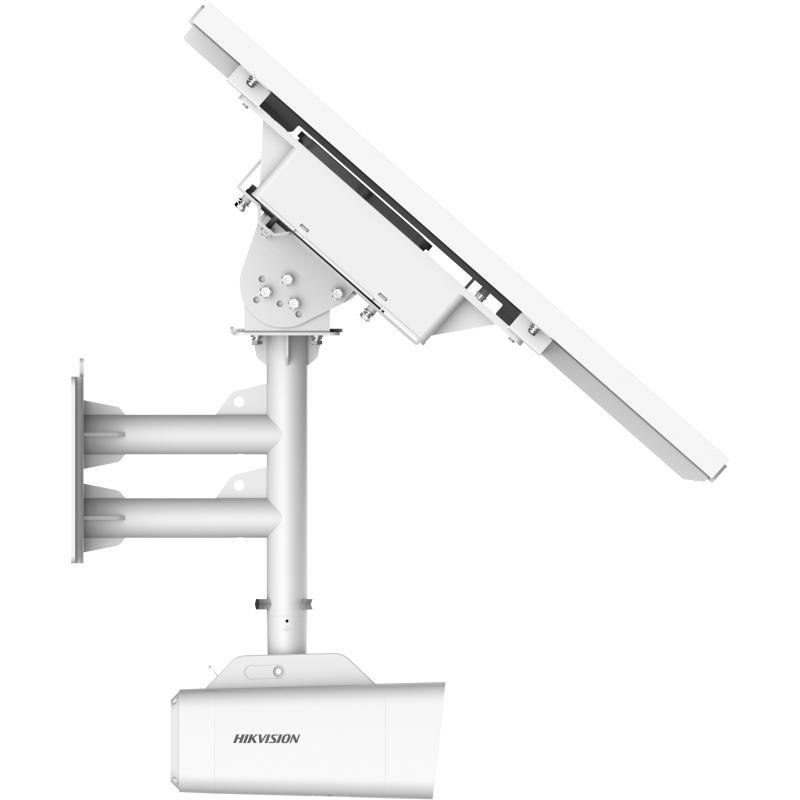

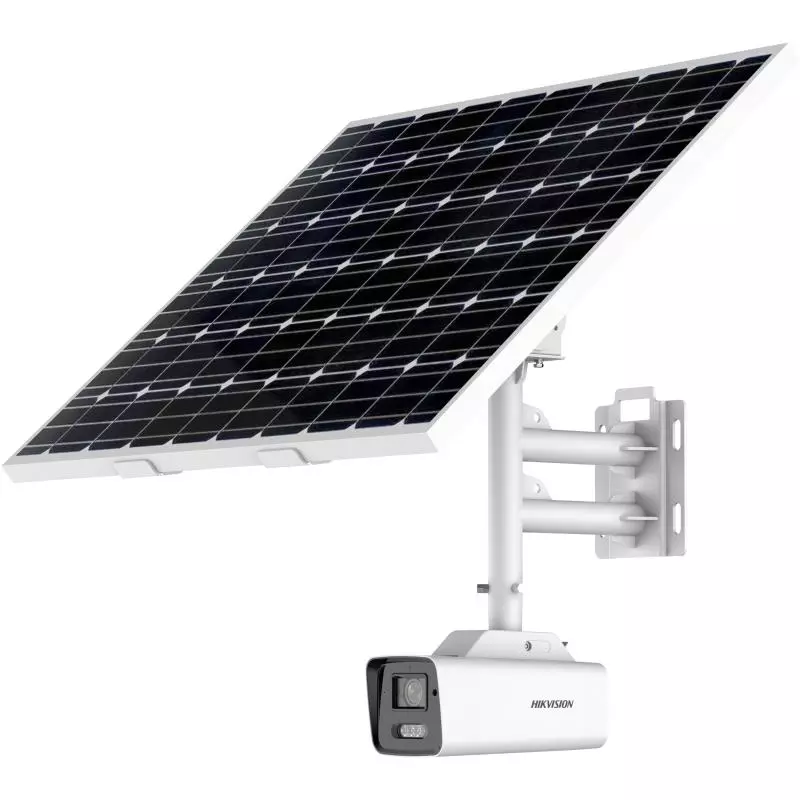

Hikvision DS-2XS6A87G1-L/C32S80(No battery)

Image Sensor

1/1.2″ Progressive Scan CMOS

Max. Resolution

3840 × 2160

Min. Illumination

Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0 Lux with white light

Shutter Time

1 s to 1/100,000 s

Focal Length & FOV

2.8 mm, horizontal FOV: 101.6°, vertical FOV: 52.4°, diagonal FOV: 124°;4 mm, horizontal FOV: 88.2°, vertical FOV: 48.7°, diagonal FOV: 101.8°

Lens Type

Fixed focal lens, 2.8 and 4 mm optional

Iris Type

Fixed

Aperture

F1.0

Lens Mount

M20

DORI

2.8 mm: D: 44 m, O: 17.5 m, R: 9 m, I: 4.5 m;4 mm: D: 53 m, O: 21 m, R: 11 m, I: 5 m

Supplement Light Type

White Light

Supplement Light Range

Up to 30 m

Smart Supplement Light

Yes

Main Stream

50 Hz: 12.5 fps (3840 × 2160, 2688 × 1520, 1920 × 1080, 1280 × 720);60 Hz: 15 fps (3840 × 2160, 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 12.5 fps (640 × 480, 640 × 360);60 Hz: 15 fps (640 × 480, 640 × 360)

Video Compression

Main stream: H.265;Sub-stream: H.265/MJPEG;*Full power mode: main stream supports H.265+

Video Bit Rate

32 Kbps to 16 Mbps

H.265 Type

Main Profile

Bit Rate Control

CBR/VBR

Scalable Video Coding (SVC)

H.265 encoding

Region of Interest (ROI)

4 fixed regions for main stream

Simultaneous Live View

Up to 6 channels

API

Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS

User/Host

Up to 32 users. 3 user levels: administrator, operator and user

Security

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, TLS 1.2

Network Storage

NAS (NFS, SMB/CIFS), auto network replenishment (ANR);Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Client

Hik-Connect (low power mode also supports), Hik-central Professional

Web Browser

Plug-in required live view: IE 10+;Plug-in free live view: Chrome 57.0+, Firefox 52.0+;Local service: Chrome 57.0+, Firefox 52.0+

SIM Card Type

MicroSIM

Frequency

DS-2XS6A87G1-L/C32S80:; LTE-TDD: Band38/40/41; LTE-FDD: Band1/3/5/7/8/20/28; WCDMA: Band1/5/8; GSM: Band3/5/8;;DS-2XS6A87G1-L/C32S80 (US):;LTE-FDD: Band2/4/5/12/13/17/66/71;WCDMA: Band2/4/5;;DS-2XS6A87G1-L/C32S80 (LA):; LTE-TDD: Band38/40; LTE-FDD: Band1/2/3/4/5/7/8/12/17/20/28/66; WCDMA: Band1/2/3/4/5/8; GSM: Band2/3/5/8 ;;DS-2XS6A87G1-L/C32S80 (JP):; LTE-TDD: Band41; LTE-FDD: Band1/3/8/11/18/19/21/26/28; WCDMA: Band1/8;

Standard

DS-2XS6A87G1-L/C32S80: LTE-TDD/LTE-FDD/WCDMA/GSM;DS-2XS6A87G1-L/C32S80 (US): LTE-FDD/WCDMA;DS-2XS6A87G1-L/C32S80 (LA): LTE-TDD/LTE-FDD/WCDMA/GSM ;DS-2XS6A87G1-L/C32S80 (JP): LTE-TDD/LTE-FDD/WCDMA

Wide Dynamic Range (WDR)

120 dB

Day/Night Switch

Day, Night, Auto, Schedule

Image Enhancement

BLC, HLC, 3D DNR

Image Parameters Switch

Yes

Image Settings

Saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

SNR

≥ 52 dB

Privacy Mask

4 programmable polygon privacy masks

RS-485

1 RS-485 (half duplex)

On-Board Storage

Built-in memory card slot, support microSD card, up to 256 GB;;Built-in 64 GB eMMC storage

Reset Key

Yes

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

Basic Event

Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)

Smart Event

Line crossing detection, up to 4 regions configurable;Intrusion detection, up to 4 regions configurable;Region entrance detection, up to 4 regions configurable;Region exiting detection, up to 4 regions configurable;Unattended baggage detection, up to 4 regions configurable;Object removal detection, up to 4 regions configurable,;The smart events are only supported under full power mode.

Linkage

Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture

Power

12 VDC ± 20%, Ø5.5 mm coaxial power plug;1. Standby power consumption: 53 mW;2. The average power consumption of 24 hours: 2 W (4G transmission is excluded).;3. The max. power consumption: 3.2 W

Material

Front cover: metal, body: metal, bracket: metal

Dimension

829.9 × 696.3 × 760 mm (32.7″ × 27.4″ × 30″) (Max. size of the camera after it is completely assembled)

Package Dimension

862 × 292 × 765 mm (33.9″ × 11.5″ × 30.1″)

Weight

Approx. 25.4 kg (56.0 lb.)

With Package Weight

Approx. 30.1 kg (66.3 lb.)

Storage Conditions

-20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing)

Language

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

General Function

Anti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via email, pixel counter

Battery Type

Lithium;*The battery should be ordered separately.

Capacity

30 Ah

Battery Voltage

10.8 V

Max. Output Voltage

12.6 V

Operating Temperature

Charging: -20 °C to 45 °C (-4 °F to 113 °F);Discharging: -20 °C to 60 °C (-4 °F to 140 °F)

Battery Life

More than 500 cycles

Battery Weight

Approx. 3.3 kg (7.3 lb.)

Extended Dimension

236 × 154 × 80 mm (9.3″ × 6.1″ × 3.2″)

EMC

CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011+A1: 2014); ;RCM (AS/NZS CISPR 32: 2015); ;FCC (47 CFR Part 15, Subpart B); ;IC (ICES-003: Issue 7)

RF

CE: CE-RED (EN 301908-1,EN 301908-2,EN 301908-13, EN 301511,EN 301489-1,EN 301489-52,EN 62133);;ICASA: same as CE-RED;FCC ID (47 CFR Part15 Subpart C); ;IC ID (RSS-132 Issue 3, RSS-133 Issue 6, RSS-139 Issue 3, RSS-130 Issue 2, RSS-102 Issue 5);;MIC (Article 49-6-4 and 49-6-5 the relevant articles and MIC Notice No. 1299 of the Ordinance Regulating Radio Equipment)

Safety

CB (IEC 62368-1:2014+A11);CE-LVD (EN 62368-1:2014/A11:2017);LOA (IEC/EN 60950-1)

Environment

CE-RoHS (2011/65/EU); ;WEEE (2012/19/EU); ;Reach (Regulation (EC) No 1907/2006)

Protection

Camera: IP67 (IEC 60529-2013);Wind resistance 12 level, up to 40 m/s wind speed resistance
