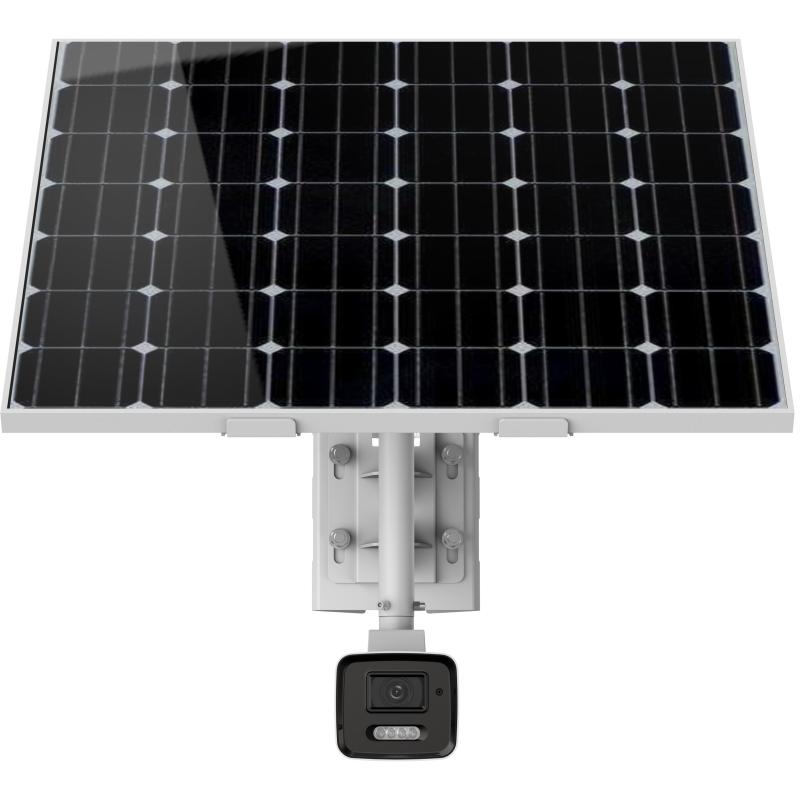

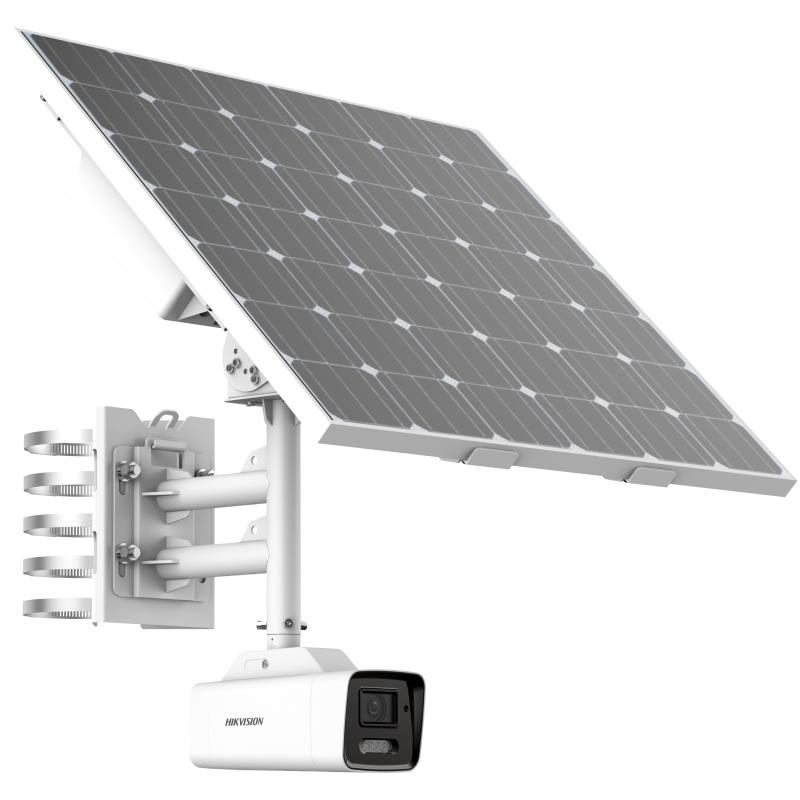

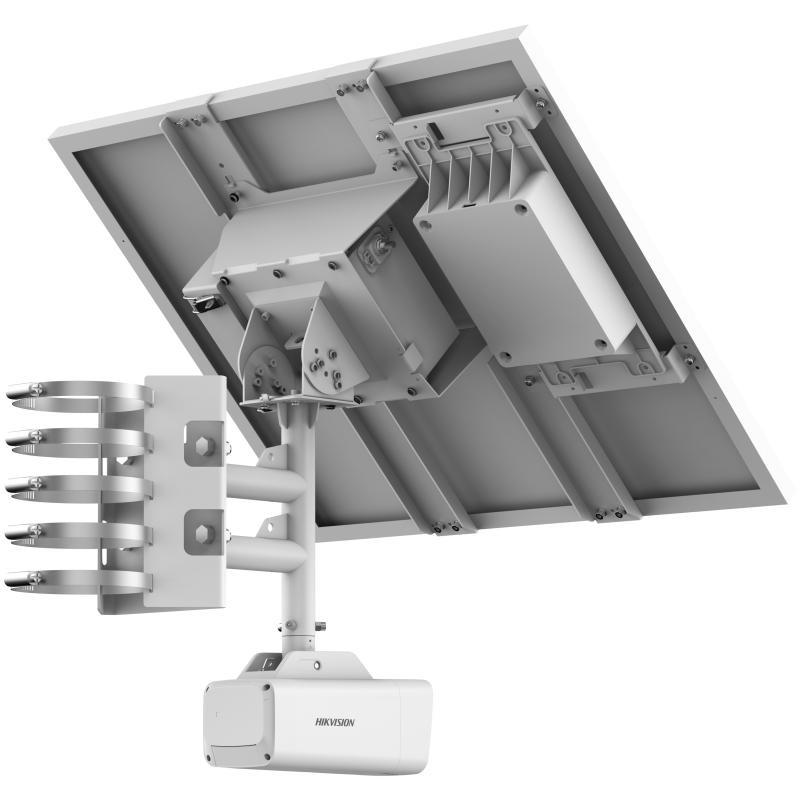

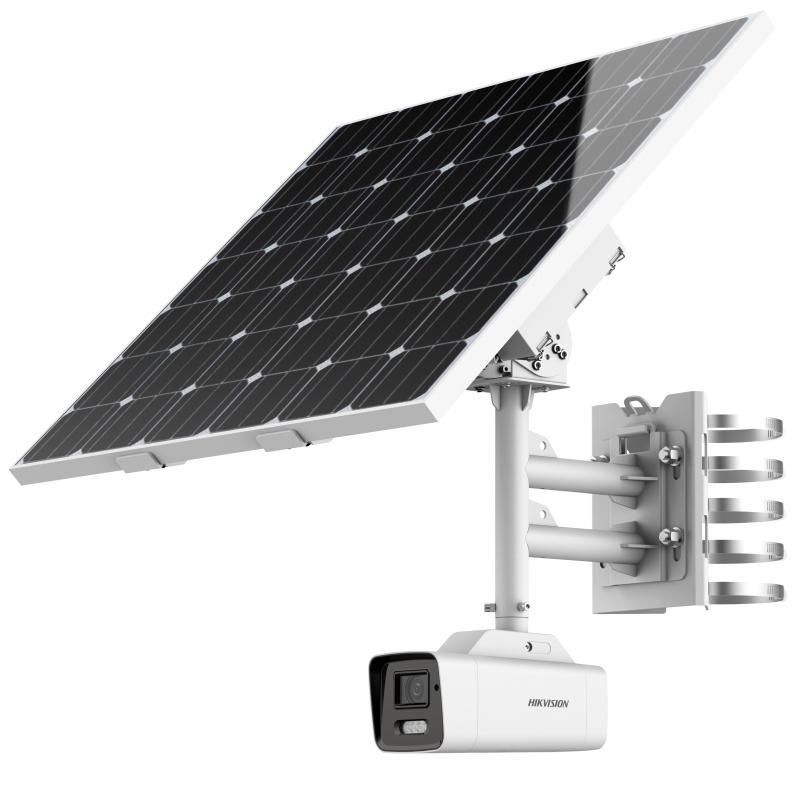

4 MP ColorVu günəş enerjili təhlükəsizlik PT kamera dəsti
4 MP ColorVu günəş enerjili təhlükəsizlik PT kamera dəsti
Sorğu əsasında
Qiymət sorğusu- Camera
- Image Sensor1/1.8″ Progressive Scan CMOS
- Max. Resolution2560 × 1440
- Min. IlluminationColor: 0.0005 Lux @ (F1.2, AGC ON), B/W: 0 Lux with light
- Shutter Time1 s to 1/100,000 s
- Lens
- Focal Length & FOV
2.8 to 12 mm, horizontal FOV 107.4° to 39.8°, vertical FOV 56° to 22.4°, diagonal FOV 130.1° to 45.7°
8 to 32 mm, horizontal FOV 40.3° to 14.5°, vertical FOV 22.1° to 8.2°, diagonal FOV 46.9° to 16.5°
- Lens TypeAuto, Semi-auto, Manual
- Iris TypeAuto-iris
- Aperture2.8 to 12 mm: F1.2, 8 to 32 mm: F1.6
- Lens MountAll In One Lens
- DORI
- DORI
2.8 to 12 mm:
Wide: D: 60.0 m, O: 23.8 m, R: 12.0 m, I: 6.0 m
Tele: D: 149.0 m, O: 59.1 m, R: 29.8 m, I: 14.9 m
8 to 32 mm:
Wide: D: 150.3 m, O: 59.7 m, R: 30.1 m, I: 15.0 m
Tele: D: 400 m, O: 158.7 m, R: 80 m, I: 40 m
- Illuminator
- Supplement Light TypeIR
- Supplement Light Range
2.8 to 12 mm: Up to 30 m
8 to 32 mm: Up to 50 m
- Smart Supplement LightYes
- Video
- Main Stream
Performance mode:
50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Proactive mode:
50 Hz: 12.5 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz: 15 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
- Sub-Stream
Performance mode:
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
Proactive mode:
50 Hz: 12.5 fps (640 × 480, 640 × 360)
60 Hz: 15 fps (640 × 480, 640 × 360)
- Third Stream
50 Hz: 1 fps (1280 × 720, 640 × 480)
60 Hz: 1 fps (1280 × 720, 640 × 480)
- Video Compression
Main stream: H.264/H.265
Sub-stream: H.264/H.265/MJPEG
Third Stream: H.265/H.264
*Performance mode: main stream supports H.264+, H.265+
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseline Profile,Main Profile,High Profile
- H.265 TypeMain Profile
- Bit Rate ControlCBR/VBR
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region of Interest (ROI)4 fixed regions for main stream
- Audio
- Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Environment Noise FilteringYes
- Network
- Simultaneous Live ViewUp to 6 channels
- APIOpen Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP, OTAP
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
- User/Host
Up to 32 users
3 user levels: administrator, operator, and user
- SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, TLS 1.2, TLS 1.3
- Network Storage
NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- ClientHik-Connect (proactive mode also supports), Hik-central Professional
- Web Browser
Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
- Mobile Communication
- SIM Card TypeMicroSIM
- Frequency
DS-2XS6A46G1-IZS/C36S80:
LTE-TDD: Band38/40/41
LTE-FDD: Band1/3/5/7/8/20/28
WCDMA: Band1/5/8
GSM: 850/900/1800 MHz
DS-2XS6A46G1-IZS/C36S80(US):
LTE-FDD: Band2/4/5/12/13/66/71
WCDMA: Band2/4/5
DS-2XS6A46G1-IZS/C36S80(LA):
LTE-TDD: Band38/40
LTE-FDD: Band1/2/3/4/5/7/8/12/17/28/66
WCDMA: Band1/2/3/4/5/8
GSM: 850/900/1800/1900 MHz
DS-2XS6A46G1-IZS/C36S80(JP):
LTE-TDD: Band41
LTE-FDD: Band1/3/8/11/18/19/21/26/28
WCDMA: Band1/6/8/19
- Standard
DS-2XS6A46G1-IZS/C36S80: LTE-TDD/LTE-FDD/WCDMA/GSM
DS-2XS6A46G1-IZS/C36S80 (US): LTE-FDD/WCDMA
DS-2XS6A46G1-IZS/C36S80 (LA): LTE-TDD/LTE-FDD/WCDMA/GSM
DS-2XS6A46G1-IZS/C36S80 (JP): LTE-TDD/LTE-FDD/WCDMA
- Image
- Wide Dynamic Range (WDR)120 dB
- Day/Night SwitchDay, Night, Auto, Schedule
- Image EnhancementBLC, HLC, 3D DNR, Defog
- Image Parameters SwitchYes
- Image SettingsSaturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
- SNR≥ 52 dB
- Privacy Mask4 programmable polygon privacy masks
- Satellite Positioning
- Satellite Positioning DetectionGPS
- Interface
- Audio
1 input (line in), max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output (line out), max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
- Alarm 1 input, 1 output (max. 12 VDC, 1 A)
- On-Board Storage
Built-in memory card slot, support microSD card, up to 256 GB,
Built-in 256 GB eMMC storage (256 GB device model supports),
Built-in 512 GB SSD storage (512 GB device model supports),
Built-in 1 TB SSD storage (1 TB device model supports)
- Reset KeyYes
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- Power Output12 VDC, max. 1000 mA
- Event
- Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD error)
- Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection, scene change detection, face detection
- LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning
- General
- Power
12 VDC ± 20%, 4-pin M8 waterproof connector
1 TB/512 GB device model:
1. Standby power consumption: 45 mW
2. The average power consumption of 24 hours (4G transmission is excluded): 4.5 W
3. The max. power consumption: 20 W (6 W if without 12 V load)
Other device model:
1. Standby power consumption: 45 mW
2. The average power consumption of 24 hours (4G transmission is excluded): 3 W
3. The max. power consumption: 18 W (6 W if without 12 V load)
- MaterialFront cover: metal, body: metal, bracket: metal
- Dimension816.2 mm × 735.9 mm × 760 mm (32.1″ × 28.9″ × 29.9″) (Max. size of the camera after it is completely assembled)
- Package Dimension862 mm × 352 mm × 762 mm (33.9″ × 13.9″ × 30.0″)
- Approx. 26.450 kg (58.3 lb.)
- With Package WeightApprox. 32.715 kg (72.1 lb.)
- Storage Conditions-20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions-20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General FunctionAnti-banding, heartbeat, mirror, flash log, password reset via email, pixel counter
- Battery
- Battery TypeLithium
- Capacity360 Wh (90 Wh for each battery)
- Battery Voltage 10.8 V
- Max. Output Voltage12.6 V
- Operating Temperature
Charging: -20 °C to 45 °C (-4 °F to 113 °F)
Discharging: -20 °C to 60 °C (-4 °F to 140 °F)
- Battery LifeMore than 500 cycles
- Cycle Lifetime
Proactive mode: 5 days, Standby mode: 80 days
*in cloudy/rainy days (25 °C)
- Battery WeightApprox. 2.74 kg (6.0 lb.) (0.685 kg (1.5 lb.) for each battery)
- Approval
- EMC
CE-EMC/UKCA (EN 55032:2015+A11:2020+A1:2020,EN 50130-4:2011+A1:2014);
RCM (AS/NZS CISPR 32: 2015);
IC (ICES-003: Issue 7)
- RF
CE-RED/UKCA (EN 301908-1,EN 301908-2,EN 301908-13, EN 301511,EN 301489-1,EN 301489-52,EN 62133);
ICASA: same as CE-RED;
IC ID (RSS-132 Issue 3, RSS-133 Issue 6, RSS-139 Issue 3, RSS-130 Issue 2, RSS-102 Issue 5);
MIC (Article 49-6-4 and 49-6-5 the relevant articles and MIC Notice No. 1299 of the Ordinance Regulating Radio Equipment)
- Safety
CB (IEC 62368-1:2014+A11)
CE-LVD/UKCA (EN 62368-1:2014/A11:2017)
LOA (IEC/EN 60950-1)
- Environment
CE-RoHS (2011/65/EU);
WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)
- Protection
Camera: IP66 (IEC 60529-2013)
Wind resistance 12 level, up to 40 m/s wind speed resistance
